240 volt 4800 watts JT2000 bread conveyor toaster

CT4-2402000

240 volt 4800 watts JT2000 bread conveyor toaster

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$2666.40 MSRP

$4,444.00 List Price

Vollrath Conveyor Toasters feature industry-leading design technology and are made in the USA. Forced convection and energy-efficient quartz heaters provide consistent toasting of bread products.

240V
2000 slices/hour
14 ½” conveyor
Suggested for high volume applications
1 ¾” product opening
Bread/Bagel mode toggle to quickly switch between one-sided and two-sided toasting
Extended load area keeps user’s hands farther from heat source.
Forced convection toasting promotes uniform results and energy efficiency
Energy efficient, fast reacting, quartz heaters
Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows unit to quickly return to full power
Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.

Product Specifications

Model Information

Name	Value
Model	JT2000
UPC	671080705750

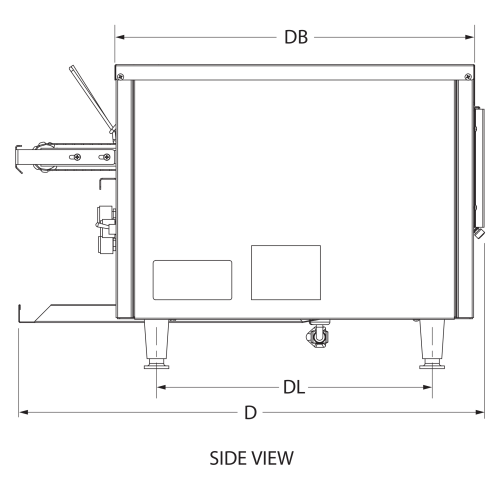

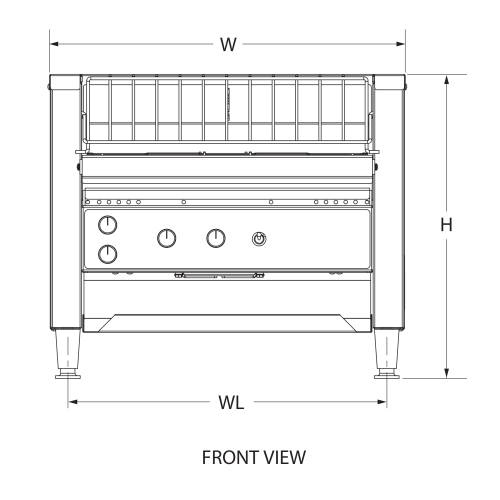

Unit Dimensions

Name	Value
Overall Dimensions (IN)	14.5 x 23.625 x 13.125
(W) Width (IN)	18.06
(D) Depth (IN)	23.62
(H) Height (IN)	15.43
(WL) Width between legs	16.187
(DL) Depth between legs	14
Product Opening Dimensions (IN)	1.75
(DB) Depth of Body (IN)	18.25
Conveyor Width (IN)	14.5
Overall Dimensions (CM)	36.8 x 60 x 33.3
(W) Width (CM)	45.9
(D) Depth (CM)	60
(H) Height (CM)	39.3
(WL) Width between legs (CM)	41.2
(DL) Depth between legs (CM)	35.6
Product Opening Dimensions (CM)	4.4
(DB) Depth of Body (CM)	46.4
Conveyor Width (CM)	36.8

Electrical

Name	Value
Amps	20
Cord Length (IN)	54
Cord Length (CM)	140
Hz	60
Plug	NEMA 6-30P
Voltage	240
Watts	4800

Construction

Name	Value
Countertop or Drop-In	Countertop
Food Type	Standard Breads, Buns, Bagels

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	24
Case Height	19
Case Length	19
Case Lot Cube (ft.)	5.01
Case Lot Weight (lbs.)	55

Product Parts

Name	Part #	Price
CORD FAN HP-75.24-A	B401060	$14.50
SILVER PUSH-ON KNOB W/SET SCRW	B405019	$17.90
MOTOR DRIVE 208/240V RMS 344	B401201	$239.70
LEG 2 1/2" METAL PLATED	B400303	$35.00
SILVER PUSH-ON KNOB	B405018	$9.80
LABEL RESET CT4	B401425	$8.50
CT4-2000 NOSE GUARD	B300807	$52.10
SHAFT IDLER	B401349	$72.50
SWITCH FAN CERAMIC	B401107	$49.70
CORD POWER 12/3 60" 6-30P	B401051	$69.70
CT4 SIDE PANEL	B300037	$54.60
32-TOOTH SPROCKET	B401302	$100.60
TERMINAL BLOCK 5 POSITION	B401033	$18.80
GUARD FAN	B401220	$10.40
SWITCH 240 V	B401102	$54.80
FRONT BEARING SPRING-LOADED	B401352	$28.90
CT4 18" TOAST CHUTE	B300013	$105.80
SWITCH TOGGLE ON/ON 15A	B401116	$83.90
CT4 18" LOAD-UP WIRE RACK	B400382	$35.90
WIRE CONVERYOR BELT 14"X40"	B204279	$214.40
SHAFT DRIVE 14.5"	B401342	$62.60
2PK HEAT ELEM 15-3/8 80V 533W	59908	$211.20
11-TOOTH SPROCKET	B401301	$46.40
SPRING .038" DIA 1.500" LENGTH	B400261	$3.70
CT4-2000 CONTROL LABEL	B401415	$56.00
CONTROL SPEED 500 OHM CT4	B200901	$83.10
17.5" DRIVE CHAIN	B401381	$34.20
RESET SWITCH	B401100	$49.70
BEARING ASSEMBLY 5/16	B201100	$29.10
SWITCH ROTARY POWER SAVER	B401103	$68.60
TERMINAL BLOCK 2 POSITION	B401034	$6.80
MOTOR FAN	B401211	$97.80
STRGHT 12 GA STRAIN RLF BSHNG	B400321	$0.80
BEARING, TEFLON 5/16	B401355	$9.20
7/8 WIRE CLAMP	B400331	$1.20
CORD WARNING LABEL	B401404	$0.40
CT4H 18" HEAT SHUTTER	B300059	$19.50
CT4-2000 CRUMB TRAY ASSEMBLY	B205105	$120.90
1 1/4" SNAP BUSHING	B400330	$0.70
5/8 SNAP BUSHING	B400332	$0.10
