CT4-2401000

240-volt JT3 bread conveyor toaster

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$1992.96 MSRP

$3,321.60 List Price

This JT3 bread conveyor toaster by Vollrath is consistent, reliable and energy-efficient. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control and variable top and bottom heat controls help you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The standard 1 ½-inch product opening is great for bread slices or bun halves, and the 14 ½-inch-wide conveyor can fit up to 1000 items per hour. The durable stainless and aluminized steel exterior is built to last, and heavy-duty legs allow leveling adjustments to provide maximum stability on any countertop.

Designed for bread slices and bun halves
Variable-speed control and variable top and bottom heat controls help you achieve desired results
Forced convection ensures even toasting
Quartz heating elements respond quickly and save energy
Durable stainless and aluminized steel is built to last
Maintenance-free drive system simplifies operation and servicing
Standby mode reduces energy use up to 75 percent
14 ½-inch-wide conveyor fits up to 1000 items per hour
1 ½-inch product opening easily fits products

Product Specifications

Model Information

Name	Value
Model	JT3
UPC	671080705743

Unit Dimensions

Name	Value

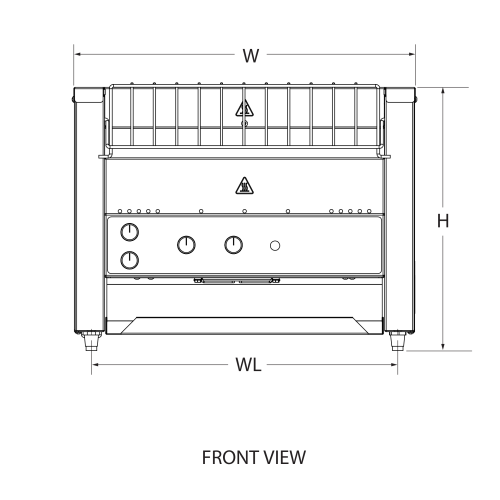

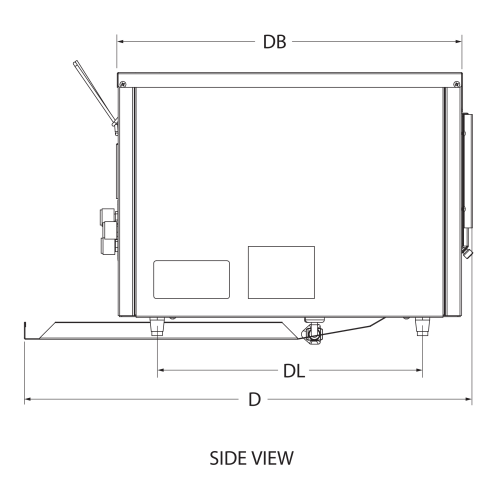

Overall Dimensions (IN)	18.062 x 23.75 x 14
(W) Width (IN)	18.06
(D) Depth (IN)	23.75
(H) Height (IN)	14
(WL) Width between legs	16.187
(DL) Depth between legs	14.062
Product Opening Dimensions (IN)	1.5
(D3) Housing Depth (IN)	18.25
(DB) Depth of Body (IN)	18.25
Conveyor Width (IN)	14.5
Overall Dimensions (CM)	45.9 x 60.3 x 35.6
(W) Width (CM)	45.9
(D) Depth (CM)	60.3
(H) Height (CM)	35.6
(WL) Width between legs (CM)	41.1
(DL) Depth between legs (CM)	35.7
Product Opening Dimensions (CM)	3.8
(D3) Housing Depth (CM)	46.4
(DB) Depth of Body (CM)	46.4
Conveyor Width (CM)	36.8

Electrical

Name	Value
Amps	15
Cord Length (IN)	54
Cord Length (CM)	140
Hz	60
Plug	NEMA 6-30P
Voltage	240
Watts	3600

Construction

Name	Value
Countertop or Drop-In	Countertop
Food Type	Standard Breads

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	24
Case Height	19
Case Length	19
Case Lot Cube (ft.)	5.01
Case Lot Weight (lbs.)	55

Product Parts

Name	Part #	Price
CORD FAN HP-75.24-A	B401060	$14.50
SPROCKET 25B17-8MM	B401300	$32.70
SHAFT IDLER 14.5"	B401343	$58.10
SILVER PUSH-ON KNOB W/SET SCRW	B405019	$17.90
MOTOR DRIVE 208/240V RMS 344	B401201	$239.70
SILVER PUSH-ON KNOB	B405018	$9.80
SPRING .038" DIA 2.462" LENGTH	B400260	$10.40
LABEL RESET CT4	B401425	$8.50
SWITCH FAN CERAMIC	B401107	$49.70
CORD POWER 12/3 60" 6-30P	B401051	$69.70
CT4 SIDE PANEL	B300037	$54.60
WIRE CONVEYOR BELT 14.5"X29.5"	B204277	$156.70
TERMINAL BLOCK 5 POSITION	B401033	$18.80
GUARD FAN	B401220	$10.40
SWITCH 240 V	B401102	$54.80
CT4 18" TOAST CHUTE	B300013	$105.80
2PK HEAT ELEM 15-3/8 120V 900W	59841	$211.20
CT4 18" LOAD-UP WIRE RACK	B400382	$35.90
CT4 18" CONTROL LABEL	B401402	$29.80
SHAFT DRIVE 14.5"	B401342	$62.60
CONTROL SPEED 500 OHM CT4	B200901	$83.10
BEARING FRONT SPRING LOADED	B401350	$18.80
RESET SWITCH	B401100	$49.70
CHAIN LADDER DRIVE 15"	B401388	$55.00
LEGS BLACK 1" 1/4-20	B400300	$19.00
CT4 18" CRUMB TRAY ASSEMBLY	B204278	$87.70
BEARING ASSEMBLY 5/16	B201100	$27.70
SWITCH ROTARY POWER SAVER	B401103	$65.30
TERMINAL BLOCK 2 POSITION	B401034	$6.50
MOTOR FAN	B401211	$93.10
STRGHT 12 GA STRAIN RLF BSHNG	B400321	$0.80
BEARING, TEFLON 5/16	B401355	$9.20
7/8 WIRE CLAMP	B400331	$1.20
CORD WARNING LABEL	B401404	$0.40
1 1/4" SNAP BUSHING	B400330	$0.70
5/8 SNAP BUSHING	B400332	$0.10
