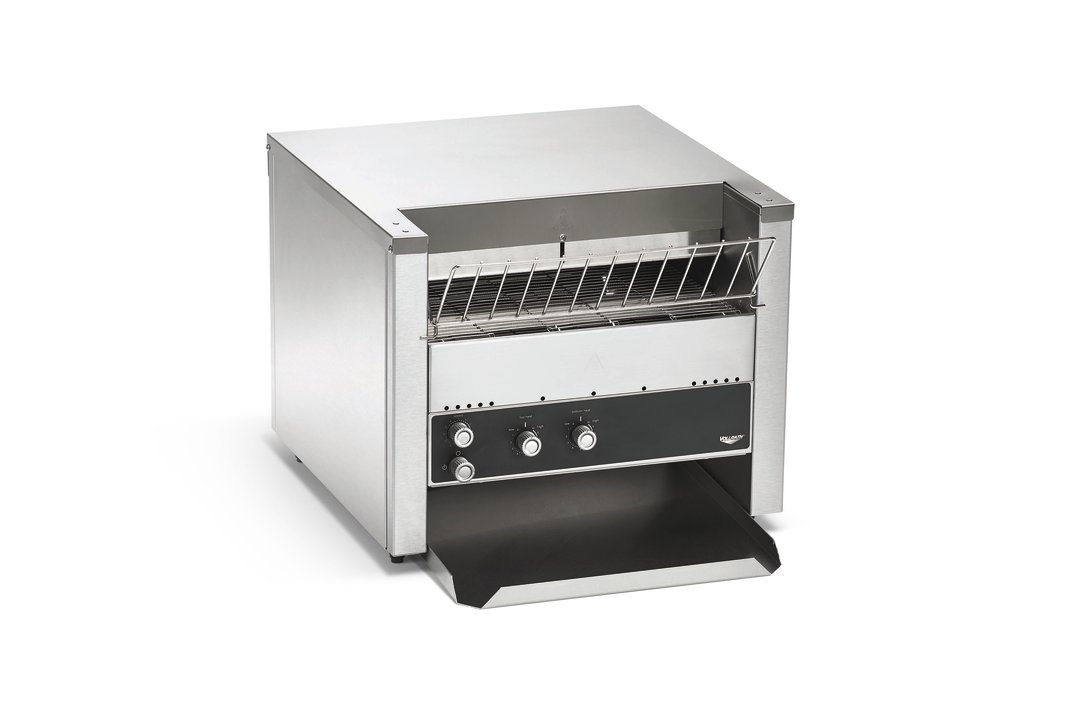

220-volt JT3H high-clearance bread conveyor toaster
220-volt JT3H high-clearance bread conveyor toaster

CT4H-220950

220-volt JT3H high-clearance bread conveyor toaster

  • 2 Year Parts
  • 1 Year Labor
  • Made in USA
  • Underwriter Laboratories

    This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$2092.50 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$3,487.50 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

This JT3H bread conveyor toaster by Vollrath is consistent, reliable and energy-efficient. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control and variable top and bottom heat controls help you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The adjustable 1 ½- to 3-inch product opening fits a variety of items, making this toaster ideal for bread, buns, bagels and more. The 14 ½-inch-wide conveyor can fit up to 950 items per hour. The durable stainless and aluminized steel exterior is built to last, and heavy-duty legs allow leveling adjustments to provide maximum stability on any countertop.

  • Designed for bread slices, bun and bagel halves
  • Variable-speed control and variable top and bottom heat controls help you achieve desired results
  • Forced convection ensures even toasting
  • Quartz heating elements respond quickly and save energy
  • Durable stainless and aluminized steel is built to last
  • Maintenance-free drive system simplifies operation and servicing
  • Standby mode reduces energy use up to 75 percent
  • 14 ½-inch-wide conveyor fits up to 950 items per hour
  • 1 ½- to 3-inch adjustable product opening easily fits bread, buns, bagels and other high-clearance items
  • Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.

Product Specifications

Engineering front view
Engineering side view
Model Information
Name Value
Model JT3H
UPC 671080705842
Unit Dimensions
Name Value
Overall Dimensions (IN) 18.062 x 23.75 x 15
(W) Width (IN) 18.06
(D) Depth (IN) 23.75
(H) Height (IN) 15
(WL) Width between legs 16.187
(DL) Depth between legs 14.062
Product Opening Dimensions (IN) 1.5 - 3
(D3) Housing Depth (IN) 18.25
(DB) Depth of Body (IN) 18.25
Conveyor Width (IN) 14.5
Overall Dimensions (CM) 45.9 x 60.3 x 38
(W) Width (CM) 45.9
(D) Depth (CM) 60.3
(H) Height (CM) 38
(WL) Width between legs (CM) 41.1
(DL) Depth between legs (CM) 35.7
Product Opening Dimensions (CM) 3.8 - 7.6
(D3) Housing Depth (CM) 46.4
(DB) Depth of Body (CM) 46.4
Conveyor Width (CM) 36.8
Electrical
Name Value
Amps 16.4
Cord Length (IN) 54
Cord Length (CM) 140
Hz 60
Plug NEMA 6-30P
Voltage 220
Watts 3600
Construction
Name Value
Countertop or Drop-In Countertop
Food Type Standard Breads, Specialty Breads, Buns, Bagels
Case Lot Measurement
Name Value
Case Lot 1
Case Width 24
Case Height 19
Case Length 19
Case Lot Cube (ft.) 5.01
Case Lot Weight (lbs.) 55
Product Parts
Name Part # Price
CORD FAN HP-75.24-A B401060 $13.80
SPROCKET 25B17-8MM B401300 $31.10
SHAFT IDLER 14.5" B401343 $55.30
MOTOR DRIVE 208/240V RMS 344 B401201 $228.30
SILVER PUSH-ON KNOB B405018 $9.30
SPRING .038" DIA 2.462" LENGTH B400260 $9.90
SILVER PUSH-ON KNOB W/SET SCRW B405019 $17.00
2PK HEAT ELEM 15-3/8 110V 900W 59840 $189.50
CORD POWER 12/3 60" 6-30P B401051 $66.40
TERMINAL BLOCK 5 POSITION B401033 $17.90
GUARD FAN B401220 $9.90
SWITCH 240 V B401102 $52.20
LABEL RESET CT4 B401425 $8.22
SWITCH FAN CERAMIC B401107 $47.30
CT4 18" TOAST CHUTE B300013 $100.78
WIRE CONVEYOR BELT 14.5"X29.5" B204277 $149.20
CONTROL SPEED 500 OHM CT4 B200901 $79.10
BEARING FRONT SPRING LOADED B401350 $17.90
CT4 18" LOAD-UP WIRE RACK B400382 $34.20
CT4 18" CONTROL LABEL B401402 $28.40
BEARING ASSEMBLY 5/16 B201100 $27.70
LEGS BLACK 1" 1/4-20 B400300 $18.10
CT4 18" CRUMB TRAY ASSEMBLY B204278 $83.51
STRGHT 12 GA STRAIN RLF BSHNG B400321 $0.80
RESET SWITCH B401100 $47.30
CHAIN LADDER DRIVE 15" B401388 $52.40
BEARING, TEFLON 5/16 B401355 $8.84
SHAFT DRIVE 14.5" B401342 $60.20
MOTOR FAN B401211 $93.10
1 1/4" SNAP BUSHING B400330 $0.62
7/8 WIRE CLAMP B400331 $1.14
CORD WARNING LABEL B401404 $0.42
CT4H 18" HEAT SHUTTER B300059 $18.72
5/8 SNAP BUSHING B400332 $0.10
SWITCH ROTARY POWER SAVER B401103 $65.30
TERMINAL BLOCK 2 POSITION B401034 $6.50
