CT2H-120250

120-volt JT1H bread conveyor toaster

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$1194.54 MSRP

$1,990.90 List Price

This Vollrath® JT1H bread conveyor toaster is consistent, reliable, and energy-efficient. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control helps you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The 2½-inch product opening allows for toasting of larger items, making this toaster ideal for buns, bagels, and other high-clearance items. The 10½-inch-wide conveyor can fit up to 250 items per hour. The durable stainless and aluminized steel exterior is built to last, and heavy-duty legs allow leveling adjustments to provide maximum stability on any countertop.

Designed for bread slices and bun halves
Variable-speed control helps you achieve desired results
Forced convection ensures even toasting
Quartz heating elements respond quickly and save energy
Durable stainless and aluminized steel is built to last
Maintenance-free drive system simplifies operation and servicing
10½-inch-wide conveyor fits up to 250 items per hour
2½-inch product opening easily fits buns, bagels and other high-clearance items
Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.

Product Specifications

Model Information

Name	Value
Model	JT1H
UPC	671080683324

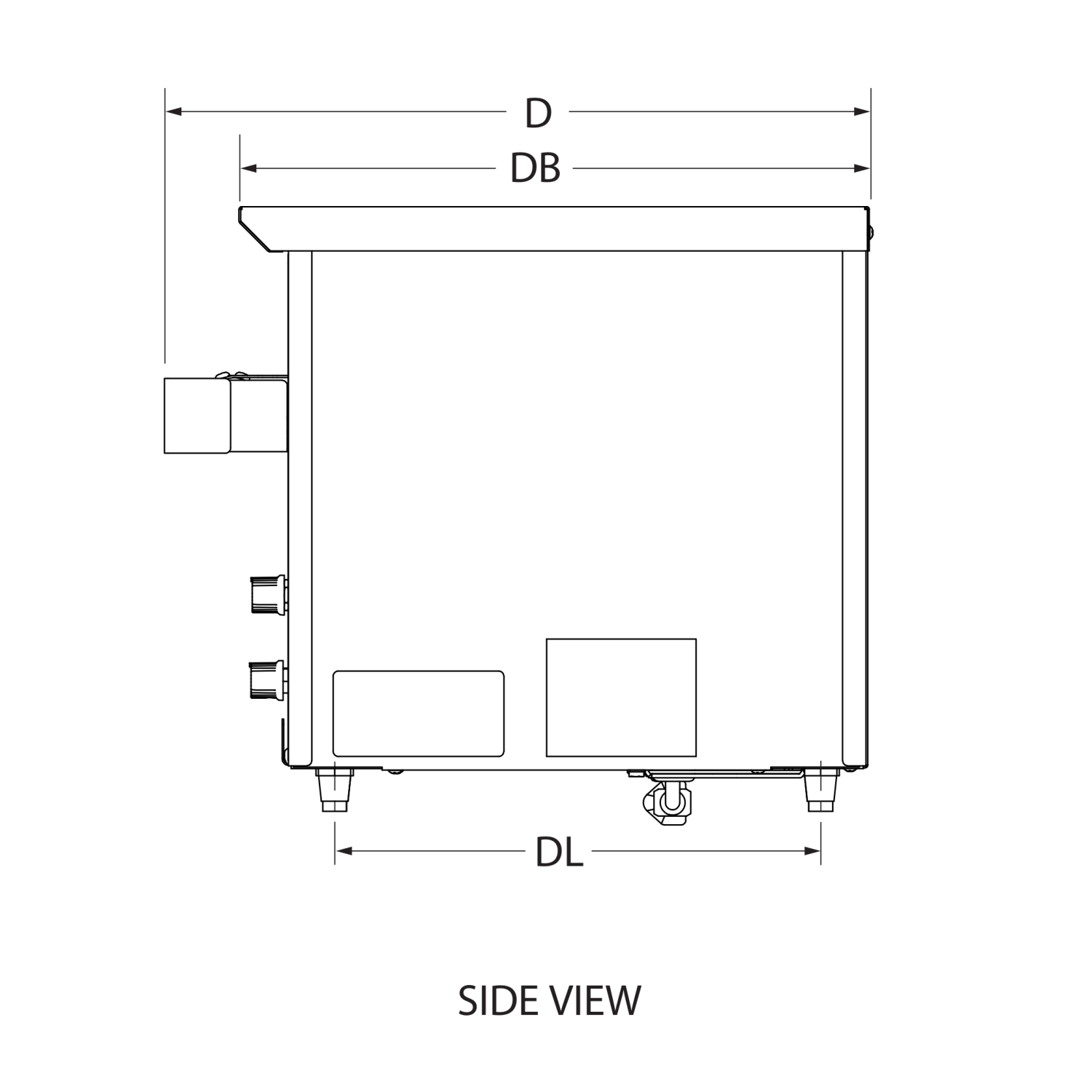

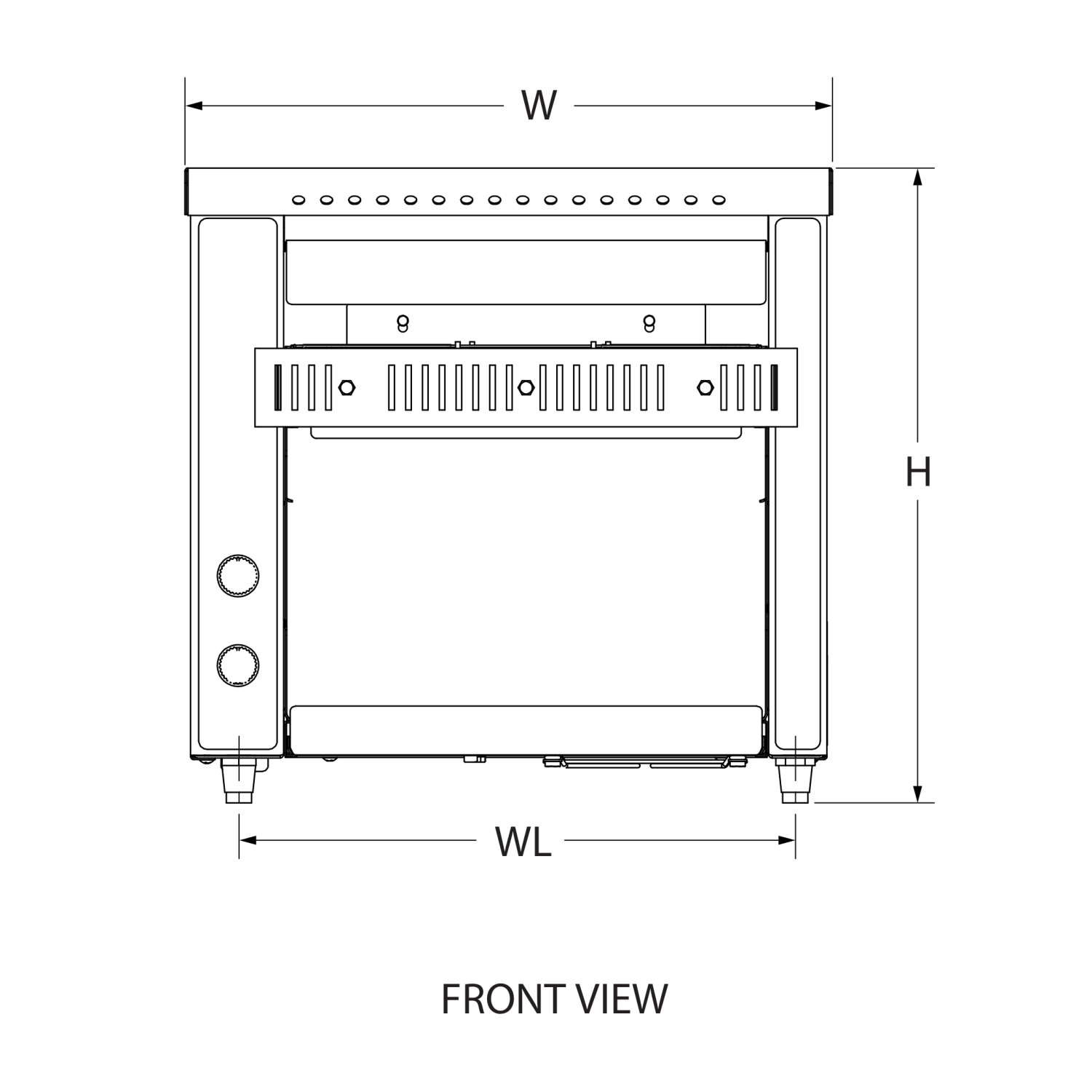

Unit Dimensions

Name	Value
Overall Dimensions (IN)	14.5 x 16.5 x 14.187
(W) Width (IN)	14.5
(D) Depth (IN)	16.5
(H) Height (IN)	14.18
(WL) Width between legs	12.437
(DL) Depth between legs	11.312
Product Opening Dimensions (IN)	1 - 2.125
(DB) Depth of Body (IN)	14.75
Conveyor Width (IN)	10.5
Overall Dimensions (CM)	36.8 x 41.9 x 36
(W) Width (CM)	36.8
(D) Depth (CM)	41.9
(H) Height (CM)	36
(WL) Width between legs (CM)	31.6
(DL) Depth between legs (CM)	28.7
Product Opening Dimensions (CM)	2.5 - 7.6
(DB) Depth of Body (CM)	37.5
Conveyor Width (CM)	26.7

Electrical

Name	Value
Amps	13.3
Cord Length (IN)	54
Cord Length (CM)	140
Hz	60
Plug	NEMA 5-15P
Voltage	120
Watts	1600

Construction

Name	Value
Construction Material	Stainless Steel
Construction Material 2	Aluminized Steel
Construction Material 3	Electrical Components
Countertop or Drop-In	Countertop
Material Type	Metals
Food Type	Standard Breads, Specialty Breads, Buns, Bagels

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	19
Case Height	16
Case Length	23
Case Lot Cube (ft.)	4.05
Case Lot Weight (lbs.)	43

Product Parts

Name	Part #	Price
CORD FAN HP-75.24-A	B401060	$14.50
SPROCKET 25B17-8MM	B401300	$32.70
SILVER PUSH-ON KNOB W/SET SCRW	B405019	$17.90
14 Ga Straight Strain Relief	B400320	$8.00
JT1H SWING SHUTTER	B300131	$21.50
SILVER PUSH-ON KNOB	B405018	$9.80
CONTROL SPEED 250 OHM CT2	B200902	$69.70
TRAY SLIDE OUT	B300115	$28.00
2PK HEAT ELEM 11-3/8 60V 400W	59843	$163.10
SHAFT DRIVE 10.5"	B401340	$83.10
MOTOR DRIVE 120V REVERSED 346	B401202	$235.80
CORD POWER 14/3 60" 5-15 PLUG	B401052	$68.60
MOTOR FAN	B401209	$127.80
TERMINAL BLOCK 5 POSITION	B401033	$18.80
GUARD FAN	B401220	$10.40
SHAFT IDLER 10.625" CT2	B401344	$95.00
FRONT BEARING SPRING-LOADED	B401352	$28.90
SPRING .038" DIA 1.500" LENGTH	B400261	$3.70
CURVED FRONT CT2/CT2H	B300133	$31.30
RESET SWITCH	B401100	$49.70
BELT WIRE CONVEYOR 10.5"X25"	B204272	$237.50
CHAIN DRIVE LADDER 19"	B401384	$45.00
LEGS BLACK 1" 1/4-20	B400300	$19.00
BEARING ASSEMBLY 5/16	B201100	$29.10
SWITCH ROTARY POWER SAVER	B401103	$68.60
CT2H CONTROL LABEL	B401109	$24.20
TERMINAL BLOCK 2 POSITION	B401034	$6.80
BEARING, TEFLON 5/16	B401355	$9.20
CORD WARNING LABEL	B401404	$0.40
SIDE PANEL CT2H	B300123	$47.40
1 1/4" SNAP BUSHING	B400330	$0.70
CT2 RESET LABEL	B401093	$6.20
LABEL 1 X 11.845	B405004	$9.70
