CT2-120350
120-volt JT1 bread conveyor toaster
-
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
This Vollrath® JT1 bread conveyor toaster is consistent, reliable and energy-efficient. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control helps you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The standard 1½-inch product opening is great for bread slices or bun halves, and the 10½-inch-wide conveyor can fit up to 350 items per hour. The durable stainless and aluminized steel exterior is built to last, and heavy-duty legs allow leveling adjustments to provide maximum stability on any countertop.
- Designed for bread slices and bun halves
- Variable-speed control helps you achieve desired results
- Forced convection ensures even toasting
- Quartz heating elements respond quickly and save energy
- Durable stainless and aluminized steel is built to last
- Maintenance-free drive system simplifies operation and servicing
- 10½-inch-wide conveyor fits up to 350 items per hour
- 1½-inch product opening easily fits products
Product Specifications
Model Information
Name | Value |
---|---|
Model | JT1 |
UPC | 671080683317 |

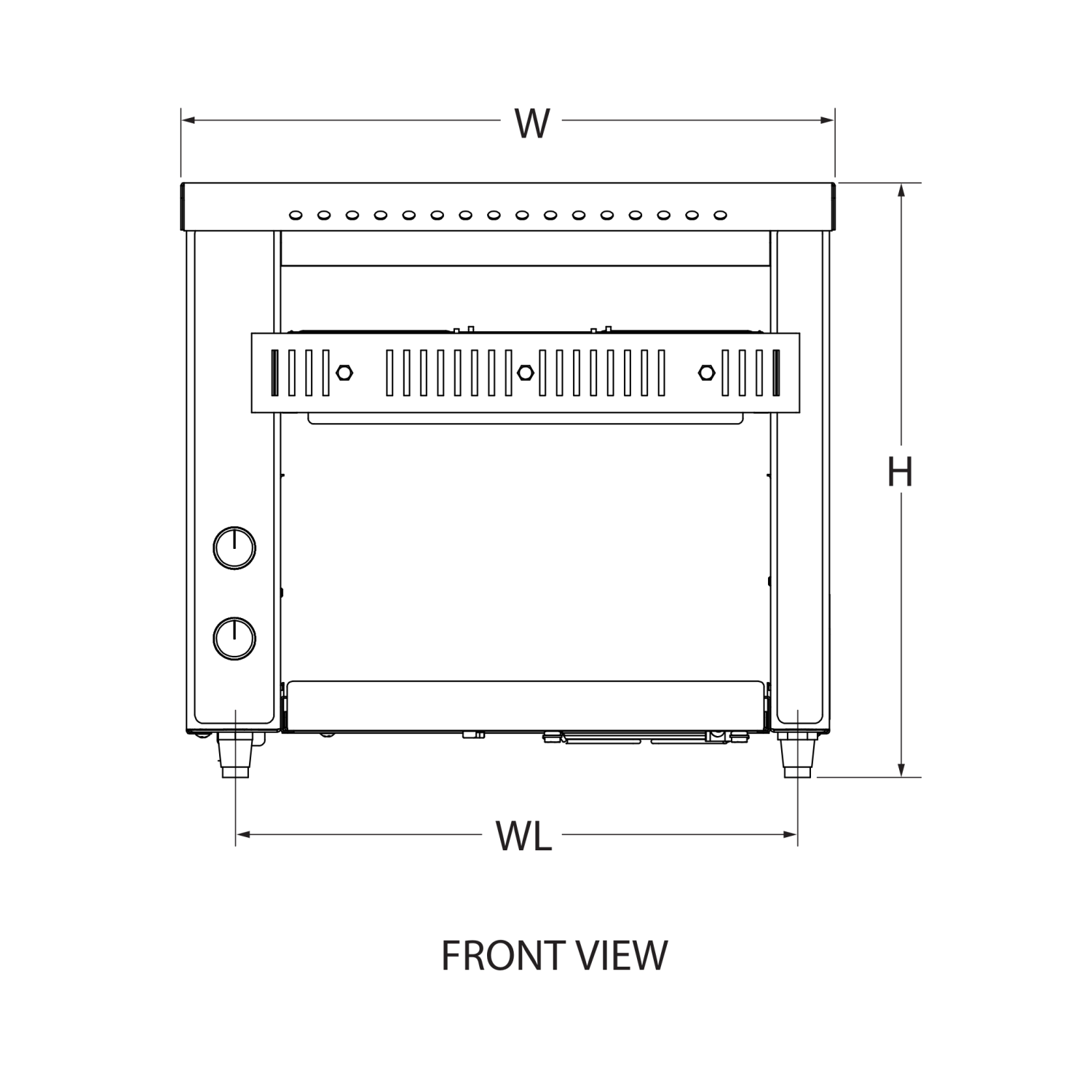

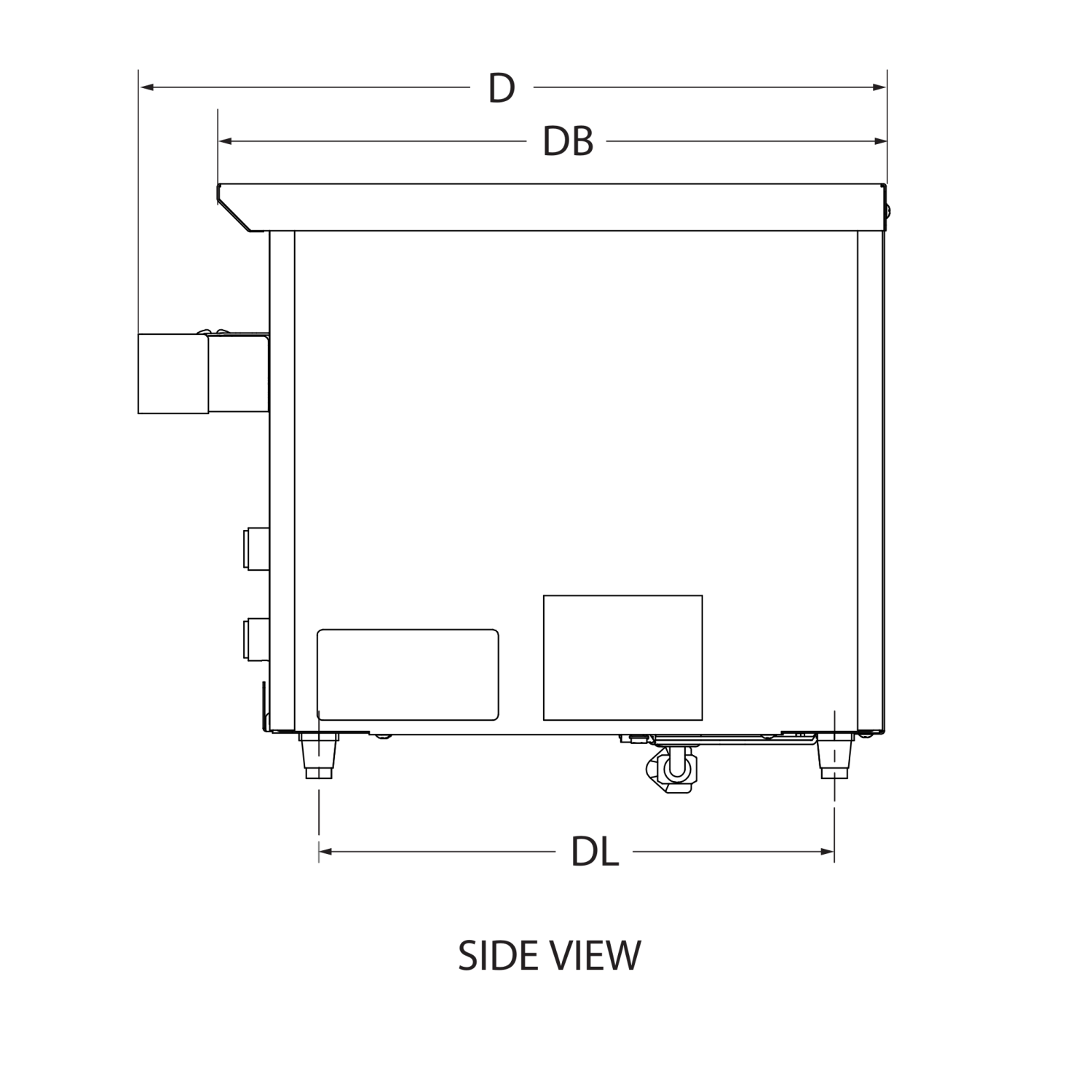

Unit Dimensions
Name | Value |
---|---|
Overall Dimensions (IN) | 14.5 x 16.5 x 13.125 |
(W) Width (IN) | 14.5 |
(D) Depth (IN) | 16.5 |
(H) Height (IN) | 13.12 |
(WL) Width between legs | 12.437 |
(DL) Depth between legs | 11.312 |
Product Opening Dimensions (IN) | 1.375 |
(DB) Depth of Body (IN) | 14.75 |
Conveyor Width (IN) | 10.5 |
Overall Dimensions (CM) | 36.8 x 41.9 x 33.3 |
(W) Width (CM) | 36.8 |
(D) Depth (CM) | 41.9 |
(H) Height (CM) | 33.3 |
(WL) Width between legs (CM) | 31.6 |
(DL) Depth between legs (CM) | 28.7 |
Product Opening Dimensions (CM) | 3.2 |
(DB) Depth of Body (CM) | 37.5 |
Conveyor Width (CM) | 26.7 |
Electrical
Name | Value |
---|---|
Amps | 13.3 |
Cord Length (IN) | 54 |
Cord Length (CM) | 140 |
Hz | 60 |
Plug | NEMA 5-15P |
Voltage | 120 |
Watts | 1600 |
Construction
Name | Value |
---|---|
Construction Material | Stainless Steel |
Construction Material 2 | Aluminized Steel |
Construction Material 3 | Electrical Components |
Countertop or Drop-In | Countertop |
Material Type | Metals |
Food Type | Standard Breads |
Case Lot Measurement
Name | Value |
---|---|
Case Lot | 1 |
Case Width | 19 |
Case Height | 16 |
Case Length | 23 |
Case Lot Cube (ft.) | 4.05 |
Case Lot Weight (lbs.) | 43 |
Product Parts
Name | Part # | Price |
---|---|---|
2PK HEAT ELEM 11-3/8 60V 400W | 59843 | $149.10 |
CONTROL SPEED 250 OHM CT2 | B200902 | $57.30 |
BEARING ASSEMBLY 5/16 | B201100 | $23.90 |
BELT WIRE CONVEYOR 10.5"X25" | B204272 | $130.20 |
CT2 RIGHT SIDE LABEL | B204274 | $6.30 |
SIDE PANEL, CT2 | B300111 | $41.80 |
TRAY SLIDE OUT | B300115 | $25.60 |
CURVED FRONT CT2/CT2H | B300133 | $28.70 |
SPRING .038" DIA 1.500" LENGTH | B400261 | $3.00 |
LEGS BLACK 1" 1/4-20 | B400300 | $15.60 |
14 Ga Straight Strain Relief | B400320 | $6.60 |
1 1/4" SNAP BUSHING | B400330 | $0.60 |
TERMINAL BLOCK 5 POSITION | B401033 | $15.40 |
TERMINAL BLOCK 2 POSITION | B401034 | $5.60 |
CORD POWER 14/3 60" 5-15 PLUG | B401052 | $56.30 |
CORD FAN HP-75.24-A | B401060 | $11.90 |
CT2 RESET LABEL | B401093 | $5.70 |
RESET SWITCH | B401100 | $40.80 |
SWITCH ROTARY POWER SAVER | B401103 | $56.30 |
MOTOR DRIVE 120V REVERSED 346 | B401202 | $193.70 |
MOTOR FAN | B401209 | $100.00 |
GUARD FAN | B401220 | $8.50 |
SPROCKET 25B17-8MM | B401300 | $26.80 |
SHAFT DRIVE 10.5" | B401340 | $68.90 |
SHAFT IDLER 10.625" CT2 | B401344 | $78.70 |
FRONT BEARING SPRING-LOADED | B401352 | $23.70 |
BEARING, TEFLON 5/16 | B401355 | $8.50 |
CHAIN LADDER DRIVE 18.5" | B401389 | $43.20 |
LABEL CONTROL CT2 | B401400 | $14.70 |
CORD WARNING LABEL | B401404 | $0.40 |
SILVER PUSH-ON KNOB | B405018 | $8.00 |
SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $14.70 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
