CVT4-240DUAL
240-volt JT4HC convertible conveyor toaster
Double your capabilities and increase versatility with the convertible conveyor toaster by Vollrath, which converts from a standard toaster to a pass-through toaster easily and efficiently.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

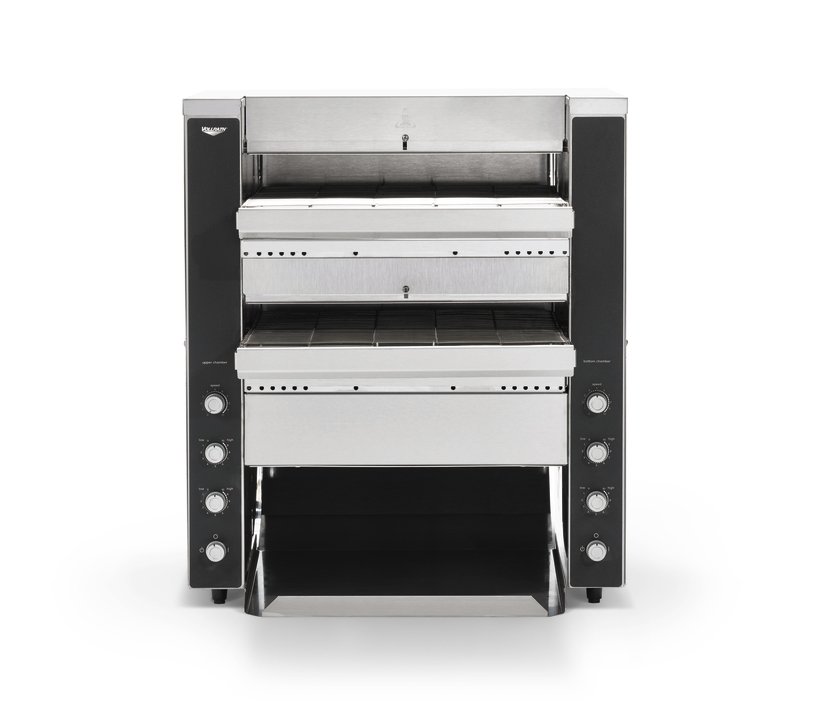

240-volt JT4HC convertible conveyor toaster
Double your capabilities and increase versatility with the convertible conveyor toaster by Vollrath, which converts from a standard toaster to a pass-through toaster easily and efficiently. Powerful quartz heating elements respond quickly, while forced convection ensures consistent toasting. The variable-speed control and variable top and bottom heat controls help you achieve desired results. Standby mode reduces energy use up to 75 percent during slow periods and quickly returns the unit to full power when needed. The adjustable 1 ½- to 3-inch product opening fits a variety of items, making this toaster ideal for bread, buns, bagels and more. This convertible conveyor toaster fits up to 1100 items per hour, and the convertible design helps you save space without sacrificing quality.
Designed for medium-volume establishments
Quick, easy conversion between standard and pass-through toasting, allowing you to toast bread and bagels as well as toast sandwiches and melt cheese
Variable-speed control and variable top and bottom heat controls help you achieve desired results
Forced convection ensures even toasting
Quartz heating elements respond quickly and save energy
Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows it to quickly return to full power
Durable stainless and aluminized steel is built to last
Accommodates up to 1100 items per hour
1 ½- to 3-inch adjustable product opening easily fits bread, buns, bagels and other high-clearance items
Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | JT4HC |
| UPC | 671080720463 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 21.25 x 46.187 x 23.5 |
| (W) Width (IN) | 46.18 |
| (W2) Secondary Width (IN) | 29.375 |
| (D) Depth (IN) | 21.25 |
| (H) Height (IN) | 23.5 |
| (WL) Width between legs | 17.375 |
| (DL) Depth between legs | 25.5 |
| Product Opening Dimensions (IN) | 1.5 - 3 |
| Overall Dimensions (CM) | 53.8 x 117.3 x 59.7 |
| (W) Width (CM) | 117.3 |
| (W2) Secondary Width (CM) | 74.6 |
| (D) Depth (CM) | 53.8 |
| (H) Height (CM) | 59.7 |
| (WL) Width between legs (CM) | 44.1 |
| (DL) Depth between legs (CM) | 39.4 |
| Product Opening Dimensions (CM) | 3.8 - 7.6 |
Electrical
| Name | Value |
|---|---|
| Amps | 20.4 |
| Cord Length (IN) | 54 |
| Cord Length (CM) | 140 |
| Hz | 60 |
| Plug | NEMA 6-30P |
| Voltage | 240 |
| Watts | 4950 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Food Type | Standard Breads, Specialty Breads, Buns, Bagels |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 26 |
| Case Height | 27.5 |
| Case Length | 34 |
| Case Lot Weight (lbs.) | 110 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CORD FAN HP-75.24-A | B401060 | $14.50 |
| SPROCKET 25B17-8MM | B401300 | $32.70 |
| SILVER PUSH-ON KNOB W/SET SCRW | B405019 | $17.90 |
| MOTOR DRIVE 208/240V RMS 344 | B401201 | $239.70 |
| SILVER PUSH-ON KNOB | B405018 | $9.80 |
| CHAIN LADDER 26" | B401387 | $37.90 |
| CT4-2000 NOSE GUARD | B300807 | $52.10 |
| SHAFT IDLER | B401349 | $72.50 |
| SWITCH FAN CERAMIC | B401107 | $49.70 |
| CORD POWER 12/3 60" 6-30P | B401051 | $69.70 |
| CT4-DUAL SIDE PANEL | B300230 | $99.90 |
| TERMINAL BLOCK 5 POSITION | B401033 | $18.80 |
| GUARD FAN | B401220 | $10.40 |
| SWITCH 240 V | B401102 | $54.80 |
| FRONT BEARING SPRING-LOADED | B401352 | $28.90 |
| CT4 18" TOAST CHUTE | B300013 | $105.80 |
| MOTOR DRIVE 208/240V REVERSED | B401203 | $228.90 |
| 2PK HEAT ELEM 15-3/8 80V 413W | 59852 | $187.70 |
| LOWER CHAMBER LABEL | B401424 | $70.40 |
| SHAFT DRIVE 14.5" | B401342 | $62.60 |
| SPRING .038" DIA 1.500" LENGTH | B400261 | $3.70 |
| CONTROL SPEED 500 OHM CT4 | B200901 | $83.10 |
| RESET SWITCH | B401100 | $49.70 |
| UPPER CHAMBER LABEL | B401423 | $67.80 |
| LEGS BLACK 1" 1/4-20 | B400300 | $19.00 |
| SO2 14.5" CRUMB TRAY ASSM | B205129 | $116.60 |
| BEARING ASSEMBLY 5/16 | B201100 | $29.10 |
| SWITCH ROTARY POWER SAVER | B401103 | $68.60 |
| CHAIN LADDER 13.25." | B401386 | $31.20 |
| WIRE CONVEYOR BELT 14.5" X 42" | B205138 | $220.60 |
| MOTOR FAN | B401211 | $97.80 |
| STRGHT 12 GA STRAIN RLF BSHNG | B400321 | $0.80 |
| BEARING, TEFLON 5/16 | B401355 | $9.20 |
| 7/8 WIRE CLAMP | B400331 | $1.20 |
| CORD WARNING LABEL | B401404 | $0.40 |
| CT4H 18" HEAT SHUTTER | B300059 | $19.50 |
| 1 1/4" SNAP BUSHING | B400330 | $0.70 |
