CVT4-240550

Discontinued

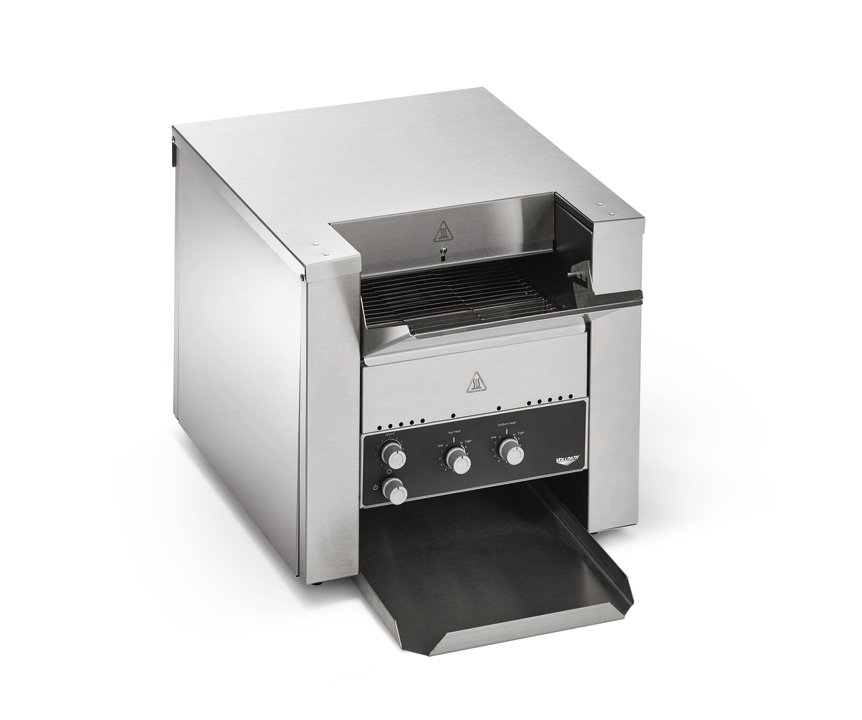

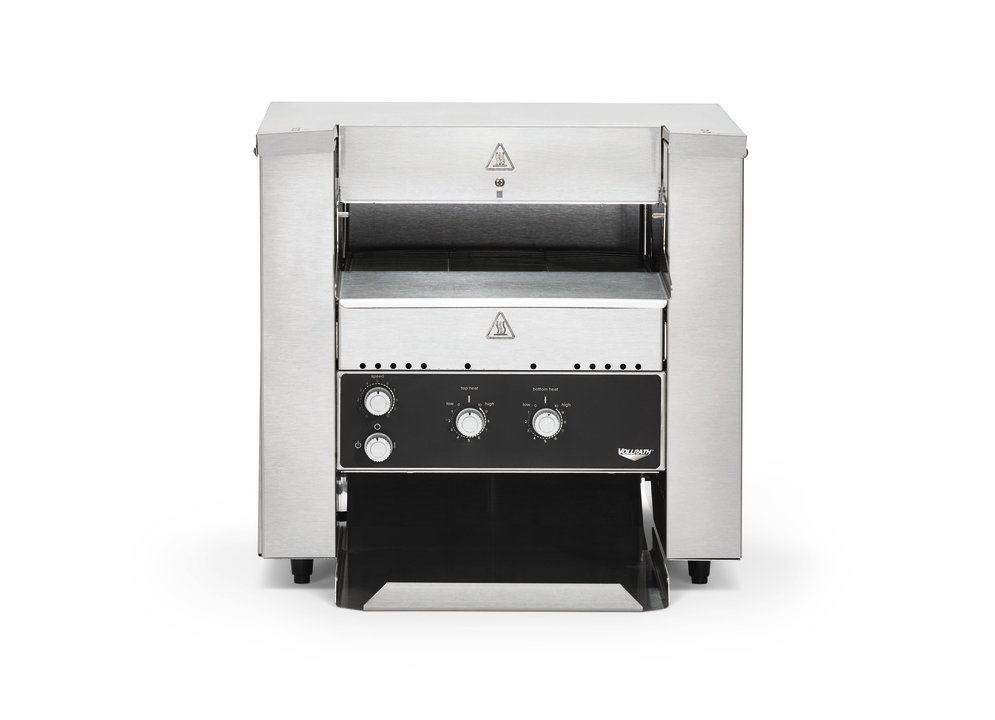

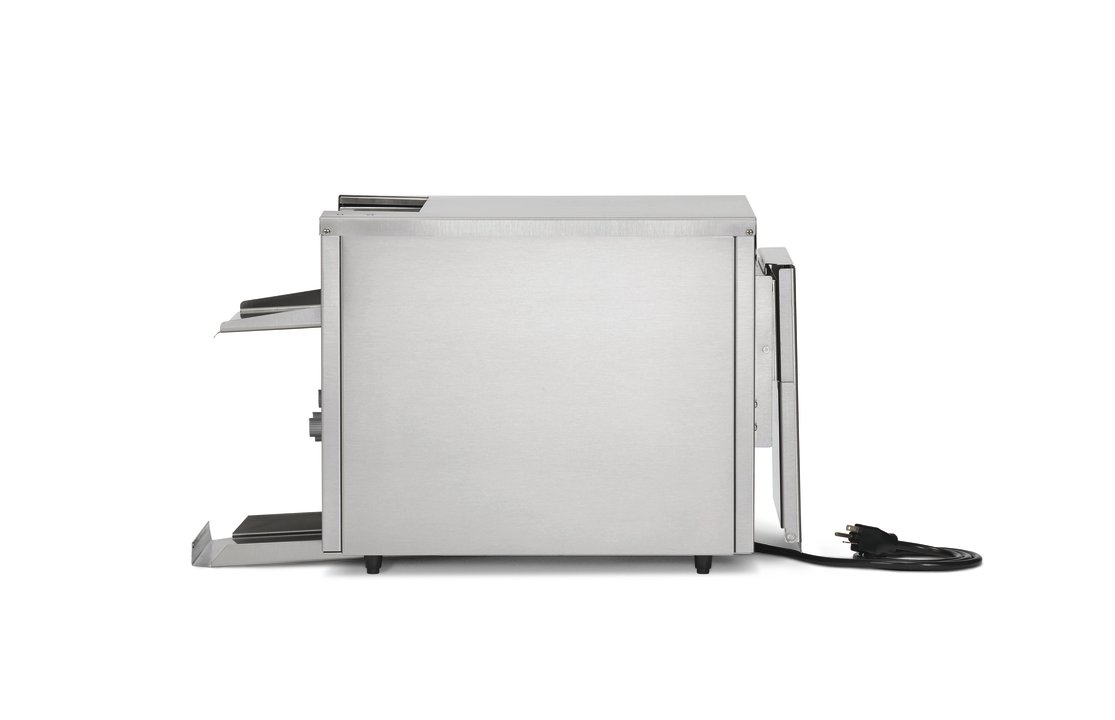

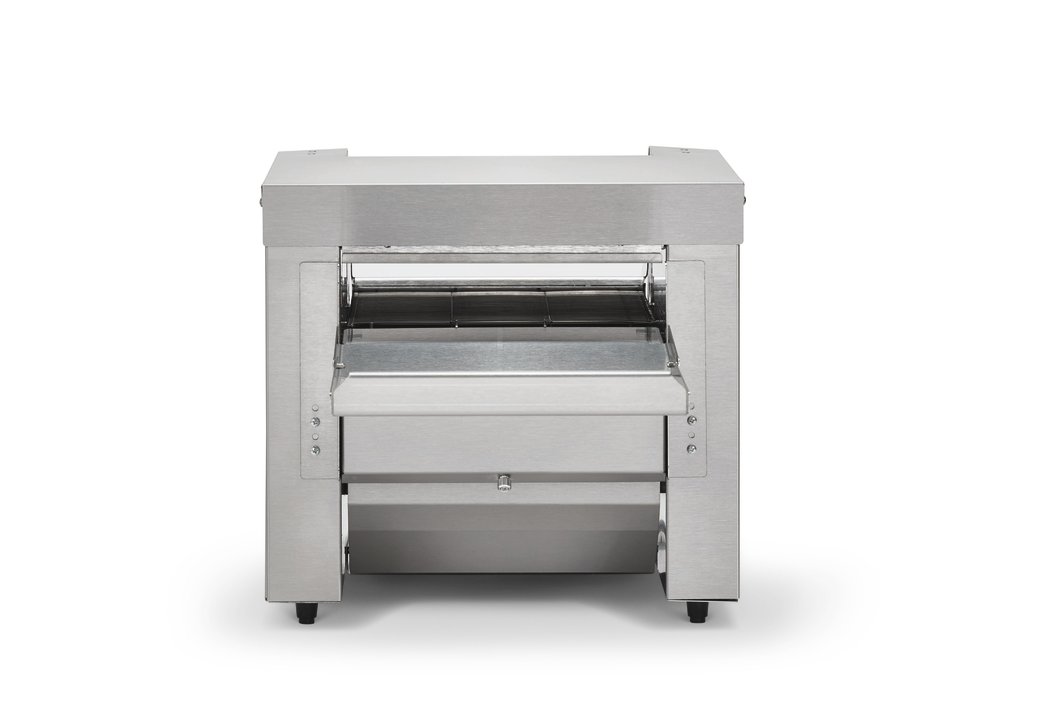

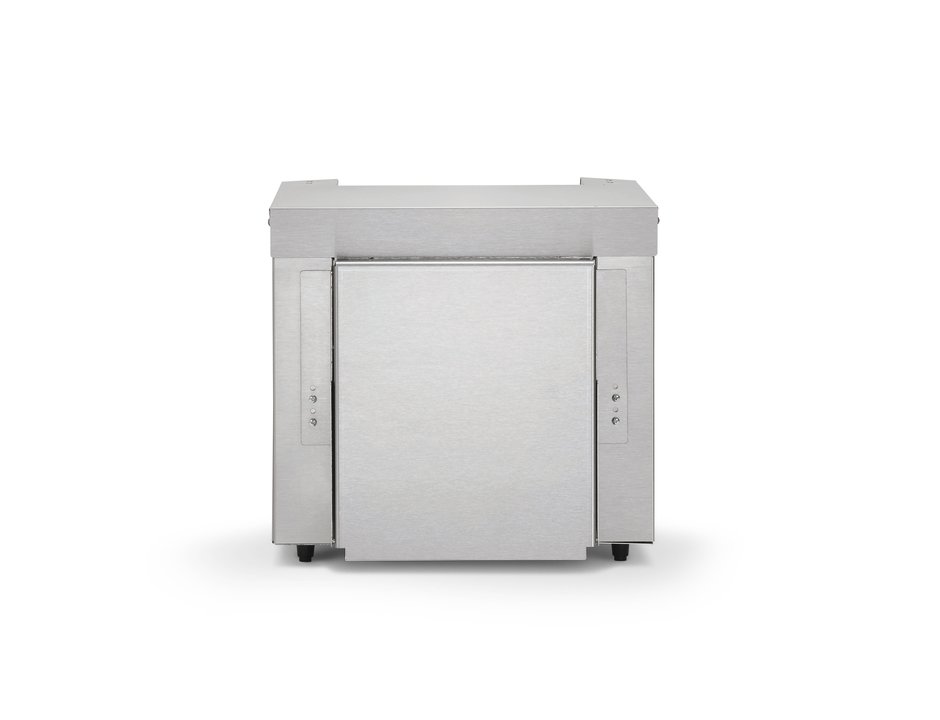

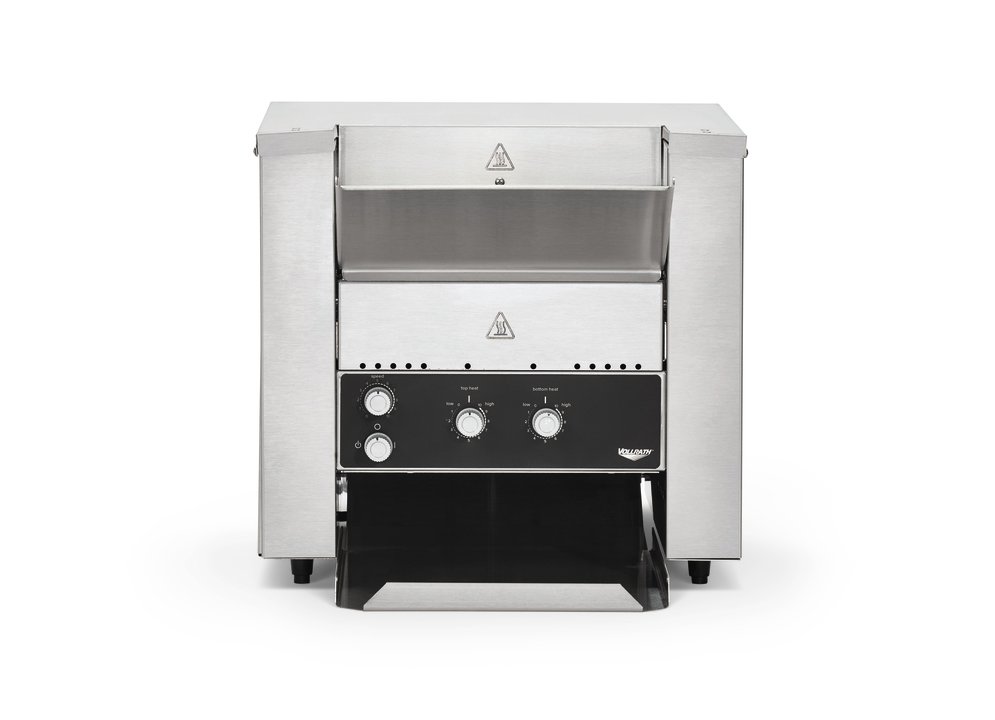

Convertible Toasters

Vollrath's Convertible Conveyor Toasters quickly and easily convert from standard toaster to pass-through, offering the benefits of two units in the footprint of one.

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

MSRP

$0.00 List Price

Convertible Toasters

Name: Convertible Toasters
Brand: Vollrath Foodservice
SKU: CVT4-240550
Price: 2198.900000000 USD

Vollrath's Convertible Conveyor Toasters quickly and easily convert from standard toaster to pass-through, offering the benefits of two units in the footprint of one. They provide the flexibility for medium volume restaurants to toast bread and bagels as well as toast sandwiches and melt cheese in one unit.

Forced convection promotes uniform results and energy efficiency

Energy efficient, fast reacting, quartz heaters

Standby mode saves up to 75 percent energy during slow periods when unit is not in use and allows unit to quickly return to full power

Variable speed control to achieve desired color

Variable top and bottom heat controls

Provides flexibility to toast bread and bagels as well as toast sandwiches and melt cheese in one unit

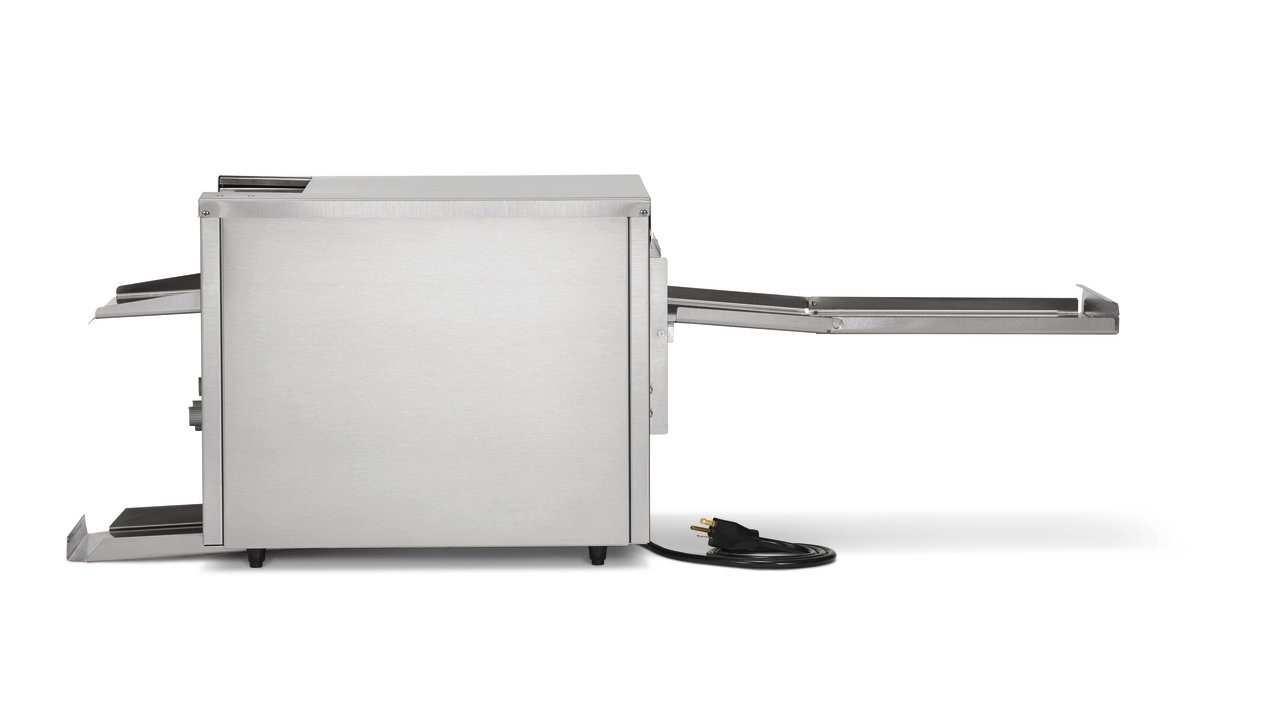

Quickly and easily converts from standard toaster to pass-through

Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.

Product Specifications

Model Information

Name	Value
Model	JT2HC
UPC	671080705910

Unit Dimensions

Name	Value
Overall Dimensions (IN)	15.875 x 43.125 x 15
(W) Width (IN)	15.87
(D) Depth (IN)	43.12
(D2) Secondary Depth (IN)	24.3125
(H) Height (IN)	15
(WL) Width between legs	13.25
(DL) Depth between legs	14
Product Opening Dimensions (IN)	1.5 - 3
Conveyor Width (IN)	10.5
Overall Dimensions (CM)	40.3 x 109.5 x 12.7
(W) Width (CM)	40.3
(D) Depth (CM)	109.5
(D2) Secondary Depth (CM)	61.7
(H) Height (CM)	12.7
(WL) Width between legs (CM)	33.7
(DL) Depth between legs (CM)	35.6
Product Opening Dimensions (CM)	3.8 - 7.6
Conveyor Width (CM)	26.7

Electrical

Name	Value
Amps	11.7
Cord Length (IN)	48
Cord Length (CM)	140
Hz	60
Plug	NEMA 6-20P
Voltage	240
Watts	2800

Construction

Name	Value
Countertop or Drop-In	Countertop
Food Type	Standard Breads, Specialty Breads, Buns, Bagels

Case Lot Measurement

Name	Value
Case Width	26.25
Case Height	19.75
Case Length	23

Product Parts

Name	Part #	Price
CORD FAN HP-75.24-A	B401060	$14.50
SPROCKET 25B17-8MM	B401300	$32.70
SILVER PUSH-ON KNOB W/SET SCRW	B405019	$17.90
LABEL CONTROL CT4	B401401	$23.10
MOTOR DRIVE 208/240V RMS 344	B401201	$239.70
14 Ga Straight Strain Relief	B400320	$8.00
SILVER PUSH-ON KNOB	B405018	$9.80
SPRING .038" DIA 2.462" LENGTH	B400260	$10.40
CVT4 14" LOAD-UP TRAY	B300054	$54.70
LABEL RESET CT4	B401425	$8.50
SHAFT DRIVE 10.5"	B401340	$83.10
2PK HEAT ELEM 11-3/8 120V 700W	59854	$181.50
SWITCH FAN CERAMIC	B401107	$49.70
CT4 TOAST CHUTE	B300012	$71.90
SHAFT IDLER 10.5"	B401341	$82.70
LADDER CHAIN 14.5"	B401398	$30.40
GUARD FAN	B401220	$10.40
SWITCH 240 V	B401102	$54.80
BELT WIRE CONVEYOR 10.5"X30"	B204273	$444.60
CVT4 14" UNLOAD TRAY	B300053	$69.10
11-TOOTH SPROCKET	B401301	$46.40
CORD POWER 14/3 60" 6-20 PLUG	B401050	$68.60
CONTROL SPEED 500 OHM CT4	B200901	$83.10
BEARING FRONT SPRING LOADED	B401350	$18.80
RESET SWITCH	B401100	$49.70
LEGS BLACK 1" 1/4-20	B400300	$19.00
BEARING ASSEMBLY 5/16	B201100	$29.10
SWITCH ROTARY POWER SAVER	B401103	$68.60
TERMINAL BLOCK 2 POSITION	B401034	$6.80
MOTOR FAN	B401211	$97.80
