972GGT
Discontinued72-inch heavy-duty flat-top gas griddle with thermostatic controls
Vollrath's heavy-duty gas flat top gas griddles provide a simple and effective way to prepare high volumes of food in an economical, safe and hasslefree way.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

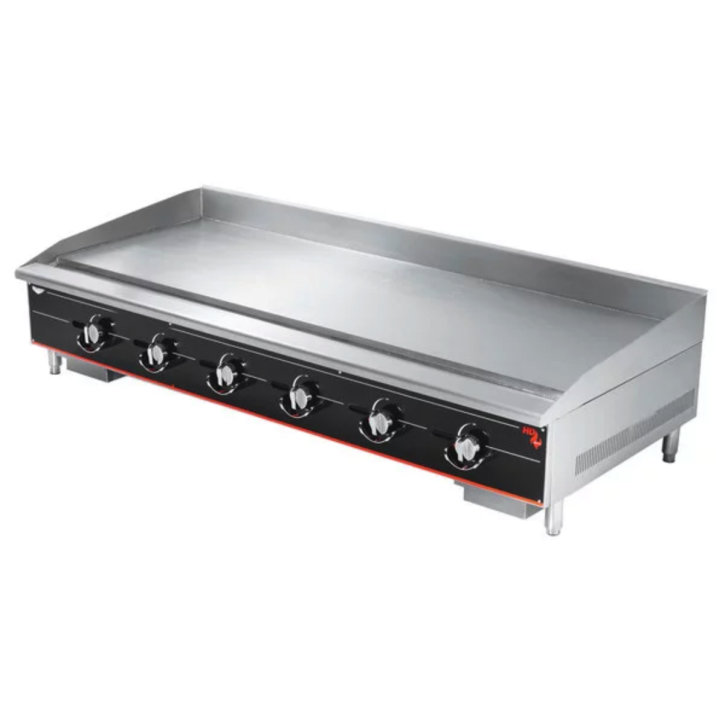

72-inch heavy-duty flat-top gas griddle with thermostatic controls
Vollrath's heavy-duty gas flat top gas griddles provide a simple and effective way to prepare high volumes of food in an economical, safe and hasslefree way. These griddles are ideally suited for use in steak houses, restaurants, coffee shops, clubs and pubs.
Thermostatic controls maintain user settings to ensure consistent surface temperature
Burners placed every 12" for 30,000 BTUper 12" of cooking surface
24" cooking surface depth
Extra-heavy 5" back splashes and tapered side splashes
Smaller-width grease trays are easier to clean and sized to fit in commercial dishwashers
Stainless steel burner construction and all-stainless exterior for corrosion resistance
Shipped set up for natural gas, includes kit for conversion to propane
Polished 1" (2.5 cm) thick, welded steel griddle plate for even heat distribution and retention, in addition to eliminating grease and dirt traps
Heavy-duty adjustable legs
Mechanical safety pilots are the best for standing up to intense commercial cooking and ensure the gas will automatically shut off if the pilot goes out; no electrical setup needed
All-metal knobs and knob guards to protectfrom damage - guaranteed for life
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FTT2072 |
| UPC | 029419858835 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 180000 |
| Number of Burners | 6 |
| Pilot Type | Standing |

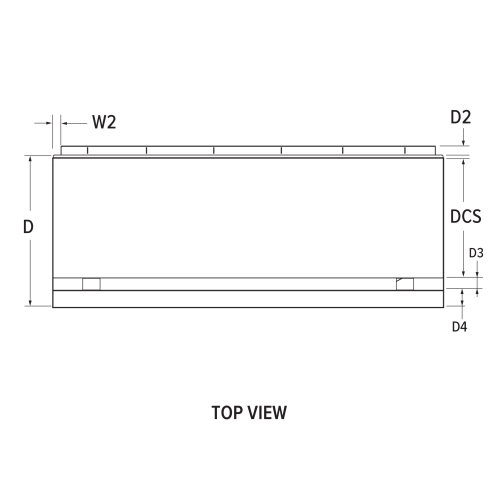

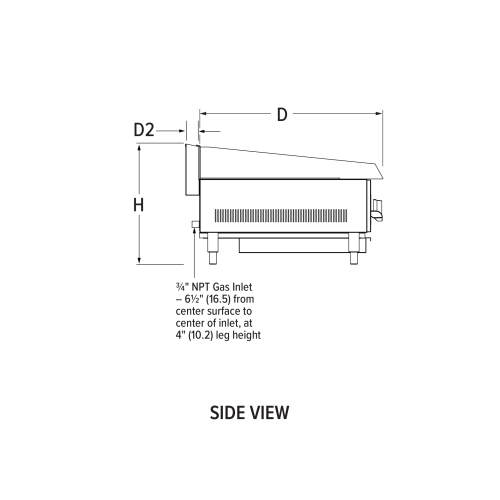

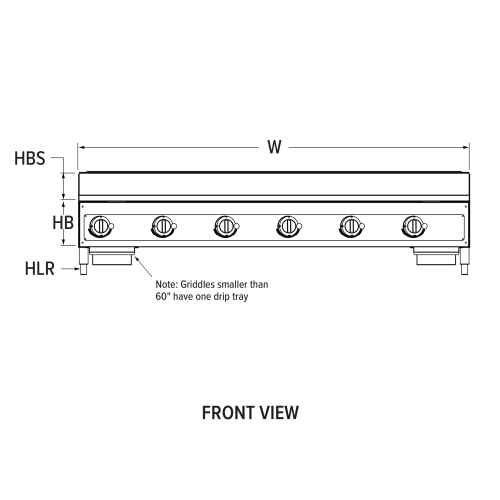

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 72 x 31 x 17.375 |
| (W) Width (IN) | 72 |
| (W2) Secondary Width (IN) | 1.5 |
| (D) Depth (IN) | 31 |
| (D2) Secondary Depth (IN) | 2 |
| (D3) Additional Depth (IN) | 3.25 |
| (D4) Additional Depth (IN) | 3.375 |
| (H) Height (IN) | 17.37 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (DCS) Cooking Surface Depth (IN) | 24 |
| (HBS) Backsplash Height (IN) | 5 |
| (HB) Height of Body (IN) | 8.375 |
| Overall Dimensions (CM) | 182.9 x 78.7 x 44.1 |
| (W) Width (CM) | 182.9 |
| (W2) Secondary Width (CM) | 3.8 |
| (D) Depth (CM) | 78.7 |
| (D2) Secondary Depth (CM) | 5.1 |
| (D3) Additional Depth (CM) | 8.3 |
| (D4) Additional Depth (CM) | 8.6 |
| (H) Height (CM) | 44.1 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (DCS) Cooking Surface Depth (CM) | 61 |
| (HBS) Backsplash Height (CM) | 12.7 |
| (HB) Height of Body (CM) | 21.2 |
| Size | 72 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Number of Controls | 6 |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 2 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 40 |
| Case Height | 42 |
| Case Length | 76 |
| Case Lot Cube (ft.) | 73.89 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| LEG GAS APPLIANCE | XFTG9012 | $119.70 |
| MANIFOLD FTT2072 | 2146472-1 | $282.30 |
| THERMOSTAT - HD GRIDDLE | 21473-1 | $700.50 |
| THERMOCOUPLE | 21485-1 | $132.20 |
| 3/4" NPT MANUAL BALL VALVE | XCGC0018 | $61.90 |
| CONTROL KNOB - GAS FTG/CB | XFTG9010 | $30.30 |
| GREASE DRAWER HD GRIDDLES | 21465-1 | $146.10 |
| PILOT BURNER BRACKET | XFTG7018 | $64.50 |
| PILOT SAFETY VALVE | 21474-1 | $340.00 |
| U-BURNER 30 000 BTU | 21471-1 | $120.80 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
