924GGM
Discontinued24-inch Cayenne® heavy-duty flat-top gas griddle with manual controls
Vollrath's Cayenne® heavy-duty gas flat top gasgriddles provide a simple and effective way to prepare high volumes of food in an economical, safe and hasslefree way.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

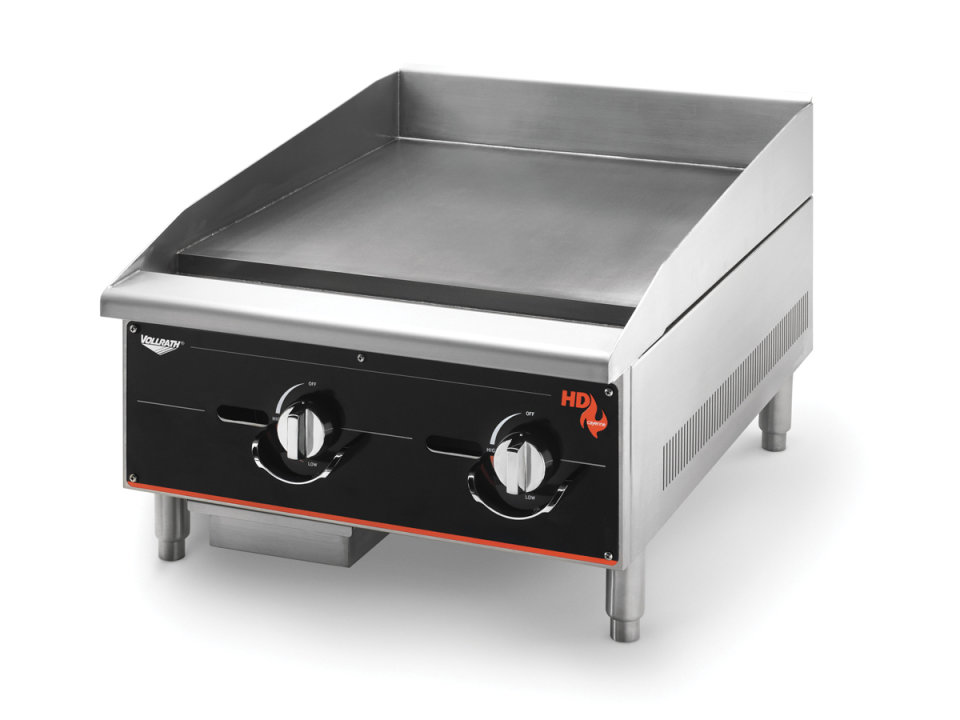

24-inch Cayenne® heavy-duty flat-top gas griddle with manual controls
Vollrath's Cayenne® heavy-duty gas flat top gasgriddles provide a simple and effective way to prepare high volumes of food in an economical, safe and hasslefree way. These griddles are ideally suited for use in steak houses, restaurants, coffee shops, clubs and pubs.
Custom stainless steel, U-shaped 30,000 BTUburners
Burners placed every 12" (30.5 cm) for 30,000 BTUper 12 of cooking surface
All stainless steel exterior
Shipped set up for natural gas, includes kit for conversion to propane
Includes regulator and gas valve
Polished 1" (2.5 cm) thick steel griddle plate for evenheat distribution and retention
Welded griddle plate seams eliminate grease anddirt traps
Smaller-width grease trays are easier to clean and are sized to fit into commercial dishwashers
Heavy-duty adjustable legs
Heavy-duty 3mm thick back and side splashes contain splash and keep food on the unit
Clearance and Positioning. This appliance must be installed with a minimum clearance of 6" (15.2 cm) between the left, right andback sides, and any combustible surface. The supplied 4" (10.2 cm) legs must be installed and the unit placed on a non-combustible surface.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FTG2024 |
| UPC | 029419846887 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 60000 |
| Number of Burners | 2 |
| Pilot Type | Standing |

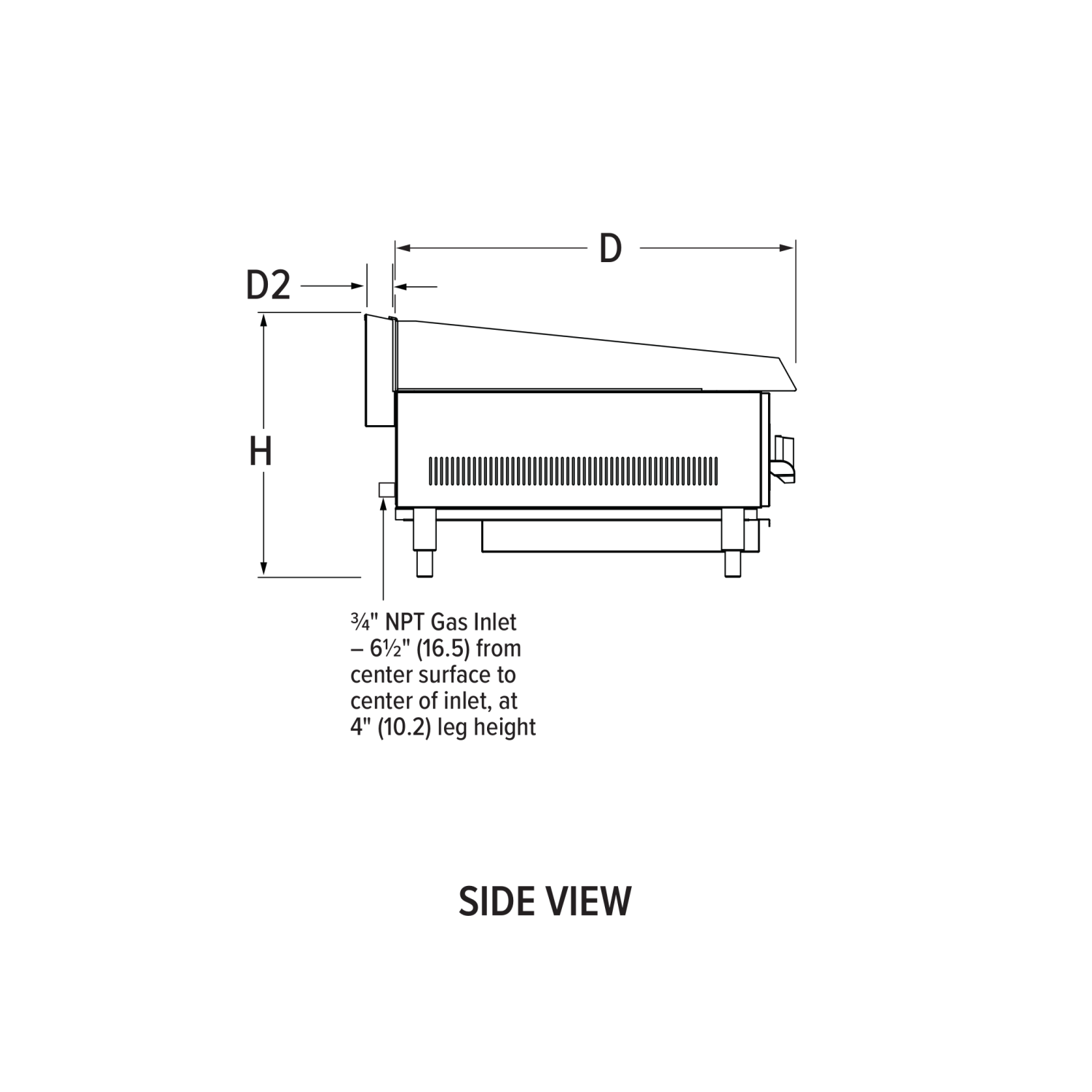

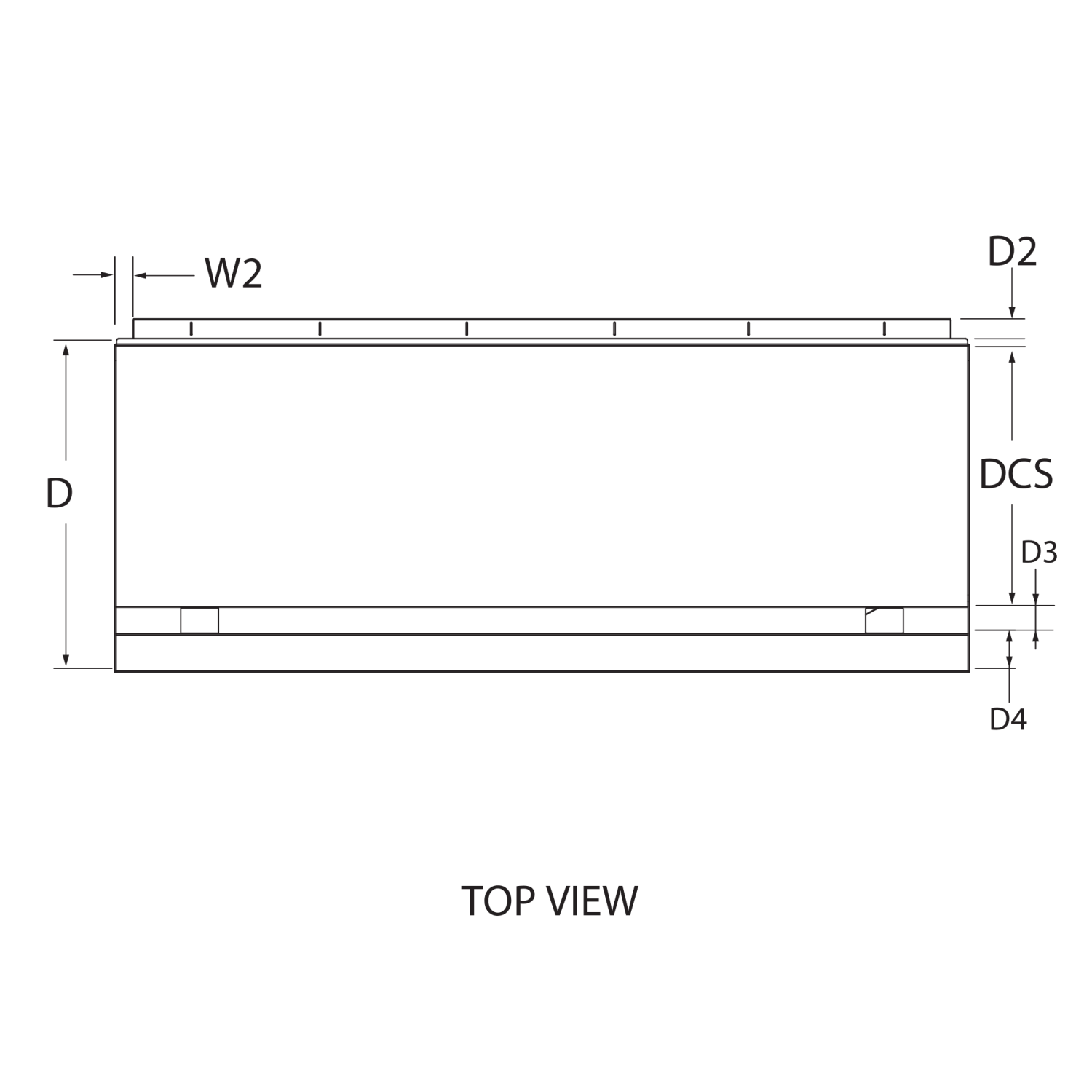

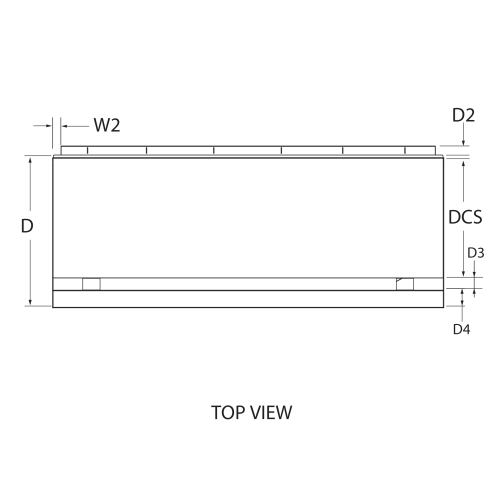

Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 24 x 31 x 17.375 |
| (W) Width (IN) | 24 |
| (W2) Secondary Width (IN) | 1.5 |
| (D) Depth (IN) | 31 |
| (D2) Secondary Depth (IN) | 2 |
| (D3) Additional Depth (IN) | 3.25 |
| (D4) Additional Depth (IN) | 3.375 |
| (H) Height (IN) | 17.37 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (DCS) Cooking Surface Depth (IN) | 24 |
| (HBS) Backsplash Height (IN) | 5 |
| (HB) Height of Body (IN) | 8.375 |
| Overall Dimensions (CM) | 61 x 78.7 x 44.1 |
| (W) Width (CM) | 61 |
| (W2) Secondary Width (CM) | 3.8 |
| (D) Depth (CM) | 78.7 |
| (D2) Secondary Depth (CM) | 5.1 |
| (D3) Additional Depth (CM) | 8.3 |
| (D4) Additional Depth (CM) | 8.6 |
| (H) Height (CM) | 44.1 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (DCS) Cooking Surface Depth (CM) | 61 |
| (HBS) Backsplash Height (CM) | 12.7 |
| (HB) Height of Body (CM) | 21.2 |
| Size | 24 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Control Type | Manual |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 27.5 |
| Case Height | 24.5 |
| Case Length | 36.25 |
| Case Lot Cube (ft.) | 14.41 |
| Case Lot Weight (lbs.) | 350.0 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| LEG GAS APPLIANCE | XFTG9012 | $119.70 |
| KNOB GUARD | 2351608-1 | $32.50 |
| PILOT W/158MM TUBING FTG | XFTG9004 | $55.50 |
| PILOT VALVE FTG/CBL/CBR (#22) | XFTG9003 | $47.40 |
| 3/4" NPT MANUAL BALL VALVE | XCGC0018 | $61.90 |
| CONTROL KNOB - GAS FTG/CB | XFTG9010 | $30.30 |
| GREASE DRAWER HD GRIDDLES | 21465-1 | $146.10 |
| U-BURNER 30 000 BTU | 21471-1 | $120.80 |
| GAS VALVE TYPE B 1.15MM HOLE | 2146715-1 | $81.60 |
| REGULATOR 4IN WC | 353374-1 | $227.70 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
Customer Questions
Be the first to ask a question
