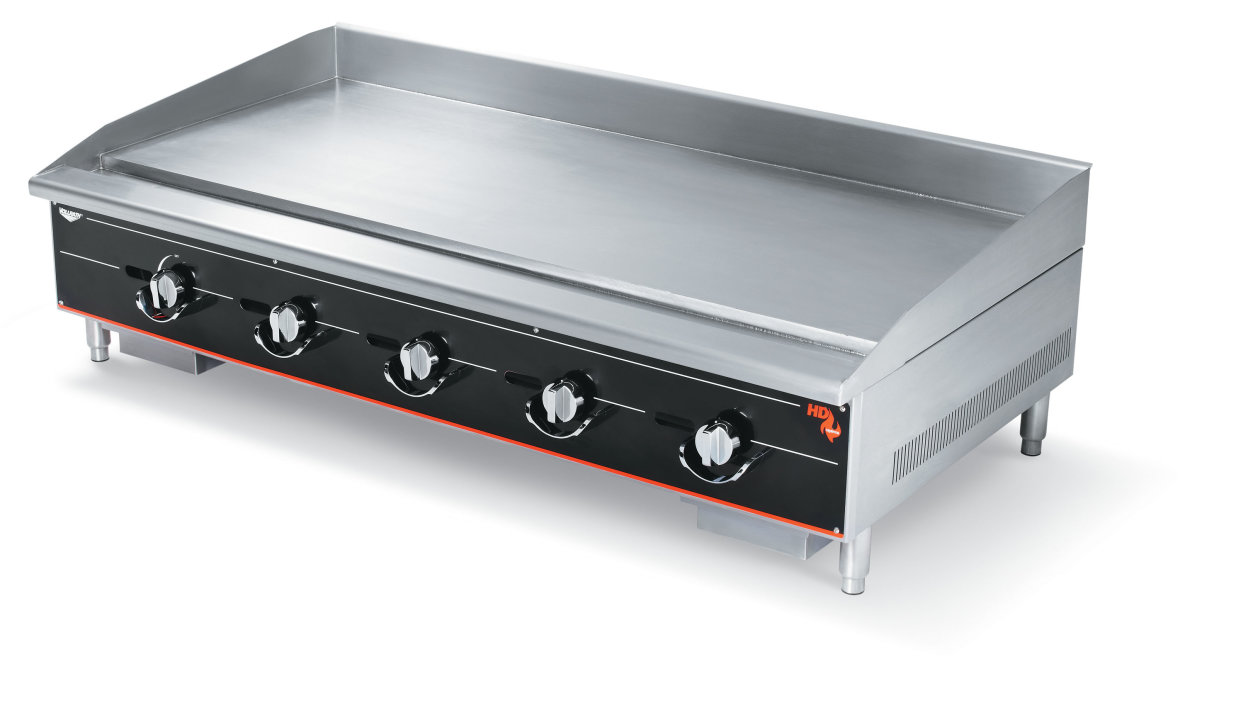

60-inch Cayenne® heavy-duty flat-top gas griddle with manual controls

This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$5669.82 MSRP

$9,449.70 List Price

View New Replacement Product

The Vollrath® Cayenne heavy-duty flat-top gas griddle is built to impress. The body of this unit and the custom burners are made out of durable stainless steel, and the polished steel griddle plate is 1 inch thick for even heat distribution and retention. The U-shape of the custom steel burners also helps evenly distribute heat while providing 30,000 BTU per burner. The manual control knobs are easy to use and will never break or crack, protecting the interior gas valves, while knob guards prevent accidental temperature adjustments. Heavy-duty back and sloped side splashes are 3 millimeters thick and prevent messes, while the welded seams make cleaning simple. Narrow grease trays fit easily into commercial dishwashers, and heavy-duty legs allow leveling adjustments to provide maximum stability. With five powerful burners, this griddle is ideal for any steak house, pub, coffee shop or restaurant.

The large griddle surface provides plenty of room for burgers, chicken, fish and more
Durable stainless steel body is built for years of service
Metal gas knobs protect interior gas valves and are guaranteed for life
Includes regulator and gas valve
Shipped setup for natural gas, but includes kit for conversion to propane
Burners are placed every 12 inches for 30,000 BTU per 12-inch cooking surface
¾-inch gas inlet
Clearance and Positioning: This appliance must be installed with a minimum clearance of 6 inches between the left, right and back sides, and any combustible surface. The supplied 4-inch legs must be installed and the unit placed on a noncombustible surface.

Product Specifications

Model Information

Name	Value
Model	FTG2060
UPC	029419846917

Gas Specifications

Name	Value
Output (BTU)	150000
Number of Burners	5
Pilot Type	Standing

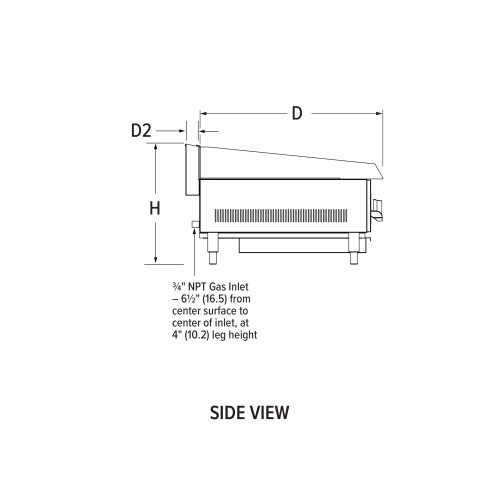

Unit Dimensions

Name	Value
Overall Dimensions (IN)	60 x 31 x 17.375
(W) Width (IN)	60
(W2) Secondary Width (IN)	1.5
(D) Depth (IN)	31
(D2) Secondary Depth (IN)	2
(D3) Additional Depth (IN)	3.25
(D4) Additional Depth (IN)	3.375
(H) Height (IN)	17.37
(HLR) Adjustable Legs (IN)	4 - 5.5
(DCS) Cooking Surface Depth (IN)	24
(HBS) Backsplash Height (IN)	5
(HB) Height of Body (IN)	8.375
Overall Dimensions (CM)	152.4 x 78.7 x 44.1
(W) Width (CM)	152.4
(W2) Secondary Width (CM)	3.8
(D) Depth (CM)	78.7
(D2) Secondary Depth (CM)	5.1
(D3) Additional Depth (CM)	8.3
(D4) Additional Depth (CM)	8.6
(H) Height (CM)	44.1
(HLR) Adjustable Legs (CM)	10.2 - 14
(DCS) Cooking Surface Depth (CM)	61
(HBS) Backsplash Height (CM)	12.7
(HB) Height of Body (CM)	21.2
Size	30

Construction

Name	Value
Countertop or Drop-In	Countertop

Additional Specifications

Name	Value
Number of Drip Trays	2

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	36.5
Case Height	24
Case Length	62.5
Case Lot Cube (ft.)	33.46
Case Lot Weight (lbs.)	675.0

Product Accessories

Name	Item #
Griddle stone	47710
7.75- x 3.5-inch aluminum handle for griddle stone	47711

Product Parts

Name	Part #	Price
LEG GAS APPLIANCE	XFTG9012	$115.10
3/4" NPT MANUAL BALL VALVE	XCGC0018	$59.50
CONTROL KNOB - GAS FTG/CB	XFTG9010	$28.90
KNOB GUARD	2351608-1	$27.10
REGULATOR 4IN WC	353374-1	$216.90
PILOT W/158MM TUBING FTG	XFTG9004	$52.90
PILOT VALVE FTG/CBL/CBR (#22)	XFTG9003	$45.10
U-BURNER 30 000 BTU	21471-1	$116.20
GAS VALVE TYPE B 1.15MM HOLE	2146715-1	$77.70
GREASE DRAWER HD GRIDDLES	21465-1	$139.10
MANIFOLD FTG2060	2146360-1	$295.90
