948GGM
Discontinued48-inch Cayenne® heavy-duty flat-top gas griddle with manual controls
The Vollrath® Cayenne heavy-duty flat-top gas griddle is sure to impress.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
48-inch Cayenne® heavy-duty flat-top gas griddle with manual controls
The Vollrath® Cayenne heavy-duty flat-top gas griddle is sure to impress. The body of this unit and the custom burners are made out of durable stainless steel, and the polished steel griddle plate is 1 inch thick for even heat distribution and retention. The U-shape of the custom steel burners also helps evenly distribute heat while providing 30,000 BTU per burner. The manual control knobs are easy to use and will never break or crack, protecting the interior gas valves, while knob guards prevent accidental temperature adjustments. Heavy-duty back and sloped side splashes are 3 millimeters thick and prevent messes, while the welded seams make cleaning simple. Narrow grease trays fit easily into commercial dishwashers, and heavy-duty legs allow leveling adjustments to provide maximum stability. With four powerful burners, this griddle is ideal for any steak house, pub, coffee shop or restaurant.
The large griddle surface provides plenty of room for burgers, chicken, fish and more
Durable stainless steel body is built for years of service

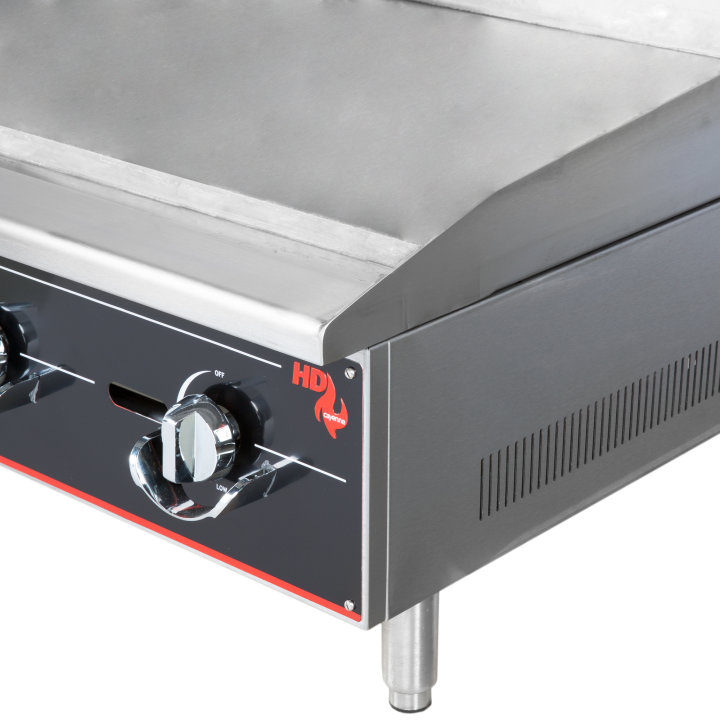

Metal gas knobs protect interior gas valves and are guaranteed for life
Includes regulator and gas valve
Shipped setup for natural gas, but includes kit for conversion to propane
Burners are placed every 12 inches for 30,000 BTU per 12-inch cooking surface
¾-inch gas inlet
Clearance and Positioning: This appliance must be installed with a minimum clearance of 6 inches between the left, right and back sides, and any combustible surface. The supplied 4-inch legs must be installed and the unit placed on a noncombustible surface.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FTG2048 |
| UPC | 029419846900 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 120000 |
| Number of Burners | 4 |
| Pilot Type | Standing |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 48 x 31 x 17.375 |
| (W) Width (IN) | 48 |
| (W2) Secondary Width (IN) | 1.5 |
| (D) Depth (IN) | 31 |
| (D2) Secondary Depth (IN) | 2 |
| (D3) Additional Depth (IN) | 3.25 |
| (D4) Additional Depth (IN) | 3.375 |
| (H) Height (IN) | 17.37 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (DCS) Cooking Surface Depth (IN) | 24 |
| (HBS) Backsplash Height (IN) | 5 |
| (HB) Height of Body (IN) | 8.375 |
| Overall Dimensions (CM) | 121.9 x 78.7 x 44.1 |
| (W) Width (CM) | 121.9 |
| (W2) Secondary Width (CM) | 3.8 |
| (D) Depth (CM) | 78.7 |
| (D2) Secondary Depth (CM) | 5.1 |
| (D3) Additional Depth (CM) | 8.3 |
| (D4) Additional Depth (CM) | 8.6 |
| (H) Height (CM) | 44.1 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (DCS) Cooking Surface Depth (CM) | 61 |
| (HBS) Backsplash Height (CM) | 12.7 |
| (HB) Height of Body (CM) | 21.2 |
| Size | 48 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 36.75 |
| Case Height | 24.75 |
| Case Length | 50.25 |
| Case Lot Cube (ft.) | 26.95 |
| Case Lot Weight (lbs.) | 600.0 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| LEG GAS APPLIANCE | XFTG9012 | $119.70 |
| KNOB GUARD | 2351608-1 | $32.50 |
| PILOT W/158MM TUBING FTG | XFTG9004 | $55.50 |
| PILOT VALVE FTG/CBL/CBR (#22) | XFTG9003 | $47.40 |
| 3/4" NPT MANUAL BALL VALVE | XCGC0018 | $61.90 |
| CONTROL KNOB - GAS FTG/CB | XFTG9010 | $30.30 |
| GREASE DRAWER HD GRIDDLES | 21465-1 | $146.10 |
| U-BURNER 30 000 BTU | 21471-1 | $120.80 |
| GAS VALVE TYPE B 1.15MM HOLE | 2146715-1 | $81.60 |
| REGULATOR 4IN WC | 353374-1 | $227.70 |
