948GGT
Discontinued48-inch heavy-duty flattop gas griddle with thermostatic controls
The heavy-duty flattop gas griddle by Vollrath is built to impress.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

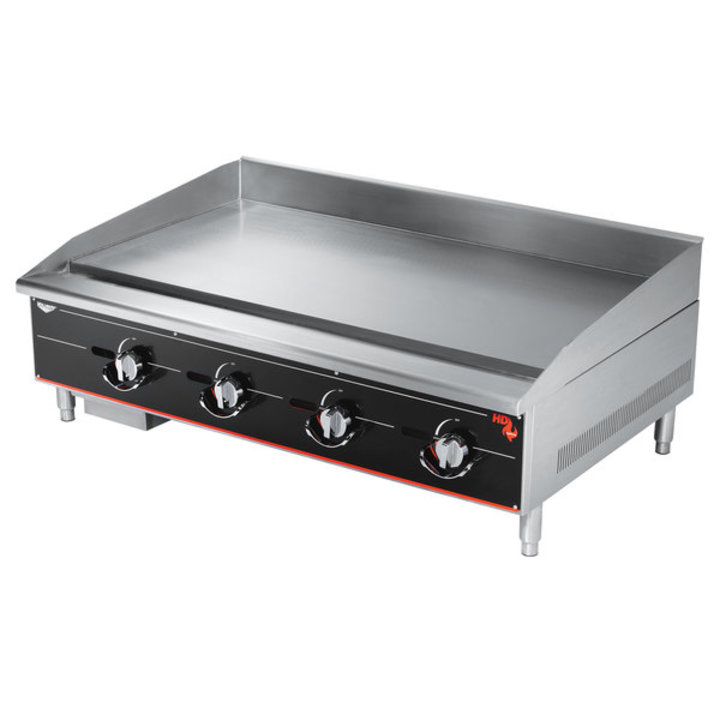

48-inch heavy-duty flattop gas griddle with thermostatic controls
The heavy-duty flattop gas griddle by Vollrath is built to impress. The body of this unit and the custom burners are made of durable stainless steel, and the polished steel griddle plate is 1 inch thick for even heat distribution and retention. The U-shape of the custom steel burners also helps distribute heat evenly while offering 30,000 BTU per burner. Thermostatic controls ensure accurate heating, and knob guards prevent accidental adjustments. The metal control knobs are easy to use and will never break or crack, protecting the interior gas valves. Heavy-duty backsplash and sloped side splashes are 3 millimeters thick and prevent messes, and the welded seams make cleaning simple. Narrow grease trays fit easily into commercial dishwashers, and heavy-duty legs allow leveling adjustments to provide maximum stability. With reliable heat and powerful burners, this griddle is ideal for any steak house, pub, coffee shop or restaurant.
Large griddle surface provides plenty of room for burgers, chicken, fish and more
Durable stainless steel body is built for years of service
Thermostatic controls ensure accurate heating
Metal gas knobs protect interior gas valves and are guaranteed for life
Includes regulator and gas valve
Shipped setup for natural gas — includes kit for conversion to propane
Burners are placed every 12 inches for 30,000 BTU per 12-inch cooking surface
¾-inch gas inlet
Clearance and Positioning: This appliance must be installed with a minimum clearance of 6 inches between the left, right and backsides, and any combustible surface. The supplied 4-inch legs must be installed and the unit placed on a noncombustible surface.
All-metal knobs and knob guards to protectfrom damage - guaranteed for life
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FTT2048 |
| UPC | 029419858811 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 120000 |
| Number of Burners | 4 |
| Pilot Type | Standing |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 48 x 31 x 17.375 |
| (W) Width (IN) | 48 |
| (W2) Secondary Width (IN) | 1.5 |
| (D) Depth (IN) | 31 |
| (D2) Secondary Depth (IN) | 2 |
| (D3) Additional Depth (IN) | 3.25 |
| (D4) Additional Depth (IN) | 3.375 |
| (H) Height (IN) | 17.37 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (DCS) Cooking Surface Depth (IN) | 24 |
| (HBS) Backsplash Height (IN) | 5 |
| (HB) Height of Body (IN) | 8.375 |
| Overall Dimensions (CM) | 121.9 x 78.7 x 44.1 |
| (W) Width (CM) | 121.9 |
| (W2) Secondary Width (CM) | 3.8 |
| (D) Depth (CM) | 78.7 |
| (D2) Secondary Depth (CM) | 5.1 |
| (D3) Additional Depth (CM) | 8.3 |
| (D4) Additional Depth (CM) | 8.6 |
| (H) Height (CM) | 44.1 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (DCS) Cooking Surface Depth (CM) | 61 |
| (HBS) Backsplash Height (CM) | 12.7 |
| (HB) Height of Body (CM) | 21.2 |
| Size | 48 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 36.25 |
| Case Height | 25 |
| Case Length | 50.5 |
| Case Lot Cube (ft.) | 26.48 |
| Case Lot Weight (lbs.) | 583.0 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| LEG GAS APPLIANCE | XFTG9012 | $119.70 |
| KNOB GUARD | 2351608-1 | $32.50 |
| THERMOSTAT - HD GRIDDLE | 21473-1 | $700.50 |
| THERMOCOUPLE | 21485-1 | $132.20 |
| 3/4" NPT MANUAL BALL VALVE | XCGC0018 | $61.90 |
| GREASE DRAWER HD GRIDDLES | 21465-1 | $146.10 |
| PILOT BURNER BRACKET | XFTG7018 | $64.50 |
| PILOT SAFETY VALVE | 21474-1 | $340.00 |
| U-BURNER 30 000 BTU | 21471-1 | $120.80 |
| REGULATOR 4IN WC | 353374-1 | $227.70 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
