VCBA128-302

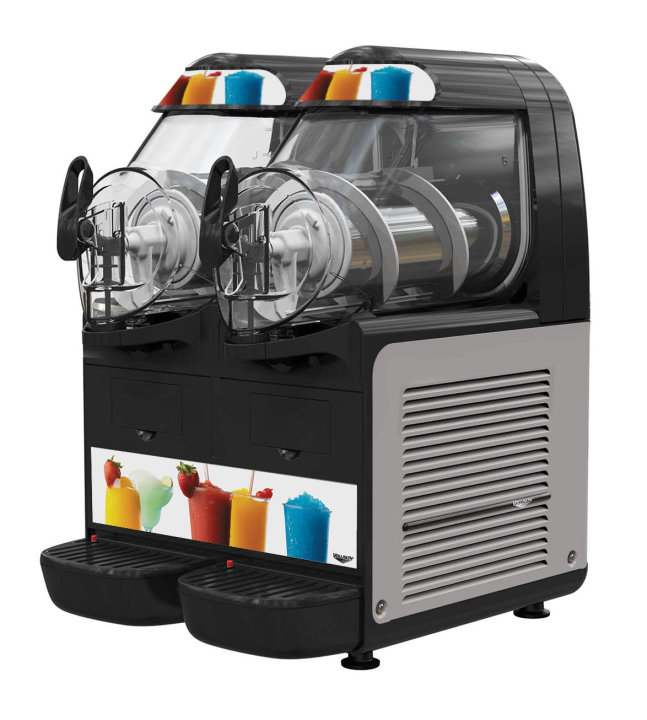

12-Liter double-bowl frozen-beverage machine
Vollrath Frozen Beverage Granita Machines are designed for cold or frozen slush and milk-based drinks including granitas, iced or frozen coffee or tea, frozen cocktails, smoothies and more.
12-Liter double-bowl frozen-beverage machine
Vollrath Frozen Beverage Granita Machines are designed for cold or frozen slush and milk-based drinks including granitas, iced or frozen coffee or tea, frozen cocktails, smoothies and more. These machines are easy to use and maintain and are ideal for bars, convenience stores and other operations that want to expand their beverage offerings. Their multiple point of sale locations can be customized.
Magnetic drive system is reliable, durable and easy to use
Easy-to-use controls with simple switch operation
Gasketless spigot is easy to clean and maintain
Large freezing surface and properly-sized compressor reduces freeze down times and promotes efficient operation
Optional double-wall bowls that ensure minimal condensation on the outside of unit
Two, six-liter bowls for additional menu options
For parts and service information, please contact our White Glove Service Network or Parts Town:
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | VCBA128 |
| UPC | 671080951072 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 15.5 x 19.5 x 23.75 |
| (W) Width (IN) | 15.5 |
| (D) Depth (IN) | 19.5 |
| (H) Height (IN) | 23.75 |
| (WL) Width between legs | 12.5 |
| (DL) Depth between legs | 11.3125 |
| (W) Width (CM) | 39.4 |
| (D) Depth (CM) | 49.7 |
| (H) Height (CM) | 60.5 |
| (WL) Width between legs (CM) | 31.8 |
| (DL) Depth between legs (CM) | 28.7 |
Electrical
| Name | Value |
|---|---|
| Amps | 6 |
| Frequency (Hz) | 50 |
| Hardwired Connection | No |
| Hz | 50 |
| Phase | 1 |
| Plug | Schuko |
| Plug Connection | Yes |
| Domestic / International | Europe |
| Voltage | 220 |
Volume
| Name | Value |
|---|---|
| Capacity (GAL) | 3.2 |
| Capacity (L) | 12 |
| Container Capacity (GAL) | 1.6 |
| Container Capacity (L) | 6 |
| Total Container Capacity (GAL) | 3.2 |
| Total Container Capacity (L) | 12 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 96 |
| Weight (KG) | 43.5 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R448A |
Frozen Treat: General Specifications
| Name | Value |
|---|---|
| Compressor (Btu/hr) | 1900 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 18.5 |
| Case Height | 30 |
| Case Length | 23 |
