T39707
Affordable Portable Hot Food Station Deluxe with Cafeteria Breath Guard
The 2-Series deluxe hot-food station by Vollrath pairs unparalleled convenience and versatility with powerful heating and efficient serving.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

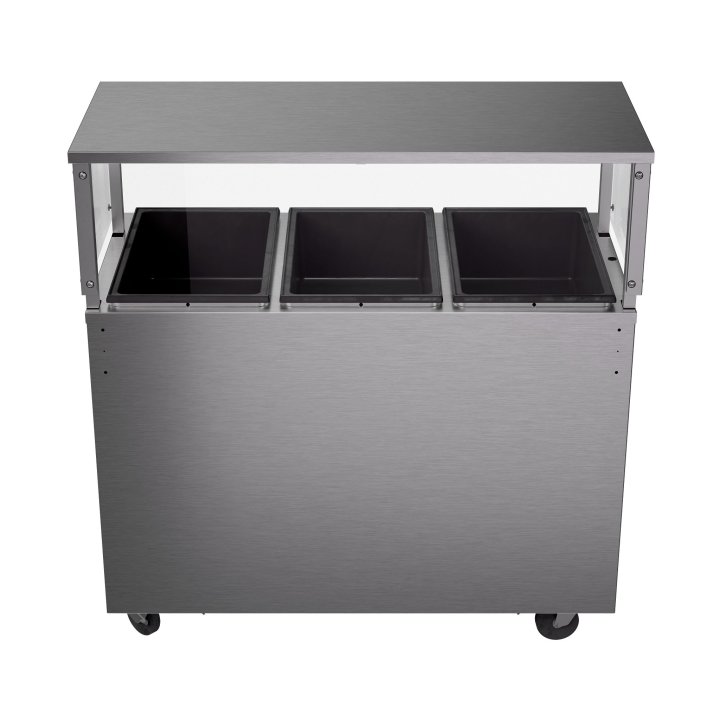

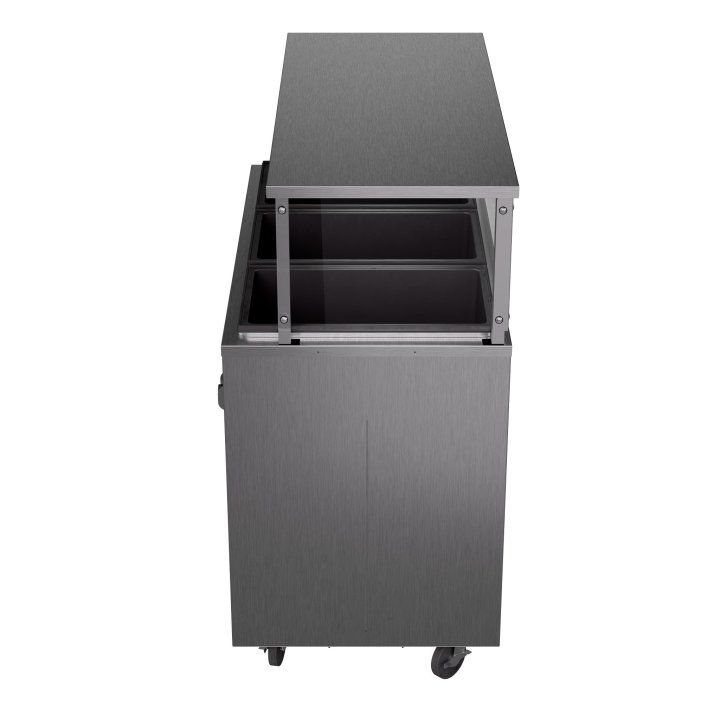

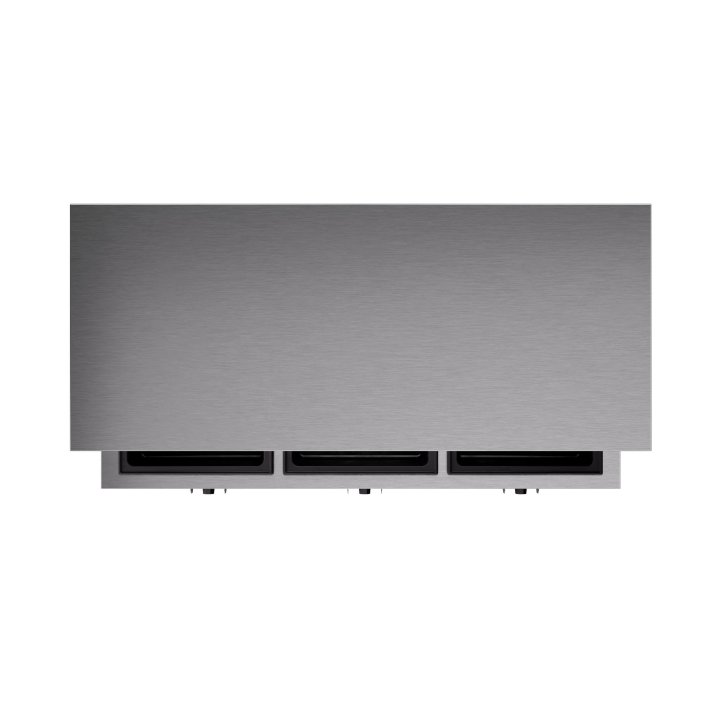

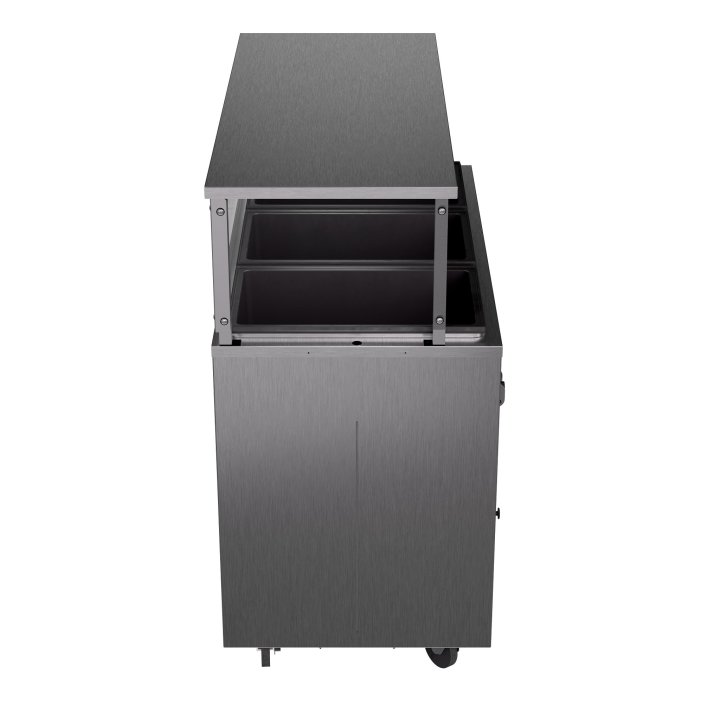

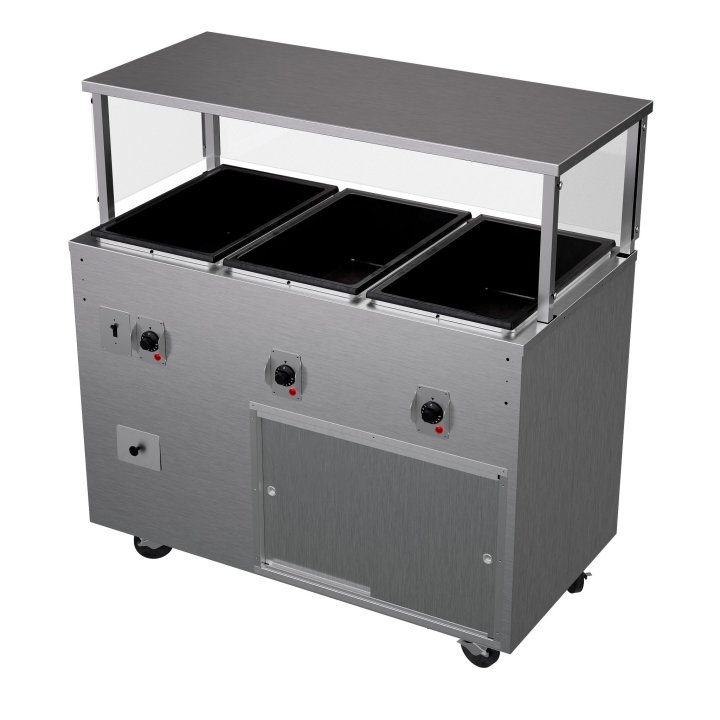

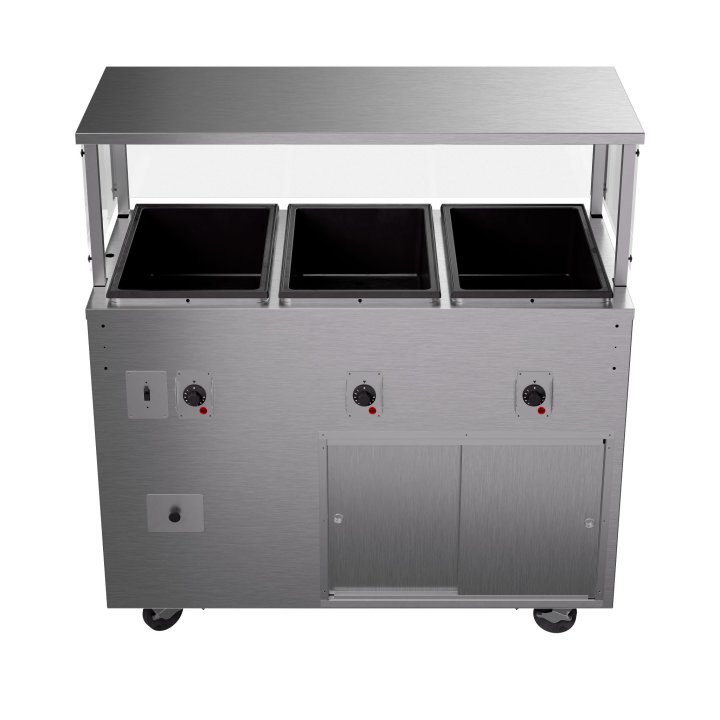

46-inch 120-volt three-well 2-Series deluxe hot-food station with black solid base and cafeteria-style breath guard
The 2-Series deluxe hot-food station by Vollrath pairs unparalleled convenience and versatility with powerful heating and efficient serving. The seamless stainless steel work surface is durable and long-lasting, and the scratch-resistant vinyl-clad carbon steel exterior resists signs of wear to maintain its like-new appearance. Each sealed well has been upgraded with a high-efficiency 480-watt in-water heating element and features a manifold drain for seamless operation. High-density glass fiber insulation traps heat for impressive efficiency, while thermostatic controls ensure accurate temperature settings. The cafeteria-style acrylic breath guard creates a sleek appearance, offers superior protection against contaminants and easy access to food items for efficient serving in your buffet, cafeteria or other serving area.
Display and serve a variety of hot-food items from a versatile, convenient and powerful portable station
Scratch-resistant vinyl-clad carbon steel exterior resists signs of wear
Seamless, one-piece 20-gauge 300-Series stainless steel work surface is durable and long-lasting
High-density glass fiber insulation traps heat for maximum energy efficiency
Each well features a high-efficiency 480-watt in-water heating element for powerful, accurate heating
Sealed wells donʼt require spillage pans for more convenient operation
Manifold drains control water levels with ease
Thermostatic controls ensure accurate temperature settings and powerful heat
Cafeteria-style acrylic breath guard looks sleek, offers superior protection and ensures easy access
Made in the USA
NSF-certified
Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419810642 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 46 x 24 x 49 |
| (W) Width (IN) | 46 |
| (D) Depth (IN) | 24 |
| (H) Height (IN) | 49 |
| (W) Width (CM) | 116.8 |
| (D) Depth (CM) | 61 |
| (H) Height (CM) | 124.5 |
| Size | 46-inches |
Electrical
| Name | Value |
|---|---|
| Amps | 12 |
| Hz | 60 |
| Plug | 5-15P |
| Voltage | 120 |
| Watts per Well | 480 |
Construction
| Name | Value |
|---|---|
| Color | Black |
| Construction Material | 20-gauge carbon steel |
| Control Type | Inifinite Controls |
| Drain Type | Manifold Drain |
| Material Type | Metals |
| Number of Wells | 3 |
| Product Function | Hot Food Station Deluxe |
| Serving System - Base Style | Solid Base |
| Breath Guard - Type | Cafeteria with Acrylic Panel |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 43.5 |
| Case Height | 66.5 |
| Case Length | 50 |
| Case Lot Cube (ft.) | 79.49 |
| Case Lot Weight (lbs.) | 277.0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| TEE BARBED 5/8" NYLN 150 PSI | 2913102-1 | $3.60 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| SWITCH TOGGLE LIGHTED | 23540-1 | $61.60 |
| KNOB CONTROL | 23423-1 | $9.30 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| PLEXI-END CAFETERIA NSF | 23523-1 | $109.20 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| CASTER W/BRAKE SIGNATURE | 21447-1 | $38.70 |
| HOSE CLAMP | 26681-1 | $5.80 |
| DRAIN ADAPTOR - MOLDED | 25958-1 | $29.00 |
| THERMOSTAT- 34" CAPILLARY | 17124-1 | $106.70 |
| DRAIN HOSE-5/8"ID HOT WELLS | 26907-3 | $16.50 |
| ADAPTOR-1/2" NPT X 1/2 HOSE | 26723-3 | $4.70 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| AFF DLX 46" SNG/DECK CAFE BG | 2816351-2 | $1,677.40 |
| CASTER W/O BRAKE SIGNATURE | 21448-1 | $38.10 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.30 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| CAST HEATER 480W 120V | 44200-1 | $102.10 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
| 16 GA. POWER CORD - 120V | 26550-1 | $41.90 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
