T38727W
Discontinued46-inch 120-volt 2-Series Affordable Portable™ Deluxe Hot Food Station with solid base in white
Affordable Portable™ Hot Food Station Deluxe with Buffet Breath Guard.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
46-inch 120-volt 2-Series Affordable Portable™ Deluxe Hot Food Station with solid base in white
Affordable Portable™ Hot Food Station Deluxe with Buffet Breath Guard

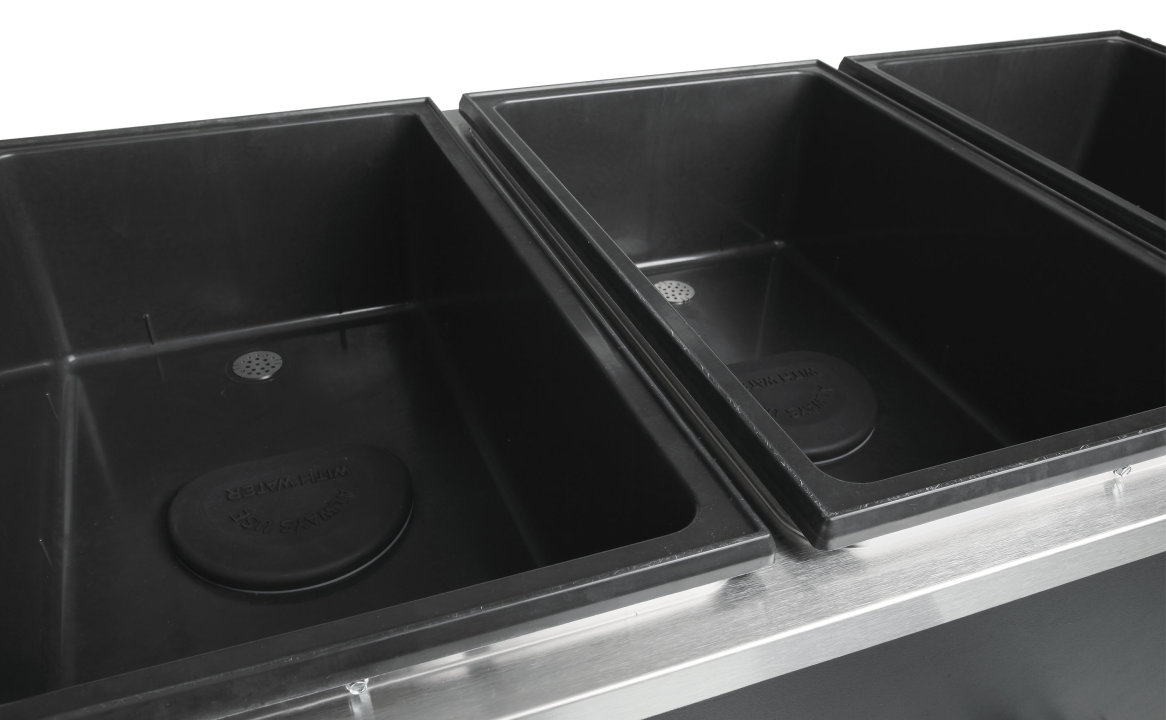

Upgraded Thermoset well with high efficiency 480W in-water heating element
Sealed well - no spillage pans required
Manifolded drains
Thermostatically controlled temperature
Unit depth: 24" (61 cm)
Standard models come with buffet breath guards
NSF 2 breath guard
Cafeteria breath guard with acrylic panel available
120V, 208-240V, 600-800W versions available * +
* For 208-240V without lights add 2 to the model number
+ For 120/208-240V units with lights add 4 to the model number
See spec sheet for cord/plug specifications
NOTE: Item made to order, cannot be cancelled or returned.
Color shown in image may differ from options available for specific item.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 671080561660 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 46 x 39.5 x 59 |
| (W) Width (IN) | 46 |
| (D) Depth (IN) | 39.5 |
| (H) Height (IN) | 59 |
| (W) Width (CM) | 116.8 |
| (D) Depth (CM) | 100.3 |
| (H) Height (CM) | 149.9 |
Electrical
| Name | Value |
|---|---|
| Amps | 12 |
| Hz | 60 |
| Plug | 5-15P |
| Voltage | 120 |
| Watts per Well | 480 |
Construction
| Name | Value |
|---|---|
| Color | White |
| Construction Material | 20-gauge Carbon Steel |
| Control Type | Dial Controls |
| Drain Type | Manifold Drain |
| Number of Wells | 3 |
| Product Function | Hot Food Station Deluxe |
| Serving System - Base Style | Solid Base |
| Breath Guard - Type | Buffet |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Lot Cube (ft.) | 43.16 |
| Case Lot Weight (lbs.) | 258.0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| SWITCH TOGGLE LIGHTED | 23540-1 | $61.60 |
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| KNOB CONTROL | 23423-1 | $9.30 |
| TEE BARBED 5/8" NYLN 150 PSI | 2913102-1 | $3.60 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| DRAIN DOOR ASSY - SIGNATURE | 2705550-2 | $41.70 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| DRAIN HOSE-5/8"ID HOT WELLS | 26907-3 | $16.50 |
| ADAPTOR-1/2" NPT X 1/2 HOSE | 26723-3 | $4.70 |
| PLUG-1 X 1/2" RECT BLACK | 46032-1 | $3.30 |
| NUT - ACORN 10-24 X 3/8 NICKEL | 22831-3 | $2.20 |
| TUBE - SUPPORT AFFORDABLE | 2751701-2 | $263.00 |
| PLEXI 46" AFF DLX TOP NWNSF | 2674201-1 | $244.00 |
| THERMOSTAT- 34" CAPILLARY | 17124-1 | $106.70 |
| PLEXI 46" AFF DLX SIDE NWNSF | 2671802-1 | $514.00 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| ACRYLLIC END PANELS | 2671801-1 | $415.10 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.30 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| CASTER 4"4-25-103-3 SWIVEL AFD | 29838-1 | $19.20 |
| 16 GA. POWER CORD - 120V | 26550-1 | $41.90 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| DRAIN ADAPTOR - MOLDED | 25958-1 | $29.00 |
| CASTER 4" SWIVEL BRAKE AFFD | 26185-1 | $38.50 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| CAST HEATER 480W 120V | 44200-1 | $102.10 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
