3639901HD
Two Well Hot Modular Drop-In
Keep a variety of food items at perfect serving temperatures with ease, thanks to the two-well 120-volt modular drop-in hot well by Vollrath.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
Two-well 120-volt 2000-watt modular marine-grade stainless steel drop-in hot well with standard drain and infinite controls
Keep a variety of food items at perfect serving temperatures with ease, thanks to the two-well 120-volt modular drop-in hot well by Vollrath. Made with marine-grade stainless steel, this durable well stands up to hard water and harsh cleaning techniques and offers enhanced corrosion resistance. High-density glass fiber insulation reduces energy waste, helping you maximize efficiency. The unique design requires a smaller circuit, reduces installation costs and provides comparable performance to higher-wattage elements. Each well features an individual drain shutoff for convenience, while a drip-free flange contains moisture and spills. The easy-to-use infinite controls ensure accurate temperature settings and are detachable for remote mounting, making this hot well a popular, reliable choice.
Made in the USA
Marine-grade stainless steel stands up to hard water and harsh cleaning techniques and offers enhanced corrosion resistance

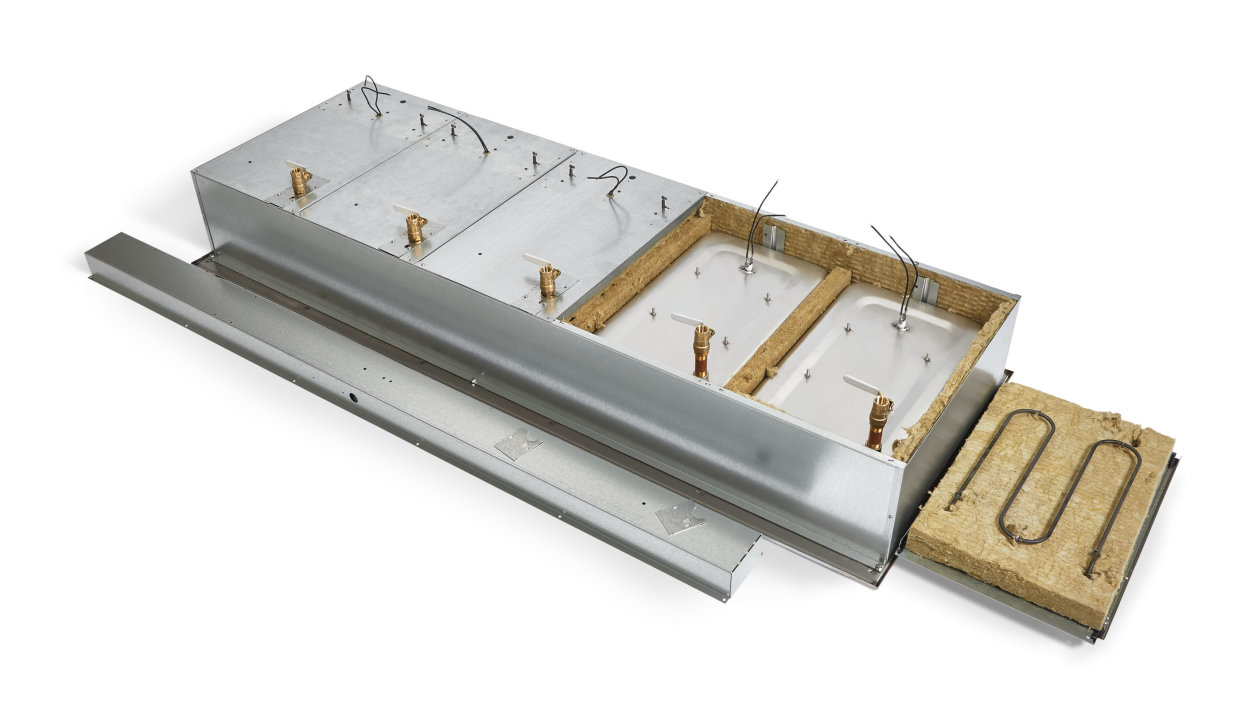

High-density glass fiber insulation on the sides, ends and below the element traps heat and maximizes energy efficiency
Easy-to-use infinite controls ensure accurate temperature settings
Detachable control unit for remote mounting
Energy-efficient heating element uses smaller circuit and reduces installation costs while providing comparable performance to higher-wattage elements
Individual drain shutoffs for user convenience
Full-perimeter gasket under drip flange reduces installation time
Drip-free flange contains moisture and spills
Cord and plug configuration eliminates the need for hardwiring
NSF-certified
Mounting clips adjust to varying countertop thicknesses, from stainless steel to laminate surfaces
6 ⅜-inch depth accommodates 6-inch-deep pans
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | Standard Drip Free Flange |
| UPC | 671080643892 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 28.25 x 26 x 15 |
| (W) Width (IN) | 28.25 |
| (D) Depth (IN) | 26 |
| (H) Height (IN) | 15 |
| (W) Width (CM) | 71.8 |
| (D) Depth (CM) | 66 |
| (H) Height (CM) | 38.1 |
Electrical
| Name | Value |
|---|---|
| Amps | 16.7 |
| Voltage | 120 |
| Watts | 2000 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 30 |
| Case Height | 32.5 |
| Case Length | 33.5 |
| Case Lot Weight (lbs.) | 104 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| 120V-INFINITE CONTROL SWITCH | 24788-1 | $40.80 |
| DROP-IN MOUNTING CLIP | 44179-1 | $3.30 |
| HOT WELL DRAIN SCREEN | 44406-2 | $3.00 |
| HEATING ELEMENT 120V 1000W | 17853-1 | $97.20 |
| NUT 10-32 HEX STAINLESS STEEL | 21547-1 | $0.90 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| THUMBSCREW 1/4-20 X 2" | 23035-3 | $5.10 |
| INFINITE CONTROL KNOB | 26638-3 | $16.30 |
| PILOT LIGHT - RED 125V | 23065-3 | $15.10 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.30 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
