36369
Top-Mount Fabricator Well
Promising superior results and exceptional energy efficiency, the top-mount drop-in hot well by Vollrath is an effective, consistent and convenient choice.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

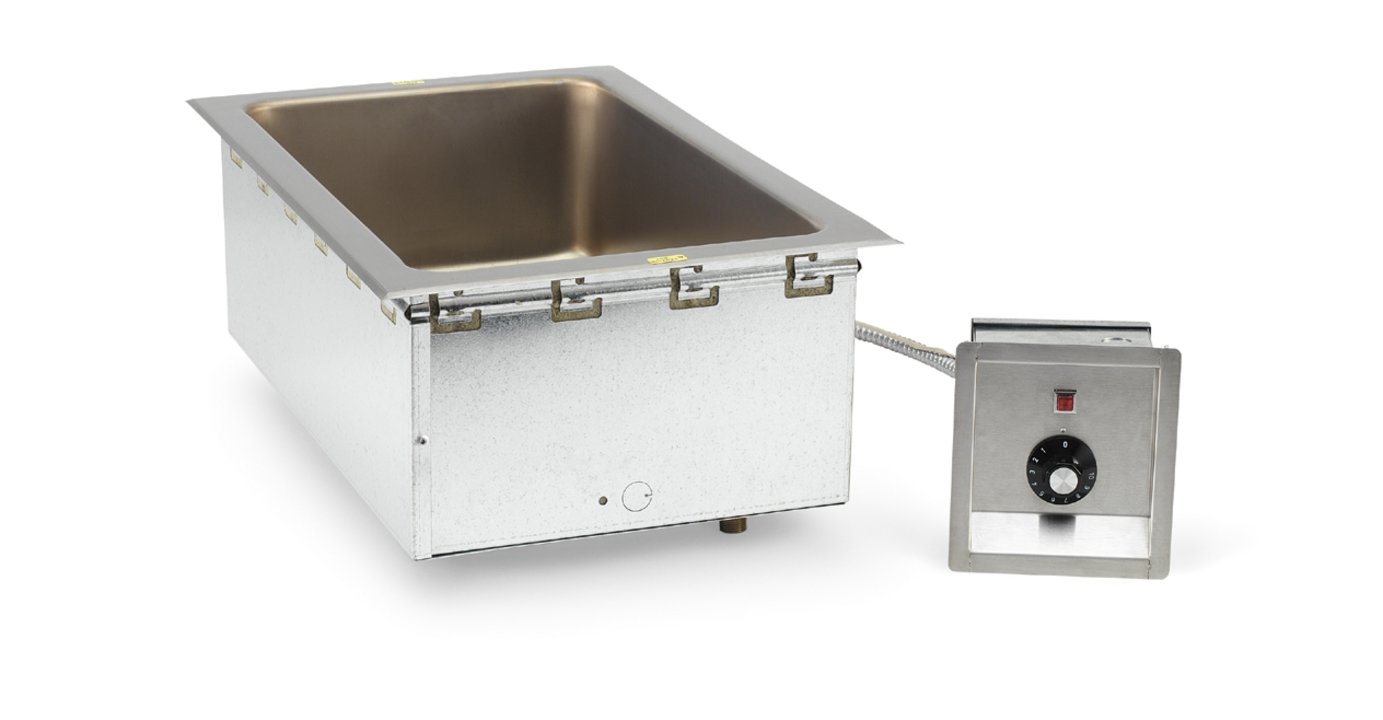

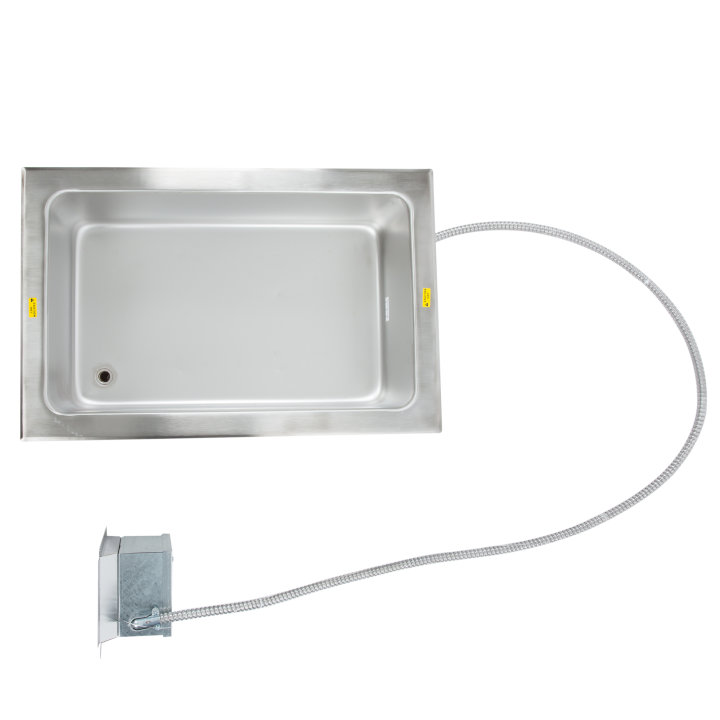

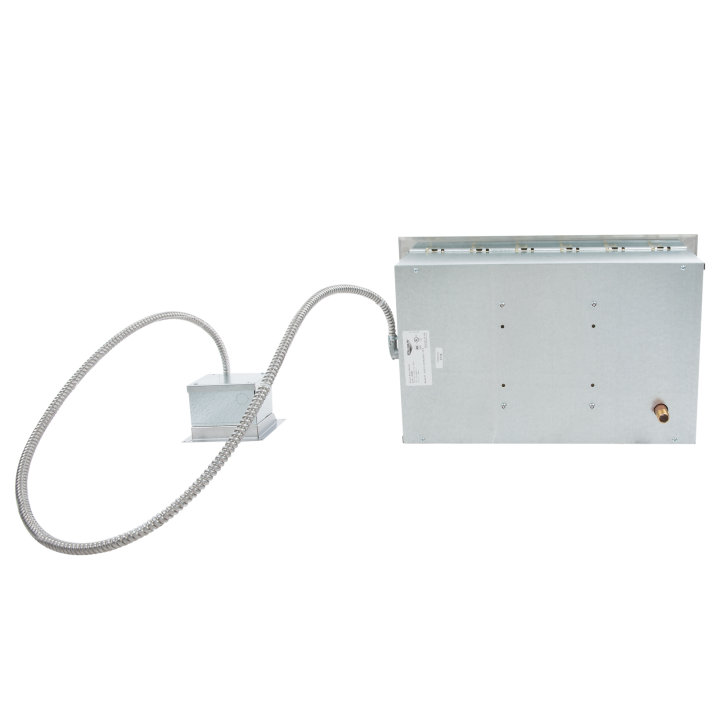

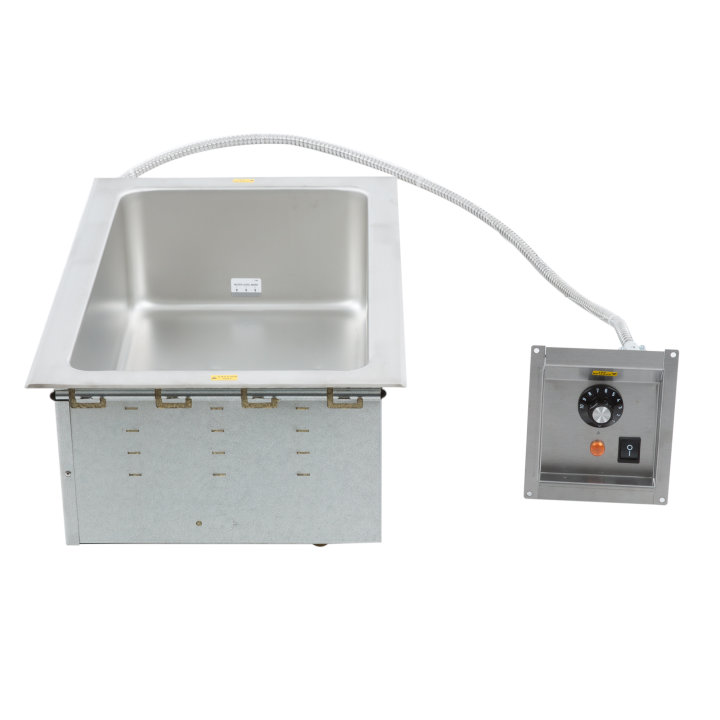

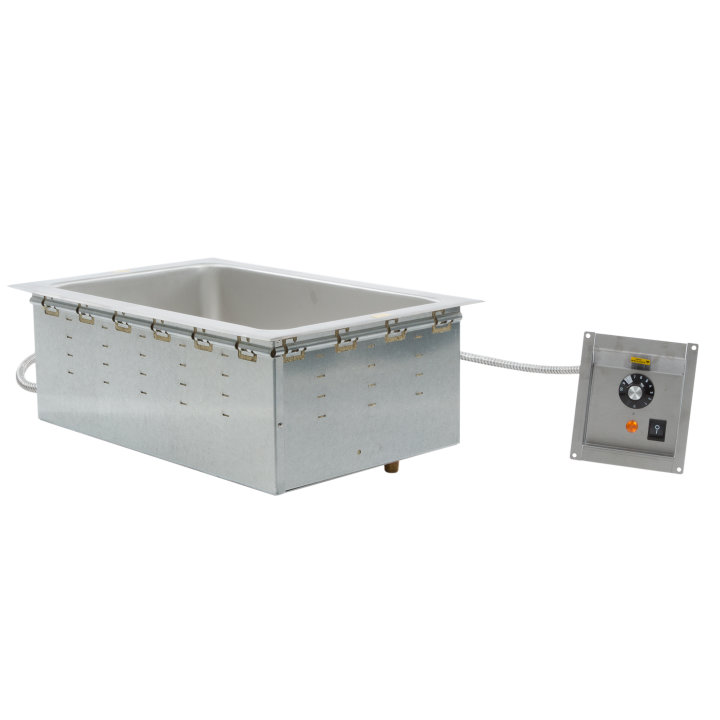

208- to 240-volt top-mount fabricator drop-in hot well with standard drain and thermostatic controls
Promising superior results and exceptional energy efficiency, the top-mount drop-in hot well by Vollrath is an effective, consistent and convenient choice. Made of 18-8 grade stainless steel and insulated with high-density glass fiber, this hot well is equally durable and high-performing, and the 6 ½-inch depth fits full- or fractional-size pans up to 6 inches deep. With a unique, energy-efficient design, this hot well offers comparable performance to higher-wattage elements. The control unit can be mounted remotely for convenient operation, and thermostatic controls ensure accurate heating. The zero clearance allows installation flexibility, while the beveled edge is quick and easy to clean.
Made in the USA
18-8 grade stainless steel is durable and long-lasting
High-density glass fiber insulation on the sides, ends and below the element traps heat

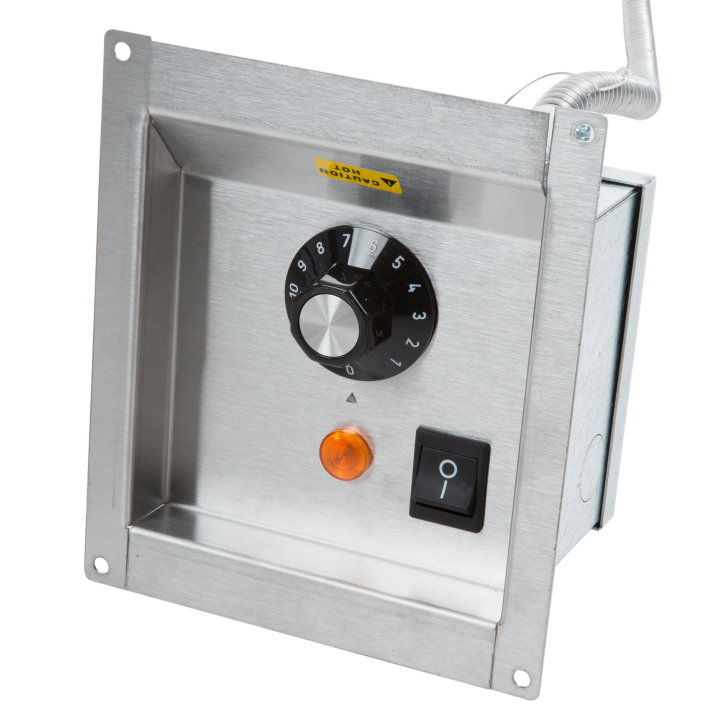

Remote-mounted control unit for convenient, easy operation
Reliable thermostatic controls ensure accurate heating
Energy-efficient heating element offers performance comparable to higher-wattage elements
Standard drain and drain screen included
Built-in positioning band for easy installation
Standard mounting tabs provided for sheet metal counters
Optional mounting kit available for laminate and solid-surface countertops (Vollrath® item number 36370)
NSF-certified
6 ½-inch depth accommodates full- and fractional-size pans up to 6 inches deep
Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419413447 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 15 |
| (D) Depth (IN) | 23 |
| (H) Height (IN) | 0 |
| (W) Width (CM) | 38.1 |
| (D) Depth (CM) | 58.4 |
Electrical
| Name | Value |
|---|---|
| Amps | 3.6 - 4.2 |
| Voltage | 208-240 |
| Watts | 750-1000 |
Construction
| Name | Value |
|---|---|
| Control Type | Thermostatic Controls |
| Drain Type | Standard Drain |
| Fill Type | None |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 16.5 |
| Case Height | 11.5 |
| Case Length | 25.375 |
| Case Lot Cube (ft.) | 2.79 |
| Case Lot Weight (lbs.) | 25.48 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| SWITCH | 23254-1 | $46.70 |
| BOTTOM | 44191-2 | $27.80 |
| NUT W/WASHER #10-24 ZINC PLT | 21574-3 | $0.70 |
| CONTROL BOX COVER | 44189-2 | $12.00 |
| HOT WELL DRAIN SCREEN | 44406-2 | $3.00 |
| FRONT PANEL - 240V | 44192-2 | $74.10 |
| KNOB CONTROL | 23423-1 | $9.30 |
| THERMOSTAT DISC REGULAT. 125C | 25166-1 | $30.30 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| THERMOSTAT 96" CAPILARY | 17816-1 | $122.70 |
| WRAPPER SINGLE WELL HOT | 44183-2 | $70.70 |
| HOT WELL WELL | 44280-2 | $361.80 |
| PILOT LIGHT - AMBER 250V | 23066-3 | $16.10 |
| ELEMENT-TUB/HEAT 240V 1090W | 17250-1 | $50.20 |
