FC-4DH-05208-I
Modular Dry Hot Drop-In
Featuring convenient dry heat, the five-well modular dry hot well by Vollrath is reliable, easy to use and maintains serving temperatures perfectly.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

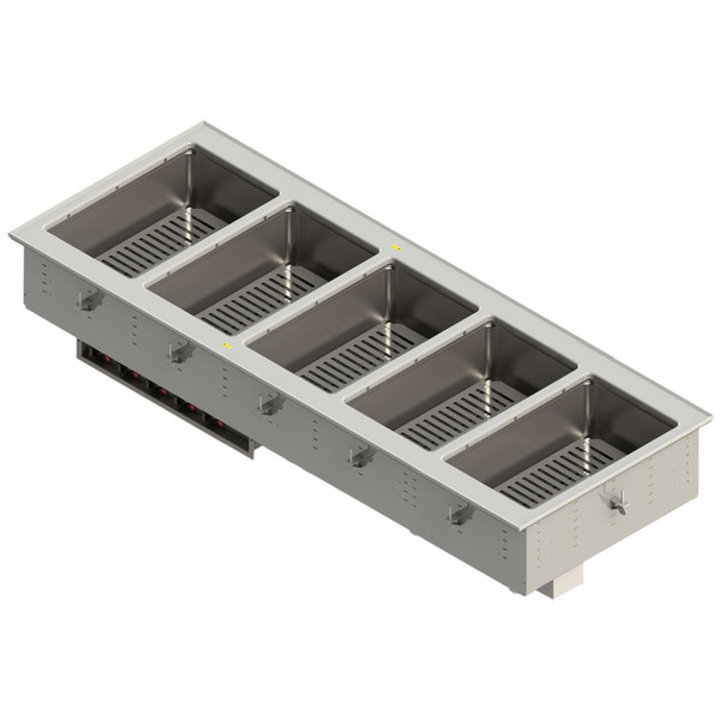

Five-well 208- to 240-volt modular drop-in dry hot well with infinite controls
Featuring convenient dry heat, the five-well modular dry hot well by Vollrath is reliable, easy to use and maintains serving temperatures perfectly. Made of 300-Series stainless steel and insulated with high-density glass fiber, this hot well is equally durable and high-performing. The open-element, energy-efficient design uses a smaller circuit, reduces installation costs and provides comparable performance to higher-wattage elements. Thermostatic controls ensure accurate heating and are detachable for remote mounting. This hot well does not require water for operation, making it a popular, reliable choice.
300-Series stainless steel is durable and long-lasting
Open well, dry design does not require water to operate
High-density glass fiber insulation traps heat and maximizes energy efficiency
Easy-to-use infinite controls ensure accurate temperature settings
4-foot tethered control panel connection allows flexible mounting
Energy-efficient heating element uses smaller circuit and reduces installation costs while providing comparable performance to higher-wattage elements
Cord and plug configuration eliminates the need for hardwiring
NSF-certified
Covered by 1-year limited warranty — see warranty page for details
Covered by 1-year limited warranty — see warranty page for details
Mounting clips adjust to varying countertop thicknesses, from stainless steel to laminate surfaces
6-foot power cord, 4-foot control cord
6-foot power cord, 4-foot control cord
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | Standard Drip Free Flange |
| UPC | 671080670287 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 68 |
| (D) Depth (IN) | 26 |
| (W) Width (CM) | 172.7 |
| (D) Depth (CM) | 66 |
Electrical
| Name | Value |
|---|---|
| Amps | 18 - 20.8 |
| Voltage | 208-240 |
| Watts | 750-1000 |
Construction
| Name | Value |
|---|---|
| Control Type | Inifinite Controls |
| Drain Type | No Drain |
| Fill Type | None |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 33 |
| Case Height | 33.5 |
| Case Length | 70 |
| Case Lot Weight (lbs.) | 214 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| DROP-IN MOUNTING CLIP | 44179-1 | $3.30 |
| WASHER #10 .500 OD .219 ID | 21544-1 | $0.70 |
| NUT 10-32 HEX STAINLESS STEEL | 21547-1 | $0.90 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| THUMBSCREW 1/4-20 X 2" | 23035-3 | $5.10 |
| INFINITE CONTROL KNOB | 26638-3 | $16.30 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.30 |
| PILOT LIGHT - AMBER 250V | 23066-3 | $16.10 |
| 240V-INFINITE CONTROL SWITCH | 24789-1 | $49.50 |
