FC-4DH-04208-T

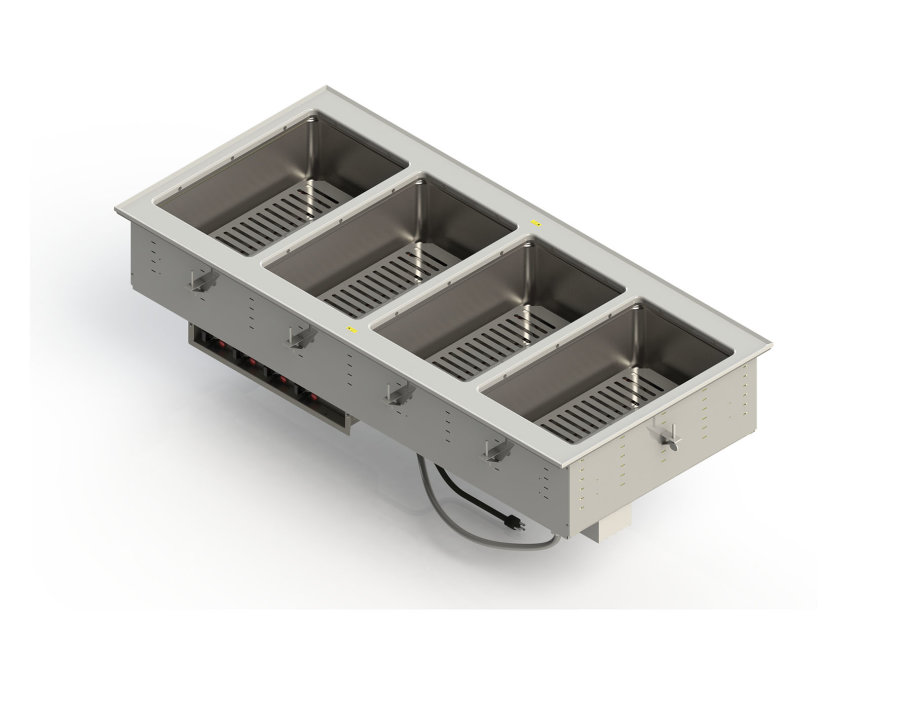

Four-well 208- to 240-volt modular drop-in dry hot well with thermostatic controls

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$4175.28 MSRP

$6,958.80 List Price

Where to Buy

Featuring convenient dry heat, the five-well modular dry hot well by Vollrath is reliable, easy to use and maintains serving temperatures perfectly. Made of 300-Series stainless steel and insulated with high-density glass fiber, this hot well is equally durable and high-performing. The open-element, energy-efficient design uses a smaller circuit, reduces installation costs and provides comparable performance to higher-wattage elements. Easy-to-use infinite controls ensure accurate temperature settings and are detachable for remote mounting. This hot well does not require water for operation, making it a popular, reliable choice.

300-Series stainless steel is durable and long-lasting
Open well, dry design does not require water to operate
High-density glass fiber insulation traps heat and maximizes energy efficiency
Reliable thermostatic controls ensure accurate heating
4-foot tethered control panel connection allows flexible mounting
Energy-efficient heating element uses smaller circuit and reduces installation costs while providing comparable performance to higher-wattage elements
Cord and plug configuration eliminates the need for hardwiring
NSF-certified
Covered by 1-year limited warranty — see warranty page for details
Covered by 1-year limited warranty — see warranty page for details
Mounting clips adjust to varying countertop thicknesses, from stainless steel to laminate surfaces
NSF-certified
6-foot power cord, 4-foot control cord

Product Specifications

Model Information

Name	Value
Model	Standard Drip Free Flange
UPC	671080670270

Unit Dimensions

Name	Value
(W) Width (IN)	54.75
(D) Depth (IN)	26
(W) Width (CM)	139
(D) Depth (CM)	66

Electrical

Name	Value
Amps	14.4 - 16.7
Voltage	208-240
Watts	750-1000

Construction

Name	Value
Control Type	Thermostatic Controls
Drain Type	No Drain
Fill Type	None

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	30
Case Height	32
Case Length	60
Case Lot Weight (lbs.)	126

Product Parts

Name	Part #	Price
DROP-IN MOUNTING CLIP	44179-1	$3.30
WASHER #10 .500 OD .219 ID	21544-1	$0.70
KNOB CONTROL	23423-1	$9.30
NUT 10-32 HEX STAINLESS STEEL	21547-1	$0.90
HIGH LIMIT THERMOSTAT 125C	25438-1	$23.70
THUMBSCREW 1/4-20 X 2"	23035-3	$5.10
THERMOSTAT 96" CAPILARY	17816-1	$122.70
THRMSTT 144" CAPILARY 96/BX	17795-1	$142.90
STRAIN RELIEF - FOR 3/8 CORD	26543-3	$2.30
PILOT LIGHT - AMBER 250V	23066-3	$16.10
