FC-4DH-01120-I

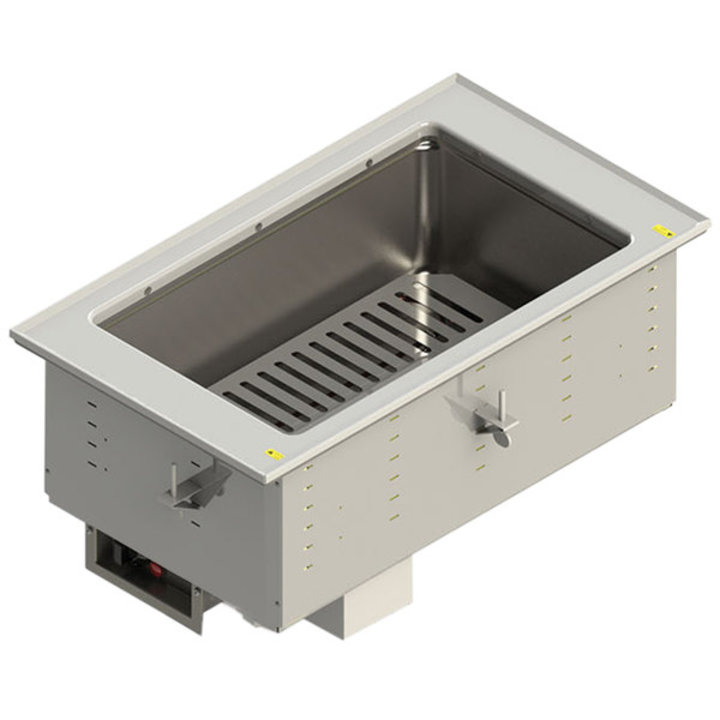

One-well 120-volt modular drop-in dry hot well with infinite controls

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$1649.82 MSRP

$2,749.70 List Price

Where to Buy

Featuring convenient dry heat, the one-well modular dry hot well by Vollrath is reliable, easy to use and maintains serving temperatures perfectly. Made of 300-Series stainless steel and insulated with high-density glass fiber, this hot well is equally durable and high-performing. The open-element, energy-efficient design uses a smaller circuit, reduces installation costs and provides comparable performance to higher-wattage elements. Easy-to-use infinite controls ensure accurate temperature settings and are detachable for remote mounting. This hot well does not require water for operation, making it a popular, reliable choice.

300-Series stainless steel is durable and long-lasting
Open well, dry design does not require water to operate
High-density glass fiber insulation traps heat and maximizes energy efficiency
Easy-to-use infinite controls ensure accurate temperature settings
4-foot tethered control panel connection allows flexible mounting
Energy-efficient heating element uses smaller circuit and reduces installation costs while providing comparable performance to higher-wattage elements
Cord and plug configuration eliminates the need for hardwiring
NSF-certified
Covered by 1-year limited warranty — see warranty page for details
Zero-clearance installation means no trim rings required for non-metallic countertops
Zero-clearance installation means no trim rings required for non-metallic countertops
6 ⅜-inch depth accommodates 6-inch-deep pans
6 ⅜-inch depth accommodates 6-inch-deep pans

Product Specifications

Model Information

Name	Value
Model	Standard Drip Free Flange
UPC	671080670140

Unit Dimensions

Name	Value
(W) Width (IN)	15
(D) Depth (IN)	26
(W) Width (CM)	38.1
(D) Depth (CM)	66

Electrical

Name	Value
Amps	8.3
Voltage	120
Watts	1000

Construction

Name	Value
Control Type	Inifinite Controls
Drain Type	No Drain
Fill Type	None

Case Lot Measurement

Name	Value
Case Lot	1
Case Width	19
Case Height	16
Case Length	28
Case Lot Weight (lbs.)	35

Product Parts

Name	Part #	Price
120V-INFINITE CONTROL SWITCH	24788-1	$40.80
DROP-IN MOUNTING CLIP	44179-1	$3.30
16 GA. POWER CORD 120V	17085-1	$21.30
WASHER #10 .500 OD .219 ID	21544-1	$0.70
NUT 10-32 HEX STAINLESS STEEL	21547-1	$0.90
HIGH LIMIT THERMOSTAT 125C	25438-1	$23.70
THUMBSCREW 1/4-20 X 2"	23035-3	$5.10
INFINITE CONTROL KNOB	26638-3	$16.30
PILOT LIGHT - RED 125V	23065-3	$15.10
STRAIN RELIEF - FOR 3/8 CORD	26543-3	$2.30
