Cayenne® Model 2001 Drop-In Warmer
The Vollrath® one-well Cayenne drop-in food warmer heats your food while maximizing energy efficiency.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

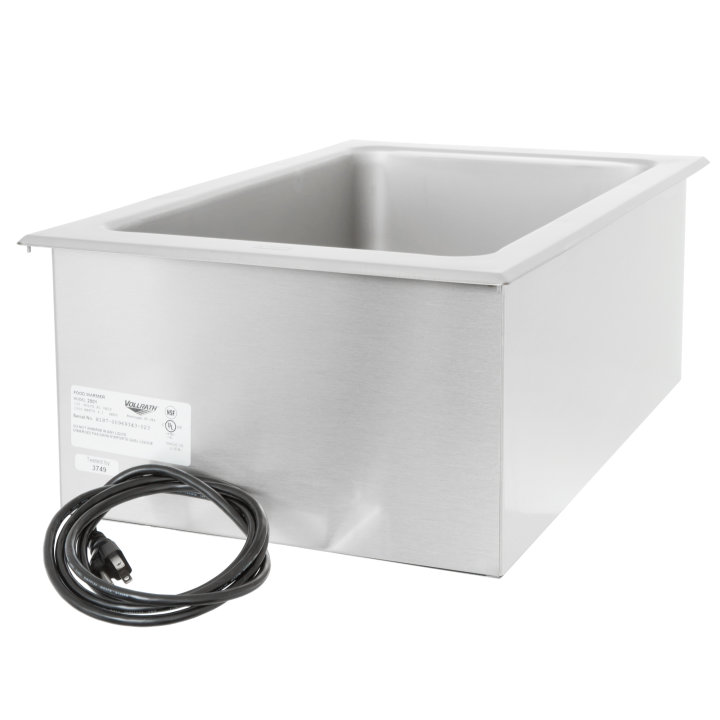

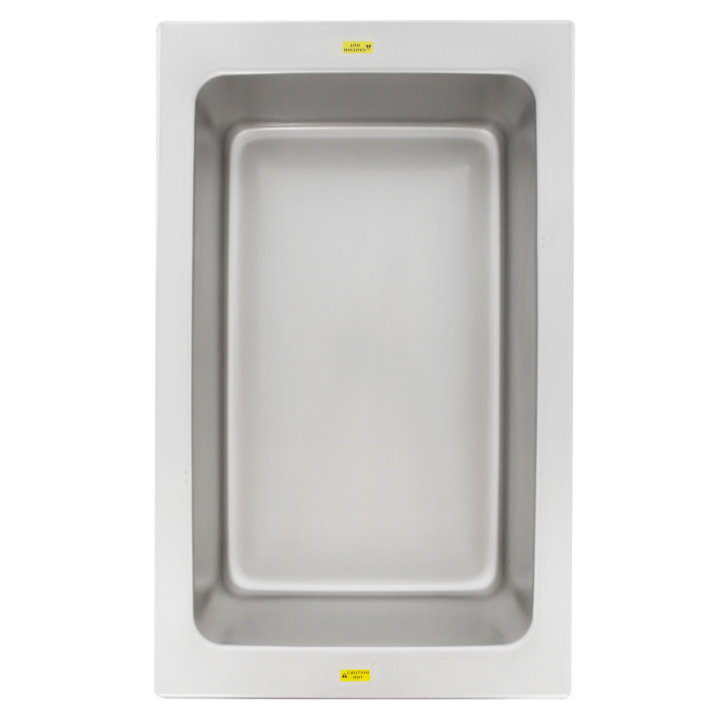

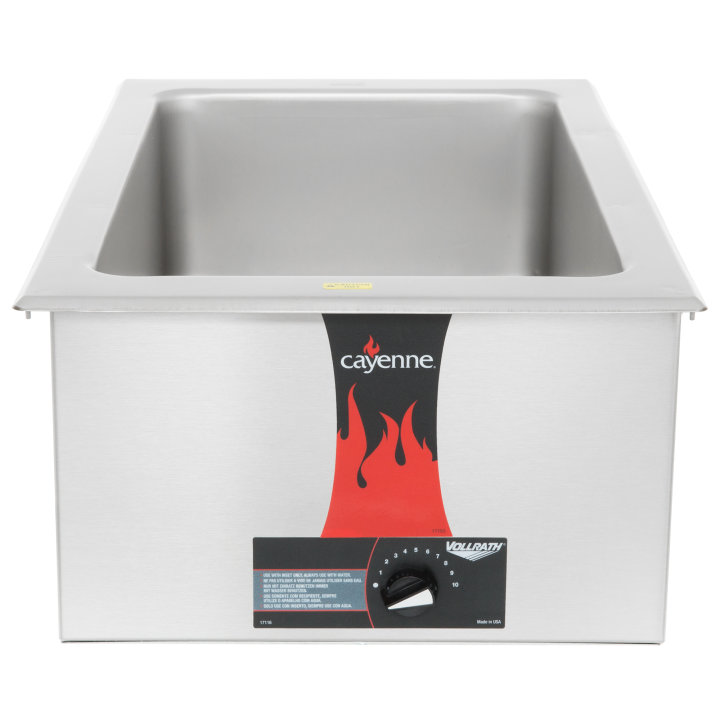

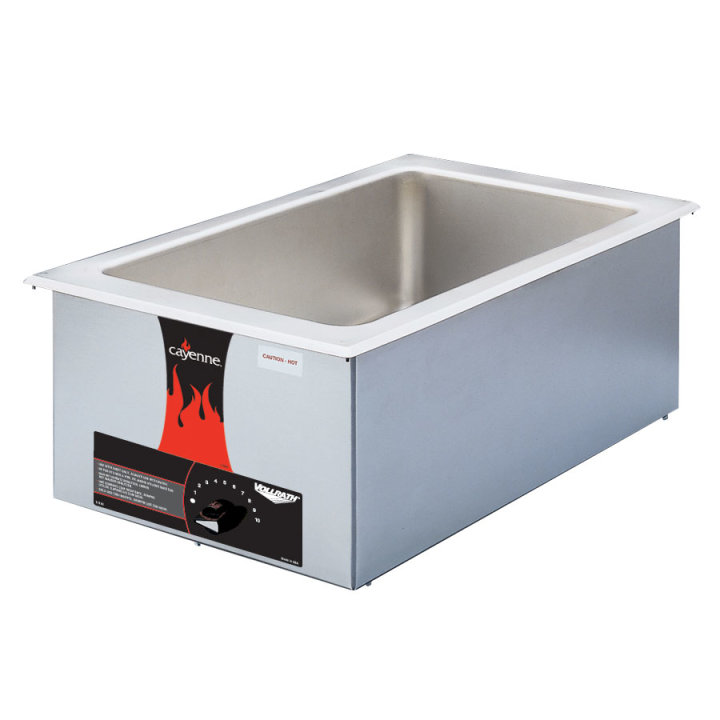

120 Volt Single-Well Full-Size Cayenne® Drop-In Food Warmer
The Vollrath® one-well Cayenne drop-in food warmer heats your food while maximizing energy efficiency. Thermostatic controls allow for more accurate heating, and the durable stainless steel body is built to last. This full-size drop-in warmer fits right into your counter, and positioning pins hold the unit in place. No permanent wiring is needed, so this unit can easily lift out and become a countertop warmer if desired. This warmer comes with a 6-foot cord and plug for ultimate convenience.
Stainless steel warmer is durable and long lasting

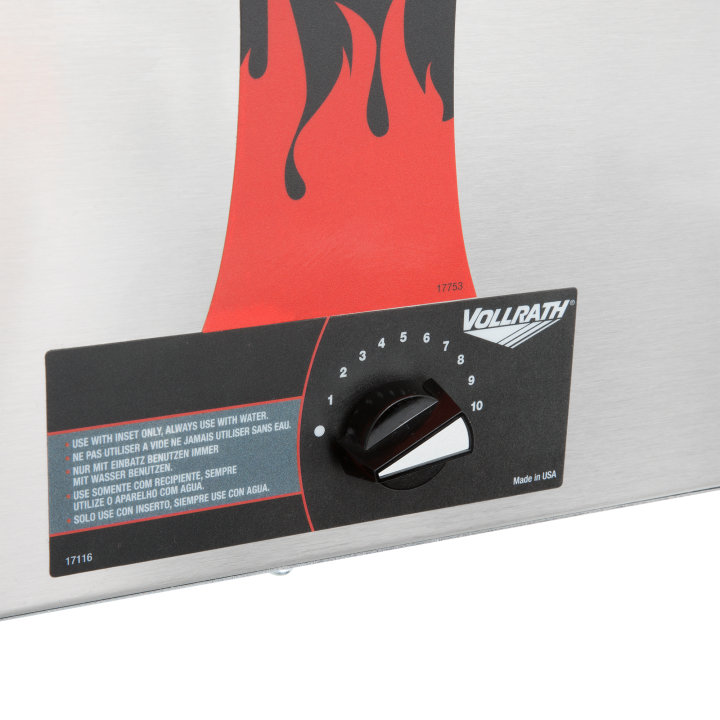

Thermostatic controls allow for more accurate heating
6-foot cord and plug easily reach your outlet
Drop-in well requires 23-9/16- x 14-7/16-inch cutout
4-inch-deep full or fractional size pans are recommended
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | 2001 |
| UPC | 029419159055 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 14.93 |
| (WU) Usable Width (IN) | 12.688 |
| (D) Depth (IN) | 24 |
| (D2) Secondary Depth (IN) | 24 |
| (H) Height (IN) | 8.62 |
| Usable Height (IN) | 6.5 |
| (WC) Width Cutout (IN) | 23.5625 |
| (DC) Depth Cutout (IN) | 14.4375 |
| (W) Width (CM) | 37.9 |
| (WU) Usable Width (CM) | 32.2 |
| (D2) Secondary Depth (CM) | 61 |
| (H) Height (CM) | 21.9 |
| Usable Height (CM) | 16.6 |
| (WC) Width Cutout (CM) | 59.8 |
| (DC) Depth Cutout (CM) | 36.7 |
| Size | Full |
Electrical
| Name | Value |
|---|---|
| Amps | 8.3 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1000 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 17 |
| Case Height | 10.5 |
| Case Length | 26.5 |
| Case Lot Cube (ft.) | 2.74 |
| Case Lot Weight (lbs.) | 20.18 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| POWER CORD (18 GA) 6 FT | 17023-1 | $20.70 |
| CONTROL KNOB BLK M 2000 | 17097-1 | $17.40 |
| HEYCO STRAIN RELIEF | 17045-3 | $2.40 |
| DISSIPATOR HEAT MODEL 2000 | 44247-2 | $20.50 |
| PLATE - BOTTOM MODEL 2000 | 44257-2 | $41.50 |
| THERMOSTAT LONG-STEM B-200 | 17109-1 | $79.30 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| STANDOFF #10 X 1.25" LONG | 23661-3 | $2.00 |
| ELEMENT SHIELD ASSY MODEL 2000 | 43538-2 | $88.70 |
| 022-171-HTEL-RM 1000 W/HTG.ELM | 17107-1 | $54.60 |
Product Downloads
Download Sell Sheet
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
