FC-4SH-36120-BR-SW
Low Profile Strip Heater
The Vollrath® low-profile heat strip keeps all your hot food items appetizingly warm.

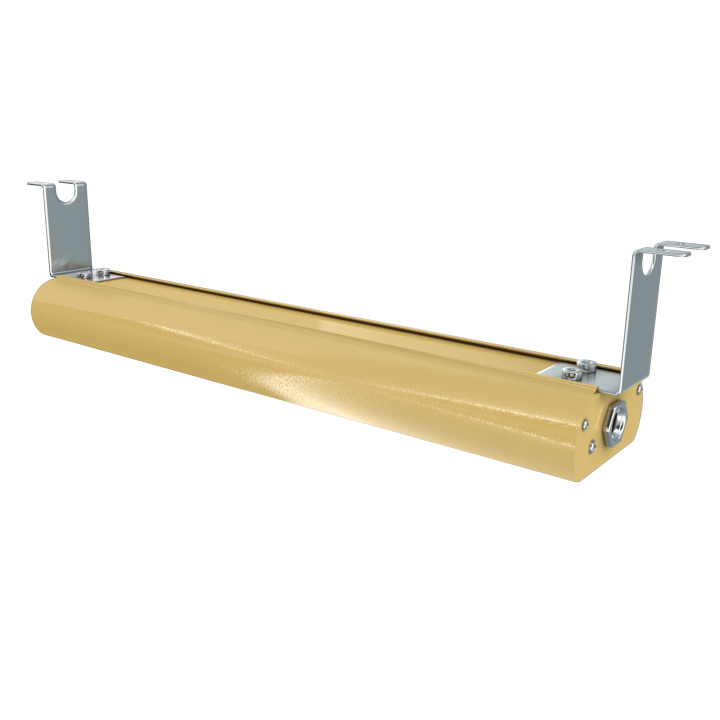

36-inch 120-volt low-profile heat strip in brass
The Vollrath® low-profile heat strip keeps all your hot food items appetizingly warm. The durable construction provides maximum strength with minimal weight, while the slim design creates a clean appearance and improves visibility. This heat strip is incredibly powerful and easily maintains perfect serving temperatures. The heating element works with the reflector to provide efficient, consistent and evenly dissipated heat, and the convenient remote infinite control gives you the freedom to select the perfect setting for your needs, making this heat strip the perfect addition to any breath guard in your hot food area.
Slim design is 65% smaller than the original Vollrath heat strip and 19-35% smaller than the leading competitors, creating a clean appearance and improving visibility
Designed to maintain ideal serving temperatures for all your hot food items by providing a consistent, even blanket of heat
Powerful heating element maximizes heat production and efficiency and offers up to 14% more heat penetration than the leading competitive heat strips when heating a 12- x 20-inch pan
Reflector ensures consistent, even heat distribution to better maintain optimal food quality
All units come standard with strong, 3-inch mounting brackets. Optional 1- and 2-inch brackets can be purchased separately
Strong brackets promise reliable mount under breath guard

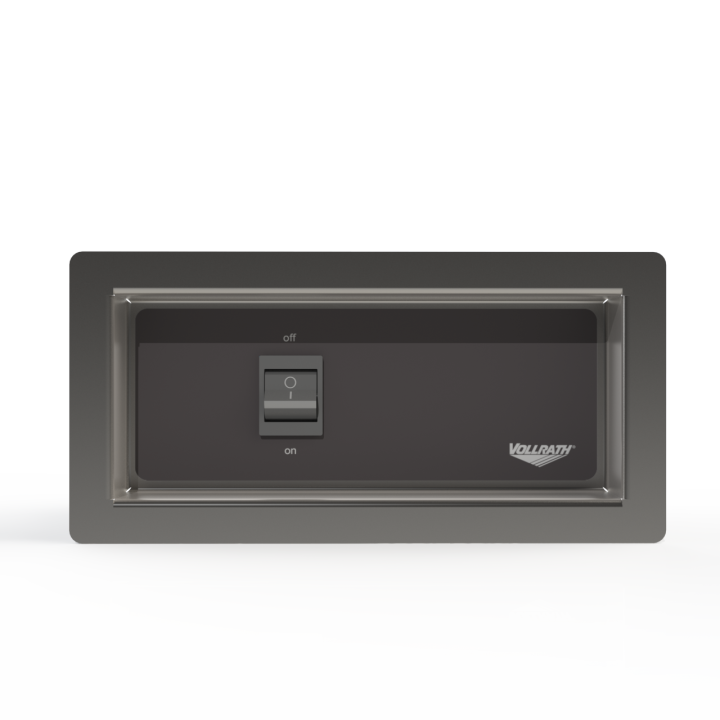

Convenient toggle control allows for simple on/off functionality
Brass color creates a timeless appearance
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419209408 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 36 x 3.75 x 1.86 |
| (W) Width (IN) | 36 |
| (D) Depth (IN) | 3.75 |
| (H) Height (IN) | 1.86 |
| Overall Dimensions (CM) | 91.44 x 9.53 x 4.72 |
| (W) Width (CM) | 91.44 |
| (D) Depth (CM) | 9.53 |
| (H) Height (CM) | 4.72 |
| Size | 36 |
Electrical
| Name | Value |
|---|---|
| Amps | 6.9 |
| Hz | 60 |
| Voltage | 120 |
| Watts | 826 |
Construction
| Name | Value |
|---|---|
| Color | Brass |
| Control Type | Remote Toggle Switch |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 0 |
| Case Height | 0 |
| Case Length | 0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| SWITCH | 23254-1 | $46.70 |
| NUT W/WASHER #10-24 ZINC PLT | 21574-3 | $0.70 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.40 |
| ELEMENT SUPPORT BRACKET | 352607-2 | $8.70 |
| END CAP - CONDUIT, NATURAL | 3526062-2 | $2.60 |
| BOTTOM COVER - FIXED END | 352608-2 | $20.90 |
| BOTTOM COVER - FREE END 36" | 35260836-2 | $25.10 |
| MOUNTING BRACKET - 3" | 352609-2 | $18.20 |
| END CAP - BRASS PC | 3526061BR-2 | $20.60 |
| CNTRL ASSY - SW NO RELAY | 352611-2 | $183.40 |
| END CAP - NATURAL | 3526061-2 | $2.30 |
| HEATING ELEMENT SIZE 36 BLUE | 1791523-1 | $61.00 |
| END CAP - CONDUIT, BRASS PC | 3526062BR-2 | $20.80 |
