FC-6HC-04208-ADFF
DiscontinuedFour-well 120-volt and 208- to 240-volt drop-in hot or cold well with auto-drain, thermostatic controls and flat flange

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

California’s Proposition 65, officially known as the Safe Drinking Water and Toxic Enforcement Act, is intended to protect the state’s drinking water sources from contaminants that may be harmful. It has recently been amended, and the change that impacts Vollrath requires more specific labeling for some of our products that contain chemicals identified in Proposition 65.

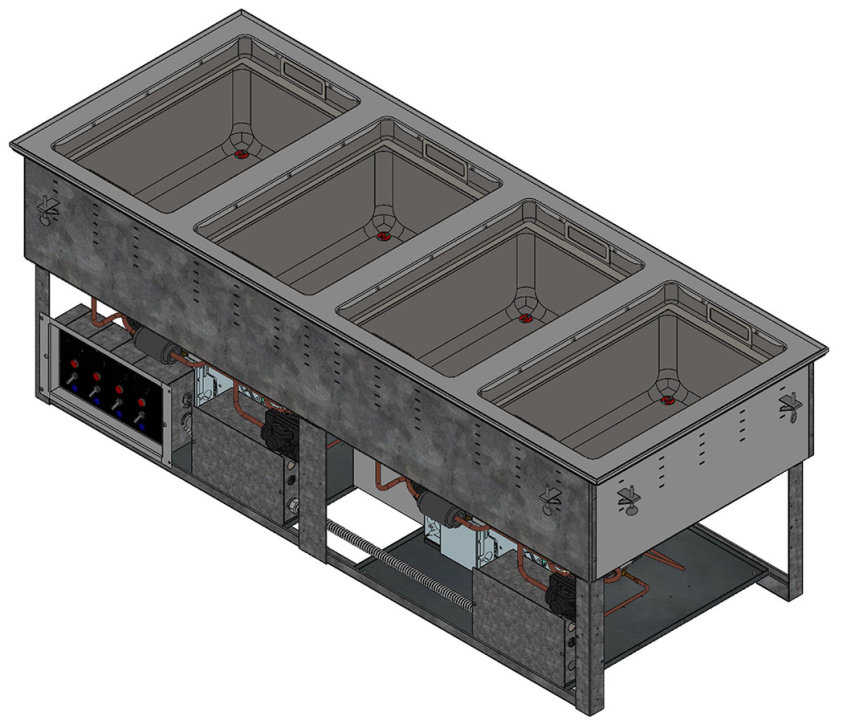

Serving up an incomparable level of efficiency, versatility and performance, the four-well drop-in hot or cold well by Vollrath is an excellent choice for a wide range of establishments. The unique design lets you change back and forth from hot to cold with the flip of a switch. The well is made of durable stainless steel and allows you to serve hot or cold food items at the ideal serving temperature. The thermostatic controls ensure accurate heating, and the high-density polyurethane foam insulation traps heat and maximizes energy efficiency. Refrigeration coils surround the exterior walls for quick, consistent cooling, while the flat flange creates a sleek, streamlined appearance. With the automatic drain system, this versatile hot or cold drop-in well is easy to use and incredibly convenient.
- Made in the USA
- 18-gauge 300-Series stainless steel well and 18-gauge galvanized steel exterior housing are durable and long-lasting
- High-density polyurethane foam insulation traps heat and maximizes energy efficiency
- Reliable thermostatic controls ensure accurate heating
- Change between hot and cold with the flip of a switch
- Auto-drain feature offers additional convenience and ease of use — auto-fill option not available on this product
- Uses R513A, a nonflammable low Global Warming Potential (GWP) refrigerant
- Flat flange creates a sleek, streamlined appearance
- Uses R513A, a nonflammable low Global Warming Potential (GWP) refrigerant
- 6-foot cord with plug does not require hardwiring
- 5-foot control cord allows remote mounting
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
- 6 ⅜-inch depth accommodates 6-inch-deep pans
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | FF |
| UPC | 029419296590 |
Electrical
| Name | Value |
|---|---|
| Plug | 14-20P |
| Voltage | 120 and 208/240 |
Construction
| Name | Value |
|---|---|
| Special Feature | Flat Flange |
Product Parts
| Name | Part # | Price |
|---|---|---|
| FILTER DRIER DCL 032 | 351333-1 | $112.50 |
| COMPRESSOR POWER RELAY | 351074-1 | $44.00 |
| CORD-14/4 SJO-90 DEG C 300V | 26597-3 | $8.60 |
| TEE BARBED 5/8" NYLN 150 PSI | 2913102-1 | $3.60 |
| DROP-IN MOUNTING CLIP | 44179-1 | $3.30 |
| HOT WELL DRAIN SCREEN | 44406-2 | $3.00 |
| VALVE BODY DRAIN 2-WAY STEAM | 23538-1 | $240.20 |
| TOGGLE SWITCH 3/4HP 125-250VAC | 23562-1 | $41.90 |
| PLUG-125/250V 20A NEMA 14-20P | 26606-1 | $127.40 |
| KNOB CONTROL | 23423-1 | $9.30 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| DRAIN HOSE-5/8"ID HOT WELLS | 26907-3 | $16.50 |
| HOSE CLAMP | 26681-1 | $5.80 |
| KIT 240V 625W ELEMENT | 351885-2 | $377.00 |
| VALVE ACTUATOR NORMAL CLOSED | 23542-1 | $629.30 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| THUMBSCREW 1/4-20 X 2" | 23035-3 | $5.10 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| THRMSTT 144" CAPILARY 96/BX | 17795-1 | $142.90 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.30 |
| RELAY POWER | 25357-1 | $21.20 |
| SERVICE POWER CORD ASSEMBLY | 351892-2 | $322.00 |
| HOT-COLD PAN LIFTER | 46536-2 | $137.10 |
| CONNECTOR 5 WIRE WAGO 221-415 | 4350812-1 | $5.30 |
| CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.40 |
| KIT, TXV ORIF1 BP FOR EMBRACO | 353834-2 | $157.30 |
| VALVE INVERTED FLARE CONNECT | 23545-1 | $34.90 |
| SNAP BUSHING HEYCO SB-500-6 | 21528-3 | $0.70 |
| PRESSURE TRANSDUCER EMBRACO | 353828-1 | $526.50 |
| KIT ELEC PARTS FFU80 EMBRACO | 353831-1 | $174.50 |
| FAN MOTOR 9W EMBRACO | 353829-1 | $562.30 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
| PILOT LIGHT - AMBER 250V | 23066-3 | $16.10 |
