FC-6HC-03208-FF

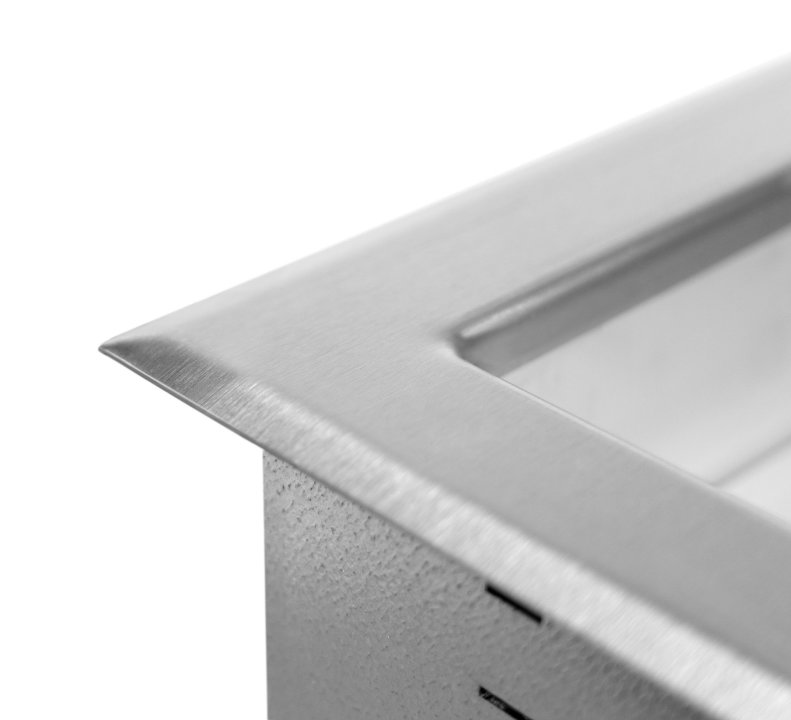

DiscontinuedThree-well 120-volt and 208- to 240-volt drop-in hot or cold well with manual drain, thermostatic controls and flat flange

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

California’s Proposition 65, officially known as the Safe Drinking Water and Toxic Enforcement Act, is intended to protect the state’s drinking water sources from contaminants that may be harmful. It has recently been amended, and the change that impacts Vollrath requires more specific labeling for some of our products that contain chemicals identified in Proposition 65.
Serving up an incomparable level of efficiency, versatility and performance, the three-well drop-in hot or cold well by Vollrath is an excellent choice for a wide range of establishments. The unique design lets you change back and forth from hot to cold with the flip of a switch. The wells are made of durable stainless steel and feature individual controls that allow you to serve a variety of food items at their ideal serving temperatures. The thermostatic controls ensure accurate heating, and the high-density polyurethane foam insulation traps heat and maximizes energy efficiency. Refrigeration coils surround the exterior walls for quick, consistent cooling, while the flat flange creates a sleek, streamlined appearance.
- Made in the USA
- 18-gauge 300-Series stainless steel wells and 18-gauge galvanized steel exterior housing are durable and long-lasting
- High-density polyurethane foam insulation traps heat and maximizes energy efficiency
- Reliable thermostatic controls ensure accurate heating
- Change between hot and cold with the flip of a switch
- Individual well controls allow you to serve a variety of foods at a variety of temperatures
- Manual drain is reliable and easy to use
- NSF-certified
- Recessed design is sized to uniformly align with other Vollrath® drop-ins for a clean visual presentation
- 6-foot cord with plug does not require hardwiring
- 5-foot control cord allows remote mounting
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
- 6 ⅜-inch depth accommodates 6-inch-deep pans
- 6-foot power cord, 4-foot control cord
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | -FF |
| UPC | 029419296583 |
Electrical
| Name | Value |
|---|---|
| Plug | 5-15P |
| Voltage | 120 |
Construction
| Name | Value |
|---|---|
| Special Feature | Flat Flange |
Product Parts
| Name | Part # | Price |
|---|---|---|
| TEE BARBED 5/8" NYLN 150 PSI | 2913102-1 | $3.40 |
| DROP-IN MOUNTING CLIP | 44179-1 | $3.10 |
| KNOB CONTROL | 23423-1 | $8.98 |
| COMPRESSOR POWER RELAY | 351074-1 | $44.00 |
| CORD-14/4 SJO-90 DEG C 300V | 26597-3 | $7.50 |
| TOGGLE SWITCH 3/4HP 125-250VAC | 23562-1 | $39.90 |
| HOSE CLAMP | 26681-1 | $2.90 |
| DRAIN PLUG | 25136-1 | $62.00 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| PLUG-125/250V 20A NEMA 14-20P | 26606-1 | $84.90 |
| KIT 240V 625W ELEMENT | 351885-2 | $327.80 |
| SNAP BUSHING HEYCO SB-500-6 | 21528-3 | $0.72 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $4.70 |
| DRAIN HOSE-5/8"ID HOT WELLS | 26907-3 | $13.20 |
| THRMSTT 144" CAPILARY 96/BX | 17795-1 | $136.10 |
| HOT WELL DRAIN SCREEN | 44406-2 | $2.90 |
| SERVICE POWER CORD ASSEMBLY | 351892-2 | $292.70 |
| RELAY POWER | 25357-1 | $20.50 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.10 |
| PILOT LIGHT - AMBER 250V | 23066-3 | $16.10 |
| HOT-COLD PAN LIFTER | 46536-2 | $130.60 |
| THUMBSCREW 1/4-20 X 2" | 23035-3 | $4.90 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| KIT, TXV ORIF1 BP FOR EMBRACO | 353834-2 | $143.00 |
| KIT ELEC PARTS FFU80 EMBRACO | 353831-1 | $162.34 |
| FAN MOTOR 9W EMBRACO | 353829-1 | $523.08 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.00 |
| CONNECTOR 5 WIRE WAGO 221-415 | 4350812-1 | $5.30 |
| CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.40 |
Product Downloads
CAD / REVIT
Customer Questions
Be the first to ask a question
