FC-6HC-02120-FF

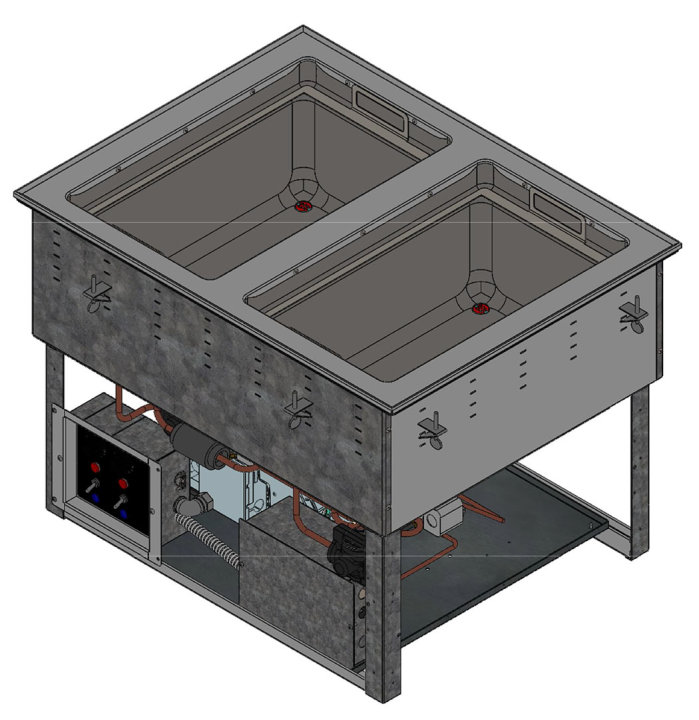

Two-well 120-volt drop-in hot or cold well with manual drain, thermostatic controls and flat flange
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
California’s Proposition 65, officially known as the Safe Drinking Water and Toxic Enforcement Act, is intended to protect the state’s drinking water sources from contaminants that may be harmful. It has recently been amended, and the change that impacts Vollrath requires more specific labeling for some of our products that contain chemicals identified in Proposition 65.
Serving up an incomparable level of efficiency, versatility and performance, the two-well 120-volt drop-in hot or cold well by Vollrath is an excellent choice for a wide range of establishments. The unique design lets you change back and forth from hot to cold with the flip of a switch. The wells are made of durable stainless steel and feature individual controls that allow you to serve a variety of food items at their ideal serving temperatures. The thermostatic controls ensure accurate heating, and the high-density polyurethane foam insulation traps heat and maximizes energy efficiency. Refrigeration coils surround the exterior walls for quick, consistent cooling, while the flat flange creates a sleek, streamlined appearance.
- Made in the USA
- 18-gauge 300-Series stainless steel wells and 18-gauge galvanized steel exterior housing are durable and long-lasting
- High-density polyurethane foam insulation traps heat and maximizes energy efficiency
- Reliable thermostatic controls ensure accurate heating
- Change between hot and cold with the flip of a switch
- Individual well controls allow you to serve a variety of foods at a variety of temperatures
- Manual drain is reliable and easy to use
- Flat flange creates a sleek, streamlined appearance
- Uses R513A, a nonflammable low Global Warming Potential (GWP) refrigerant
- 5-foot control cord allows remote mounting
- 5-foot control cord allows remote mounting
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
- 6 ⅜-inch depth accommodates 6-inch-deep pans
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | -FF |
| UPC | 029419296491 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 33.875 x 26 x 24.375 |
| (W) Width (IN) | 33.87 |
| (D) Depth (IN) | 26 |
| (H) Height (IN) | 24.37 |
| (W) Width (CM) | 86 |
| (D) Depth (CM) | 66 |
| (H) Height (CM) | 61.9 |
Electrical
| Name | Value |
|---|---|
| Plug | 5-15P |
| Voltage | 120 |
Construction
| Name | Value |
|---|---|
| Special Feature | Flat Flange |
Product Parts
| Name | Part # | Price |
|---|---|---|
| FILTER DRIER DCL 032 | 351333-1 | $37.50 |
| COMPRESSOR POWER RELAY | 351074-1 | $44.00 |
| HOSE CLAMP | 26681-1 | $2.90 |
| TEE BARBED 5/8" NYLN 150 PSI | 2913102-1 | $3.40 |
| DROP-IN MOUNTING CLIP | 44179-1 | $3.10 |
| TOGGLE SWITCH 3/4HP 125-250VAC | 23562-1 | $39.90 |
| HOT WELL DRAIN SCREEN | 44406-2 | $2.90 |
| KNOB CONTROL | 23423-1 | $8.98 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $4.70 |
| DRAIN PLUG | 25136-1 | $62.00 |
| 16 GA. POWER CORD 120V | 17085-1 | $21.30 |
| KIT 120V 625W ELEMENT | 351884-2 | $328.40 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| THUMBSCREW 1/4-20 X 2" | 23035-3 | $4.90 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| DRAIN HOSE-5/8"ID HOT WELLS | 26907-3 | $13.20 |
| SNAP BUSHING HEYCO SB-500-6 | 21528-3 | $0.72 |
| CONNECTOR 5 WIRE WAGO 221-415 | 4350812-1 | $5.30 |
| PILOT LIGHT - RED 125V | 23065-3 | $14.76 |
| THRMSTT 144" CAPILARY 96/BX | 17795-1 | $136.10 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.00 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.10 |
| HOT-COLD PAN LIFTER | 46536-2 | $130.60 |
| PRESSURE TRANSDUCER EMBRACO | 353828-1 | $489.78 |
| KIT, TXV ORIF1 BP FOR EMBRACO | 353834-2 | $143.00 |
| CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.40 |
| KIT ELEC PARTS FFU80 EMBRACO | 353831-1 | $162.34 |
| FAN MOTOR 9W EMBRACO | 353829-1 | $523.08 |
