FC-6HC-03120-AD

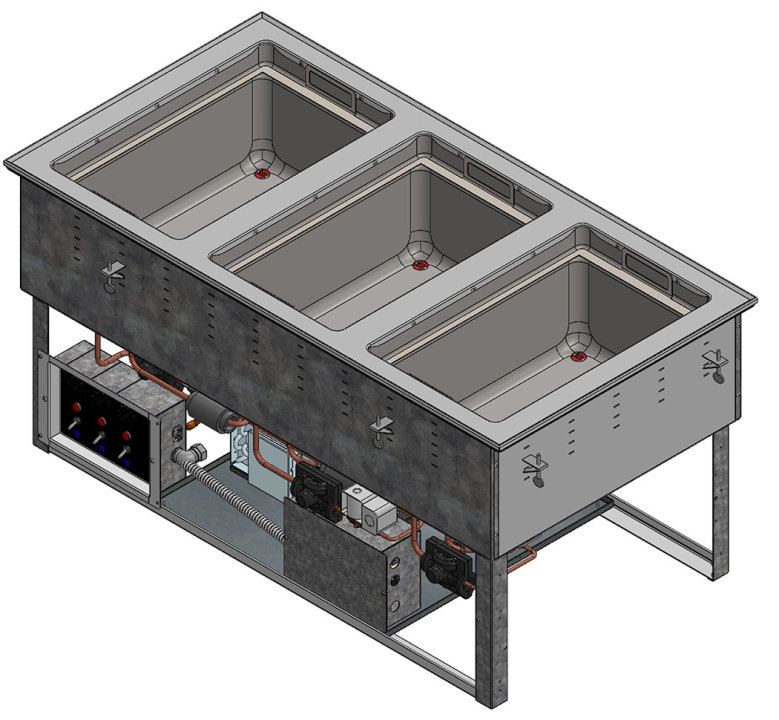

DiscontinuedThree-well 120-volt drop-in hot or cold well with auto-drain and thermostatic controls

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

California’s Proposition 65, officially known as the Safe Drinking Water and Toxic Enforcement Act, is intended to protect the state’s drinking water sources from contaminants that may be harmful. It has recently been amended, and the change that impacts Vollrath requires more specific labeling for some of our products that contain chemicals identified in Proposition 65.
Serving up an incomparable level of efficiency, versatility and performance, the hot or cold well by Vollrath is an excellent choice for a wide range of establishments. The unique design lets you change back and forth from hot to cold with the flip of a switch. The wells are made of durable stainless steel and feature individual controls that allow you to serve a variety of food items at their ideal serving temperatures. The thermostatic controls ensure accurate heating, and the high-density polyurethane foam insulation traps heat and maximizes energy efficiency. Refrigeration coils surround the exterior walls for quick, consistent cooling, while the full-perimeter drip edge contains spills and condensation for a clean, attractive display.
- Made in the USA
- 18-gauge 300-Series stainless steel wells and 18-gauge galvanized steel exterior housing are durable and long-lasting
- High-density polyurethane foam insulation traps heat and maximizes energy efficiency
- Reliable thermostatic controls ensure accurate heating
- Change between hot and cold with the flip of a switch
- Individual well controls allow you to serve a variety of foods at a variety of temperatures
- Auto-drain feature offers additional convenience and ease of use — auto-fill option not available on this product
- Uses R513A, a nonflammable low Global Warming Potential (GWP) refrigerant
- Wells pass NSF 4 and NSF 7 performance testing for open-top hot holding and refrigerated buffet units.
- Listed under NSF/ANSI 169 for special-purpose food equipment and devices
- 1-year parts and labor limited warranty
- 5-year limited warranty on compressor
- 6-foot cord with plug does not require hardwiring
- 4-foot control cord allows remote mounting
- Please note this is a made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | Standard Drip Free Flange |
| UPC | 671080839172 |
Electrical
| Name | Value |
|---|---|
| Plug | 5-15P |
| Voltage | 120 |
Construction
| Name | Value |
|---|---|
| Refrigerant | R513A |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Width | 30 |
| Case Height | 33 |
| Case Length | 73.5 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| COMPRESSOR POWER RELAY | 351074-1 | $44.00 |
| VALVE BODY DRAIN 2-WAY STEAM | 23538-1 | $228.80 |
| TOGGLE SWITCH 3/4HP 125-250VAC | 23562-1 | $39.90 |
| TEE BARBED 5/8" NYLN 150 PSI | 2913102-1 | $3.40 |
| DROP-IN MOUNTING CLIP | 44179-1 | $3.10 |
| POWER CORD 120V NEMA 5-20P 72" | 17860-1 | $38.70 |
| KNOB CONTROL | 23423-1 | $8.98 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $4.70 |
| DRAIN HOSE-5/8"ID HOT WELLS | 26907-3 | $13.20 |
| HOSE CLAMP | 26681-1 | $2.90 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| THUMBSCREW 1/4-20 X 2" | 23035-3 | $4.90 |
| KIT 120V 625W ELEMENT | 351884-2 | $328.40 |
| PILOT LIGHT - RED 125V | 23065-3 | $14.76 |
| THRMSTT 144" CAPILARY 96/BX | 17795-1 | $136.10 |
| VALVE ACTUATOR NORMAL CLOSED | 23542-1 | $599.30 |
| SNAP BUSHING HEYCO SB-500-6 | 21528-3 | $0.72 |
| CONNECTOR 5 WIRE WAGO 221-415 | 4350812-1 | $5.30 |
| HOT WELL DRAIN SCREEN | 44406-2 | $2.90 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.10 |
| HOT-COLD PAN LIFTER | 46536-2 | $130.60 |
| CONNECTOR 2 WIRE WAGO 221-412 | 4350810-1 | $1.40 |
| KIT, TXV ORIF1 BP FOR EMBRACO | 353834-2 | $143.00 |
| VALVE INVERTED FLARE CONNECT | 23545-1 | $34.90 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| PRESSURE TRANSDUCER EMBRACO | 353828-1 | $489.78 |
| KIT ELEC PARTS FFU80 EMBRACO | 353831-1 | $162.34 |
| FAN MOTOR 9W EMBRACO | 353829-1 | $523.08 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.00 |
