FC-4CP-03120-F

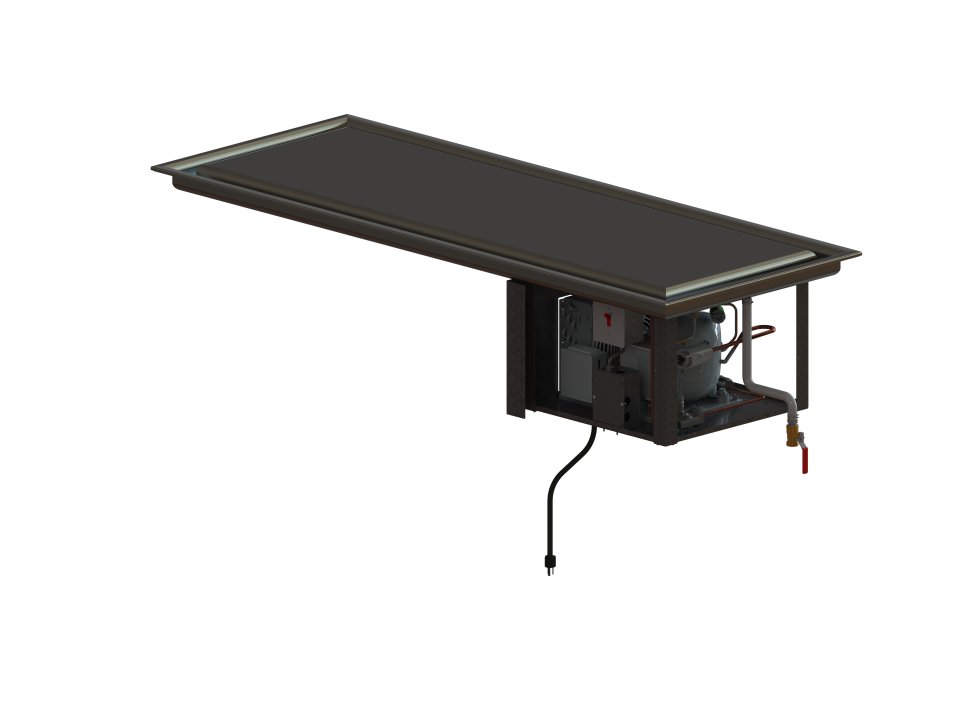

Three-well 120-volt standard refrigerated drop-in frost top

This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$5663.77 MSRP

$9,439.61 List Price

Where to Buy

Hold all your deliciously prechilled food items, appetizer trays and more at ideal serving temperatures with the refrigerated drop-in frost top by Vollrath. Perfect for self-service, the display surface sits flush with the countertop for a clean, streamlined appearance, while the refrigeration coils underneath provide efficient, effective cooling. Additional coils are attached to the sides of the display to create a full frost pattern, while the condensing unit is suspended right below the surface to maximize space. The frost top features one-piece construction for a smooth look, and the flange and display area are constructed of durable 300-Series stainless steel that promises years of use. A full-perimeter drip edge contains spills and condensation, and the top-mount design ensures quick, convenient installation.

Flange and display are constructed of durable 300-Series stainless steel
Frost top features one-piece construction
Polystyrene insulation surrounds the cooling coils, minimizing energy usage and ensuring lower-cost operation
Uses R290, a nonflammable low Global Warming Potential (GWP) refrigerant
Refrigeration coils are attached to the underside of the display surface to provide maximum cooling
Additional coils are attached to the sides of the display to create a full frost pattern
Condensing unit suspended below the frost top to maximize space
Flat frost top is flush with counter for a streamlined appearance
Full-perimeter drip edge contains spills and condensation
NSF-certified
Designed for top-mount installation
Display surface averages 0°F when ambient temperature is 70°F
½-inch integral drain
Remote on-off switch with 4-foot cord
6-foot cord with plug does not require hardwiring

Product Specifications

Model Information

Name	Value
UPC	198594089492

Unit Dimensions

Name	Value
(W) Width (IN)	41.5
(WU) Usable Width (IN)	35.5
(W2) Secondary Width (IN)	18.9375
(D) Depth (IN)	26.06
(DU) Usable Depth (IN)	20
(D2) Secondary Depth (IN)	23.125
(H2) Secondary Height (IN)	15
(H3) Additional Height (IN)	0.375
(WC) Width Cutout (IN)	10.75
(DC) Depth Cutout (IN)	25.25
(W) Width (CM)	105.4
(WU) Usable Width (CM)	90.2
(W2) Secondary Width (CM)	48
(D) Depth (CM)	66.2
(DU) Usable Depth (CM)	51
(D2) Secondary Depth (CM)	58.7
(H2) Secondary Height (CM)	38.1
(H3) Additional Height (CM)	1
(WC) Width Cutout (CM)	103.5
(DC) Depth Cutout (CM)	64.1

Electrical

Name	Value
Amps	5.5
Cord Length (IN)	72
Cord Length (CM)	183
hp	1/3
Hz	60
Plug	NEMA 5-15P
Voltage	120

Construction

Name	Value
Refrigerant	R290

Case Lot Measurement

Name	Value
Case Width	30
Case Height	33.5
Case Length	46.5

Product Parts

Name	Part #	Price
KIT, CONDENSING UNIT	355071-SV	$2,650.82
KIT ELEC, UMX4140U EMBRACO	354254-1	$241.99
FAN MOTOR, UMX4121/4140U	356267-1	$524.34
CONNECTOR 2 WIRE WAGO 221-412	4350810-1	$1.40
KIT, M6000 W/INSTRUCTION	333333-SV	$148.76
PRESSURE TRANSDUCER EMBRACO	356266-1	$453.23
STRAIN RELIEF - FOR 3/8 CORD	26543-3	$2.00
16 GA. POWER CORD 120V	17085-1	$21.30
NUT 10-32 HEX STAINLESS STEEL	21547-1	$0.90
