120 Volt Four-pan NSF7 Refrigerated Cold Pan

36434

Discontinued

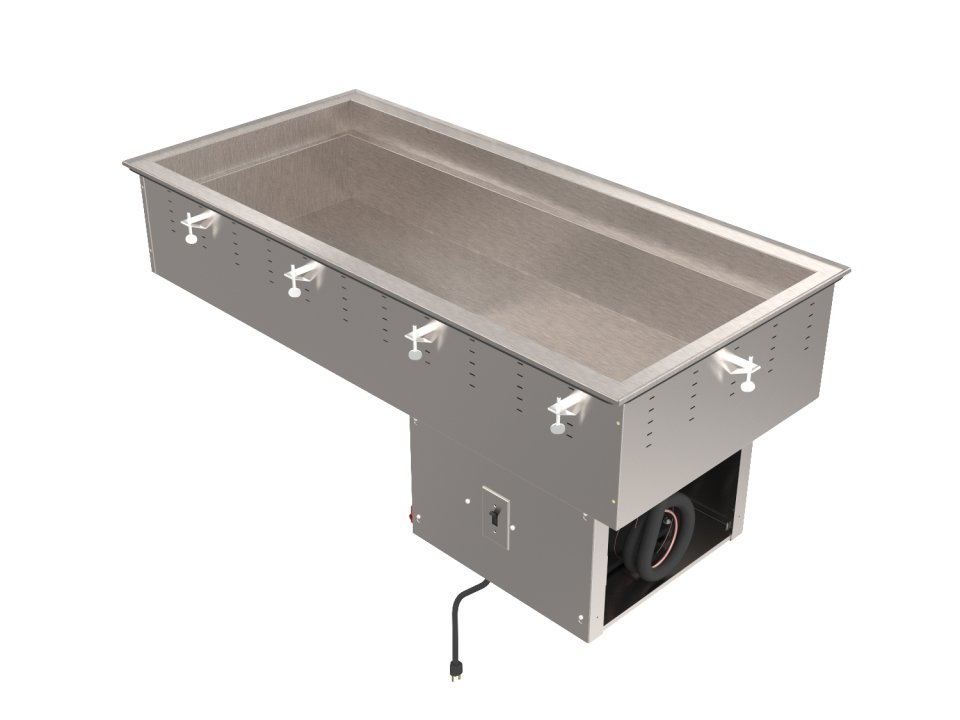

120 Volt Four-pan NSF7 Refrigerated Cold Pan

  • Made in USA
  • National Sanitation Foundation
  • Underwriter Laboratories

    This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$3654.06 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$6,090.10 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

NSF Certified.

  • Thick polyurethane foam insulation
  • Shoulder is recessed 3" (7.6 cm)
  • NSF7 listed
  • Display well 6 5/8" (16.8 cm) deep
  • Drain plug included
  • Cold drop-ins are best used for holding period up to 4 hours - for best performance, stainless steel containers are recommended.
  • * Cutout dimension has 7/8" (2.2 cm) corner radius
  • NOTE: Item made to order, cannot be cancelled or returned.
  • Remote units do not include compressors

Product Specifications

Model Information
Name Value
UPC 029419373093
Unit Dimensions
Name Value
(W) Width (IN) 54.75
(D) Depth (IN) 26
(W) Width (CM) 139.1
(D) Depth (CM) 66
Electrical
Name Value
Voltage 120
Case Lot Measurement
Name Value
Case Lot 1
Case Width 28
Case Height 33
Case Length 56.5
Case Lot Cube (ft.) 30.21
Case Lot Weight (lbs.) 235.0
Product Accessories
Name Item #
False Bottom 36915-2
Product Parts
Name Part # Price
DROP-IN MOUNTING CLIP 44179-1 $3.10
POWER CORD 120V NEMA 5-20P 72" 17860-1 $38.70
MOTOR-FAN 352317-1 $199.99
ADAPTOR-1 1/2 X 1 1/4 PVC 26632-3 $11.90
THUMBSCREW 1/4-20 X 2" 23035-3 $4.90
THERMOSTAT RANCO O10-1416-000 26892-1 $430.50
SWITCH TOGGLE LIGHTED 23540-1 $59.47
DRAIN HOSE-5/8"ID CLEAR VINYL 26730-3 $5.60
FITTING-DRAIN 1-1/4" X 5" 21450-3 $60.90
ADAPTOR-1/2" NPT X 1/2 HOSE 26723-3 $3.90
SWITCH PLATE FOR 1 TOGGLE SW. 24786-3 $14.66
COMPRESSOR 1/3 HP 25420-1 $1,621.80
STRAIN RELIEF - FOR 3/8 CORD 26543-3 $2.00
KIT ELEC PARTS ARE37C3E-IAA 352313-2 $144.10
RECEPTACLE 120V-20A 25381-1 $29.95

Warranty Information

Terms of Sale

Product Downloads

Resource preview Drop-in, Cold, Refrigerated, NSF - Specification Sheet (English)
Resource preview Drop-in, Cold, Refrigerated, Remote, NSF7 and Standard - Specification Sheet (English)
Resource preview Drop-in, Cold, Refrigerated, NSF - Operator's Manual (Multi-Language)
Resource preview Drop-in, Hot, Cold and Hot/Cold Wells - Installation Instructions (Multi-Language)

CAD / REVIT

For the most updated list for Vollrath products and CAD drawings

Visit VOLLRATH.KCLCAD.COM
