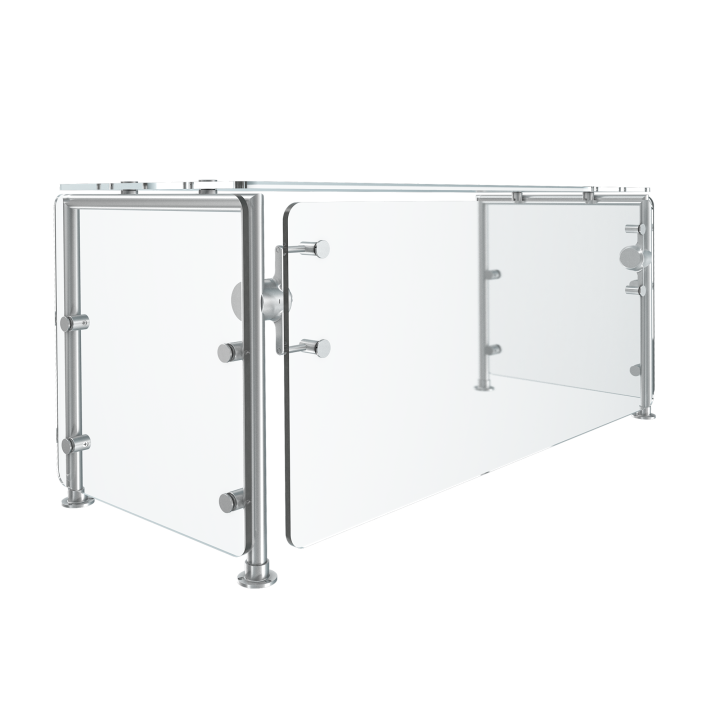

59-inch 6-Series Velocity Adjustable Cafeteria-Style Breath Guard for 4-Pan/Well 4-Series Front-of-House Serving System with 120-Volt Led Light Strip

SS-6BG-041C-LED

59-inch 6-Series Velocity Adjustable Cafeteria-Style Breath Guard for 4-Pan/Well 4-Series Front-of-House Serving System with 120-Volt Led Light Strip

This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$6219.30 MSRP

$10,365.50 List Price

Where to Buy

Prevent contamination and ensure exceptional visibility with the Vollrath 6-Series Velocity cafeteria-style breath guard. Designed for your 4-pan/well 4-Series front-of-house serving system, this breath guard is constructed of tempered glass panels and stainless steel tubing to ensure excellent visibility and strength. This breath guard features eight pre-set positions, promising versatility and consistency, and the simple adjustment mechanism allows one person to make adjustments quickly and easily. The LED light strip improves visibility while the reliable, sleek design keeps your food safe and adds an elegant appearance to any serving area.

Simple push-button mechanism enables single-person adjustment
Eight pre-set positions accommodate NSF, full-serve, self-serve and cleaning position and ensure consistent spacing across multiple units
Visual indication shows when breath guard is in NSF position and eliminates need for measuring
Standard above-counter flange mount (below-counter mount available)
Ships knocked down (assembled shipment available)
Stainless steel construction means no plastic parts to break and gives all components a consistent aesthetic
11-gauge stainless steel tubing eliminates the need for center support that penetrates the counter/interferes with service
Comes standard with 3/8-inch-thick tempered glass panels (1/2-inch-thick available)
Welded mitered joints increase structural integrity
LED light strip improves product visibility and requires hardwiring

Product Specifications

Model Information

Name	Value
UPC	671080980942

Unit Dimensions

Name	Value
Overall Dimensions (IN)	59 x 18 x 21.375
(W) Width (IN)	59
(D) Depth (IN)	18
(H) Height (IN)	21.37
Inside Width (IN)	55
Center to Center Width (IN)	57
Center to Center Depth (IN)	17
(W) Width (CM)	149.9
(D) Depth (CM)	45.7
(H) Height (CM)	54.4
Inside Width (CM)	139.7
Center to Center Width (CM)	144.8
Center to Center Depth (CM)	43.2

Electrical

Name	Value
Amps	0.1
Hz	60
Voltage	120
Watts	15

Construction

Name	Value
Number of Wells	4
Installation	Variety of Countertop Options
NSF Compliant	Yes
Breath Guard Function	Cafeteria with Top Shelf
Breath Guard - Design Style	Contemporary Style

Case Lot Measurement

Name	Value
Case Width	25.25
Case Height	31.5
Case Length	80

Product Parts

Name	Part #	Price
HINGE LOCKING ASSY, 8 POS.	352472-1	$561.20
O-RING, EPDM, -224	352473-1	$1.70
10-32 X 1/2" SS PHILLIPS FHMS	352477-1	$0.20
10-32 X 1-1/4" SS PHILLIPS FHM	352476-1	$0.30
