72789
120-volt Cayenne®dual countertop food warmer
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

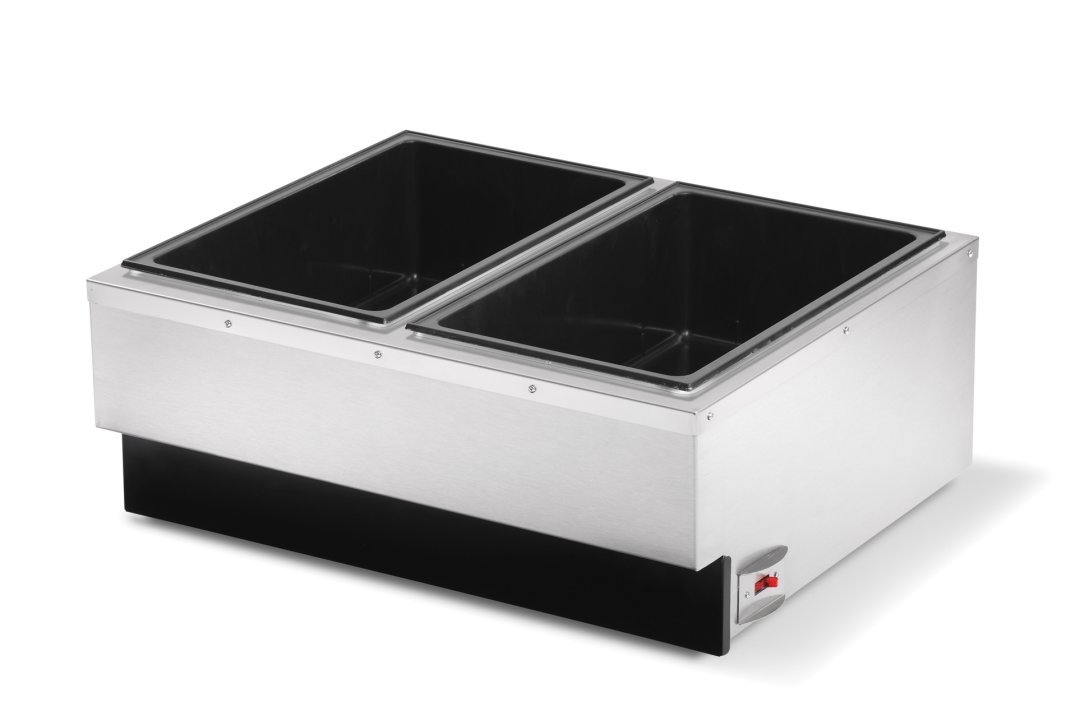

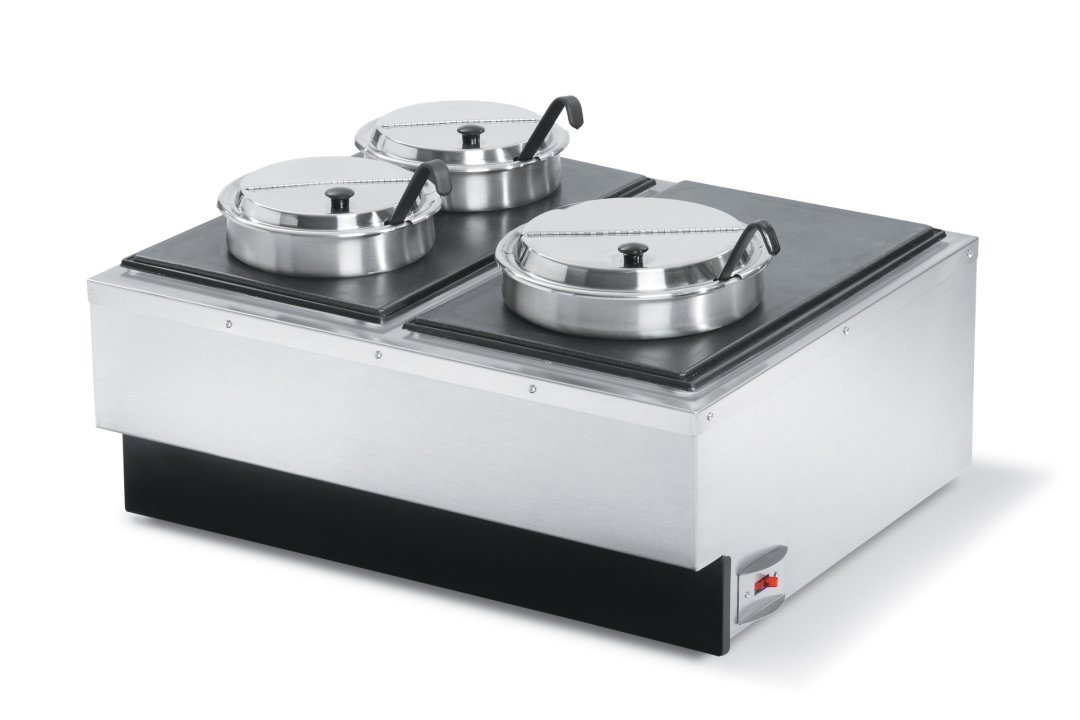

The Vollrath® Cayenne dual food warmer fits two full-size steam table pans. Operating at a total of 1440 watts, two independent warmers are thermostatically controlled for better heating and increased variety. The drainage hoses and controls are hidden behind a panel to create a smooth look for front-of-house use. With the lowest energy usage of any dual full-size warmer on the market, you can lower your costs and energy consumption when you plug into any 15-amp outlet.
- Easily warms a wide variety of food products
- Durable stainless steel exterior provides years of service
- Lighted main power switch controls power to both warming wells for ease of use
- Each well is independently controlled, allowing you to prepare a variety of food at once
- The direct-contact heating system makes heating more efficient, saving you money and time

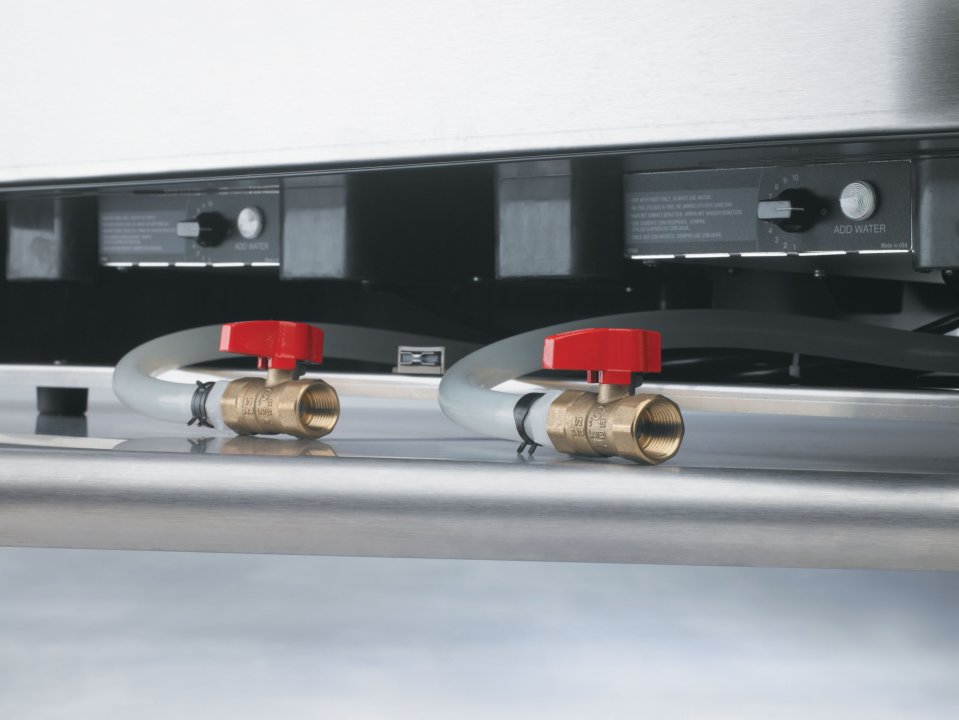

- Hidden drainage hoses create a more attractive appearance and make cleanup easier
- Each well holds one full-size steam table pan
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419721337 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 30.5 x 24.5 x 12.5 |
| (W) Width (IN) | 30.5 |
| (D) Depth (IN) | 24.5 |
| (H) Height (IN) | 12.5 |
| (W) Width (CM) | 77.5 |
| (D) Depth (CM) | 61 |
| (H) Height (CM) | 31.8 |
Electrical
| Name | Value |
|---|---|
| Amps | 11.6 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1400 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 35.5 |
| Case Height | 22 |
| Case Length | 40 |
| Case Lot Cube (ft.) | 17.13 |
| Case Lot Weight (lbs.) | 73.0 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| SWITCH TOGGLE LIGHTED | 23540-1 | $61.60 |
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| CORDSET 14AWG SJTOW | 17847-1 | $42.10 |
| CONTROL KNOB (BLACK) | 17012-1 | $6.30 |
| POWER CORD (18 GA) 6 FT | 17023-1 | $20.70 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| DRAIN ADAPTOR SHORT | 350175-2 | $57.90 |
| STRAIN RELIEF BUSHING BLACK | 17024-3 | $1.80 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| 3/4-14 NPT TO 3/4" BARBED ELBW | 46662-1 | $32.20 |
| CAST HEATER 700W 120V | 44204-1 | $116.40 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| ELBOW - CAMPBELLS SOUP WARMER | 23403-1 | $42.10 |
| DRAIN ADAPTOR - MOLDED | 25958-1 | $29.00 |
| STRAIN RELIEF - FOR 3/8 CORD | 26543-3 | $2.30 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
| THERMOSTAT SHORT CAPIL. EGO | 17074-1 | $103.40 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| CLAMP-HOSE 7/8" OD TUBING | 26883-3 | $2.40 |
| BULLET FOOT 1.125" | 21505-1 | $5.20 |
Product Downloads
Difference between a Warmer and Rethermalizer
Click below to view an article describing the difference between a warmer and a rethermalizer.
