71001
120-volt Full-size countertop food warmer
The full-size Model 1001 countertop warmer by Vollrath offers the lowest operating costs on the market.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

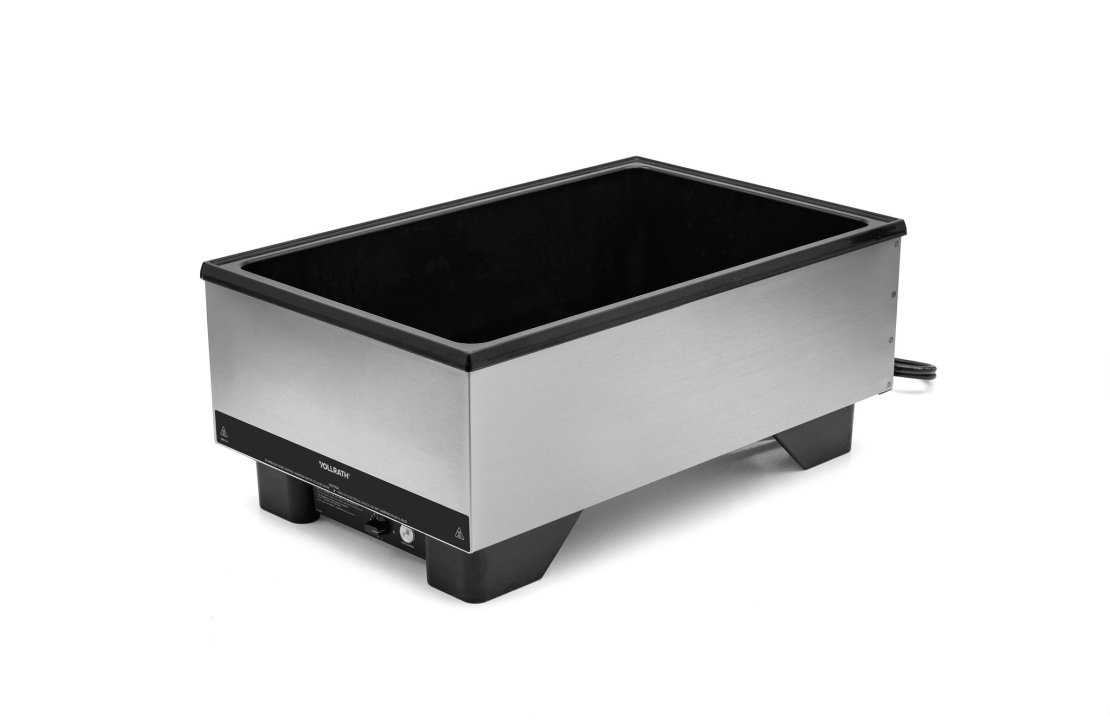

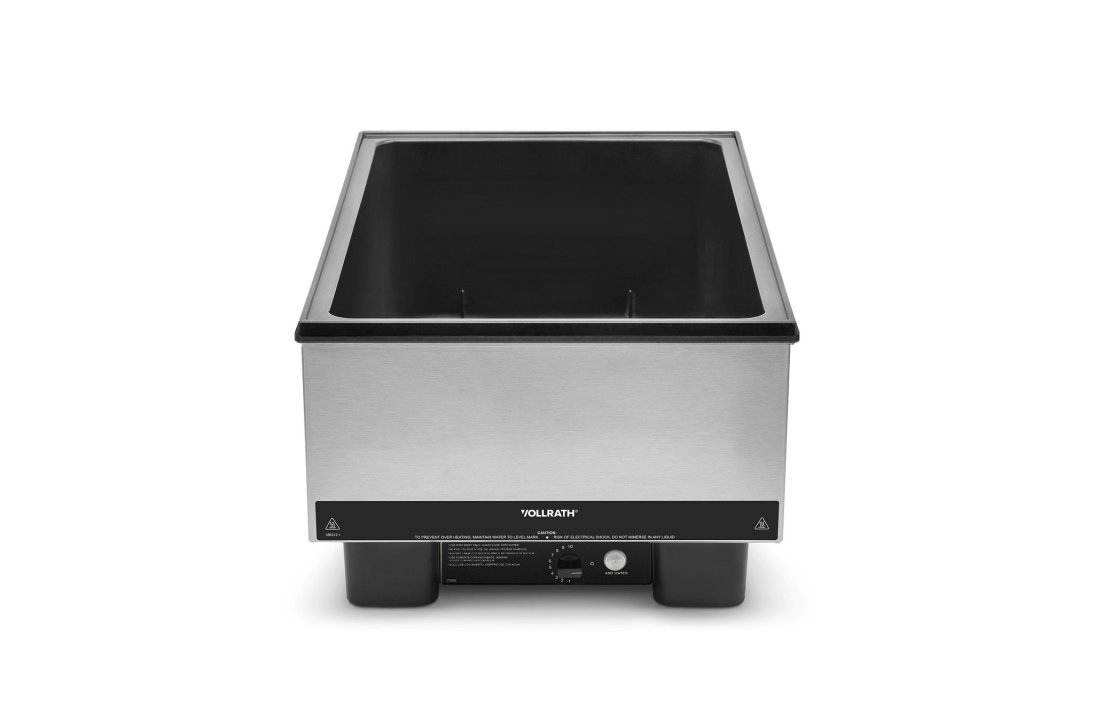

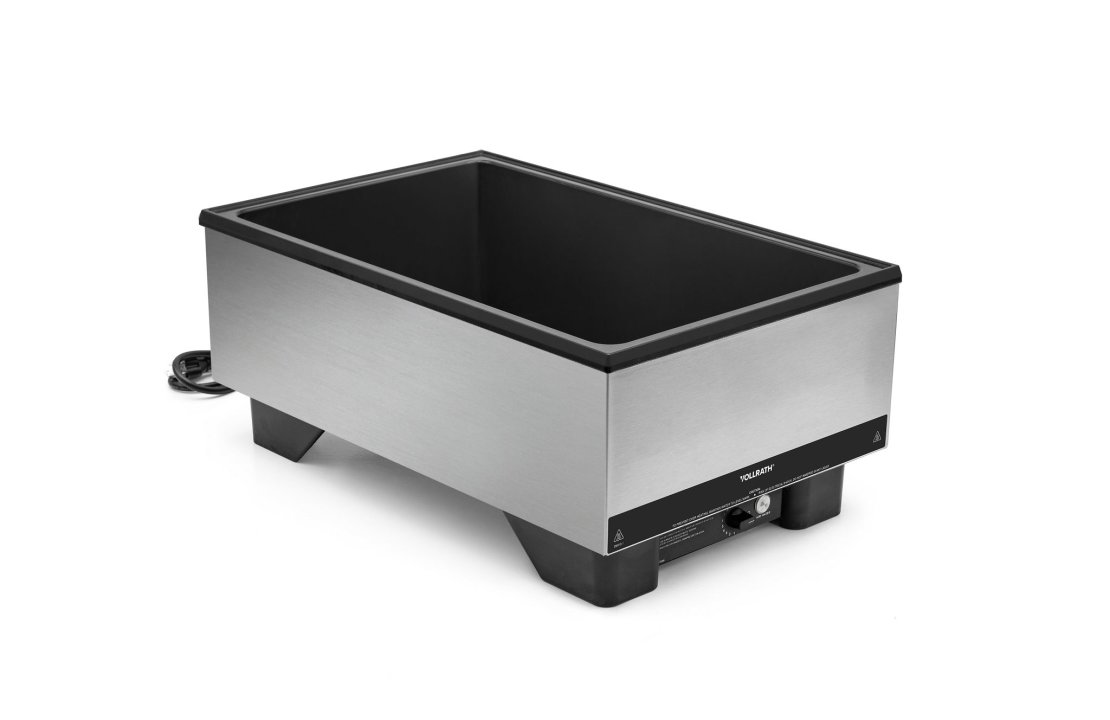

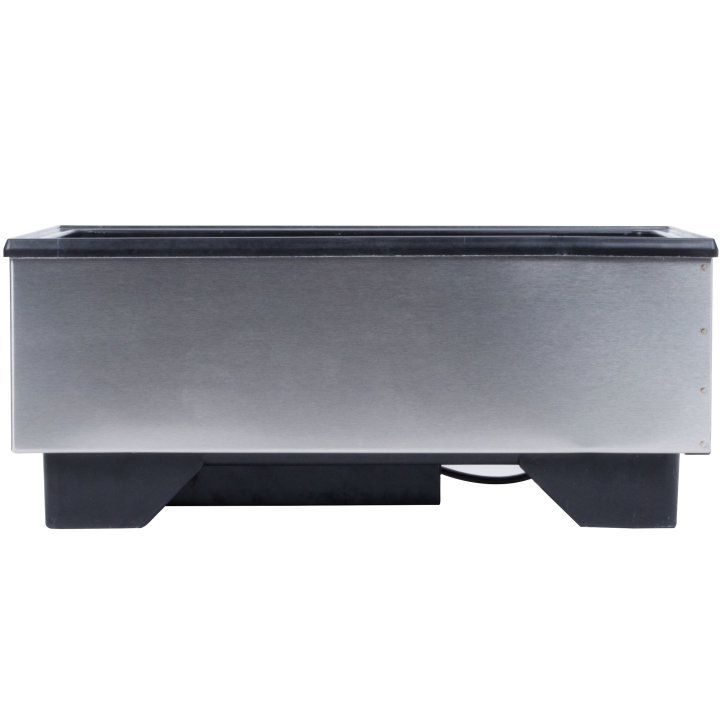

Full-size Model 1001 120-volt countertop food warmer

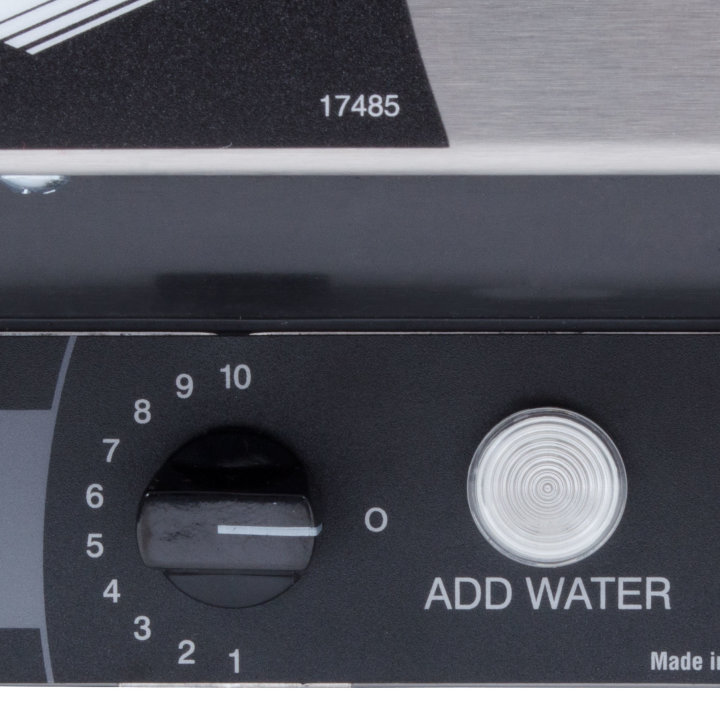

The full-size Model 1001 countertop warmer by Vollrath offers the lowest operating costs on the market. This countertop model features a direct-contact heating system, for improved performance and efficiency, and a dome heating element that uses up to 25 percent less energy by concentrating the energy into the well itself. The capillary tube thermostat supplies power only when it is needed, saving energy and reducing operational costs, and the heating element is cast in the unit for greater energy transfer. Recessed controls prevent accidental adjustments. A low-water indicator light keeps you informed, while a bottom-exit 6-foot power cord provides flexibility in countertop placement.

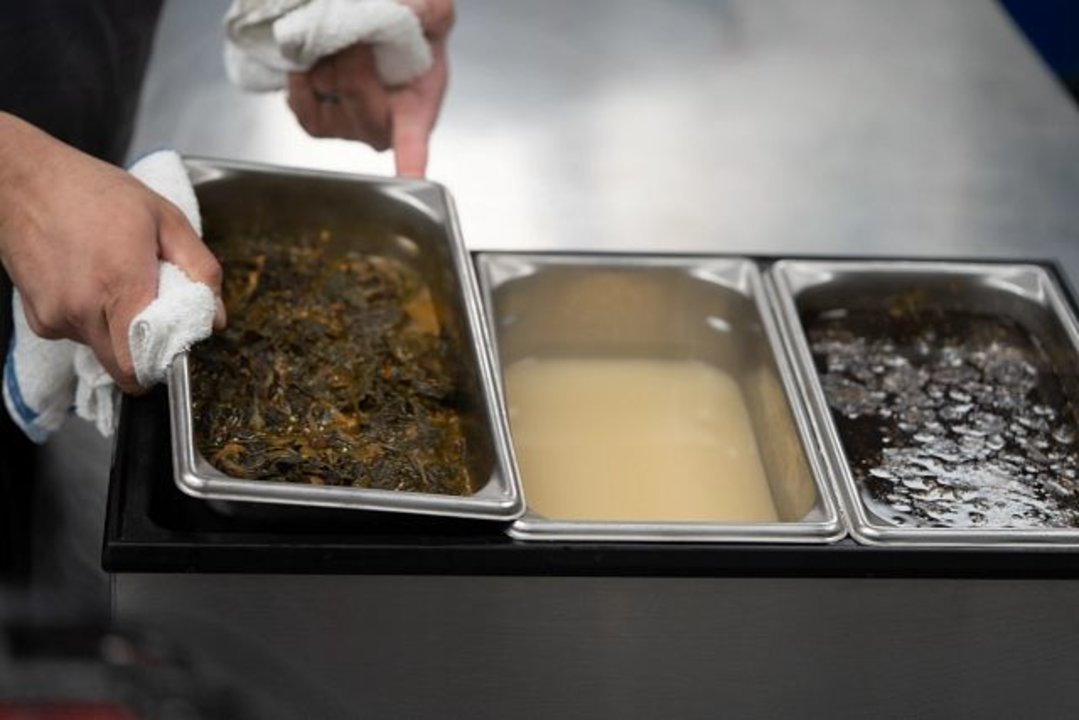

Efficiently warms a wide variety of food

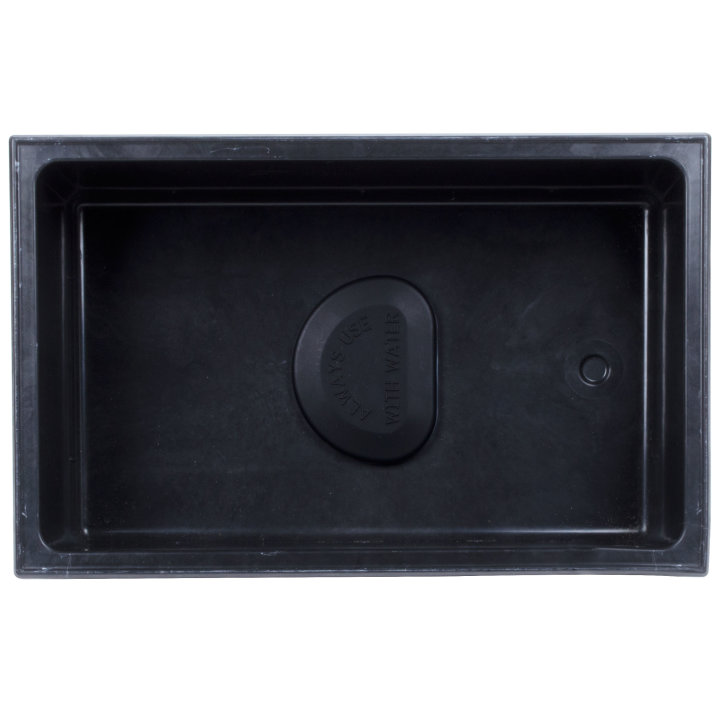

Durable thermoset fiber-reinforced resin well is built to last
Wide no-drip lip keeps countertops dry
Black feet improve stability and prevent movement on any countertop
Thermostatic controls ensure accurate heating
Nonstick surface is easy to clean, saving you time
Black well and brushed stainless steel exterior gives this unit a clean, sleek look
Designed to fit 4-inch-deep full-sized pans
Made in the USA
NSF-certified
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | 1001 |
| UPC | 029419183104 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 13.779 x 21.779 x 9.05 |
| (W) Width (IN) | 13.77 |
| (WU) Usable Width (IN) | 12.04 |
| (D) Depth (IN) | 21.77 |
| (DU) Usable Depth (IN) | 19.992 |
| (H) Height (IN) | 9.05 |
| (W) Width (CM) | 35 |
| (WU) Usable Width (CM) | 30.6 |
| (D) Depth (CM) | 55.3 |
| (DU) Usable Depth (CM) | 50.8 |
| (H) Height (CM) | 23 |
| Size | Full-size |
Electrical
| Name | Value |
|---|---|
| Amps | 5.8 |
| Cord Length (IN) | 60 |
| Cord Length (CM) | 152 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 700 |
Volume
| Name | Value |
|---|---|
| Capacity (L) | 13.4 |
| Capacity (OZ) | 454.4 |
| Capacity (QT) | 14.2 |
Construction
| Name | Value |
|---|---|
| Construction Feature 2 | Durable |
| Construction Material | Multi-Metal |
| Material Type | Metals |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 12 |
| Case Height | 11.5 |
| Case Length | 16 |
| Case Lot Cube (ft.) | 3.23 |
| Case Lot Weight (lbs.) | 19.85 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| CAST HEATER 700W 120V | 44204-1 | $116.40 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| CONTROL KNOB (BLACK) | 17012-1 | $6.30 |
| 3/8 DIA CLOSED CELL FEET | 17015-1 | $0.90 |
| POWER CORD (18 GA) 6 FT | 17023-1 | $20.70 |
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
| REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $35.90 |
| 12X20 BMC WL, BLCK, CLSED DRN | 17489-2 | $199.10 |
| THERMOSTAT SHORT CAPIL. EGO | 17074-1 | $103.40 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| STRAIN RELIEF BUSHING BLACK | 17024-3 | $1.80 |
