72009
11-quart Cayenne® Round Heat 'N Serve Rethermalizer
The Vollrath® round Heat 'N Serve rethermalizer is ideal for soups, stews, sauces and more.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

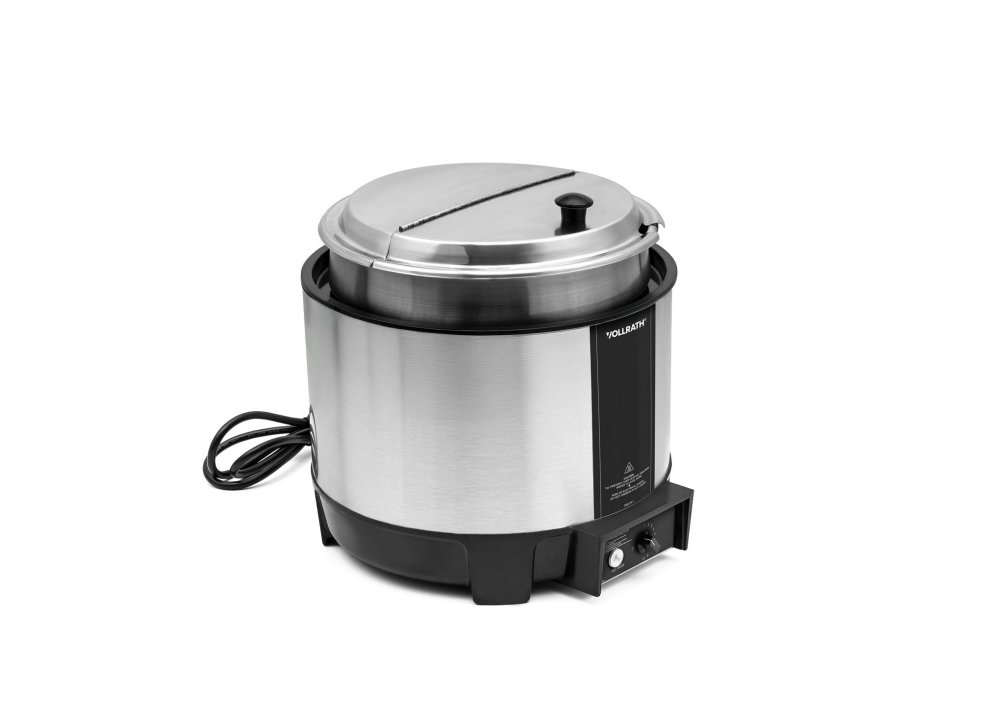

11-quart 120-volt round Heat 'N Serve rethermalizer with accessory package
The Vollrath® round Heat 'N Serve rethermalizer is ideal for soups, stews, sauces and more. The durable well improves energy efficiency, and thermostatic controls ensure accurate heating. The nonstick coating on the heating element prevents scale buildup, reduces cleaning time, and extends the life of this unit. Recessed controls prevent accidental adjustments, and a low-water light keeps you informed. The wide no-drip lip prevents messes, and nonskid feet maintain stability and prevent movement. This package includes an inset and hinged cover, providing everything you need to operate this unit. The bottom-exit power cord provides flexibility in countertop placement, increasing the versatility of this compact, powerful rethermalizer.
Safely rethermalizes soup, stew, chili, sauces and more
Durable well is made of thermoset fiber-reinforced self-insulating resin for maximum energy efficiency
Thermostatic controls ensure accurate heating
Bottom-exit 6-foot cord and plug provide flexibility in countertop placement
Uses up to 25 percent less energy, saving you money
Package includes 11-quart inset (78204) and hinged cover (47490)
7-quart model also available
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | HS-11 |
| UPC | 029419194209 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 12.62 x 12.62 x 9.625 |
| (W) Width (IN) | 12.62 |
| (D) Depth (IN) | 12.62 |
| (H) Height (IN) | 12.74 |
| Usable Height (IN) | 6.75 |
| (DI) Diameter | 12.625 |
| (H) Height (CM) | 32.36 |
| Usable Height (CM) | 17.1 |
| (DI) Diameter (CM) | 32 |
Electrical
| Name | Value |
|---|---|
| Amps | 6.7 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Hz | 60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 800 |
Volume
| Name | Value |
|---|---|
| Capacity (OZ) | 352 |
| Capacity (QT) | 11 |
Construction
| Name | Value |
|---|---|
| Construction Feature 2 | Durable |
| Construction Material | Stainless Steel |
| Construction Material 2 | Fiber-Reinforced Plastic |
| Construction Material 3 | Electrical Components |
| Material Type | Metals |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 14.75 |
| Case Height | 13.5 |
| Case Length | 14.75 |
| Case Lot Cube (ft.) | 1.61 |
| Case Lot Weight (lbs.) | 14.4 |
Product Accessories
| Name | Item # |
|---|---|
| 7-quart inset adapter ring in stainless steel for 11-quart well | 72196 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| CONTROL KNOB (BLACK) | 17012-1 | $6.30 |
| 3/8 DIA CLOSED CELL FEET | 17015-1 | $0.90 |
| POWER CORD (18 GA) 6 FT | 17023-1 | $20.70 |
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| STRAIN RELIEF BUSHING BLACK | 17024-3 | $1.80 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| KOOL-TOUCH KNOB | 22470-1 | $3.20 |
| THERMOSTAT SHORT CAPIL. EGO | 17074-1 | $103.40 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
| HEATER CAST 800W 120V | 44287-1 | $125.80 |
| REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $35.90 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
Customer Questions
Be the first to ask a question
