72165
11-quart Cayenne® Colonial Kettle
The Vollrath® 11-quart 1776 & 1777 Colonial Kettle warmer is ideal for soup, stew, chili and more.

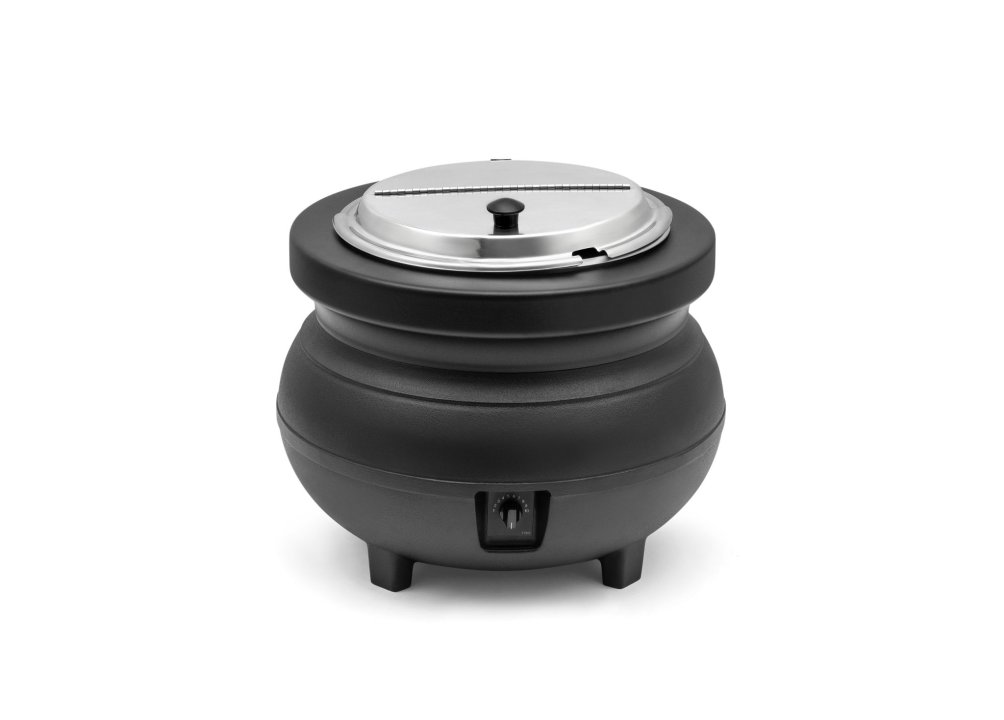

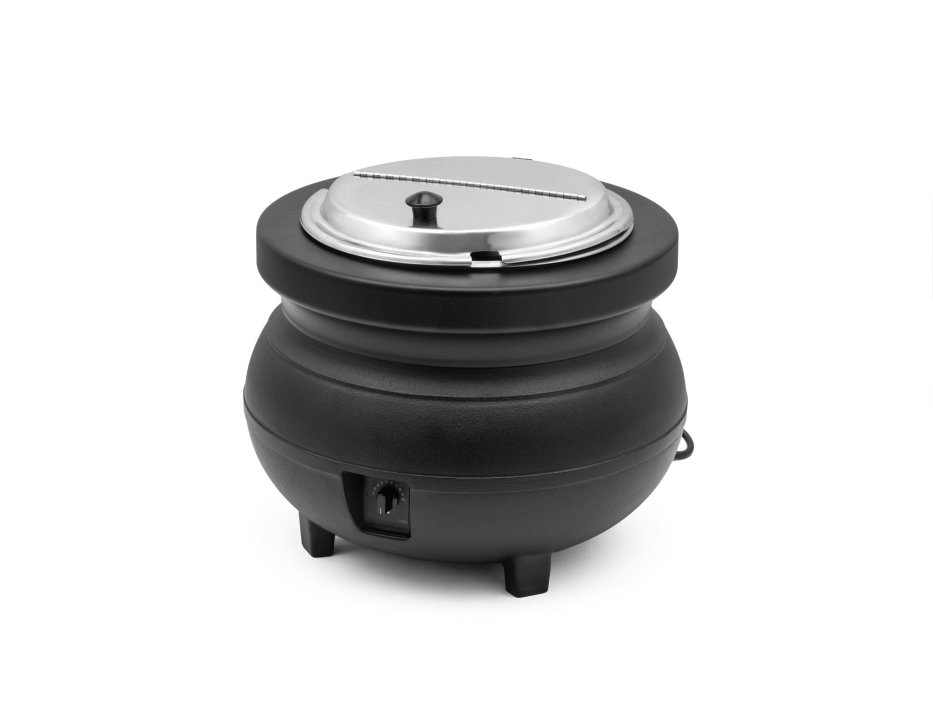

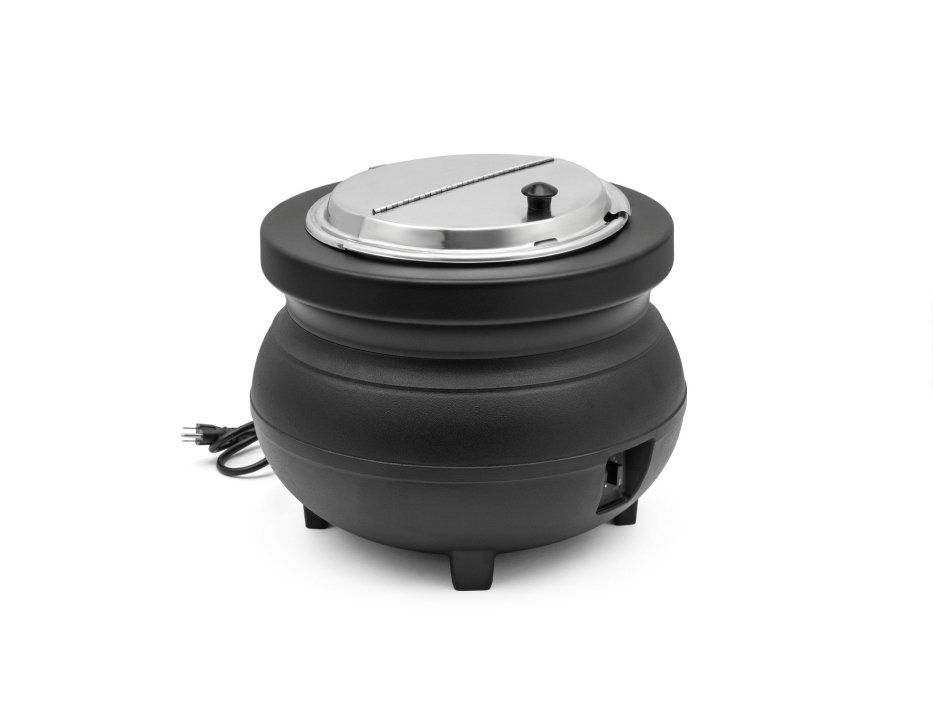

11-quart 120-volt 1776 & 1777 Colonial Kettle™ warmer in black
The Vollrath® 11-quart 1776 & 1777 Colonial Kettle warmer is ideal for soup, stew, chili and more. This 700-watt warmer is made of durable cast aluminum and coated in black epoxy to give it a versatile, attractive appearance. The recessed controls prevent accidental temperature adjustments, and the hinged lid seals heat inside while simultaneously allowing easy access. This kettle comes with display cards and clips to properly advertise its contents.
Easily warms soup, stew, chili and more
Durable cast aluminum provides years of quality service
Thermostatically controlled for more accurate heating
Bottom-exit power cord allows universal countertop placement
Black color creates an attractive, versatile look
Four-leg design increases stability and durability
Convert 11-quart kettle to 7-quart kettle with adapter ring 72196, sold separately
11-quart inset included
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | 1776-11 |
| UPC | 029419154876 |

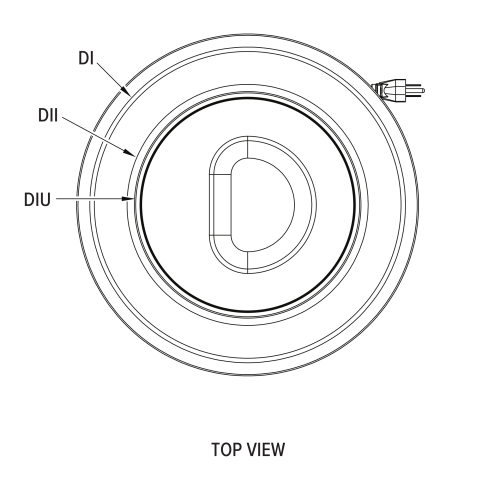

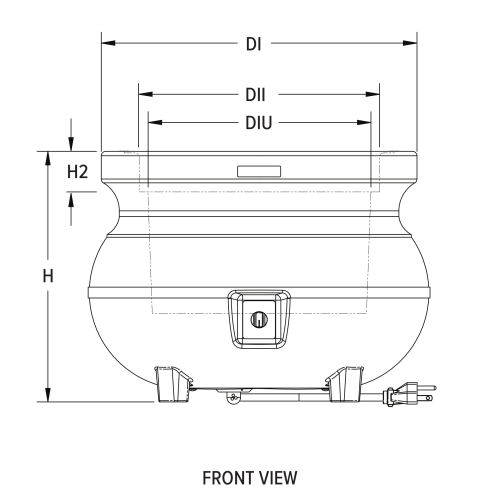

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 14.527 |
| (D) Depth (IN) | 14.527 |
| (H) Height (IN) | 11.53 |
| (H2) Secondary Height (IN) | 1.955 |
| (DI) Diameter | 14.527 |
| (DiU) Usable Diameter (IN) | 10.25 |
| (DII) Inside Diameter (IN) | 11.094 |
| (H) Height (CM) | 29.3 |
| (H2) Secondary Height (CM) | 5 |
| (DI) Diameter (CM) | 36.9 |
| (DiU) Usable Diameter (CM) | 26 |
| (DII) Inside Diameter (CM) | 28.2 |
Electrical
| Name | Value |
|---|---|
| Amps | 5.8 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 700 |
Volume
| Name | Value |
|---|---|
| Capacity (L) | 10.4 |
| Capacity (QT) | 11 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 23.4 |
Construction
| Name | Value |
|---|---|
| Construction Feature 2 | Durable |
| Construction Material | Multi-Metal |
| Material Type | Metals |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 19 |
| Case Height | 18.75 |
| Case Length | 19 |
| Case Lot Cube (ft.) | 2.29 |
| Case Lot Weight (lbs.) | 23.4 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| SCREW # 10 X 1/2 | 23884-3 | $0.90 |
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| STRAIN RELIEF BUSHING BLACK | 17024-3 | $1.80 |
| TOP RING 11 QT BLACK | 44337-2 | $173.20 |
| POWER CORD (18 GA) 6 FT | 17023-1 | $20.70 |
| CAST HEATER 700W 120V | 44204-1 | $116.40 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| BOTTOM PLATE 1776/77 | 44347-2 | $19.80 |
| KOOL-TOUCH KNOB | 22470-1 | $3.20 |
| THERMOSTAT SHORT CAPIL. EGO | 17074-1 | $103.40 |
| KNOB - CONTROL | 23508-1 | $12.10 |
| REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $35.90 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
Customer Questions
Be the first to ask a question
