59503LN85

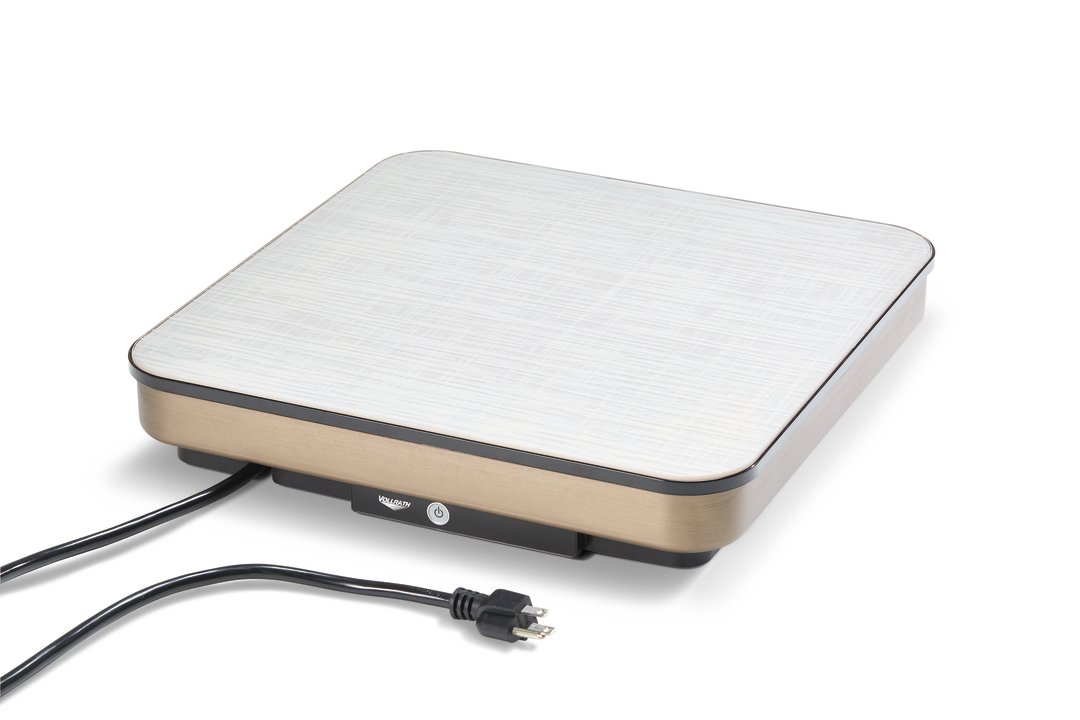

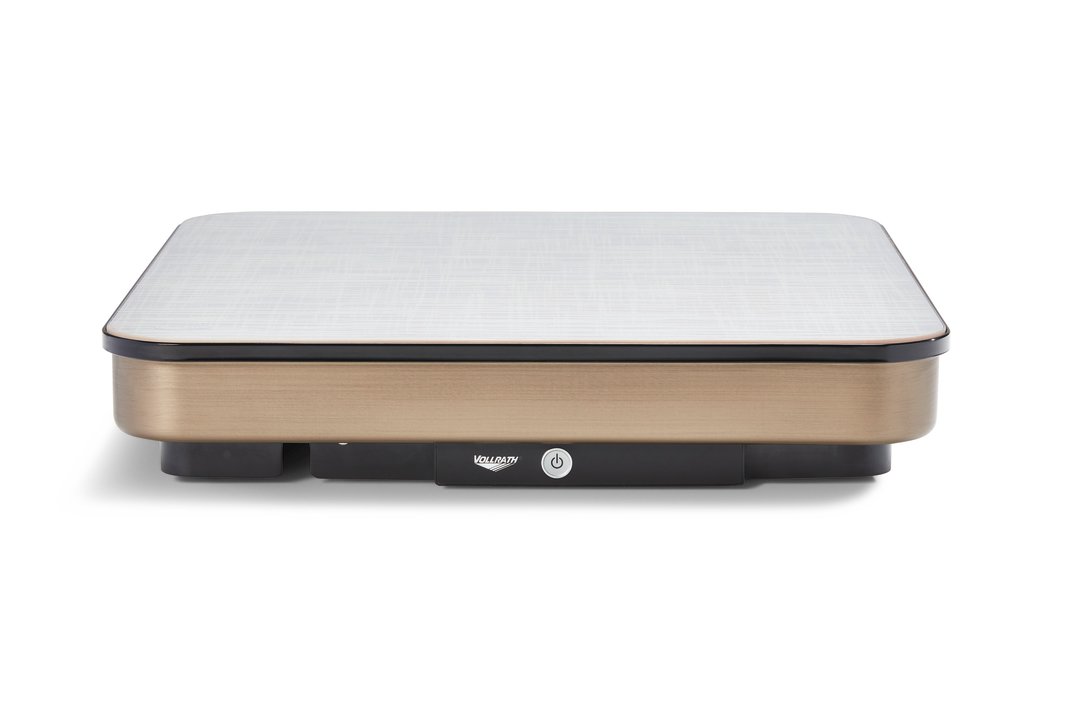

DiscontinuedMirage® Induction Buffet Warmers - DISCONTINUED
Maximize your menu offerings without maxing out your electrical capacity with the Mirage® Induction Buffet Warmers.
Mirage® Induction Buffet Warmers - DISCONTINUED
Maximize your menu offerings without maxing out your electrical capacity with the Mirage® Induction Buffet Warmers. The low wattage warmers can be interconnected to one electrical outlet, which simplifies the planning and management of power cords, access to outlets and load capacity.
Use for holding/warming of foods for serving - ideal for banquets and catering
Fewer cords- connect up to 3 units together with an inter-connect cord – and only run one power cord to outlet on wall
Subtle, low-profile, attractive design coordinates with any serving set-up
Four power levels - low, medium, high and chafer preheat
Countertop version available in Natural or Black
LED indicator lights on control panel and glass
U.S. units only : At 2.5 Amps each, up to 5 units (at maximum power) can be plugged into a 15 amp circuit. 3 per power cord.
Convenient storage compartment underneath unit for cords not in use
Fits perfectly in 59145 carrying case (sold separately)
Designed to work with one (1) Vollrath chafer or serving vessel, or equivalent induction-ready chafer or serving vessel
Custom decorative patterns or logos available on 16x16 units. Contact your local Vollrath sales representative for more information.
Champagne with linen glass pattern
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | 59503 |
| UPC | 671080766560 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 16 x 16 x 3.1 |
| (W) Width (IN) | 16 |
| (WB) Width Base (IN) | 13.88 |
| (W2) Secondary Width (IN) | 15.56 |
| (D) Depth (IN) | 16 |
| (DB) Depth Base (IN) | 14.375 |
| (D2) Secondary Depth (IN) | 15.125 |
| (H) Height (IN) | 3.1 |
| (H2) Secondary Height (IN) | 2.01 |
| (H3) Additional Height (IN) | 0.375 |
| (MPD) Maximum Pan Bottom Diameter (IN) | 14 |
| (W) Width (CM) | 40.6 |
| (WB) Width Base (CM) | 35.3 |
| (W2) Secondary Width (CM) | 39.5 |
| (D) Depth (CM) | 40.6 |
| (DB) Depth Base (CM) | 36.5 |
| (D2) Secondary Depth (CM) | 38.4 |
| (H) Height (CM) | 7.9 |
| (H2) Secondary Height (CM) | 5.1 |
| (H3) Additional Height (CM) | 1 |
| (MPD) Maximum Pan Bottom Diameter (CM) | 3.56 |
Electrical
| Name | Value |
|---|---|
| Amps | 2.5 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 183 |
| Hz | 50/60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 300 |
Weight
| Name | Value |
|---|---|
| Weight (LB) | 14 |
| Weight (KG) | 6.4 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
