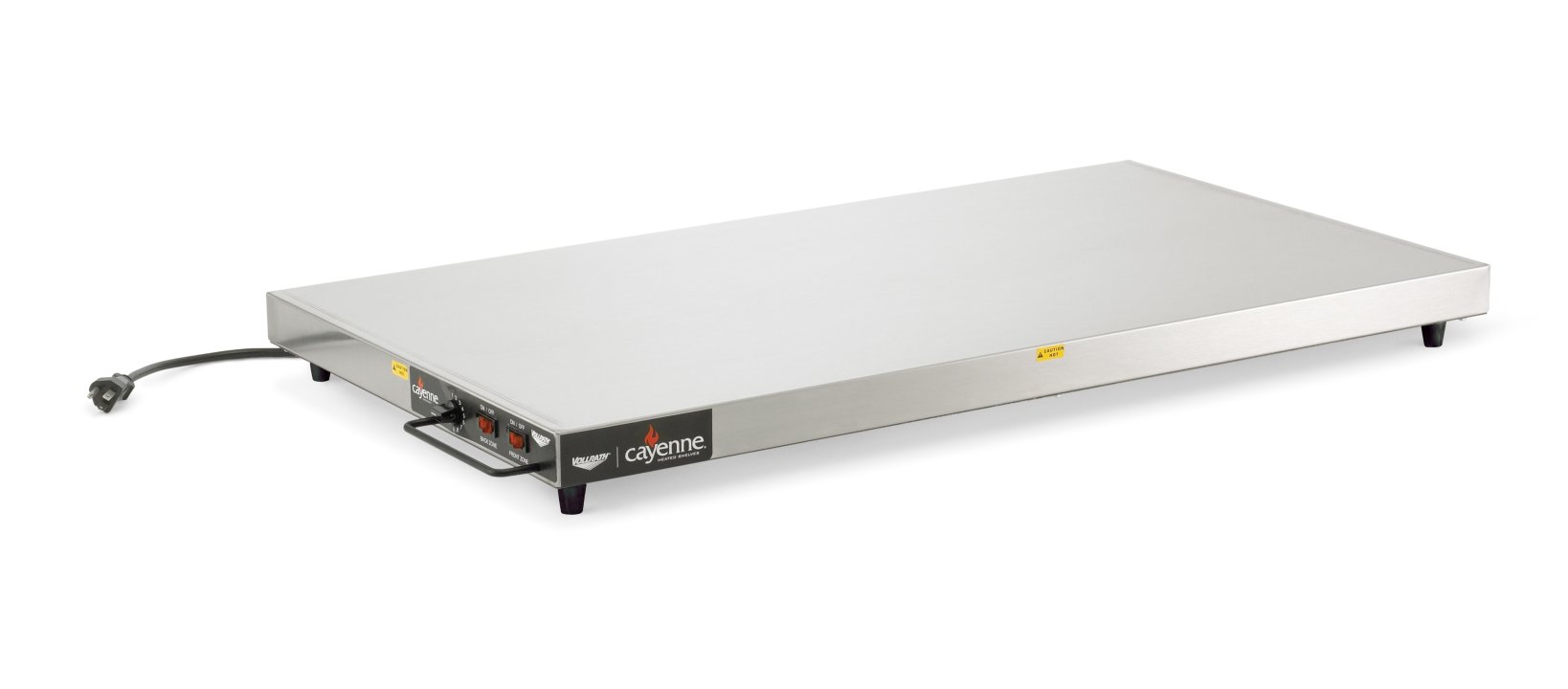

60-inch 120-volt Cayenne® right-aligned heated shelf

7277160

60-inch 120-volt Cayenne® right-aligned heated shelf

  • Made in USA
  • National Sanitation Foundation
  • Underwriter Laboratories

    This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

$1144.14 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$1,906.90 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

The Cayenne heated shelf by Vollrath features two heating zones for impressive versatility. Depending on your needs, you can keep the whole shelf warm or turn a zone off to reduce energy usage. The thermostatic controls ensure accurate heating, and the rope-style element is powerful and reliable. The right-aligned controls are accessed and adjusted easily, while the smooth top and welded corners make cleaning quick and easy. With an aluminum core and a durable stainless steel exterior, this heated shelf was built to last.

  • Efficiently maintains hot food temperatures
  • Aluminum core distributes heat evenly for superior results
  • Stainless steel outer construction is durable and long-lasting
  • Rope-style heating element is powerful and reliable
  • Thermostatically controlled for more accurate heating
  • Separate front and back heating zones warm multiple food items at once
  • Right alignment is a special order and requires five-day lead time
  • NSF-certified

Product Specifications

Engineering front view

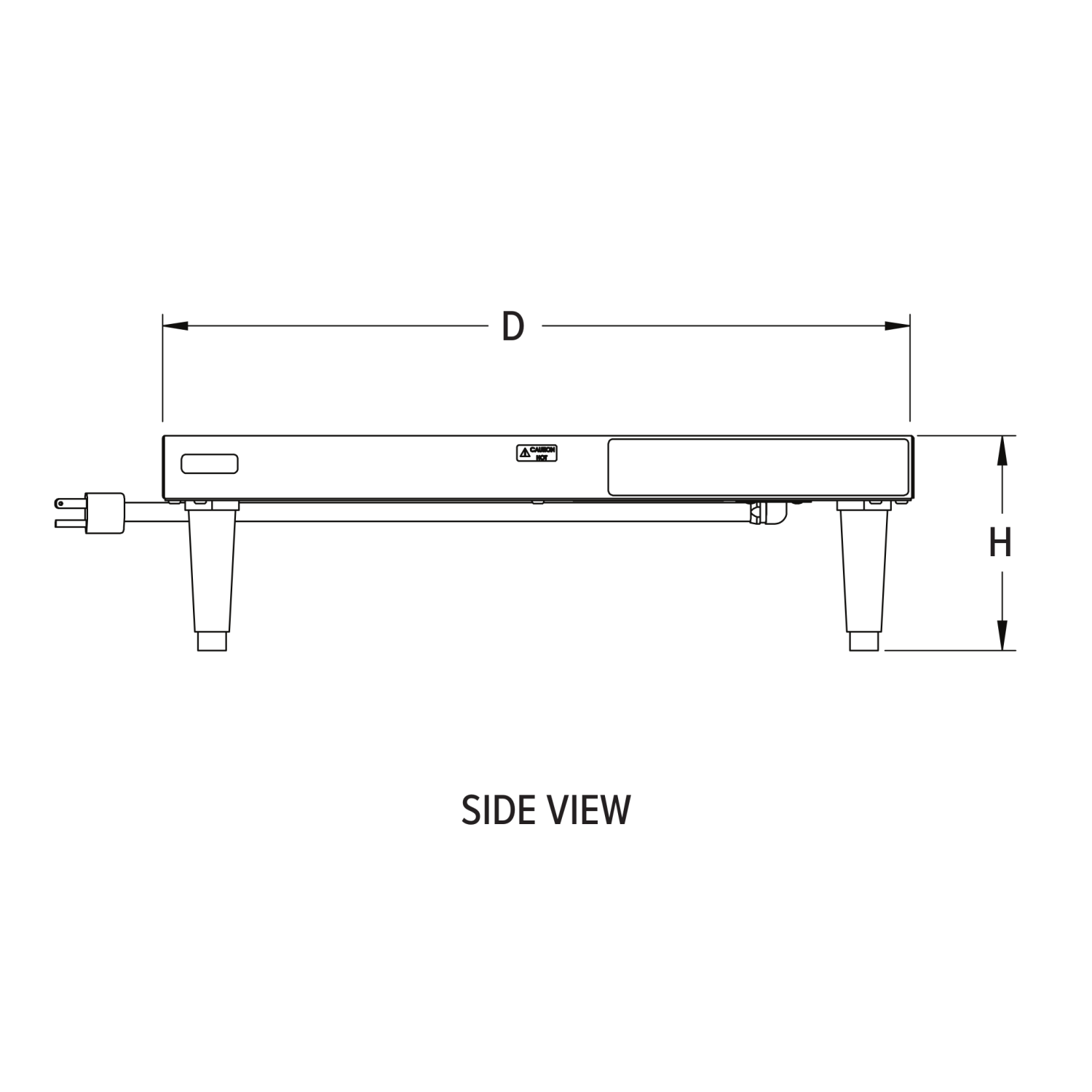

Engineering side view

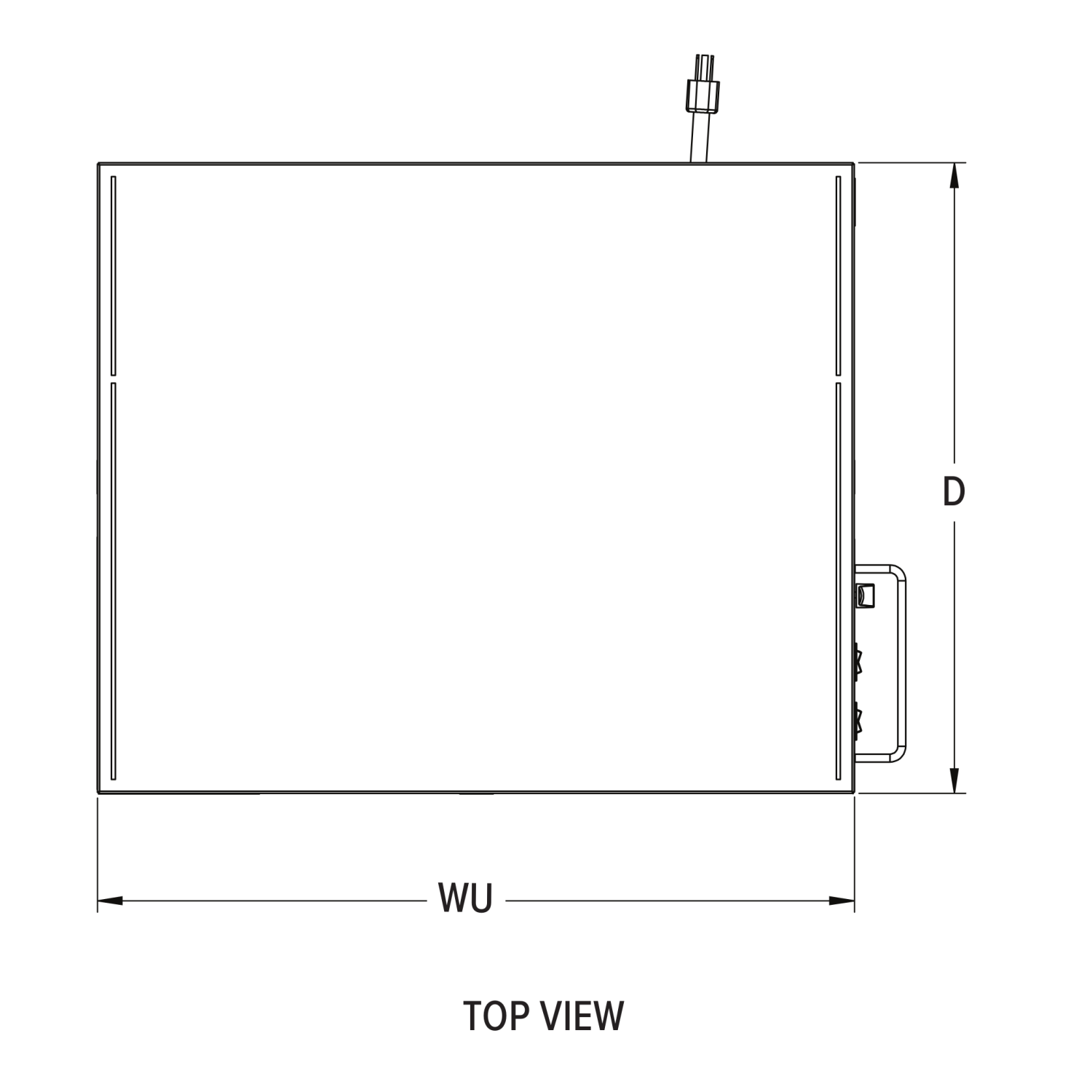

Engineering top view
Model Information
Name Value
UPC 029419691463
Unit Dimensions
Name Value
(W) Width (IN) 0
(WU) Usable Width (IN) 60
(D) Depth (IN) 20
(H) Height (IN) 5.72
(WU) Usable Width (CM) 152.4
(D) Depth (CM) 50.8
(H) Height (CM) 14.5
Size 60
Electrical
Name Value
Amps 7.5
Cord Length (IN) 72
Cord Length (CM) 183
Plug NEMA 5-15P
Voltage 120
Watts 905
Weight
Name Value
Weight (LB) 55
Weight (KG) 8.6
Construction
Name Value
Product Function Heated Shelves
Case Lot Measurement
Name Value
Case Lot 1
Case Width 26.5
Case Height 4.75
Case Length 65.75
Case Lot Cube (ft.) 4.79
Case Lot Weight (lbs.) 55.0
Product Accessories
Name Item #
Half-size Super Pan V® flexible steam table hotel pan lid in white 52431
Product Parts
Name Part # Price
CONTROL KNOB (BLACK) 17012-1 $6.30
16 GA. POWER CORD 120V 17085-1 $21.30
MINATURE ROCKER SWITCH 125V 23420-1 $23.36
LEG-ADJUSTABLE 1060-0631-1120 26673-1 $41.40
STRAIN RELIEF BUSHING BLACK 17024-3 $1.50
THERMOSTAT SHORT CAPIL. EGO 17074-1 $103.40
NUT 10-32 HEX STAINLESS STEEL 21547-1 $0.90
REG THERMOSTAT FSTB 390MM 121C 355162-1 $34.20

Warranty Information

Terms of Sale

Product Downloads

Resource preview Heated Shelf, Cayenne® - Specification Sheet (English)
Resource preview Heated Shelves, Cayenne - Operator's Manual (English)

CAD / REVIT

For the most updated list for Vollrath products and CAD drawings

Visit VOLLRATH.KCLCAD.COM
