720201103
Full-size soup merchandiser with 4-quart accessory kit
The full-size soup merchandiser by Vollrath holds and heats your soups efficiently while creating an attractive display.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

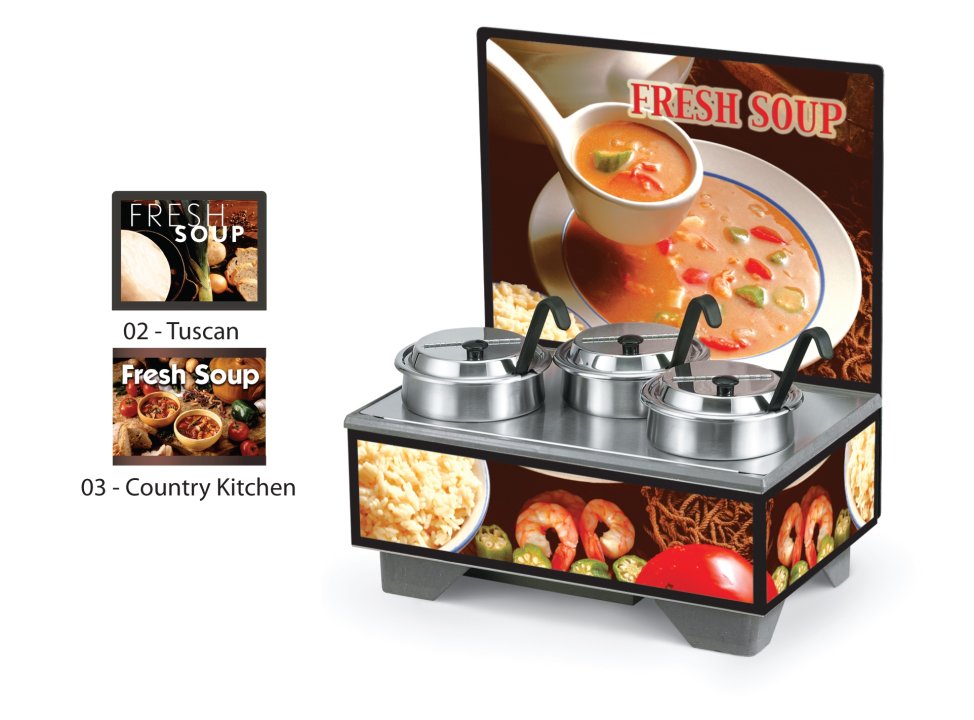

120-volt full-size soup merchandiser with 4-quart accessory kit, menu board and Country Kitchen graphics
The full-size soup merchandiser by Vollrath holds and heats your soups efficiently while creating an attractive display. Recessed controls prevent accidental adjustments, while a low-water light and a lighted on/off switch keeps you informed. This unit comes with an accessory kit that provides everything you need for two 4-quart setups. The durable stainless steel menu board has a clear graphic coating that resists signs of wear and holds soup cards. The attractive exterior graphic features a Country Kitchen theme, making this the ideal merchandiser for buffets, restaurants, salad bars and more.
Each well holds a 4-quart inset that is perfect for soups, stews and more
Lighted on/off control, low-water indicator light, and recessed controls ensure ease of use
Wide feet maintain stability
Stainless steel menu board resists chips and wear
Durable graphics feature a Country Kitchen theme and catch customers’ attention
Made in the USA
NSF-listed for hot holding and rethermalizing
Made-to-order item. These items require additional time for fulfillment. Made-to-order items cannot be changed, canceled or returned and may be subject to a minimum-order quantity. Contact your Vollrath sales representative for details.
Product Specifications
Model Information
| Name | Value |
|---|---|
| UPC | 029419593446 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 21.5 x 14.187 x 25.5 |
| (W) Width (IN) | 21.5 |
| (D) Depth (IN) | 14.18 |
| (H) Height (IN) | 25.5 |
| (W) Width (CM) | 54.6 |
| (D) Depth (CM) | 36 |
| (H) Height (CM) | 64.8 |
| Size | Full |
Electrical
| Name | Value |
|---|---|
| Amps | 8.3 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1000 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 18 |
| Case Height | 26.25 |
| Case Length | 25.5 |
| Case Lot Cube (ft.) | 6.97 |
| Case Lot Weight (lbs.) | 36.96 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| THUMB SCREW | 23203-1 | $5.80 |
| MOD.72020 FOR MERCHANDISERS | 72020-2 | $814.00 |
| CONTROL KNOB (BLACK) | 17012-1 | $6.30 |
| SILICONE D-HEATER GASKET | 178681-1 | $17.90 |
| STRAIN RELIEF BUSHING BLACK | 17024-3 | $1.80 |
| POWER SWITCH SPST 125V NON-ILL | 2515840-1 | $16.10 |
| HOUSING FOR SOUP MERCHANDISER | 44141-2 | $107.40 |
| HI LIMIT ASSEMBLY | 44407-2 | $21.80 |
| THERMOSTAT HIGH LIMIT | 17950-1 | $5.20 |
| HEATER CAST 1000W 120V | 44273-1 | $107.00 |
| SCREW THREAD ROLLING 10-32 | 17014-3 | $0.80 |
| HIGH LIMIT THERMOSTAT 125C | 25438-1 | $23.70 |
| 3/8 DIA CLOSED CELL FEET | 17015-1 | $0.90 |
| 16 GA. POWER CORD 120V | 17085-1 | $21.30 |
| COUNTRY KITCHEN-MENU BD GRAPH | 2320603-1 | $188.80 |
| NUT KEPS #6-32 | 17019-3 | $0.80 |
| PILOT LIGHT - BLUE 125V | 1755901-1 | $6.70 |
| COUNTRY KITCHEN-BASE GRAPHICS | 2320503-1 | $165.40 |
| 12X20 BMC WL, BLCK, CLSED DRN | 17489-2 | $199.10 |
| POP RIVET .125 DIA | 23686-3 | $1.70 |
| PILOT LIGHT - RED 125V | 17559-1 | $6.50 |
| KOOL-TOUCH KNOB | 22470-1 | $3.20 |
| CONNECTOR 3 WIRE WAGO 221-413 | 4350811-1 | $8.80 |
| REG THERMOSTAT FSTB 390MM 121C | 355162-1 | $35.90 |
