RDCCV-36

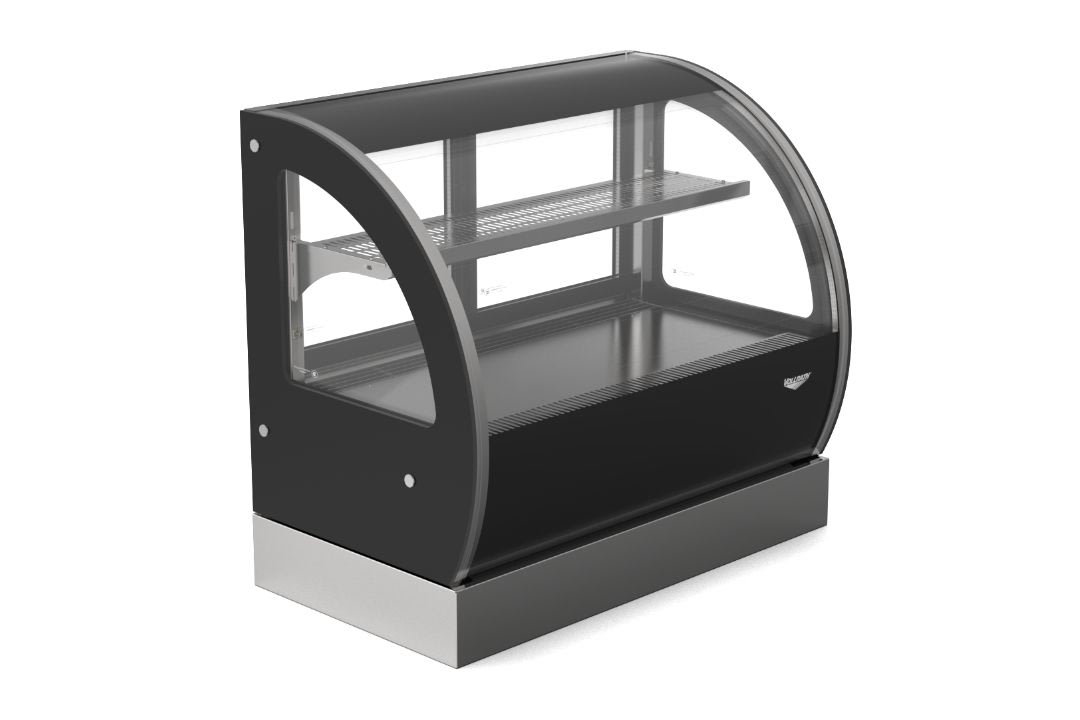

36-inch-wide 120-volt curved-glass countertop Refrigerated deli display case with rear access
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The UL Energy Verified Mark confirms compliance with requirements and procedures of selected energy efficiency regulations while helping ensure trustworthiness of the resulting data since they have been measured by UL, a trustworthy and independent third party.
This curved-front Vollrath® refrigerated deli display case chills right on your countertop, for easy display and access to cold food items. Customers can see the freshness, thanks to double-glazed front glass that won’t fog and a floating shelf that’s adjustable to three positions. Serving up 120 volts, its precise digital temperature control, interior lighting at the top and shelf, and easy-access rear sliding doors make the case for must-have convenience.
- Units are UL/NSF/ANSI 7 compliant which allows for Time-Temperature controlled (TCS) foods to be consumed safely by humans
- 32°F to 46°F temperature range adds versatility
- Zero clearance on sides or between units and walls (Note: Top and operator side must remain open for proper operation and service)
- Fans circulate air for accurate, even cooling
- Self-contained system offers improved auto and manual defrost
- Auto defrost is improved to every 3 hours for 10 minutes
- LED Lighting
- Digital thermostat on control panel provides precise settings
- Glass heater keeps customer viewing area clear
- Rear sliding doors lift and remove for easy cleaning
- Three-position adjustable, floating shelf offer a sleek aesthetic and flexible display options
- R-290 is a high-performing, environmentally friendly refrigerant
- 4-inch adjustable legs available for purchase separately
- Standard Vollrath 1 year warranty, 5-year limited warranty on compressor
- UL Energy Verified for Canada
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | RDC9236 |
| UPC | 029419601202 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 35.9 |
| (D) Depth (IN) | 21.5 |
| (D2) Secondary Depth (IN) | 19.4 |
| (H) Height (IN) | 32 |
| Top Shelf Depth (IN) | 8.8 |
| Bottom Shelf Depth (IN) | 11.8 |
| (W) Width (CM) | 91 |
| (D) Depth (CM) | 55 |
| (D2) Secondary Depth (CM) | 49 |
| (H) Height (CM) | 81 |
| Top Shelf Depth (CM) | 22 |
| Bottom Shelf Depth (CM) | 30 |
Electrical
| Name | Value |
|---|---|
| Amps | 6.1 |
| Hz | 60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot Weight (lbs.) | 324.958 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| 36" LED 0.50M | RDC0084-36L | $155.30 |
| 36" BACK SLDNG DOOR TRACK UP | RDC0128-36 | $90.80 |
| 36" CURVED TOP SHELF ASM | RDC0090-36 | $406.20 |
| 36" EVAPORATOR | RDC0053-36 | $406.20 |
| CONDENSOR FAN | RDC0093 | $182.80 |
| RDE TERMINAL BLOCK | RDC0043 | $80.00 |
| RDE DRY FILTER | RDC0106 | $50.20 |
| EM2X3134U COMPRESSOR | RDC0147S | $567.40 |
| HIGH PRESSURE SWITCH | RDC0195 | $68.10 |
| POWERCORD W/STRAIN RELIEF | RDC0501 | $63.30 |
| 36" CURVED DOOR ASM | RDC0130-36 | $618.80 |
| 36" FAN PANEL ASM | RDC0086-36 | $203.10 |
| 36" RDCCV STAINLESS WRAP | RDC0126-36 | $292.70 |
| 36" AIR OUTLET DUCT | RDC0042-36 | $129.00 |
| REAR DOOR SLIDER BTM WHEEL | RDC0155 | $56.10 |
| EVAPORATOR FAN | RDC0163 | $95.60 |
| CURVED DOOR GASKET | RDC0160 | $64.50 |
| 36" LED 0.15M | RDC0084-36S | $131.40 |
| 36" BACK VENT PANEL REAR | RDC0127-36 | $70.50 |
| 36" REAR AIR GRILL | RDC0088-36 | $102.70 |
| SLOT PLUG, QTY. 4 | RDC0523 | $31.10 |
| COOL HOLDING THERMOMETER | RDC0273 | $57.30 |
| GLASS HARDWARE | RDC0522 | $37.00 |
| CAPACITOR | RDC0112 | $38.20 |
| 36" CURVED BOTTOM SHELF | RDC0089-36 | $131.40 |
| RDCCV END GLASS L ASM | RDC0110 | $663.00 |
| GLASS HEATING POWER | RDC0164 | $76.40 |
| 36" BOTTOM DOOR TRACK | RDC0115-36 | $95.60 |
| FRONT GLASS KIT, RDCCV-36 | RDC0507 | $2,376.00 |
| POWER FOR LED | RDC0145 | $76.40 |
| 3-PIN LED LIGHT SOCKET | RDC0066 | $53.80 |
| RDE HDE NTC SENSOR | RDC0141 | $23.90 |
| RDCCV END GLASS R ASM | RDC0103 | $663.00 |
| RDE FILTER | RDC0039 | $66.90 |
| 36" RDCCV CONDENSING UNIT | RDC0067-36 | $2,628.10 |
| DIGITAL CONTROLLER, RDC | RDC0502 | $215.00 |
| Heavy Duty 4" Leg | 2351601-1 | $28.90 |
| RDE CONDENSER | RDC0149 | $569.80 |
