40834

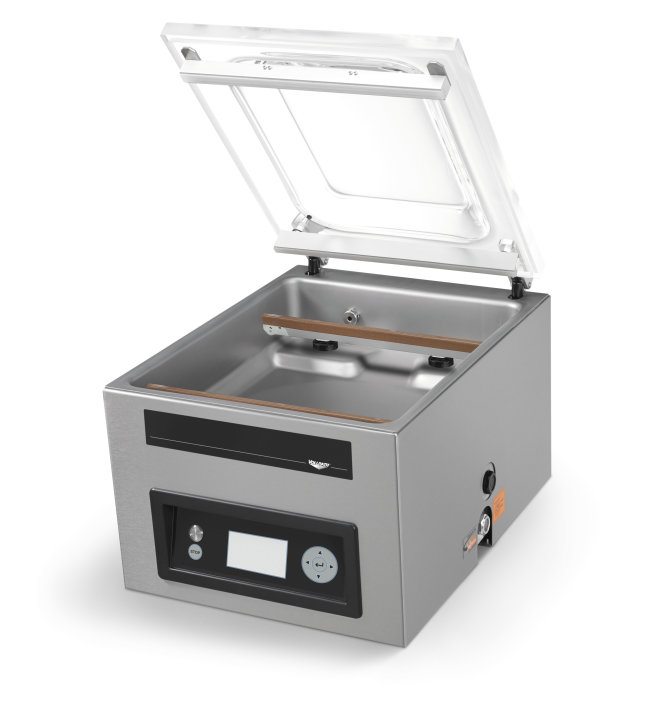

Large 120-volt in-chamber vacuum-pack machine with 16-inch seal bars, ACS-Control-System, & USB printer connection
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.
$10965.00
MSRP
Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$18,275.00
List Price
List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
Reduce waste and extend the shelf life of your food with the Vollrath® large in-chamber vacuum pack-machine. This unit has many unique features, including password-controlled access, HACCP logging and label printing, for increased safety and convenience. The front control panel allows you to set a definable vacuum function by time or sensor control, while a helpful liquid-control feature ensures high-quality packaging. Optional programs include soft-air, tenderize, marinate and more, allowing you to use this vacuum sealer for a variety of foods.
- This large unit has a smooth, stainless steel exterior and a transparent, soft-open lid for ease of use. The strong sealing cylinders create a tight seal, while the seal bars accommodate multiple bags up to 16-inches. The seal bars are also easy to remove and clean, while the pump-conditioning program removes unwanted moisture and debris. Both of these features extend the life of the unit and ensure high-quality vacuum sealing.
- Effortlessly vacuum seal meat, cheese, fruit and more
- Variety of programs include liquid control, soft-air, tenderize and more, for ultimate versatility
- USB connection to printer for label making
- HACCP logging for increased safety
- Models include premium vacuum pump
- Full maintenance kit included for your convenience
- Two sealing cylinders create a tight seal, preventing drips and leaks
- Two 16-inch seal bars accommodates multiple bags up to 16 inches
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | VPP16 |
| UPC | 671080420615 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 19.5 x 20.75 x 21.5 |
| (W) Width (IN) | 19.5 |
| (D) Depth (IN) | 20.75 |
| (H) Height (IN) | 21.5 |
| (WL) Width between legs | 15.5 |
| (DL) Depth between legs | 16.25 |
| Product Opening Width (IN) | 19.5 |
| Product Opening Depth (IN) | 20.75 |
| Product Opening Height (IN) | 29.25 |
| (WC) Cooking Chamber Width (IN) | 16.8125 |
| (DC) Cooking Chamber Depth (IN) | 16 |
| (HC) Cooking Chamber Height (IN) | 5 |
| (W) Width (CM) | 49.5 |
| (D) Depth (CM) | 52.7 |
| (H) Height (CM) | 54.7 |
| (WL) Width between legs (CM) | 39.4 |
| (DL) Depth between legs (CM) | 41.3 |
| Product Opening Width (CM) | 49.5 |
| Product Opening Depth (CM) | 52.7 |
| Product Opening Height (CM) | 74.3 |
| (WC) Cooking Chamber Width (CM) | 42.7 |
| (DC) Cooking Chamber Depth (CM) | 41.9 |
| (HC) Cooking Chamber Height (CM) | 12.7 |
| Size | Large |
Electrical
| Name | Value |
|---|---|
| Amps | 13 |
| Cord Length (IN) | 72 |
| Cord Length (CM) | 182.9 |
| hp | 1.3 |
| Hz | 60 |
| Plug | NEMA 5-20P |
| Voltage | 120 |
| Watts | 900 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 28.5 |
| Case Height | 25.5 |
| Case Length | 22.75 |
| Case Lot Cube (ft.) | 9.568 |
| Case Lot Weight (lbs.) | 187 |
Product Accessories
| Name | Item # |
|---|---|
| 6” x 8” in-chamber boil-in vacuum sealer bags | 23850 |
| 8” x 12” in-chamber boil-in vacuum sealer bags | 23852 |
| 12” x 16” in-chamber boil-in vacuum sealer bags | 23854 |
| 8” x 12” in-chamber vacuum sealer bags | 40815 |
| 10” x 15” in-chamber vacuum sealer bags | 40816 |
| 12” x 16” in-chamber vacuum sealer bags | 40817 |
| 14” x 20” in-chamber vacuum sealer bags | 40818 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| SEAL TRANSFORMER 15V 700VA | XVP00013 | $764.20 |
| REAR BAG GRIPPER KIT | XVP00072 | $96.30 |
| PLASTIC HOOD | XVP00058 | $1.70 |
| VACUUM PUMP 21 M3 | XVP00036 | $7,536.90 |
| INCLINED INSERT PLATE | XVP00056 | $1,066.40 |
| SENSOR LIQUID CONTROL | XVP00015 | $1,804.20 |
| OIL PLUG, VACUUM PUMP | XVP00076 | $29.60 |
| SEAL WIRE 3.5 MM 3 M LENGTH | XVP00051 | $191.20 |
| CIRCUIT BREAKER 125V 20A | XVP00009 | $101.30 |
| SERVICE KIT VP 16 - VPP 16 | XVP00050 | $492.00 |
| SEAL BAR VP 16 - VPP16 | XVP00029 | $390.40 |
| SEAL CYLINDER VP 16 - VPP16 | XVP00028 | $725.40 |
| PUMP CONTACTOR RATED 120V | XVP00007 | $617.30 |
| BAG HOLDER SUPPORT | XVP00062 | $17.50 |
| PLASTIC LID | XVP00066 | $2,108.20 |
| CONTROL BOARD ASSEMBLY VPP 16 | XVP00045 | $3,974.10 |
| FUSE SEAL TRANSFORMER | XVP00022 | $10.00 |
| CONTROL TRANSFORMER 64.5VA | XVP00010 | $618.90 |
| CABLE LIQUID SENSOR CONTROL | XVP00017 | $662.20 |
| POWER SWITCH DPDT 120V 1.5A | XVP00005 | $185.40 |
| LID CLOSING BRACKET | XVP00033 | $52.20 |
| SEAL CONTACTOR RATED 120V | XVP00006 | $215.30 |
| LID GAS SPRING | XVP00041 | $177.30 |
| OIL REFILL BOTTLE | XVP00039 | $85.40 |
| EXHAUST FILTER 21M3 PUMP | XVP00048 | $276.40 |
| LID GASKET 71 INCHES | XVP00068 | $77.80 |
| CONTROL PANEL MOUNTIN CLIP KIT | XVP00073 | $42.40 |
| VALVE BLOCK VP 16 - VPP16 | XVP00026 | $946.80 |
| HINGE VP16 - VPP16 | XVP00032 | $115.90 |
| SOFT-AIR VALVE | XVP00024 | $222.00 |
| FUSE CONTROL TRANSFORMER | XVP00021 | $2.00 |
| POWER CORD SJTOW 12 AWG | XVP00061 | $213.00 |
| OIL SIGHT GLASS 21 M3 PUMP | XVP00037 | $206.20 |
| FRONT BAG GRIPPER KIT | XVP00071 | $89.00 |
| TEFLON TAPE 3 METER LENGTH | XVP00052 | $164.70 |
| INSERT PLATE | XVP00055 | $228.90 |
| SWITCH COVER INTERLOCK | XVP00044 | $146.60 |
| FEET VACUUM MACHINE | XVP00001 | $10.90 |
| FUSE CONTROL TRANSFORMER | XVP00020 | $4.10 |
