40950

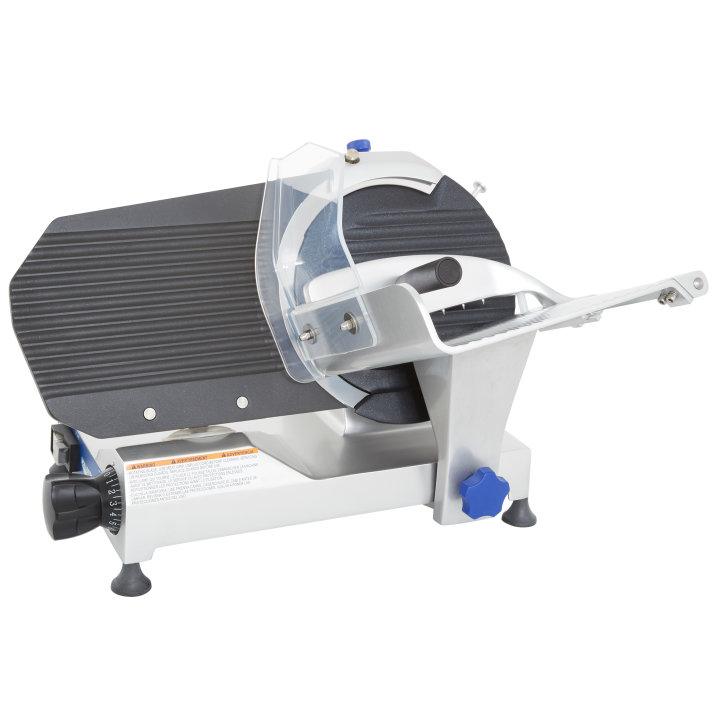

10-inch 120-volt medium-duty electric slicer
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
Contains PFAS (Per- and polyfluoroalkyl substances).
The Vollrath® medium-duty electric slicer is compact, reliable and easy to use. The hard-coated anodized aluminum exterior is durable, and the nonstick coating reduces drag, while also making this slicer easier to clean. This belt-driven slicer has a reliable belt that will last for years, and a built-in sharpener easily maintains your high-quality blade. A 25-degree gravity feed improves productivity and ease of use, and a slice-adjustment knob creates consistent slices up to ½-inch thick. A safety hand guard prevents accidental injury, as does a safety cover under the motor. The carriage can be removed for easy cleaning. Nonmarking, nonskid rubber feet prevent movement, and the compact design saves space on any countertop in your medium-volume operation.
- Designed to efficiently slice a variety of meat products
- Easy-to-carry handle for catering needs or other transportation
- UL sanitation, certified to the NSF/ANSI 8
- 6-foot 4-inch cord with plug
- 25-degree gravity feed ensures easy operation, preventing operator fatigue
- ⅓-peak-hp motor
- ½-inch maximum slice thickness
- 8⅜” x 6⅞” cutting capacity
- Removable carriage for easy cleaning
- 6' 4" (1.9 m) cord with plug
- 1/3 peak HP motor
- Space-saving design with small footprint
- Easy to carry for catering needs
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | SLM250/S |
| UPC | 671080468112 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 22.062 x 22.437 x 18.687 |
| (W) Width (IN) | 22.06 |
| (D) Depth (IN) | 22.43 |
| (H) Height (IN) | 18.68 |
| (WL) Width between legs | 9.625 |
| (DL) Depth between legs | 15.5 |
| Product Opening Width (IN) | 22.0625 |
| Product Opening Depth (IN) | 22.4375 |
| Product Opening Height (IN) | 18.6875 |
| Cut Size (IN) | up to 1 |
| (W) Width (CM) | 56 |
| (D) Depth (CM) | 57 |
| (H) Height (CM) | 47.5 |
| (WL) Width between legs (CM) | 24.4 |
| (DL) Depth between legs (CM) | 39.5 |
| Product Opening Width (CM) | 56 |
| Product Opening Depth (CM) | 57 |
| Product Opening Height (CM) | 47.5 |
| Cut Size (CM) | up to 2.5 |
| Size | 10 |
Electrical
| Name | Value |
|---|---|
| Amps | 2.5 |
| Cord Length (IN) | 6' 4" |
| Cord Length (CM) | 193 |
| hp | 1/3 |
| Hz | 60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 180 |
Construction
| Name | Value |
|---|---|
| Construction Material | Cast Aluminum |
| Construction Material 2 | Stainless Steel |
| Construction Material 3 | Electrical Components |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 19.6875 |
| Case Height | 16.5625 |
| Case Length | 23.625 |
| Case Lot Cube (ft.) | 4.4581 |
| Case Lot Weight (lbs.) | 40 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| KIT - SHARPENING STONE WHEELS | XSSL5041 | $12.60 |
| SHARPENING PIN | XSSL5226 | $14.70 |
| FOOT | XSSL5024 | $26.20 |
| MICROSWITCH SINGLE PHASE | XSSL5015 | $24.50 |
| POWER CORD 110/60 USA | XSSL5017 | $28.30 |
| KIT - THUMB GUARD | XSSL5039 | $62.20 |
| KIT-FOOD PRESS ROD BLOCKS | XSSL5252 | $124.10 |
| GAUGE PLATE SUPPORT DRIP COVER | XSSL5026 | $5.00 |
| KIT - BLADE HUB W/BELT & SEAL | XSSL5100 | $273.50 |
| SHARPENER ASSEMBLY KNOB | XSSL5109 | $6.20 |
| CARRIAGE SLIDE ROD | XSSL5224 | $30.60 |
| SHARPENING BUTTON | XSSL5114 | $12.10 |
| KIT - BLADE COVER TIE ROD | XSSL5035 | $37.20 |
| OIL BOTTLE | XSSL5027 | $10.60 |
| BRASS STUD BOLT M6X25 | XSSL5103 | $3.60 |
| MOTOR THERMAL PROTECTION | XSSL5013 | $54.30 |
| KIT - SHARPENER ASSEMBLY | XSSL5040 | $318.40 |
| BLADE HUB ASSEMBLY | XSSL5030 | $204.50 |
| KIT - CARRIAGE SLIDE ASSEMBLY | XSSL5191 | $147.60 |
| BOTTOM COVER | XSSL5214 | $36.20 |
| SHARPENER MOUNTING FOOT | XSSL5113 | $24.80 |
| FOOD PUSHER BUFFER | XSSL5107 | $9.80 |
| MOTOR 110/60 HZ | XSSL5007 | $482.70 |
| KIT - THICKNESS KNOB | XSSL5036 | $24.60 |
| GAUGE PLATE SUPPORT | XSSL5095 | $121.20 |
| FOOD PUSHER HANDLE | XSSL5025 | $11.10 |
| FOOD TRAY SUPPORT KNOB | XSSL5028 | $7.80 |
| KIT - SHARPENER ASSY HOLD KNOB | XSSL5044 | $15.40 |
| BRASS STUD BOLT M6X17 | XSSL5097 | $3.20 |
| KIT - SLICE DEFLECTOR | XSSL5034 | $12.20 |
| KIT - GAUGE PLATE MOVEMENT | XSSL5099 | $145.70 |
| BLADE COVER ADAPTOR | XSSL5091 | $10.10 |
| KIT - FOOD PRESS HANDLE | XSSL5199 | $15.10 |
| INDICATOR LIGHT BLUE 110 V UL | XSSL5016 | $10.10 |
| CARRIAGE BEARING | XSSL5104 | $10.40 |
| CARRIAGE SLIDE ROD SCREW | XSSL5105 | $3.00 |
| KIT - CARRIAGE & TRAY ASSEMBLY | XSSL5038 | $763.60 |
| KIT - BLADE | XSSL5033 | $341.90 |
| BUTTON LOCKING SCREW | XSSL5112 | $2.90 |
| KIT - BLADE COVER | XSSL5032 | $109.20 |
| KIT - GAUGE PLATE CAM AND PIN | XSSL5223 | $52.70 |
| KIT - FOOD PRESS ASSEMBLY | XSSL5200 | $241.40 |
| KIT - MOTOR CAPACITOR | XSSL5042 | $39.10 |
| BLADE COVER KNOB | XSSL5090 | $5.30 |
| BELT | XSSL5004 | $29.90 |
| FOOD PRESS SLIDE ROD | XSSL5225 | $15.80 |
| ON/OFF SWITCH 110V | XSSL5012 | $58.20 |
