40758
30-quart 110- to 120-volt floor mixer
The Vollrath® 30-quart floor mixer is built tough, promising years of reliability and durability.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

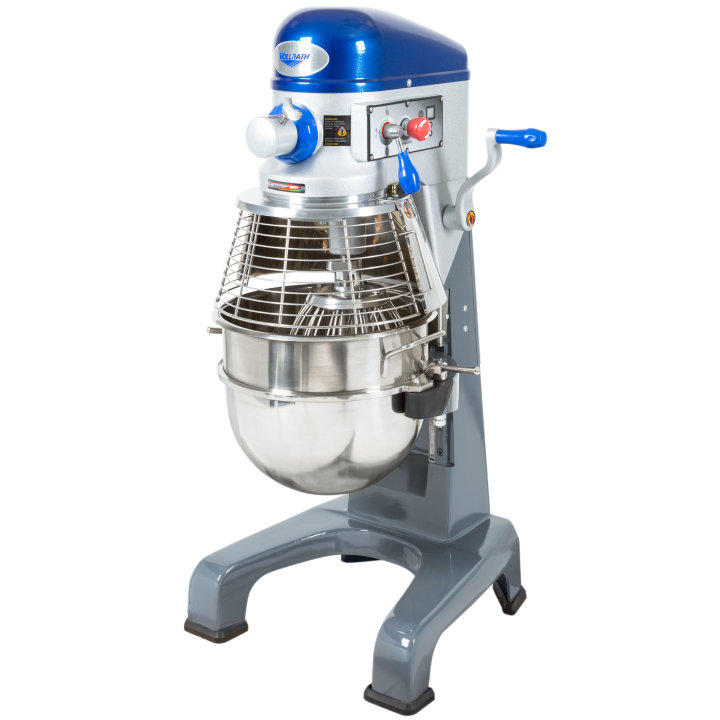

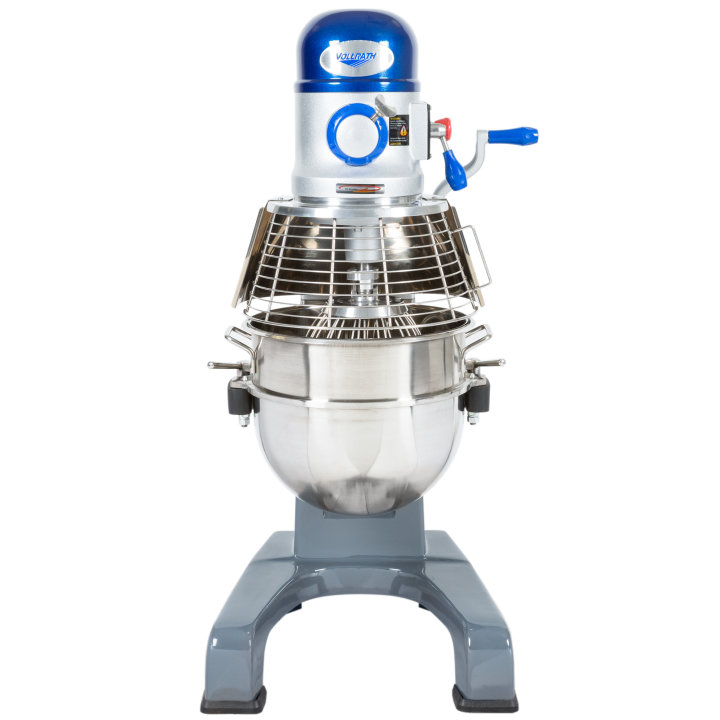

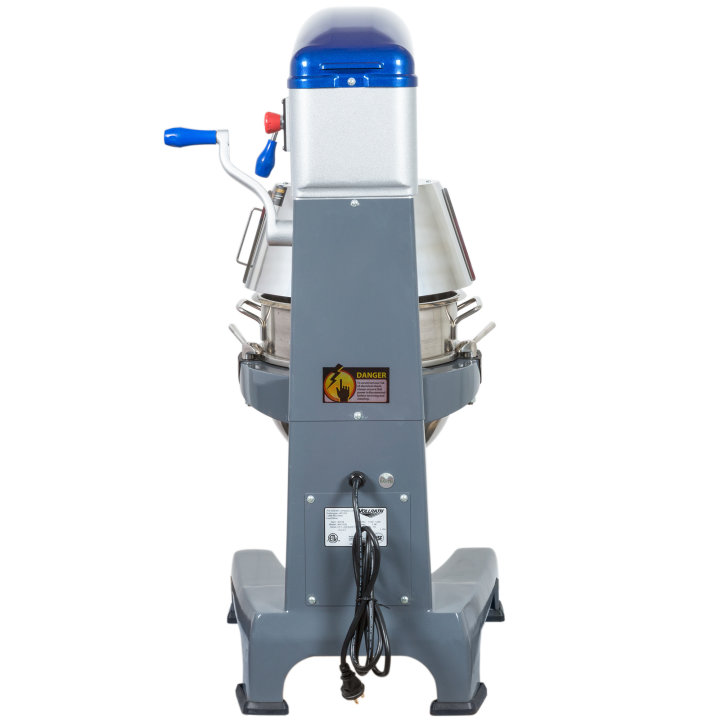

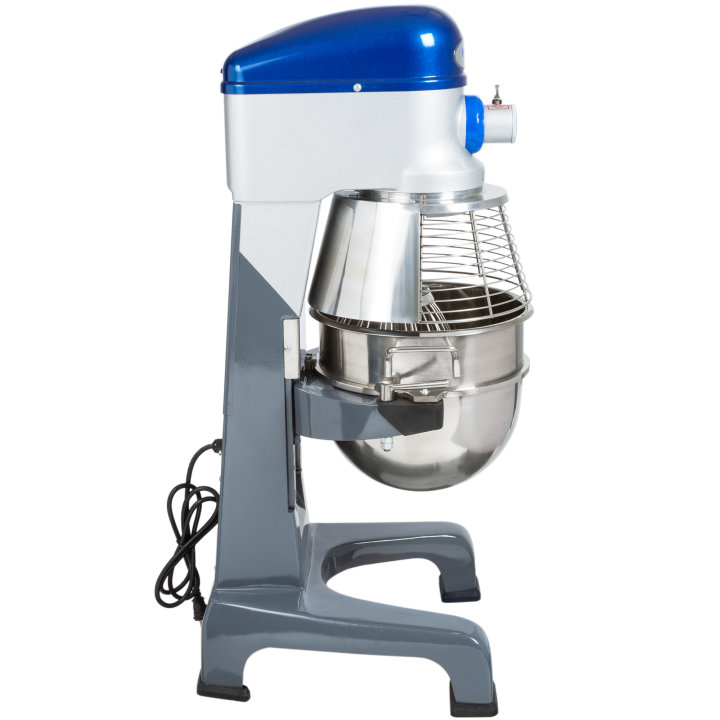

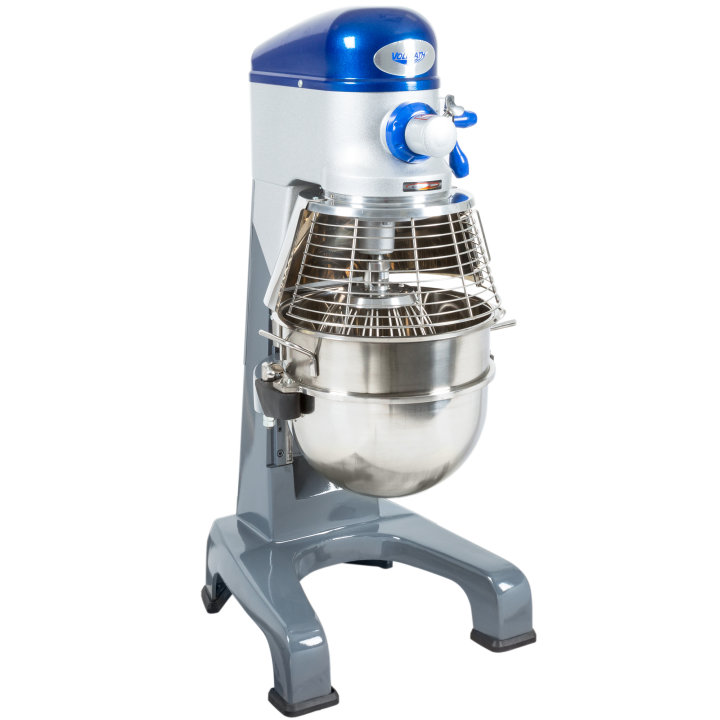

30-quart 110- to 120-volt floor mixer with safety guard
The Vollrath® 30-quart floor mixer is built tough, promising years of reliability and durability. It features a 3-speed belt drive, allowing you to mix a variety of products at the appropriate speed. The 30-minute timer automatically turns the mixer off for ultimate convenience. This mixer comes with all the accessories required for operation, as well as a safety guard to prevent accidental injury. Strong legs maintain stability while black feet prevent movement during use. If you want to expand your mixer’s versatility to include grinding and slicing, a No. 12 hub can accommodate the appropriate Vollrath attachments.
Efficiently mixes, whips and beats a variety of foods
Safety cut-off interrupts power if gears are changed while the mixer is in use, preventing gear damage and extending the life of this unit
Stainless steel mixing bowl, dough hook, wire whisk, flat beater and safety guard included
Meat grinder and vegetable slicer attachments are available for added versatility — for best results Vollrath attachments are recommended
International models have CE certification only
30-minute timer automatically stops unit
3-speed belt drive is built for years of service
30-quart mixing bowl included
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | MIX1030 |
| UPC | 029419720491 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 25 x 24.5 x 47.875 |
| (W) Width (IN) | 25 |
| (D) Depth (IN) | 24.5 |
| (H) Height (IN) | 47.87 |
| (WL) Width between legs | 21.25 |
| (DL) Depth between legs | 21 |
| (W) Width (CM) | 63.5 |
| (D) Depth (CM) | 62.2 |
| (H) Height (CM) | 121.6 |
| (WL) Width between legs (CM) | 54 |
| (DL) Depth between legs (CM) | 53.3 |
| Size | 30 |
Electrical
| Name | Value |
|---|---|
| Amps | 16 |
| Cord Length (IN) | 6" |
| Cord Length (CM) | 182.9 |
| hp | 1 |
| Hz | 60 |
| Plug | NEMA 5-20P |
| Voltage | 110-120 |
Volume
| Name | Value |
|---|---|
| Capacity (L) | 28.3 |
| Capacity (OZ) | 960 |
| Capacity (QT) | 30 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 26.25 |
| Case Height | 53.25 |
| Case Length | 28.5 |
| Case Lot Cube (ft.) | 23.05 |
| Case Lot Weight (lbs.) | 427.0 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| KEY(5*5*30) MIX7130 (#104) | XMIX3104 | $15.30 |
| HUB COMPLETE MIX1030 (DYNASTY) | XMIX8300 | $510.70 |
| MOTOR START CAPACITOR | XMIX8302 | $49.10 |
| DRIVE BELT NEW TYPE MIX9130/10 | XMIX9311 | $121.90 |
| SHIFTER FORK & SHAFT MIX1030 ( | XMIX8310 | $176.70 |
| PLANETARY HEAD MIX7130/9130/10 | XMIX3054 | $348.40 |
| KEY(1/4X1/4X25) MIX7130 (#103 | XMIX3103 | $15.40 |
| HUB THUMBSCREW MIX7120 (NO41) | XMIX2033 | $35.60 |
| SAFETY GUARD COMPLETE MIX7130/ | XMIX3031 | $2,514.90 |
| RUBBER REAR FOOT COVER LEFT MI | XMIX8304 | $65.60 |
| AGITATOR SHAFT OIL SEAL(TC28X5 | XMIX3093 | $13.10 |
| BEARING 6205Z (#86) | XMIX3086 | $32.80 |
| GEAR LEVER KNOB(BLUE) & SHAFT | XMIX8205 | $120.50 |
| EMERGENCY STOP SWITCH MIX1020 | XMIX8202 | $153.30 |
| MOTOR PULLEY MIX9130/9140/1030 | XMIX9327 | $131.00 |
| AGITATOR SHAFT C CLIP (A19)MIX | XMIX3095 | $5.00 |
| GEARBOX COVER MIX9130/1030 (#4 | XMIX8309 | $142.20 |
| TRANSMISSION SHAFT COMPLETE MI | XMIX9302 | $454.90 |
| POWER BOARD MIX1020/1030 (#159 | XMIX8312 | $973.20 |
| PULLEY & SHAFT ASSEMBLY MIX913 | XMIX9315 | $322.00 |
| RUBBER BOWL ARM COVER LEFT MIX | XMIX8306 | $40.70 |
| SHIFTER SHAFT & SELECTOR MIX91 | XMIX9339 | $134.40 |
| RUBBER REAR FOOT COVER RIGHT M | XMIX8305 | $65.60 |
| MOTOR MIX9130/1030 110V | XMIX9328 | $1,122.60 |
| BOWL CLAMP RIGHT MIX1030/1040 | XMIX8415 | $88.30 |
| RING GEAR MIX7130/9130/1030 (# | XMIX3052 | $505.90 |
| AGITATOR SHAFT GEAR SMALL MIX7 | XMIX3051 | $127.40 |
| MICROSWITCH (S/ GUARD MIX7110) | XMIX1013 | $47.50 |
| BOWL LIFT ASSEMBLY MIX9130/103 | XMIX8311 | $253.80 |
| AGITATOR SHAFT MIX7130/9130/10 | XMIX9318 | $125.10 |
| RUBBER FRONT FOOT COVER MIX103 | XMIX8303 | $65.60 |
| BOWL LIFT HANDLE KNOB/BLUE | XMIX8224 | $126.10 |
| KIT - CONTROL PANEL AND LABEL | XMIX8313 | $236.10 |
| MIXER PLANETARY GREASE (OMEGA | XMIX0002 | $123.00 |
| RUBBER BOWL ARM COVER RIGHT MI | XMIX8307 | $40.70 |
| LIMIT SWITCH FOR BOWL GUARD | XMIX2054 | $154.20 |
| CABLE RESTRAINER MIX7120 (68 | XMIX2037 | $9.90 |
| START/RUN CAPACITORS MIXERS | XMIX9610 | $684.00 |
| MIXER GEARBOX GREASE (17.6 OZ) | XMIX0001 | $75.10 |
| BOWL LIFT ARM CAST ALUMINUM | XMIX8207 | $190.40 |
| MAIN POWER CORD | XMIX3341 | $71.20 |
| BOWL SUPPORT | XMIX2009 | $665.70 |
| PLANETARY HUB ASSEMBLY COMPLET | XMIX8315 | $1,457.30 |
| PLANETARY SHAFT COMP MIX9130/1 | XMIX9301 | $1,534.30 |
| BOWL CLAMP LEFT MIX1030/1040 ( | XMIX8414 | $88.30 |
| PLANETARY BEARING COVER MIX103 | XMIX8308 | $25.60 |
| AGITATOR SHAFT TAPERED PIN MIX | XMIX3057 | $14.30 |
