4075705
Discontinued20-quart 220- to 230-volt bench mixer with safety guard and Australian plug
The 20-quart bench mixer by Vollrath is built tough, promising years of reliability and durability.

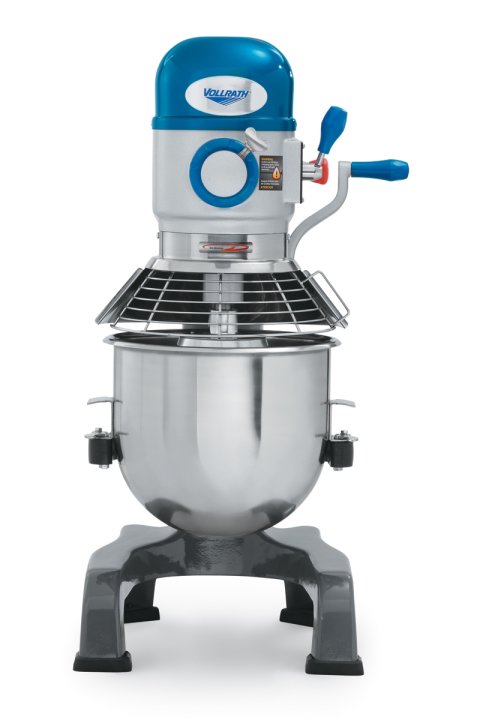

20-quart 220- to 230-volt bench mixer with safety guard and Australian plug
The 20-quart bench mixer by Vollrath is built tough, promising years of reliability and durability. It features a 3-speed belt drive, allowing you to mix a variety of products at the appropriate speed, and the 30-minute timer automatically turns the mixer off at the end of the cycle. This mixer comes with all the accessories required for operation, including a safety guard to prevent accidental injury. Strong legs maintain stability while black feet prevent movement during use. If you want to expand your mixer’s versatility to include grinding and slicing, a No. 12 Hub can accommodate the appropriate Vollrath attachments.
Efficiently mixes, whips and beats a variety of foods
Safety cut-off interrupts power if gears are changed while the mixer is in use, preventing gear damage and extending the life of this unit
Stainless steel mixing bowl, dough hook, wire whisk, flat beater and safety guard included
Meat grinder and vegetable slicer attachments are available for added versatility — for best results Vollrath attachments are recommended
International models have CE certification only
30-minute timer automatically stops unit when time is up
3-speed belt drive is built for years of service
6-foot cord and Australian plug
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | MIX1020CE |
| UPC | 029419952281 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 20.375 x 20.375 x 35.625 |
| (W) Width (IN) | 20.37 |
| (D) Depth (IN) | 20.37 |
| (H) Height (IN) | 35.62 |
| (W) Width (CM) | 51.8 |
| (D) Depth (CM) | 51.8 |
| (H) Height (CM) | 90.5 |
| Size | 20 |
Electrical
| Name | Value |
|---|---|
| Plug | Australia |
| Domestic / International | Australia |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 21 |
| Case Height | 42.5 |
| Case Length | 25 |
| Case Lot Cube (ft.) | 12.91 |
| Case Lot Weight (lbs.) | 264.0 |
Product Accessories
Product Parts
| Name | Part # | Price |
|---|---|---|
| KEY 6X6X30 MIX7120 (#108) | XMIX2108 | $4.20 |
| KEY(5*5*30) MIX7130 (#104) | XMIX3104 | $15.30 |
| RUBBER BOWL ARM COVER RIGHT MI | XMIX8212 | $39.40 |
| SAFETY GUARD COMPLETE MIX7120/ | XMIX2250 | $1,178.60 |
| HUB THUMBSCREW MIX7120 (NO41) | XMIX2033 | $35.60 |
| CAPACITOR MIX7120 (#146) | XMIX2010 | $67.70 |
| COGGED DRIVE BELT MIX9120/1020 | XMIX9201 | $102.00 |
| GEAR LEVER KNOB(BLUE) & SHAFT | XMIX8205 | $120.50 |
| GOVERNOR MIX7120 (#148) | XMIX2005 | $25.40 |
| EMERGENCY STOP SWITCH MIX1020 | XMIX8202 | $153.30 |
| MICROSWITCH ON GEARSHIFT (MIX7 | XMIX2270 | $33.10 |
| PLANETARY SHAFT COMPLETE MIX71 | XMIX2027 | $1,116.00 |
| BOWL LIFT SPRING MIX7120 (77 | XMIX2052 | $10.50 |
| GOVERNOR PLATE MIX7120/9120/71 | XMIX2004 | $17.20 |
| KEY(5X5X15) MIX7130 (#105) | XMIX3300 | $16.90 |
| WORM GEAR SHAFT MIX9120 | XMIX9229 | $493.40 |
| BOWL LIFT ASSEMBLY MIX9120/102 | XMIX8221 | $181.60 |
| HUB COMPLETE MIX1020 (#59-68) | XMIX8200 | $805.40 |
| MOTOR ASSEMBLY 220V 20QT MIXE | XMIX9215 | $1,267.00 |
| FREEZE PLUG SMALL MIX7120 (#3 | XMIX2290 | $17.50 |
| SHIFTER SHAFT & SELECTOR MIX10 | XMIX8216 | $232.30 |
| PLASTIC HUB RING MIX1020 (DYNA | XMIX8201 | $59.00 |
| BEARING 6203Z (#87) | XMIX3087 | $25.80 |
| BOWL LIFT HANDLE KNOB/BLUE | XMIX8224 | $126.10 |
| DOUGH HOOK (C-TYPE) MIX7120 | XMIX2160 | $330.20 |
| BOWL SUPPORT ASSEMBLY | XMIX2017 | $860.60 |
| LIFTER ROD MIX7120 (NO.73) | XMIX2049 | $41.60 |
| BEARING 6204Z (#90) | XMIX3090 | $27.90 |
| SAFETY SWITCH 20 QT BOWL GUARD | XMIX9893 | $297.80 |
| AGITATOR SHAFT ASSEMBLY | XMIX0007 | $1,018.30 |
| MOTOR PULLEY MIX9120/1020 (# | XMIX9231 | $76.70 |
| OIL BAFFLE FOR HUB ATTACHMENT | XMIX2039 | $43.00 |
| KEY (1/8X1/8X1/2) MIX7120 (#10 | XMIX2109 | $8.40 |
| MIXER PLANETARY GREASE (OMEGA | XMIX0002 | $123.00 |
| RUBBER FRONT FOOT COVER MIX102 | XMIX8209 | $39.40 |
| CABLE RESTRAINER MIX7120 (68 | XMIX2037 | $9.90 |
| 20 QT BOWL SAFETY GUARD KIT | XMIX2077 | $1,297.20 |
| GEARBOX COVER MIX1020 (#4) | XMIX8213 | $169.70 |
| TRANSMISSION SHAFT COMPLETE MI | XMIX8214 | $409.20 |
| BOWL LIFT HANDLE/LINKAGE ASSY | XMIX8223 | $406.10 |
| RUBBER REAR FOOT COVER MIX102 | XMIX8210 | $39.40 |
| DIGIT-TIMER/FASCIA MIX 1020/30 | XMIX8203 | $424.00 |
| PLANETARY OIL SEAL (TC32X47X10 | XMIX2095 | $11.10 |
| FREEZE PLUG LARGE MIX7120; ALL | XMIX2280 | $22.50 |
| KEY(6X6X50) MIX7120 (#112) | XMIX2112 | $8.40 |
| AGITATOR SHAFT MIX7120/9120/10 | XMIX9209 | $122.00 |
| FRONT HUB COVER MIX8160/9160 | XMIX6040 | $21.70 |
| SHIFTER FORK & SHAFT MIX1020 ( | XMIX8217 | $176.00 |
| RUBBER BOWL ARM COVER LEFT MIX | XMIX8211 | $39.40 |
| POWER BOARD MIX1040 (#172) | XMIX8417 | $944.90 |
| AGITATOR SHAFT OIL SEAL MIX912 | XMIX9208 | $12.20 |
| PULLEY & SHAFT MIX1020 (#D) ( | XMIX8215 | $377.40 |
| KEY(5X5X20) MIX7120 (#113) | XMIX2113 | $9.40 |
| BEARING (6200Z) (#89) | XMIX2089 | $15.50 |
| HUB O-RING (OR-P35) MIX7120 ( | XMIX2094 | $6.30 |
| BOWL LIFT ARM CAST ALUMINUM | XMIX8207 | $190.40 |
| AGITATOR SHAFT TAPERED PIN MIX | XMIX9210 | $13.00 |
| MIXER GEARBOX GREASE (17.6 OZ) | XMIX0001 | $75.10 |
