1 ½-HP No. 22 meat grinder
1 ½-HP No. 22 meat grinder
1 ½-HP No. 22 meat grinder
1 ½-HP No. 22 meat grinder
1 ½-HP No. 22 meat grinder

40744

1 ½-HP No. 22 meat grinder

  • National Sanitation Foundation
  • Intertek ETL

    This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

$2080.14 MSRP Manufacturer Suggested Retail Price (MSRP) is a predetermined percentage off of list price (shown is US Dollars) and is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.
$3,466.90 List Price List price (shown is US Dollars) is valid for vollrathfoodservice.com and the United States and Canada only. Dealer pricing may differ. These prices do not include potential shipping costs. Any sales tax applicable will be added to the final price upon quote or purchase.

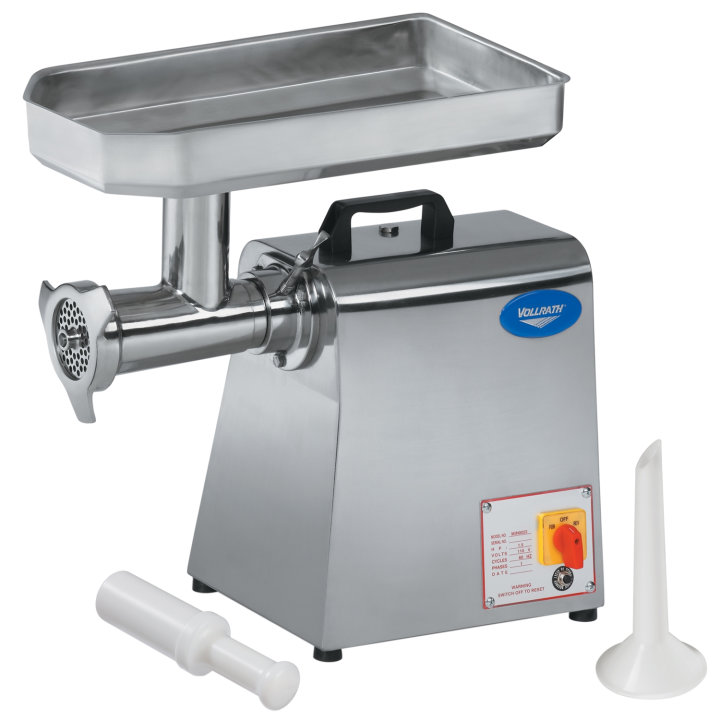

Efficient and reliable under demanding conditions, the No. 22 meat grinder by Vollrath is the ideal product for butchers, supermarkets, restaurants, delis and more. This grinder has a stainless steel body with no sharp corners or seams, and the feed tray holds large amounts of meat at once, while the pusher helps you feed the product down the chute. The 1 ½-HP energy-efficient motor and precision gear drive easily grind 528 pounds of meat per hour, and a forward and reverse switch allows for higher-quality grinding. Nonskid feet maintain stability, and the grinding head, pan and attachments are dishwasher safe, ensuring a quick cleanup.

  • Quickly grinds a variety of meats
  • Durable stainless steel body, cylinder, and worm gear provide years of service
  • Top-mounted carrying handle allows you to easily transport the entire unit
  • Heavy-gauge product tray holds a large amount of food at one time
  • 2 ¼-inch-diameter food chute quickly moves it through the grinder
  • 1/8-inch and 5/16-inch grinder plates included for increased versatility
  • 1 ½-HP motor grinds 528 pounds of meat per hour
  • Sausage stuffer and feed stick accessories included
  • Replacement grinder knives and plates sold separately
  • NSF-certified
  • No. 22 unit features 1.5 HP motor to grind 528 lb (240 kg) of meat per hour
  • Heavy gauge product tray with 2 1/4" diameter food chute
  • Stainless steel body, cylinder, worm gear and ring

Product Specifications

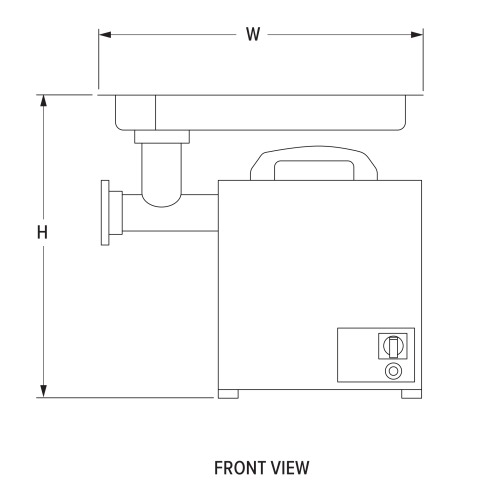

Engineering front view

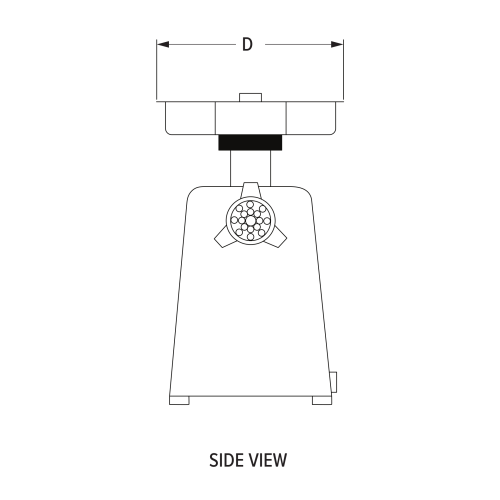

Engineering side view
Model Information
Name Value
Model MIN0022
UPC 029419719303
Unit Dimensions
Name Value
Overall Dimensions (IN) 20 x 11 x 22
(W) Width (IN) 20
(D) Depth (IN) 11
(H) Height (IN) 22
(W) Width (CM) 50.8
(D) Depth (CM) 27.9
(H) Height (CM) 55.9
Size 22
Electrical
Name Value
Amps 6
Cord Length (IN) 6"
Cord Length (CM) 182.9
hp 1.5
Plug NEMA 5-15P
Voltage 110
Case Lot Measurement
Name Value
Case Lot 1
Case Width 16
Case Height 21.5
Case Length 25.25
Case Lot Cube (ft.) 5.03
Case Lot Weight (lbs.) 106.0
Product Accessories
Name Item #
Replacement No. 22 grinder knife for meat grinder 40750
Grinder Plate, 1/8" (32 mm) 40751
Grinder Plate, 5/16" (79 mm) 40752
Grinder Plate, 1/2" (1.3 cm) 40753
Product Parts
Name Part # Price
BEARING 6203 2RS (ITALIAN SLI XSLS6203 $67.30
CHAMBER LOCATING PIN MIN0012/0 XMIN1234 $13.70
WORM/ SPIRAL PROPELLER MIN0022 XMIN2205 $616.30
SPACER MIN0012/MIN0022 (# 53) XMIN1211 $7.20
BEARING 6205Z (#86) XMIX3086 $32.80
WORM GEAR SPIRAL MIN0022 (#16 XMIN2228 $191.50
WORKING CAPACITOR XMIN2232 $146.40
GOVERNOR PLATE MIX8140 (#142) XMIX4004 $25.90
GRINDING CHAMBER MIN0022 (4) XMIN2204 $1,194.00
CAPACITOR MIN0022 #23 400MFD 1 XMIN2212 $84.00
PLASTIC HANDLE MIN0012/MIN0022 XMIN1229 $17.10
COUPLING COVER NUT MIN0022 ( XMIN2203 $373.00
MEAT FUNNEL MIN0022 (#37) XMIN2217 $27.30
THUMBSCREW MIN0012 (# 27) XMIN1213 $55.30
FEEDER PAN (NEW TYPE) MIN0022 XMIN2223 $320.50
RESET SWITCH MIN0012 (# 32) XMIN1225 $43.60
PLASTIC BASE PLATE MIN0012 (# XMIN1219 $27.10
MOTOR MIN0022 (#18A) XMIN2229 $1,517.70
BRASS BUSH FOR CHAMBER (# 03) XMIN1226 $30.40
BRASS WORMGEAR MIN0022 (#15) XMIN2220 $217.10
MEAT PUSHER MIN0012/MIN0022 ( XMIN2202 $16.30
GOVERNOR MIN0012 (# 29) XMIN1215 $29.90
GEARBOX COMPLETE MIN0022 (#11A XMIN2210 $914.60
CABLE RESTRAINT (FMA SKA FFA) XAA0012 $11.70
GEARBOX OIL SEAL (TC30X45X8) ) XMIN2230 $15.50
POWERCORD 120V (NEMA5-15P) XAA0005 $54.80
FEET MIN0012/MIN0022 (# 45) XMIN1220 $14.30
HANDLE HEXBOLT MIN0012 (#52) XMIN1228 $7.00
KEY(6X6X15) MIN0012/MIN0022 XMIN1230 $8.40
FRONT HUB MIN0022 (#12) XMIN2219 $253.80
WORM SHAFT FRONT MIN0022 (#8) XMIN2231 $25.90
ON/OFF SWITCH MIN0012/MIN0022 XMIN1216 $166.70
WORM SHAFT REAR MIN0012 (#10 XMIN1231 $41.90
GREASE TRAPPER BOLT MIN0012 XMIN1223 $19.40
