40848

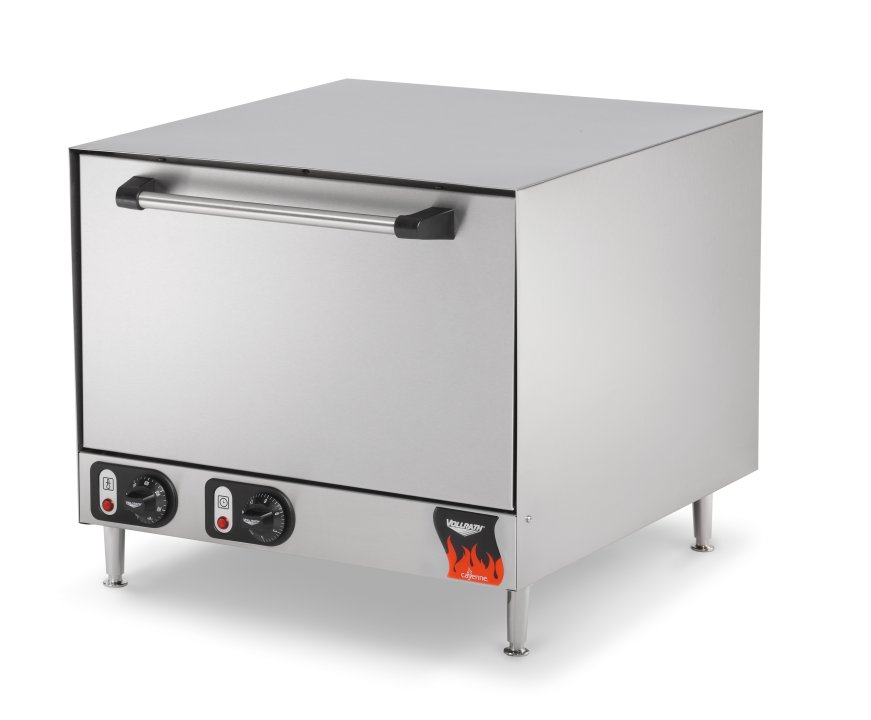

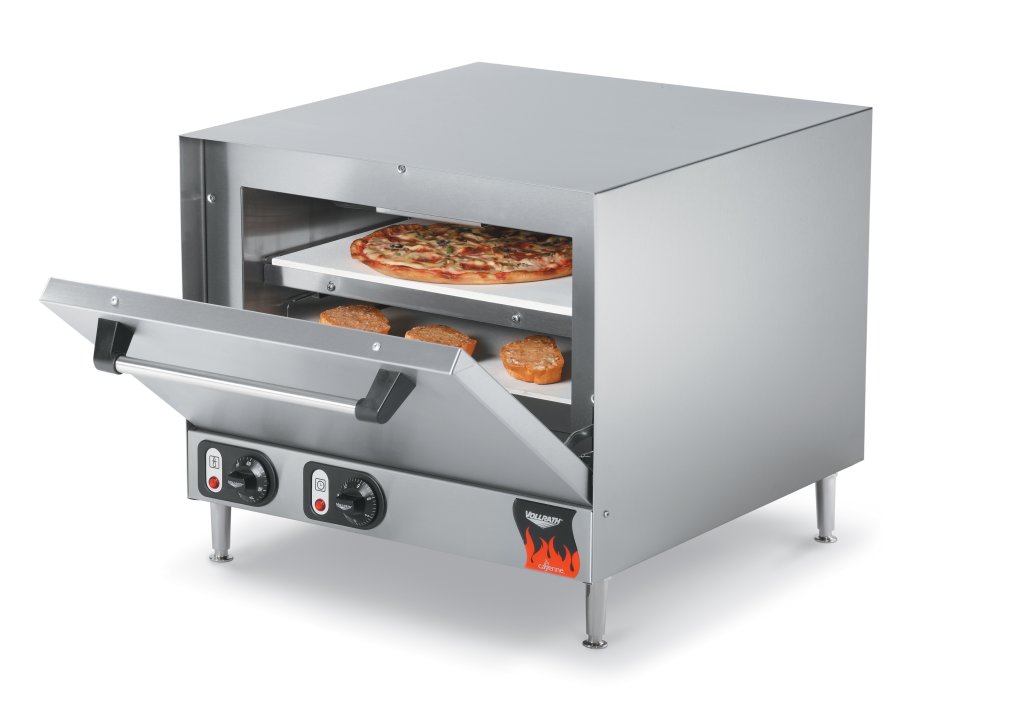

Discontinued208-240-volt Cayenne® pizza / bake oven
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
The Vollrath® Cayenne pizza / bake oven creates delicious pizzeria-style pizzas. With a temperature range from 140°F to 750°F, this pizza oven evenly bakes pizza and bread products while the 15-minute timer helps you monitor baking progress. This unit comes with two ceramic bake decks to evenly brown crusts and breads. The square shelves, with the 2 ½-inch gap between them, provide enough room for a variety of products. Both the interior and exterior of this oven are made of durable stainless steel for easy cleaning.
- Designed for pizzas, breads and toasts
- Durable stainless steel construction provides years of service
- Two ceramic bake decks are included for even baking of crusts and breads
- 140°F to 750°F temperature range accommodates many pizzas and breads
- 17½” x 17½” shelves easily fit most breads and pizzas
- 2½-inch gap between shelves provides ample room for bottom shelf products
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | POA8002 |
| UPC | 029419728978 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 23.125 x 25.375 x 20.25 |
| (W) Width (IN) | 23.12 |
| (D) Depth (IN) | 25.37 |
| (D2) Secondary Depth (IN) | 25.312 |
| (H) Height (IN) | 20.25 |
| (WC) Cooking Chamber Width (IN) | 18.5 |
| (DC) Cooking Chamber Depth (IN) | 19.1875 |
| (HC) Cooking Chamber Height (IN) | 9.4375 |

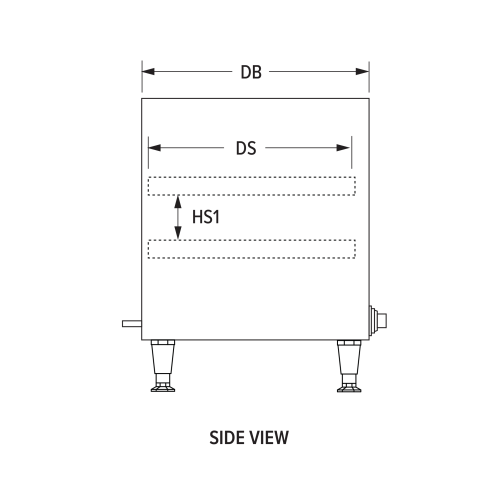

| (DB) Depth of Body (IN) | 24.062 |
| (WS) Shelf Width (IN) | 17.5 |
| (HS1) Shelf Clearance Height (IN) | 2.875 |
| Overall Dimensions (CM) | 58.8 x 64.5 x 51.4 |
| (W) Width (CM) | 58.8 |
| (D) Depth (CM) | 64.5 |
| (D2) Secondary Depth (CM) | 64.3 |
| (H) Height (CM) | 51.4 |
| (WC) Cooking Chamber Width (CM) | 47 |
| (DC) Cooking Chamber Depth (CM) | 48.7 |
| (HC) Cooking Chamber Height (CM) | 23.9 |
| (DB) Depth of Body (CM) | 61.2 |
| (WS) Shelf Width (CM) | 44.5 |
| (HS1) Shelf Clearance Height (CM) | 7.3 |
Electrical
| Name | Value |
|---|---|
| Amps | 10.1 - 11.6 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 120 |
| Plug | NEMA 6-15P |
| Voltage | 208-240 |
| Watts | 2100-2800 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 28 |
| Case Height | 20.5 |
| Case Length | 30.5 |
| Case Lot Cube (ft.) | 10.13 |
| Case Lot Weight (lbs.) | 90.0 |
Product Accessories
| Name | Item # |
|---|---|
| 24-inch heavy-duty mobile equipment stand | 4087924 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| POWERCORD 220V (NEMA6-15P) | XAA0006 | $45.60 |
| CONTROL PANEL FASCIA - BLACK | XAA0009 | $31.70 |
| PILOT LIGHT 220V (RED) | XAA0002 | $18.10 |
| SELECTOR SWITCH COA7001(#13)/7 | XCOA1001 | $87.70 |
| CABLE RESTRAINT COA7001/7002/8 | XCOA1013 | $8.30 |
| MIDDLE & BOTTOM ELEMENT 1000W | XPOA0009 | $192.80 |
| MERCATO TIMER NEW TYPE | XTSA0058 | $235.80 |
| THERMOSTAT POA7002/8002 (#8) | XPOA0004 | $203.30 |
| CONNECTOR BLOCK TSA(ALL) SAA(A | XTSA0005 | $22.60 |
| STEEL HANDLE COA8004 #11 | XCOA1025 | $87.40 |
| CERAMIC PLATE POA7002/8002 (#2 | XPOA0006 | $204.70 |
| SHELF POA7002/8002 (#22) | XPOA0007 | $127.40 |
| GRIDDLE ELECTRIC LEG | XFTA0010 | $56.00 |
| DOOR HANDLE NODE POA7002/8002 | XPOA0003 | $16.30 |
| BRACKET PIZZA OVEN | XPOA0012 | $6.60 |
| PIZZA OVEN CONTROL KNOB (V) | XPOA0010 | $16.30 |
| TOP ELEMENT 240V 800W | XPOA0008 | $193.00 |
| PIZZA OVEN TIMER KNOB (V) | XPOA0011 | $16.30 |
| HINGE KIT 40848 / POA8002 | XPOA0848 | $108.60 |
