40830

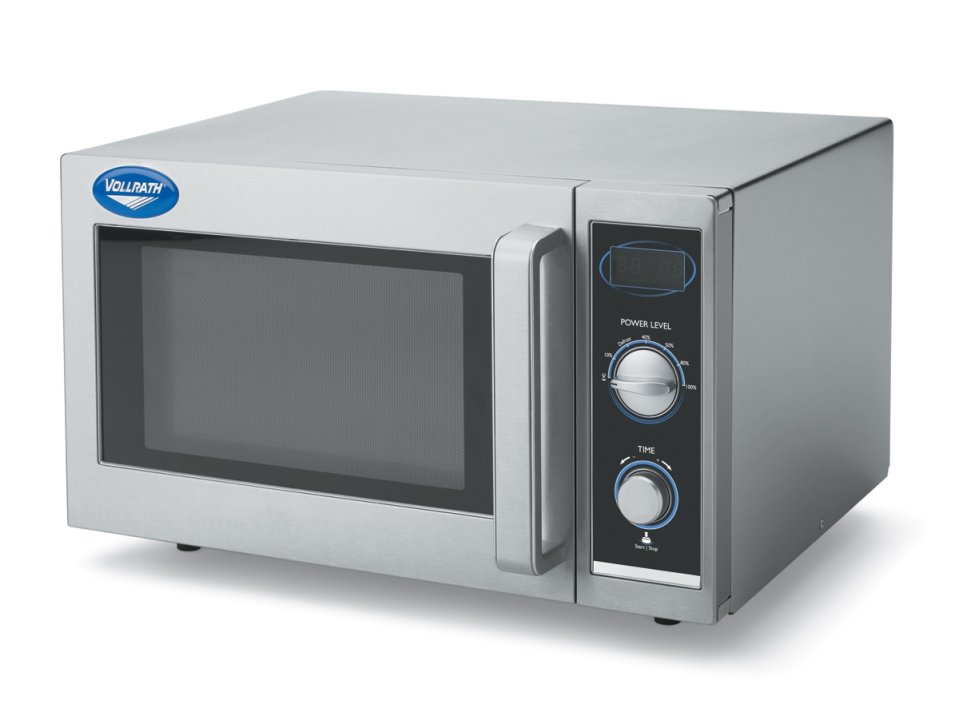

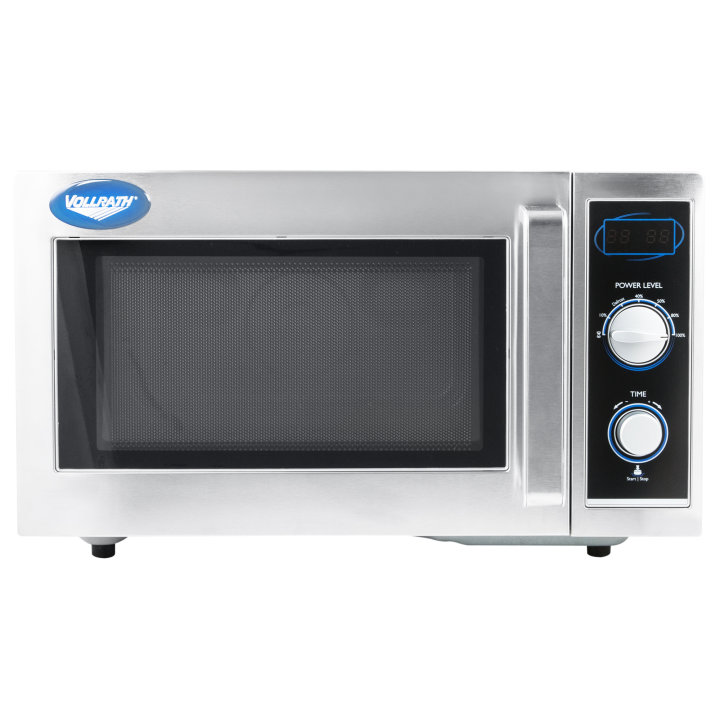

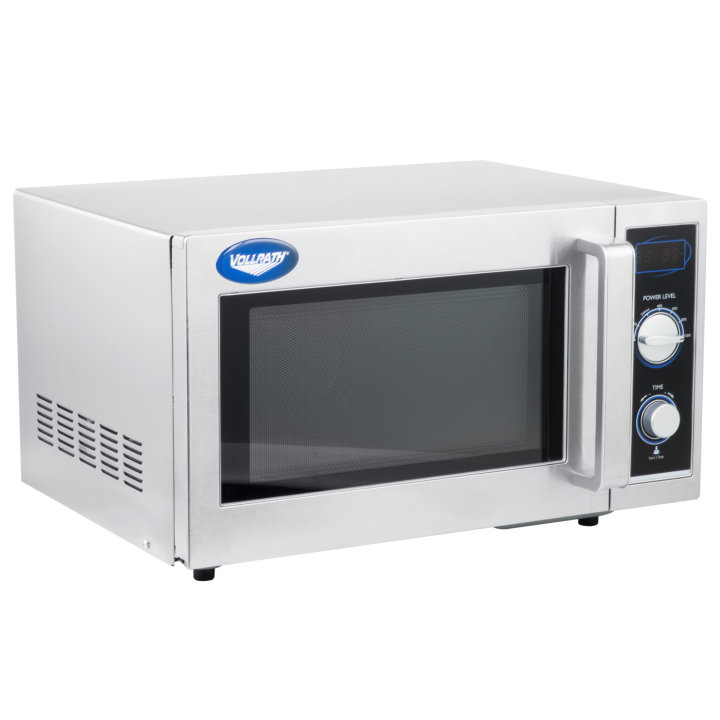

120-volt microwave oven with manual controls
The Vollrath® microwave oven is compact, reliable and built to last.
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.

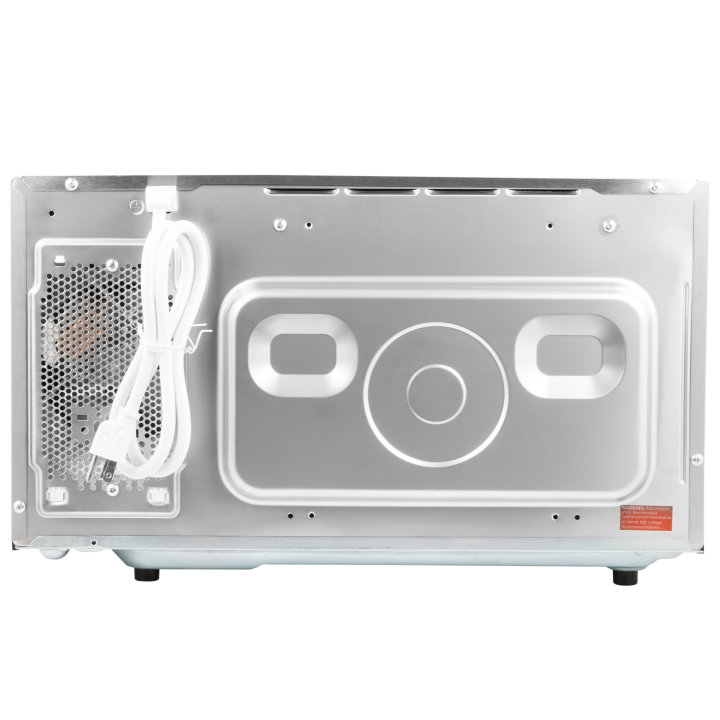

120-volt microwave oven with manual controls
The Vollrath® microwave oven is compact, reliable and built to last. Six power levels add versatility, while manual controls keep things simple. Easily track heating time with the digital display and 60-minute timer to ensure high-quality results. The 0.9-cubic-feet interior is roomy, and the door is see-through for your convenience. The durable stainless steel body and the ceramic bottom plate are easy to clean, making this the ideal microwave for any kitchen or break area.

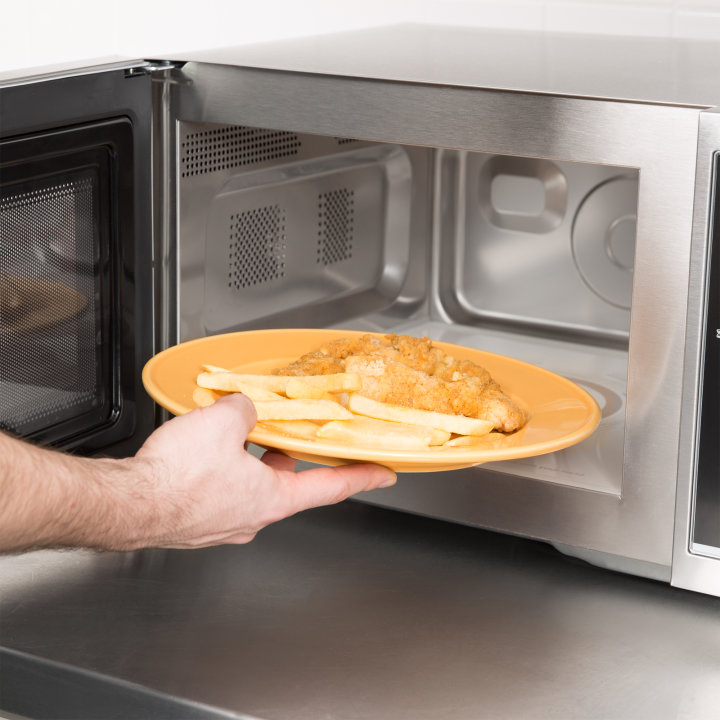

Quickly and easily heat a wide variety of foods

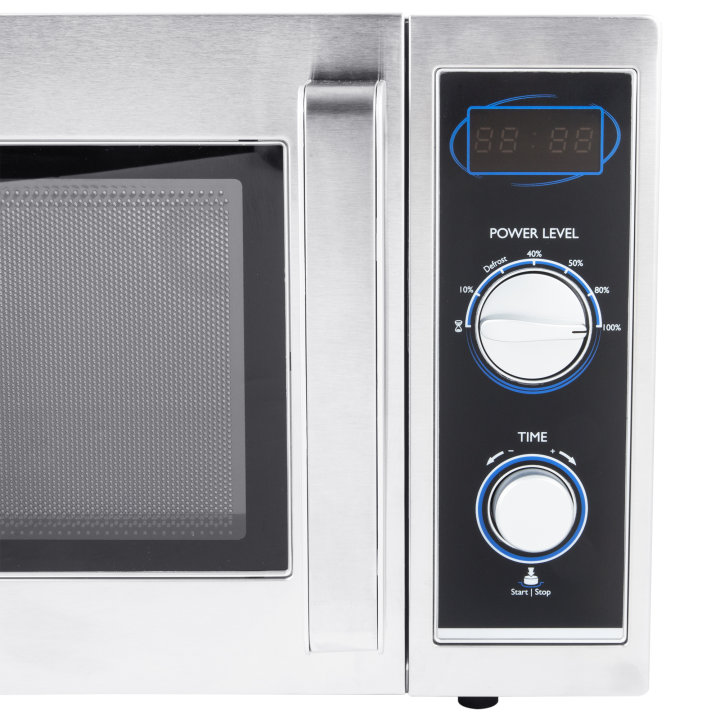

Manual controls are easy to use
Compact design saves counter space
Six power levels add versatility
0.9-cubic-feet capacity fits a wide variety of foods
1,000-watt output
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | MWA7125 |
| UPC | 029419817658 |
Unit Dimensions
| Name | Value |
|---|---|
| Overall Dimensions (IN) | 20.5 x 18.125 x 12.25 |
| (W) Width (IN) | 20.5 |
| (D) Depth (IN) | 18.12 |
| (H) Height (IN) | 12.25 |
| (WC) Cooking Chamber Width (IN) | 13.125 |
| (DC) Cooking Chamber Depth (IN) | 14.375 |
| (HC) Cooking Chamber Height (IN) | 7.8125 |
| (DB) Depth of Body (IN) | 17 |
| Overall Dimensions (CM) | 52.1 x 46 x 31.1 |
| (W) Width (CM) | 52.1 |
| (D) Depth (CM) | 46 |
| (H) Height (CM) | 31.1 |
| (WC) Cooking Chamber Width (CM) | 33.3 |
| (DC) Cooking Chamber Depth (CM) | 36.5 |
| (HC) Cooking Chamber Height (CM) | 19.8 |
| (DB) Depth of Body (CM) | 43.2 |
Electrical
| Name | Value |
|---|---|
| Amps | 12.1 |
| Hz | 60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1000 (output), 1450 (input) |
Construction
| Name | Value |
|---|---|
| Construction Material | Stainless Steel |
| Construction Material 2 | Electrical Components |
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 20.5 |
| Case Height | 15.5 |
| Case Length | 23.5 |
| Case Lot Cube (ft.) | 4.32 |
| Case Lot Weight (lbs.) | 46.1 |
Product Accessories
| Name | Item # |
|---|---|
| 24-inch equipment stand | 40740 |
