DiscontinuedHalf-size 120-volt three-shelf Cayenne® convection oven
Add a variety of baked goods to your menu with the Vollrath® half-size Cayenne convection oven.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

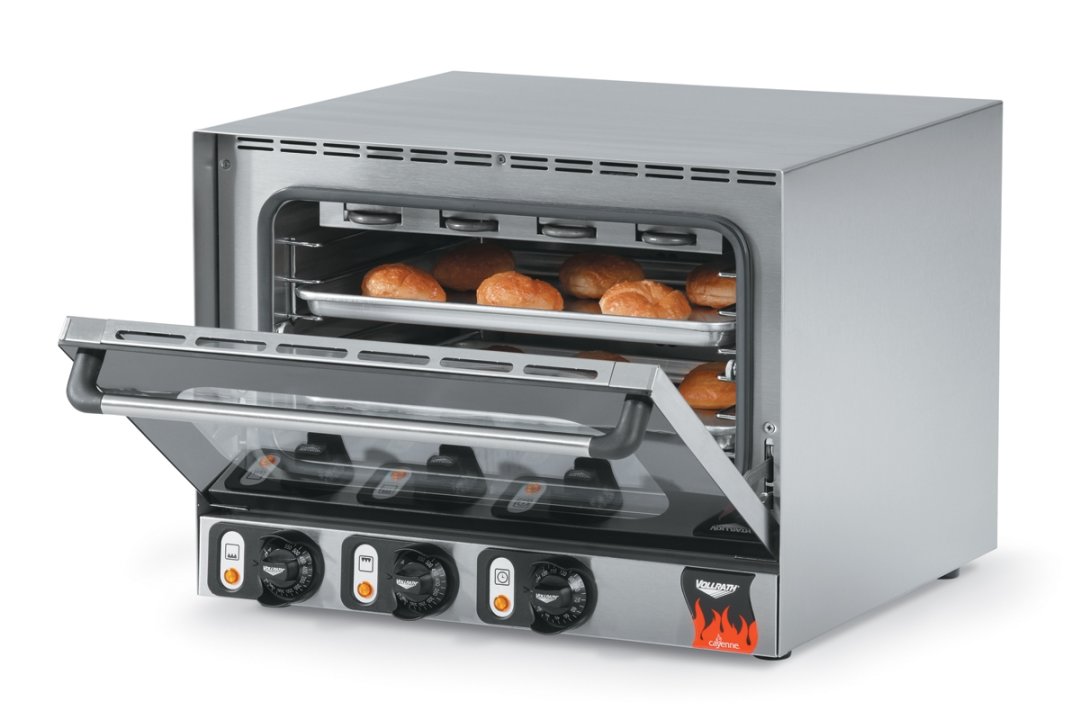

Half-size 120-volt three-shelf Cayenne® convection oven

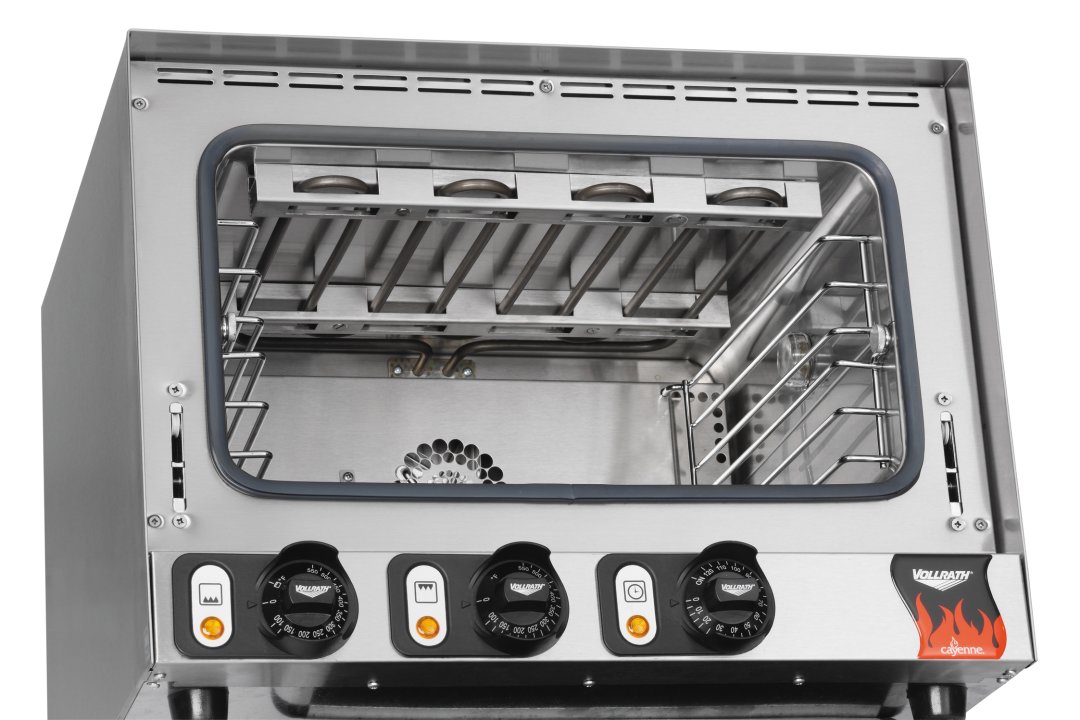

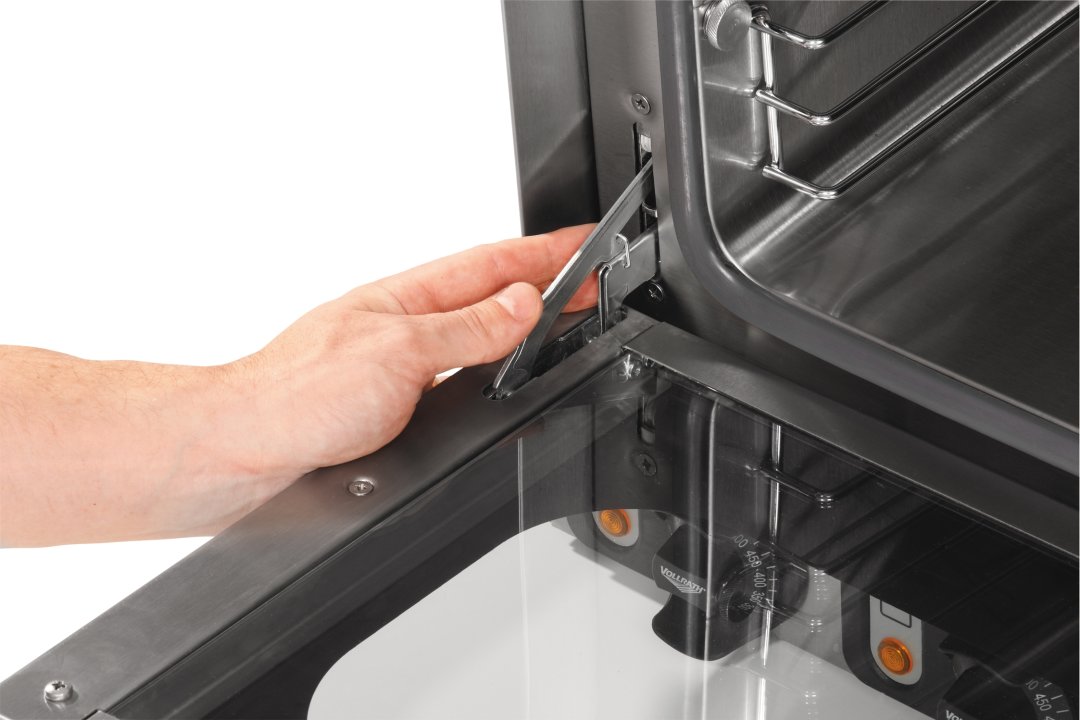

Add a variety of baked goods to your menu with the Vollrath® half-size Cayenne convection oven. The custom baffle fan and diffuser plate create a consistent bake, while an interior light and no-tip chrome-plated steel shelves ensure ease of use. The timer automatically turns the unit off after the set time, and knob guards protect the thermostat and timer from accidental adjustments. For added versatility, this unit comes with a browning function, making it ideal for various meats and other dishes. The Kool-Touch® door is easily removed, and rounded interior corners make cleaning simple. With a temperature range of 150°F to 570°F, the variety of food you can prepare in this oven is endless.
Perfectly bake bread, pastries, cakes, meats, and vegetables
Durable stainless steel exterior is built to last
Four no-tip chrome-plated steel shelves accommodate half-size sheet pans
Custom baffle fan and diffuser plate ensure an even bake
120-minute bake timer turns off oven after set time
Standard 120-volt 15-amp cord and plug make this unit ideal for catering and other portable applications
Based on independent UL testing, this product complies with NFPA96 for ventless operation using the EPA202 test method. Ventless allowance is dependent upon AHJ approval.
Please note that you should generally either lower the temperature by about 25 degrees or lower the baking time by approximately 25 percent when modifying a traditional recipe for a convection oven, due to its unique efficiency
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | COA7002 |
| UPC | 029419719808 |
Unit Dimensions
| Name | Value |
|---|---|

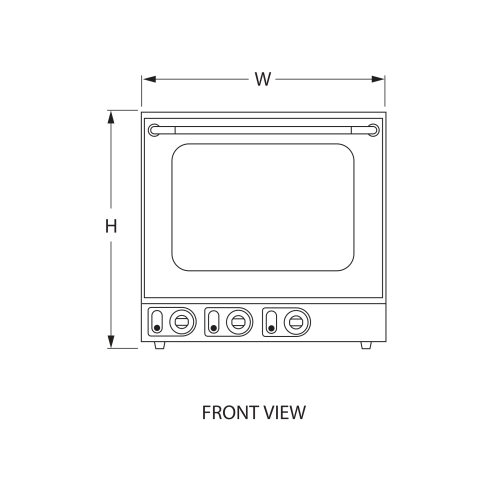

| Overall Dimensions (IN) | 24.437 x 23.5 x 18.062 |
| (W) Width (IN) | 24.43 |
| (D) Depth (IN) | 23.5 |
| (H) Height (IN) | 18.06 |
| (HLR) Adjustable Legs (IN) | 2.5 - 3.5 |
| (WC) Cooking Chamber Width (IN) | 18.5 |
| (DC) Cooking Chamber Depth (IN) | 13 |
| (HC) Cooking Chamber Height (IN) | 8.5625 |
| Overall Dimensions (CM) | 59.5 x 59.7 x 45.8 |
| (W) Width (CM) | 59.5 |
| (D) Depth (CM) | 59.7 |
| (H) Height (CM) | 45.8 |
| (HLR) Adjustable Legs (CM) | 6.4 - 7.6 |
| (WC) Cooking Chamber Width (CM) | 47 |
| (DC) Cooking Chamber Depth (CM) | 33 |
| (HC) Cooking Chamber Height (CM) | 21.8 |
| Size | Half |
Electrical
| Name | Value |
|---|---|
| Amps | 12.5 |
| Cord Length (IN) | 48 |
| Cord Length (CM) | 120 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1500 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
| Case Width | 27.75 |
| Case Height | 19.25 |
| Case Length | 25.75 |
| Case Lot Cube (ft.) | 8.06 |
| Case Lot Weight (lbs.) | 68.85 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| HINGE KIT 40703 / COA7002 | XCOA0703 | $114.00 |
| INNER GLASS COA7002 #15 | XCOA4007 | $167.20 |
| CONTROL PANEL FASCIA - BLACK | XAA0009 | $31.70 |
| PLASTIC HANDLE ELBOW(OLD TYPE) | XCOA1030 | $13.90 |
| SHELF RUNNER THUMBSCREW COA700 | XCOA1018 | $40.50 |
| SELECTOR SWITCH COA7001(#13)/7 | XCOA1001 | $92.10 |
| CABLE RESTRAINT COA7001/7002/8 | XCOA1013 | $9.50 |
| BAKE ELEMENT COA7001/7002 (#1) | XCOA3006 | $167.40 |
| STEEL HANDLE COA8004 #11 | XCOA1025 | $91.80 |
| TIMER KNOB COA7001(#18)/7002/8 | XCOA1007 | $17.20 |
| LIGHT HOLDER COA7001/7002/8004 | XCOA1015 | $117.30 |
| POWERCORD 120V (NEMA5-15P) | XAA0005 | $54.80 |
| WIRE SHELF COA7002/8004 (#16) | XCOA1016 | $109.60 |
| RUBBER FOOT COA7001/7002/8004/ | XCOA1012 | $23.20 |
| TIMER COA7001(#20)/7002(#27)/8 | XCOA1003 | $251.20 |
| DOOR GASKET COA7002 #16 | XCOA4004 | $91.60 |
| PILOT LIGHT 110V (YELLOW) | XAA0011 | $13.10 |
| CONNECTOR BLOCK SAA8003 (#24) | XSAA1012 | $12.20 |
| COMPLETE DOOR COA7002 #10-15 | XCOA4003 | $1,416.10 |
| CONTROL KNOB BAKE | XCOA0000 | $24.80 |
| VOLLRATH CONTROL KNOB COA7002/ | XCOA1009 | $18.90 |
| SHELF RUNNER COA7002 #8 | XCOA4002 | $98.80 |
| GRILL ELEMENT COA7002 (#3)) 14 | XCOA4005 | $168.20 |
| OUTER GLASS COA7002 #12 | XCOA4008 | $190.80 |
| FAN & MOTOR COA7001/COA7002 (# | XCOA3005 | $496.40 |
| THERMOSTAT COA7001(#12)/7002(# | XCOA1002 | $102.60 |
