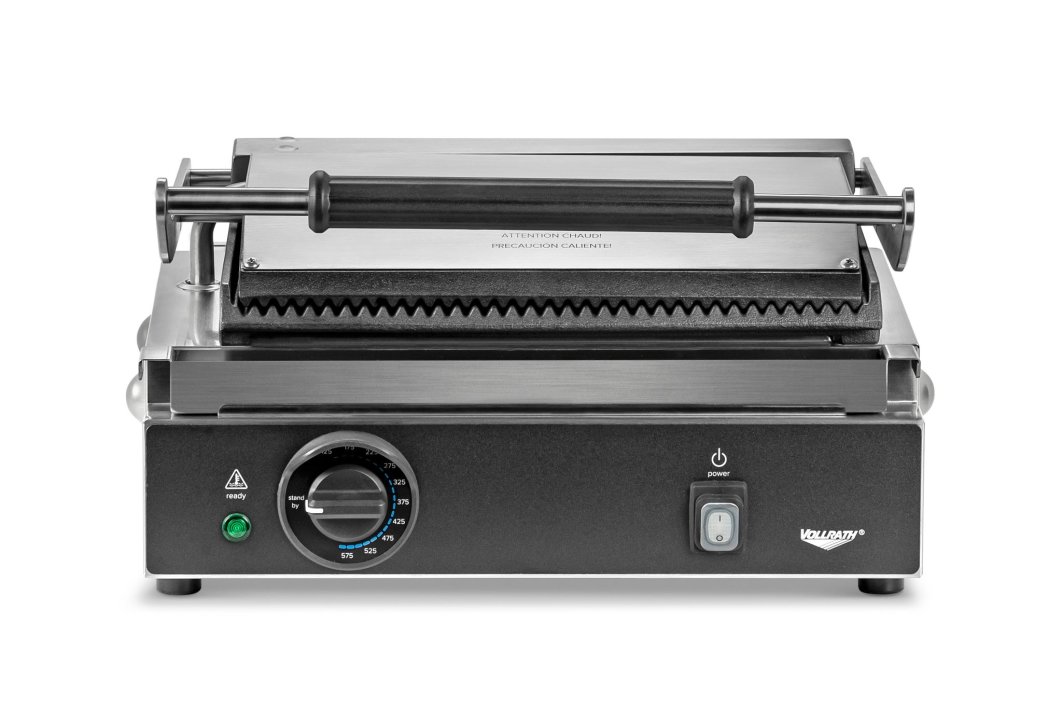

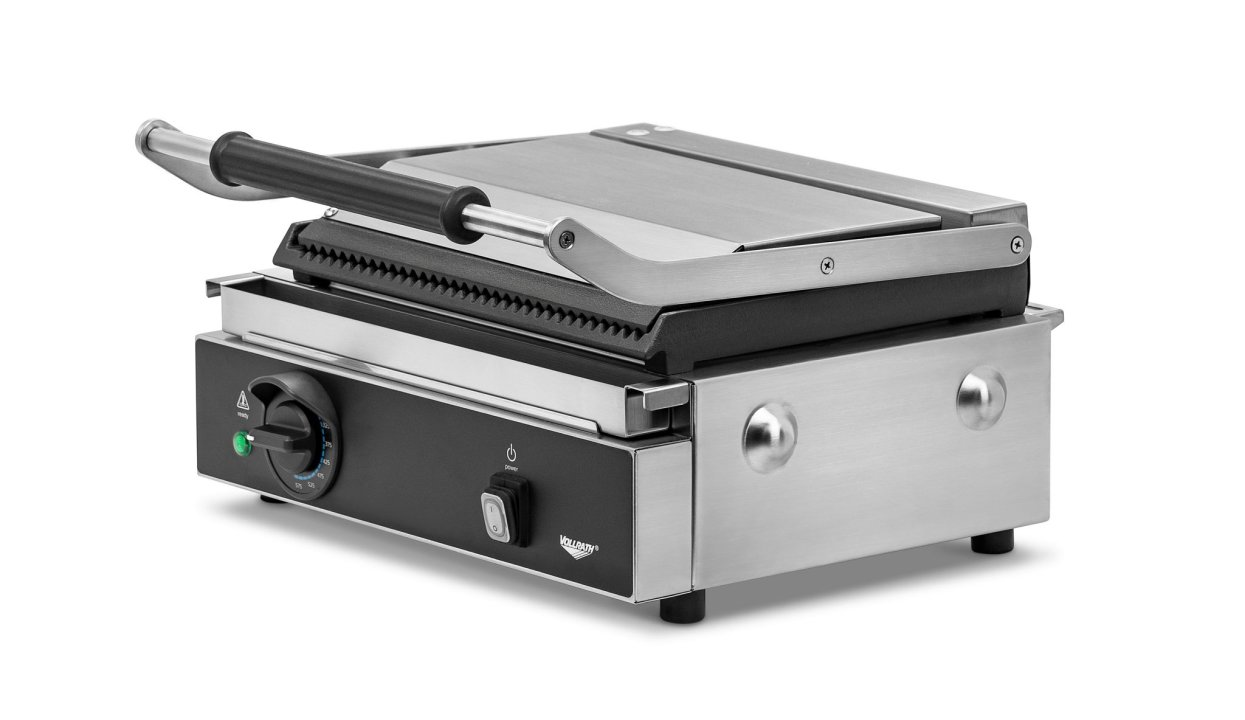

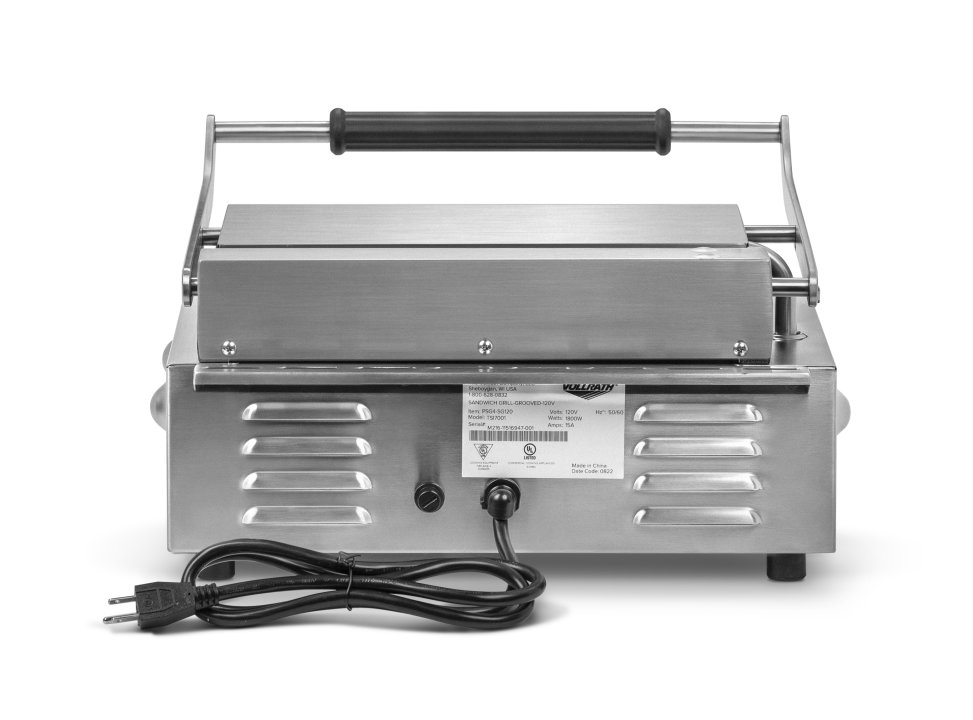

PSG4-SG120

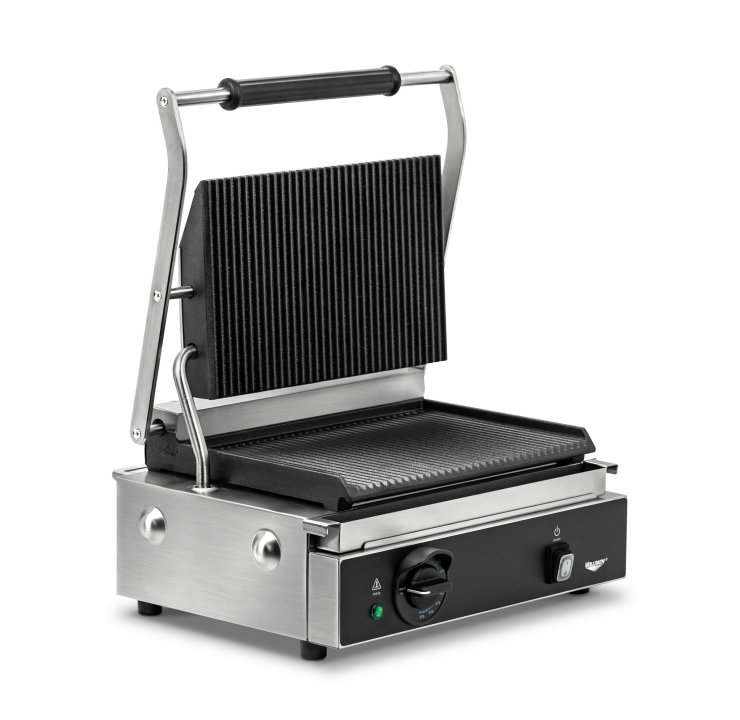

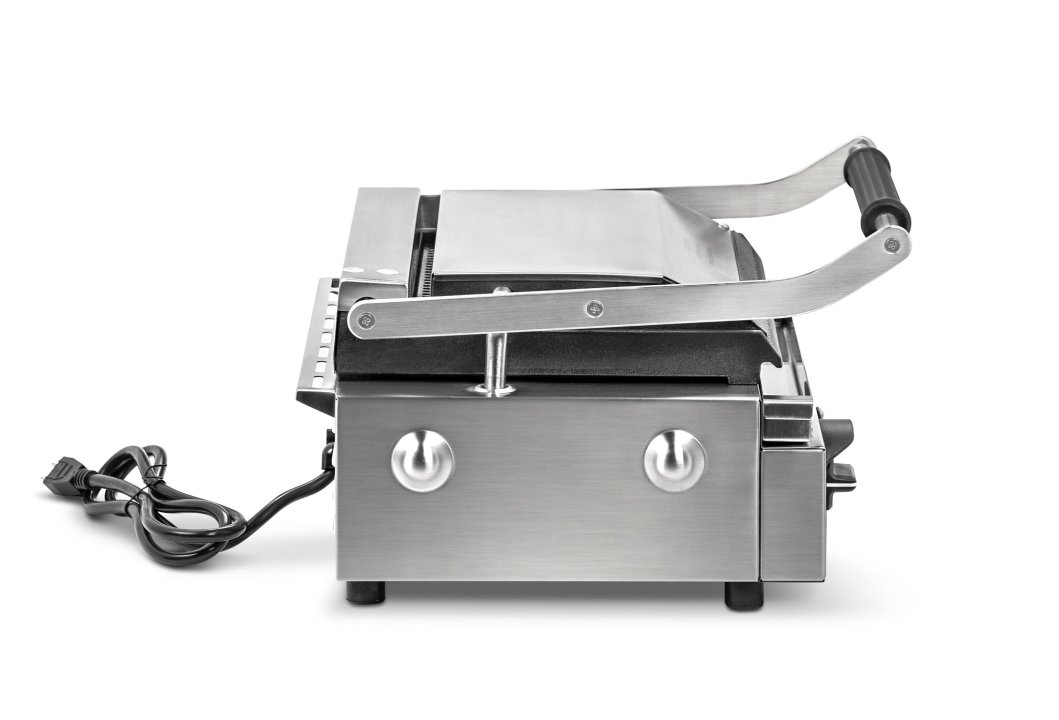

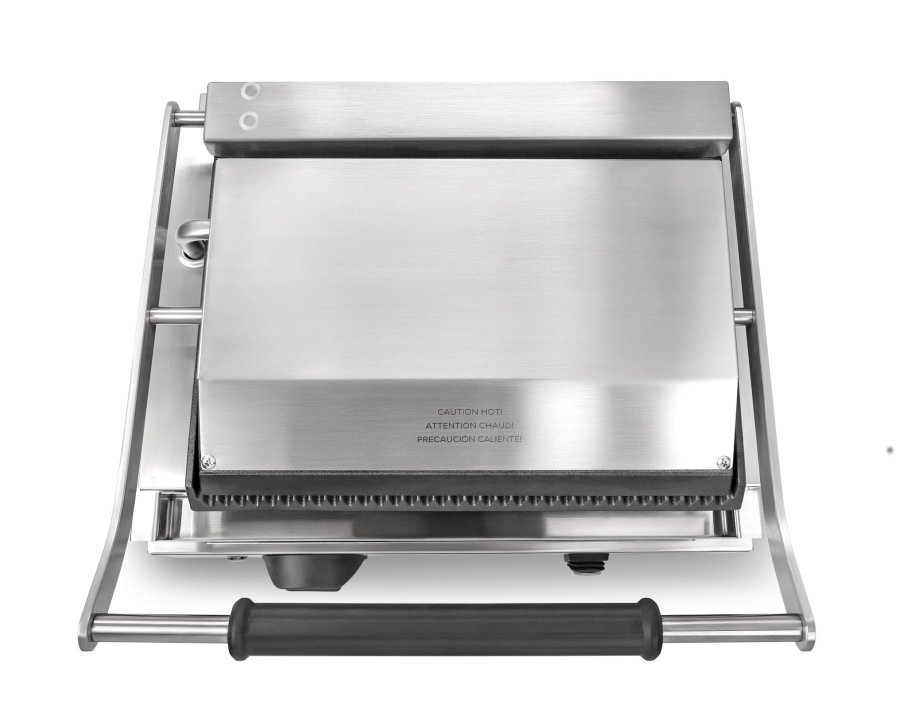

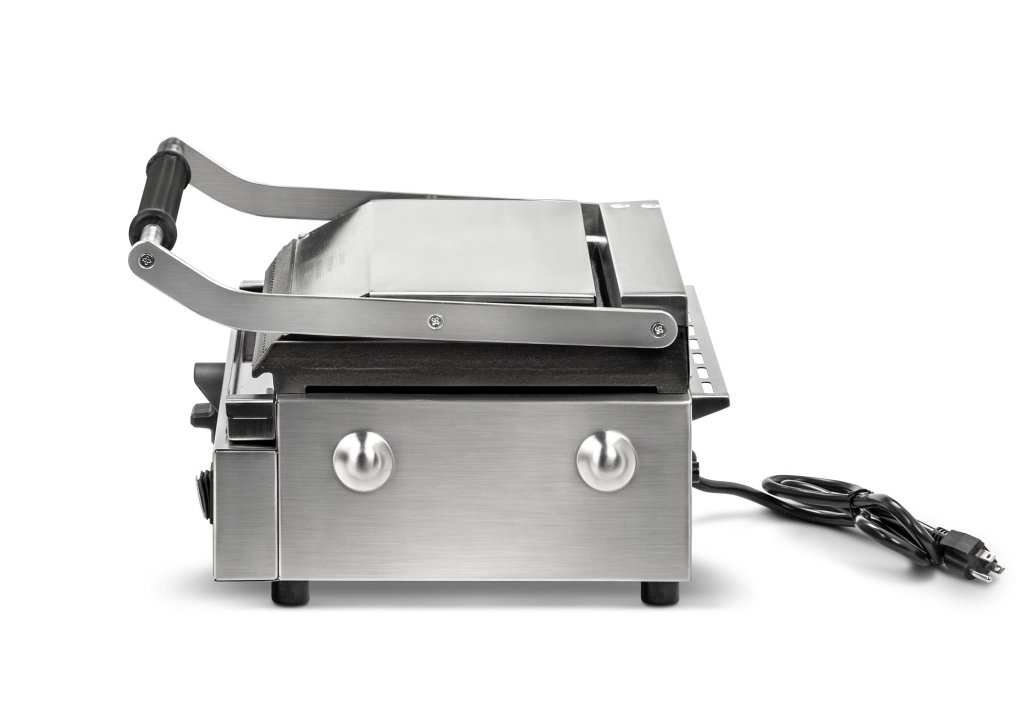

120-volt single panini sandwich grill with cast-iron grooved plates and NEMA 5-15P Plug
-
-
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
-
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
For groovy versatility, there’s nothing like the Vollrath® panini sandwich grill. Compact yet powerful single panini press handles everything from warm and toasty Cuban, English and Italian sandwiches, to fish, chicken, burgers and vegetables with presentation-perfect grill marks. Heavy-duty cast-iron plates provide exceptional heat retention and durability, with a pivot-action top plate that adjusts to food thickness for an even press.
- Cast-iron grooved plates create grilled-food presentation
- High-power heating element is efficient and consistent
- Thermostatically controlled temperature range is 125°F to 575°F
- Power switch and ready lights remove the guesswork
- Low-profile brushed stainless design fits seamlessly in any kitchen
- Cooking area is 13.25- x 9.25-in (33.66- x 23.5-cm)
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | TS17001 |
| UPC | 029419520503 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 17.625 |
| (D) Depth (IN) | 15.625 |
| (H) Height (IN) | 9.875 |
| Product Opening Dimensions (IN) | 21 |
| (W) Width (CM) | 44.6 |
| (D) Depth (CM) | 39.5 |
| (H) Height (CM) | 25 |
| Product Opening Dimensions (CM) | 53.4 |
Electrical
| Name | Value |
|---|---|
| Amps | 15 |
| Hz | 50/60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1800 |
Construction
| Name | Value |
|---|---|
| Product Function | Sandwich press |
Product Parts
| Name | Part # | Price |
|---|---|---|
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $6.70 |
| HI-LIMIT THERMOSTAT COVER | 351788-03-1 | $8.60 |
| Control Knob | 351788-06-1 | $6.00 |
| 120V PILOT LIGHT | 351788-17-1 | $25.00 |
| SHP OVERLAY | 352746-01-1 | $40.00 |
| SHP DRIP TRAY | 352746-07-1 | $70.00 |
| SHP HINGE AXLE BACK | 352746-09-1 | $80.00 |
| SHP RIB BOTTOM PLATE | 352746-14-1 | $160.00 |
| SHP RIB TOP PLATE | 352748-08-1 | $120.00 |
| 300C REGULATING THERMOSTAT | 352750-1 | $40.00 |
| 350C HIGH LIMIT THERMOSTAT | 352751-1 | $40.00 |
| SHP BTM HEATING ELEMENT | 352753-1 | $100.00 |
| SHP TOP HEATING ELEMENT | 352754-1 | $100.00 |
| LEFT WIRE TUBE | 352758-1 | $60.00 |
| TENSIONER | 352759-1 | $60.00 |
| WIRE BRUSH | 352760 | $25.00 |
| HANDLE SPRING | 352761-1 | $40.00 |
| TENSIONER SILICONE PLUG | 352764-1 | $31.00 |
| RECT. POWER SWITCH - 120V | 352773-1 | $9.00 |
| M6X25 PIN | 352775-1 | $25.00 |
| SHP HANDLE KIT | 354092-1 | $200.00 |
| 5-15 POWER CORD W/ STRN RELIEF | 354095-1 | $50.00 |
| SHP/DHP PANINI BEZEL & OVERLAY | 354194-1 | $42.00 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
