PSG4-SF120

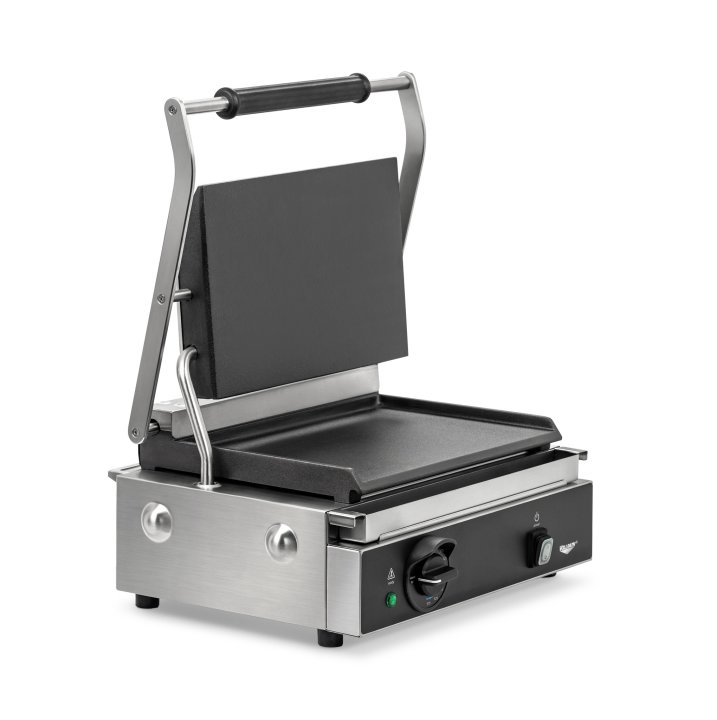

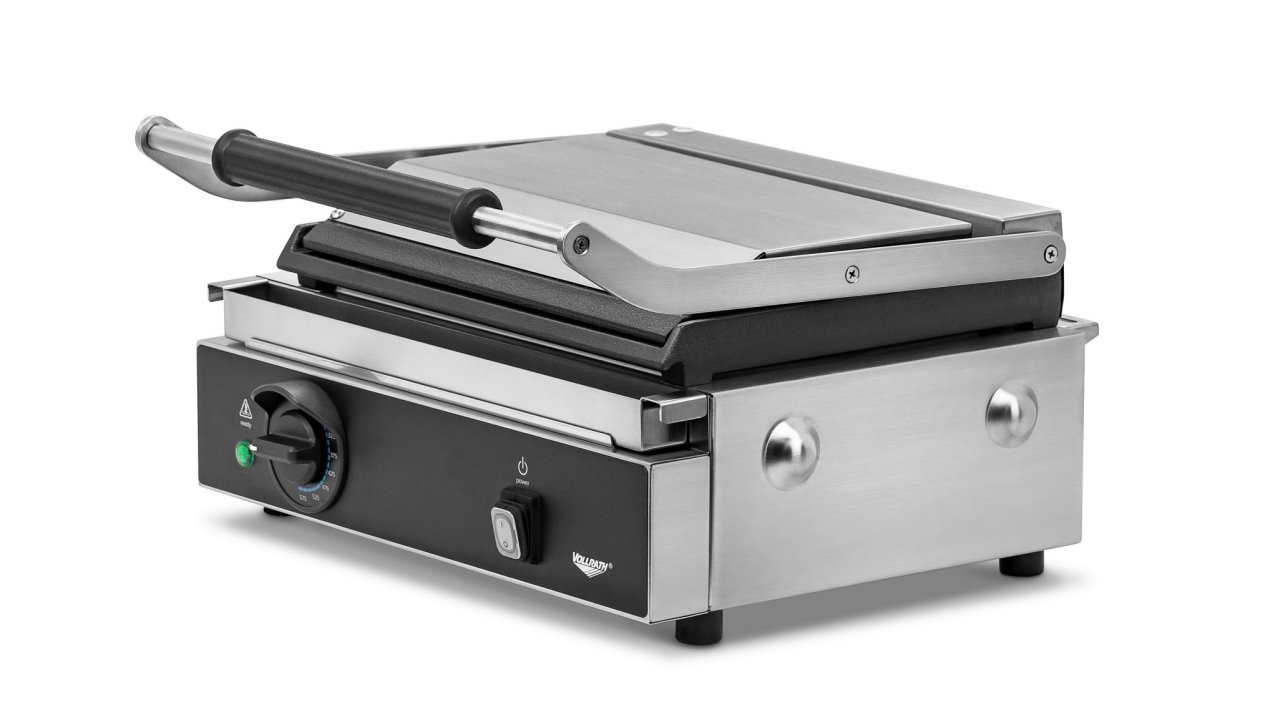

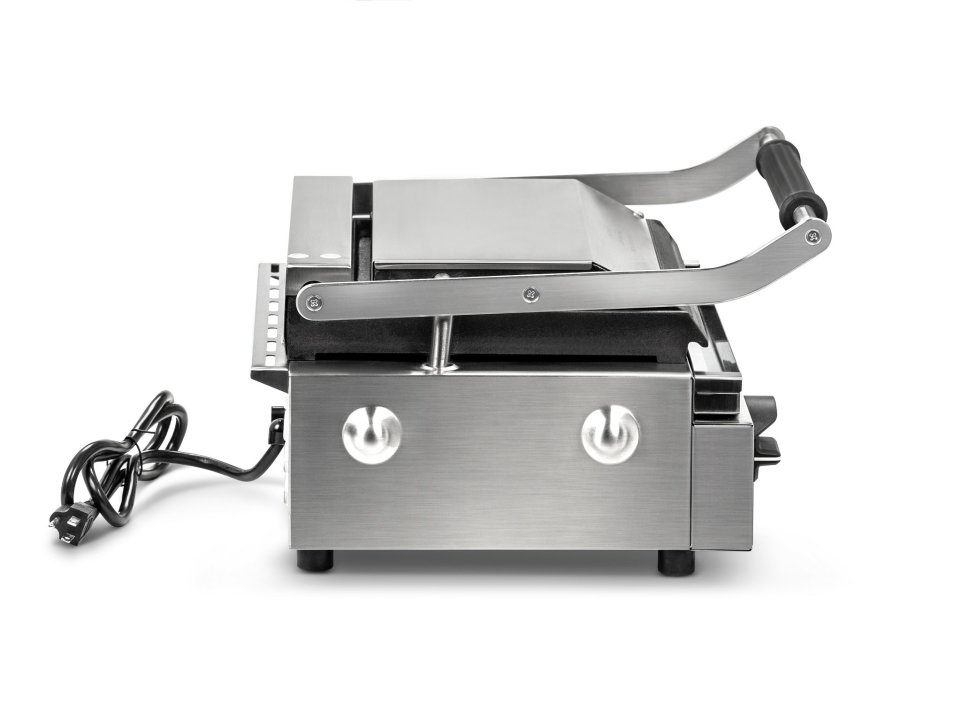

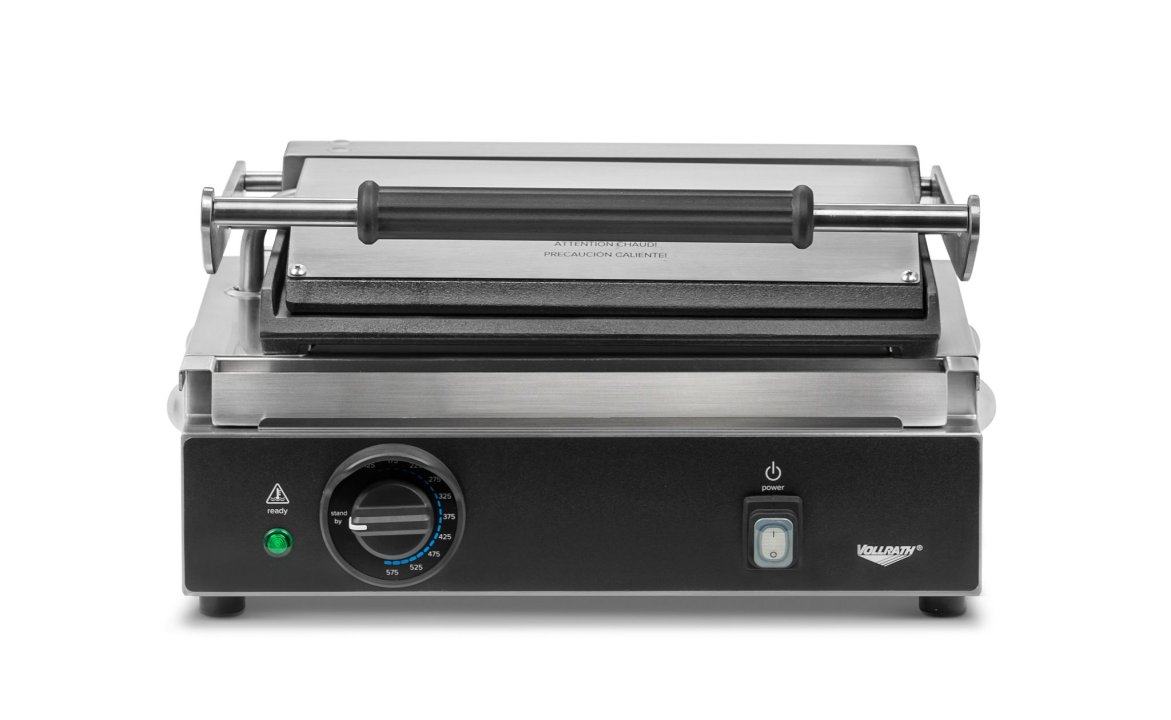

120-volt single panini sandwich grill with cast-iron flat plates and NEMA 5-15P Plug
-
-
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
-
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
The Vollrath® panini sandwich grill handles melts and much more with smooth ease. Compact yet powerful single panini press features smooth, flat plates for even browning and consistently great results. You’ll love the versatility, helping you prepare everything from warm and toasty sandwiches, to fish, chicken, burgers and vegetables. Cast-iron plates provide exceptional heat retention and durability, and the pivot-action top plate adjusts to food thickness for an even press.
- Heavy-duty cast-iron flat plates brown foods evenly
- High-power heating element is efficient and consistent
- Thermostatically controlled temperature range is 125°F to 575°F
- Power switch and ready lights remove the guesswork
- Low-profile brushed stainless design fits seamlessly in any kitchen
- Cooking area is 13.25- x 9.25-in (33.66- x 23.5-cm)
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | TS17011 |
| UPC | 029419520466 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 17.625 |
| (D) Depth (IN) | 15.625 |
| (H) Height (IN) | 9.875 |
| Product Opening Dimensions (IN) | 21 |
| (W) Width (CM) | 44.6 |
| (D) Depth (CM) | 39.5 |
| (H) Height (CM) | 25 |
| Product Opening Dimensions (CM) | 53.4 |
Electrical
| Name | Value |
|---|---|
| Amps | 15 |
| Hz | 50/60 |
| Plug | NEMA 5-15P |
| Voltage | 120 |
| Watts | 1800 |
Construction
| Name | Value |
|---|---|
| Product Function | Sandwich press |
Product Parts
| Name | Part # | Price |
|---|---|---|
| KIT, FOOT, 1.00" OD, 20MM LG, | 351775-1 | $6.70 |
| HI-LIMIT THERMOSTAT COVER | 351788-03-1 | $8.60 |
| CONTROL KNOB | 351788-06-1 | $6.00 |
| 120V PILOT LIGHT | 351788-17-1 | $25.00 |
| SHP OVERLAY | 352746-01-1 | $40.00 |
| SHP DRIP TRAY | 352746-07-1 | $70.00 |
| SHP HINGE AXLE BACK | 352746-09-1 | $80.00 |
| SHP FLAT BOTTOM PLATE | 352746-13-1 | $160.00 |
| SHP FLAT TOP PLATE | 352748-07-1 | $120.00 |
| 300C REGULATING THERMOSTAT | 352750-1 | $40.00 |
| 350C HIGH LIMIT THERMOSTAT | 352751-1 | $40.00 |
| SHP BTM HEATING ELEMENT | 352753-1 | $100.00 |
| SHP TOP HEATING ELEMENT | 352754-1 | $100.00 |
| LEFT WIRE TUBE | 352758-1 | $60.00 |
| TENSIONER | 352759-1 | $60.00 |
| WIRE BRUSH | 352760 | $25.00 |
| HANDLE SPRING | 352761-1 | $40.00 |
| TENSIONER SILICONE PLUG | 352764-1 | $31.00 |
| RECT. POWER SWITCH - 120V | 352773-1 | $9.00 |
| M6X25 PIN | 352775-1 | $25.00 |
| SHP HANDLE KIT | 354092-1 | $200.00 |
| 5-15 POWER CORD W/ STRN RELIEF | 354095-1 | $50.00 |
| SHP/DHP PANINI BEZEL & OVERLAY | 354194-1 | $42.00 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
