PSG4-DG208240

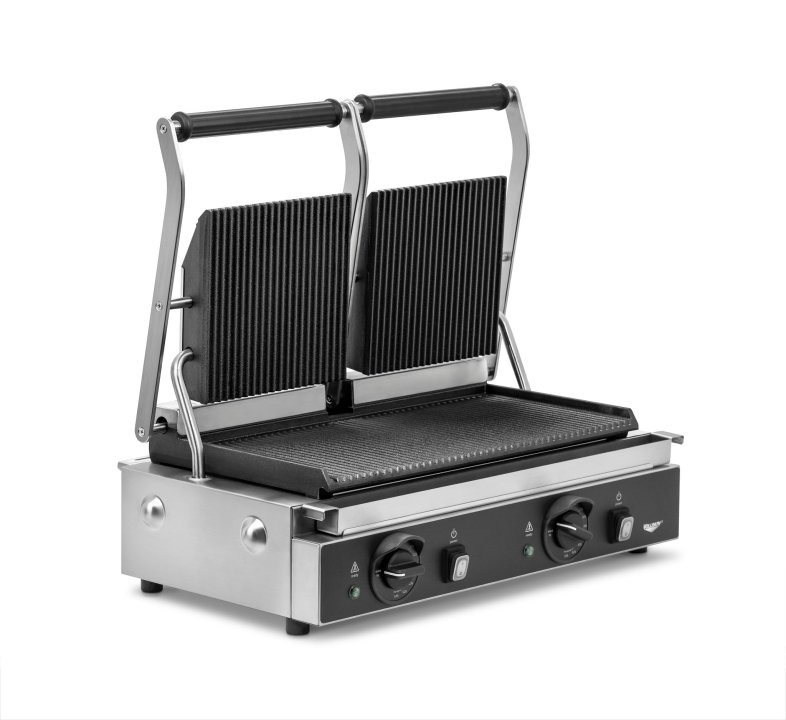

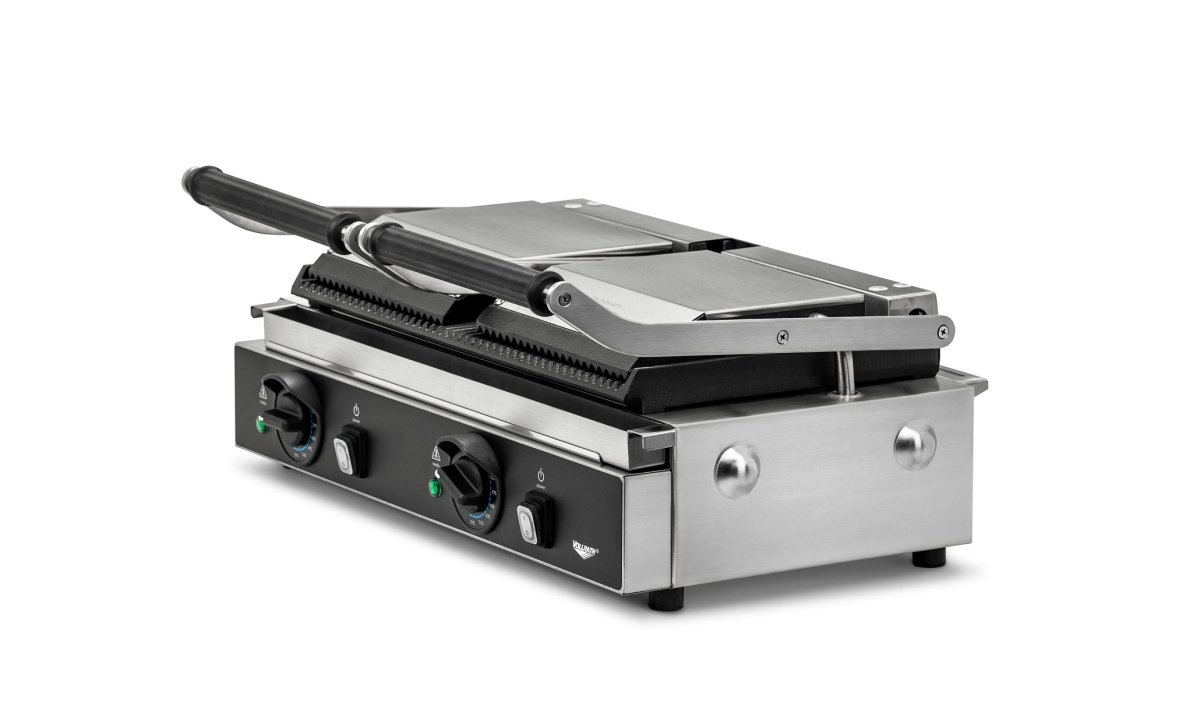

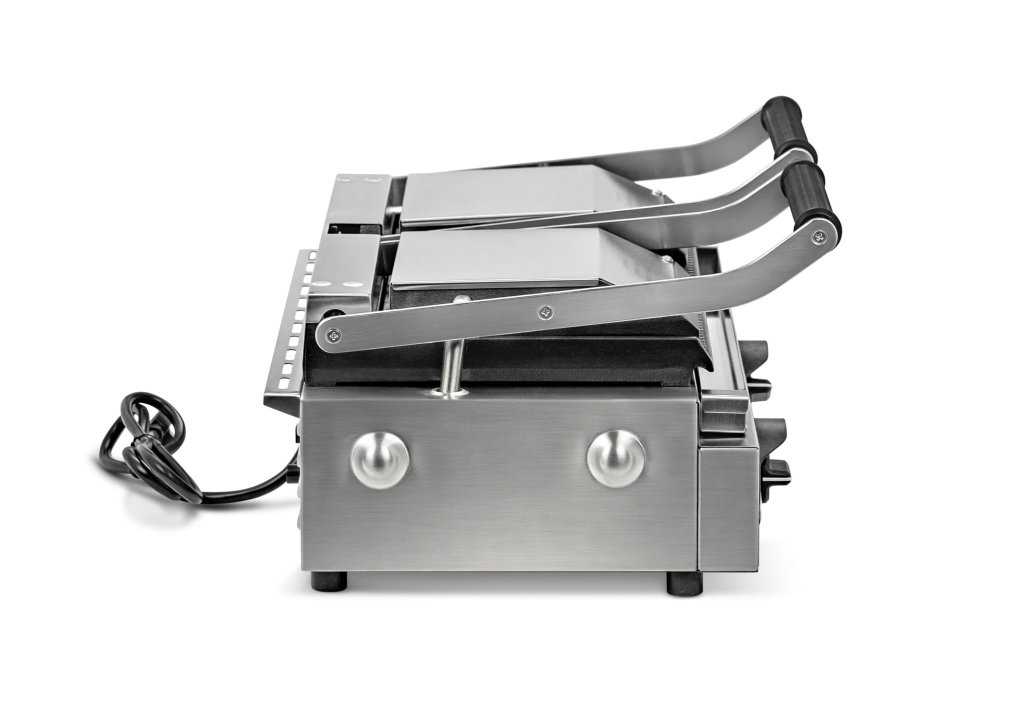

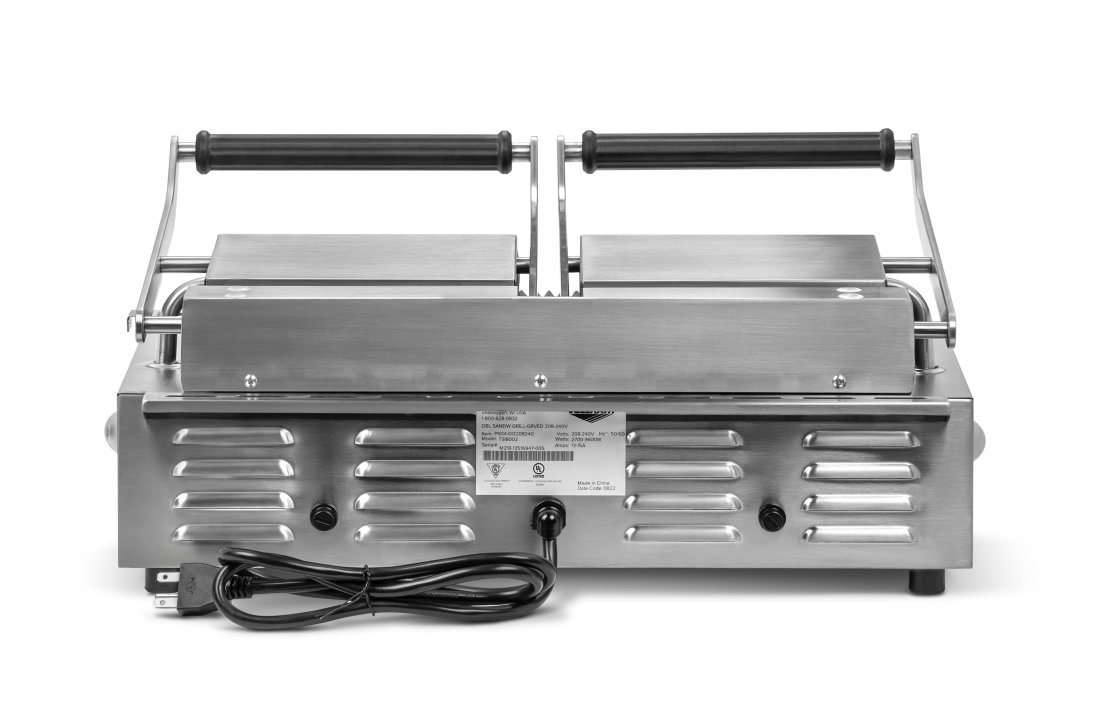

208- to 240-volt double panini sandwich grill with cast-iron grooved plates and NEMA 6-15P Plug
-
-
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
-
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
Double the groovy grilling in your kitchen with this Vollrath® panini sandwich grill. It features two grooved cooking areas, each side with its own separate temperature control, for a versatility that’ll keep your kitchen running smoothly. Heavy-duty cast-iron grooved plates are perfect for everything from warm and toasty Cuban, English and Italian sandwiches, to fish, chicken, burgers and vegetables with presentation-perfect grill marks.
- Cast-iron plates provide exceptional heat retention and durability
- Pivot-action top plate adjusts to food thickness for an even press
- High-power heating element is efficient and consistent
- Thermostatically controlled temperature range is 125°F to 575°F
- Power switch and ready lights remove the guesswork
- Low-profile brushed stainless design fits seamlessly in any kitchen
- Cooking area is 19- x 9-in (48.26- x 22.9-cm)
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | TS18002 |
| UPC | 029419520404 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 24 |
| (D) Depth (IN) | 15.625 |
| (H) Height (IN) | 9.875 |
| Product Opening Dimensions (IN) | 21 |
| (W) Width (CM) | 60.8 |
| (D) Depth (CM) | 39.5 |
| (H) Height (CM) | 25 |
| Product Opening Dimensions (CM) | 53.4 |
Electrical
| Name | Value |
|---|---|
| Amps | 13-15 |
| Hz | 50/60 |
| Plug | NEMA 6-15P |
| Voltage | 208 - 240 |
| Watts | 2700 - 3600 |
Construction
| Name | Value |
|---|---|
| Product Function | Sandwich press |
Product Parts
| Name | Part # | Price |
|---|---|---|
| KIT, FOOT, 1.00" OD, 20MM LG, | 351775-1 | $6.70 |
| HI-LIMIT THERMOSTAT COVER | 351788-03-1 | $8.60 |
| CONTROL KNOB | 351788-06-1 | $6.00 |
| 240V PILOT LIGHT | 351788-18-1 | $25.00 |
| DHP OVERLAY | 352742-01-1 | $40.00 |
| DHP DRIP TRAY | 352742-07-1 | $75.00 |
| DHP HINGE AXLE BACK | 352742-09-1 | $60.00 |
| DHP RIBBED BOTTOM PLATE | 352742-22-1 | $200.00 |
| DHP RIB TOP LEFT PLATE | 352743-22-1 | $75.00 |
| DHP RIB TOP RIGHT PLATE | 352743-24-1 | $75.00 |
| DHP BTM HEATING ELEMENT | 352744-1 | $70.00 |
| 300C REGULATING THERMOSTAT | 352750-1 | $40.00 |
| 350C HIGH LIMIT THERMOSTAT | 352751-1 | $40.00 |
| DHP TOP HEATING ELEMENT | 352752-1 | $70.00 |
| RIGHT WIRE TUBE | 352757-1 | $60.00 |
| LEFT WIRE TUBE | 352758-1 | $60.00 |
| TENSIONER | 352759-1 | $60.00 |
| WIRE BRUSH | 352760 | $25.00 |
| HANDLE SPRING | 352761-1 | $40.00 |
| TENSIONER SILICONE PLUG | 352764-1 | $31.00 |
| Rect Power Switch 240V Dpst | 352774-1 | $40.00 |
| M6X25 PIN | 352775-1 | $25.00 |
| DHP HANDLE KIT | 354093-1 | $180.00 |
| 6-15 POWER CORD W/ STRN RELIEF | 354097-1 | $50.00 |
| SHP/DHP PANINI BEZEL & OVERLAY | 354194-1 | $42.00 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
Customer Questions
Be the first to ask a question
