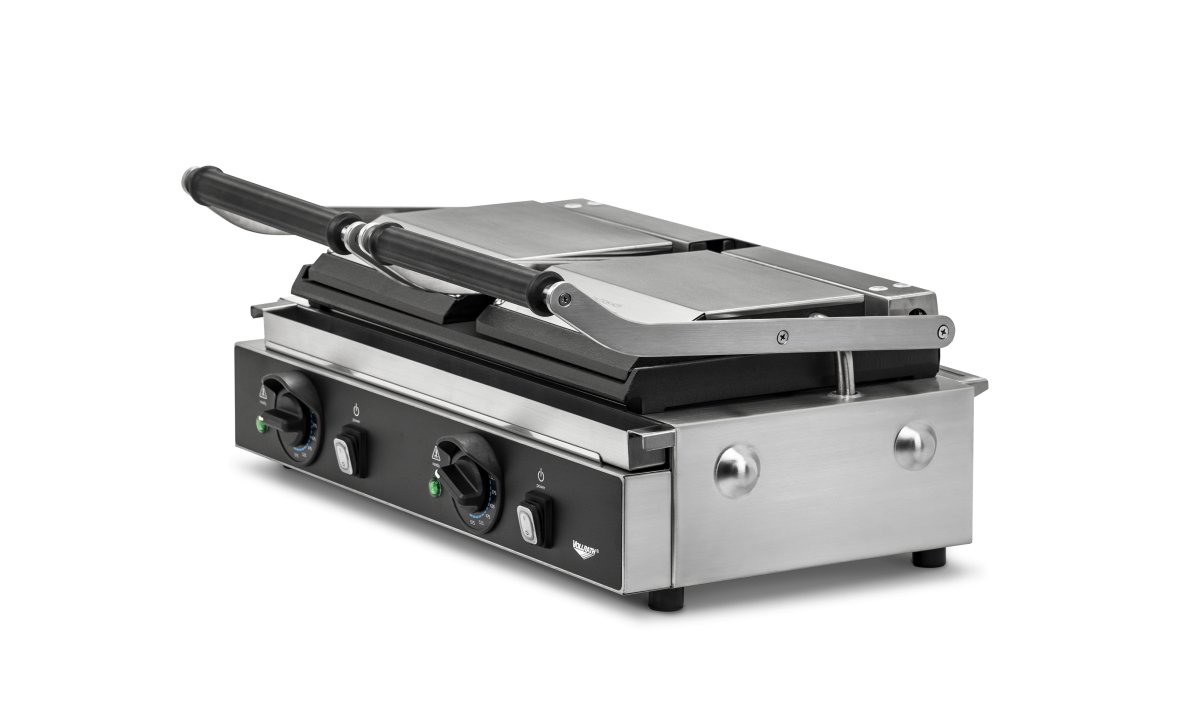

PSG4-DF208240

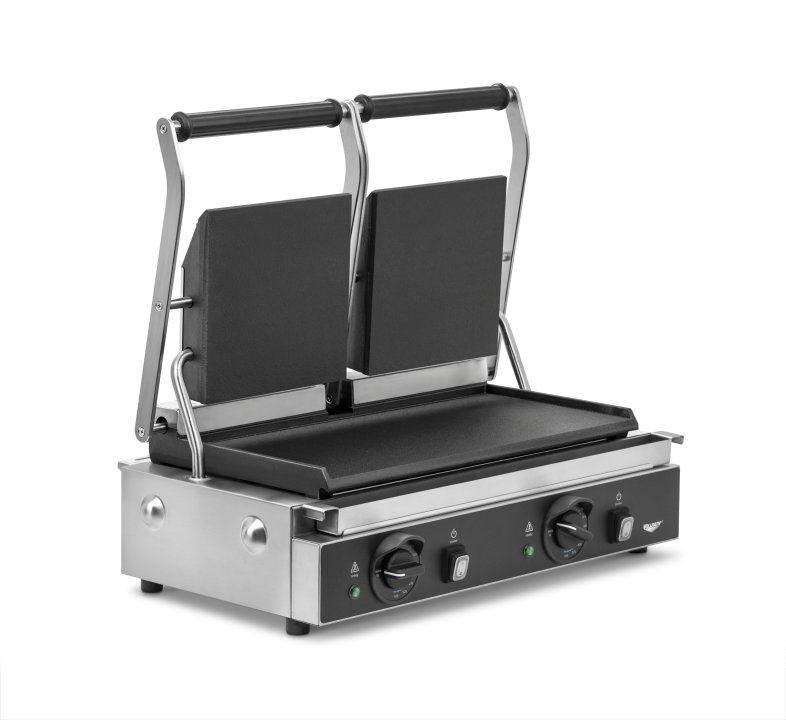

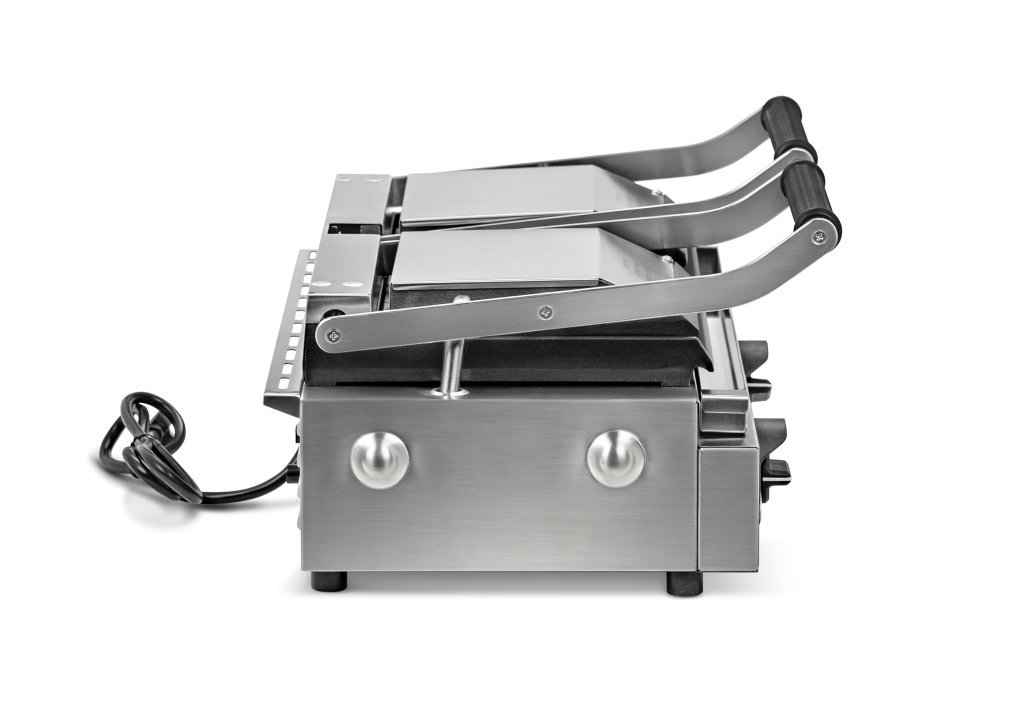

208- to 240-volt double panini sandwich grill with cast-iron flat plates and NEMA 6-15P Plug
-
-
This symbol represents products that are certified to safely perform its job as intended. This product has earned this certification by undergoing rigorous testing against standards developed by UL.
-
Classified by UL to NSF/ANSI 4
This symbol represents products that are certified to meet specific environmental and public health standards. The UL EPH Mark is recognized and accepted as a trusted source for assessing the sanitary design, construction and performance of commercial food equipment. If it shows the word “Classified” above the UL mark, then the product also complies with ANSI/NSF regulations.
Enjoy twice-as-nice cooking capacity with the Vollrath® double panini sandwich grill. It features smooth, flat plates and two cooking areas, each side with its own separate temperature control. You’ll love the versatility, helping you prepare everything from warm and toasty sandwiches, to fish, chicken, burgers and vegetables. Cast-iron plates provide exceptional heat retention and durability, and the pivot-action top plate adjusts to food thickness for an even press.
- Heavy-duty cast-iron flat plates brown foods evenly
- High-power heating element is efficient and consistent
- Thermostatically controlled temperature range is 125°F to 575°F
- Power switch and ready lights remove the guesswork
- Low-profile brushed stainless design fits seamlessly in any kitchen
- Cooking area is 19- x 9-in (48.26- x 22.9-cm)
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | TS18012 |
| UPC | 029419520329 |
Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 24 |
| (D) Depth (IN) | 15.625 |
| (H) Height (IN) | 9.875 |
| Product Opening Dimensions (IN) | 21 |
| (W) Width (CM) | 60.8 |
| (D) Depth (CM) | 39.5 |
| (H) Height (CM) | 25 |
| Product Opening Dimensions (CM) | 53.4 |
Electrical
| Name | Value |
|---|---|
| Amps | 13-15 |
| Hz | 50/60 |
| Plug | NEMA 6-15P |
| Voltage | 208 - 240 |
| Watts | 2700 - 3600 |
Construction
| Name | Value |
|---|---|
| Product Function | Sandwich press |
Product Parts
| Name | Part # | Price |
|---|---|---|
| Kit, Foot, 1.00" OD, 20Mm LG | 351775-1 | $6.70 |
| HI-LIMIT THERMOSTAT COVER | 351788-03-1 | $8.60 |
| Control Knob | 351788-06-1 | $6.00 |
| 240V PILOT LIGHT | 351788-18-1 | $25.00 |
| DHP OVERLAY | 352742-01-1 | $40.00 |
| DHP DRIP TRAY | 352742-07-1 | $75.00 |
| DHP HINGE AXLE BACK | 352742-09-1 | $60.00 |
| DHP FLAT BOTTOM PLATE | 352742-21-1 | $200.00 |
| DHP FLAT TOP LEFT PLATE | 352743-21-1 | $75.00 |
| DHP FLAT TOP RIGHT PLATE | 352743-23-1 | $75.00 |
| DHP BTM HEATING ELEMENT | 352744-1 | $70.00 |
| 300C REGULATING THERMOSTAT | 352750-1 | $40.00 |
| 350C HIGH LIMIT THERMOSTAT | 352751-1 | $40.00 |
| DHP TOP HEATING ELEMENT | 352752-1 | $70.00 |
| RIGHT WIRE TUBE | 352757-1 | $60.00 |
| LEFT WIRE TUBE | 352758-1 | $60.00 |
| TENSIONER | 352759-1 | $60.00 |
| WIRE BRUSH | 352760 | $25.00 |
| HANDLE SPRING | 352761-1 | $40.00 |
| TENSIONER SILICONE PLUG | 352764-1 | $31.00 |
| Rect Power Switch 240V Dpst | 352774-1 | $40.00 |
| M6X25 PIN | 352775-1 | $25.00 |
| DHP HANDLE KIT | 354093-1 | $180.00 |
| 6-15 POWER CORD W/ STRN RELIEF | 354097-1 | $50.00 |
| SHP/DHP PANINI BEZEL & OVERLAY | 354194-1 | $42.00 |
Product Downloads
CAD / REVIT
For the most updated list for Vollrath products and CAD drawings
