HPG2-12

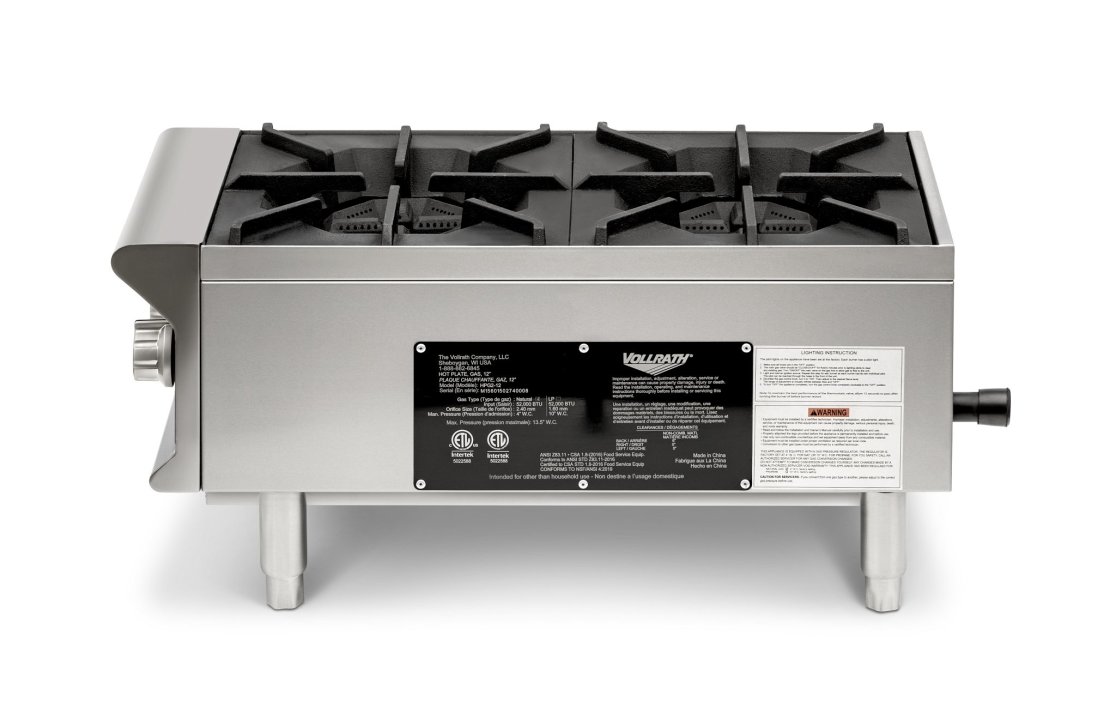

12-inch 2-burner countertop gas hot plate
Vollrath® gas hot plates transform any kitchen space into high-efficiency food prep.
This symbol represents products that have met the minimum requirements of prescribed product safety standards. The symbol also indicates that the manufacturer’s production site conforms to a range of compliance measures and is subject to periodic follow up inspections to verify continued conformance.

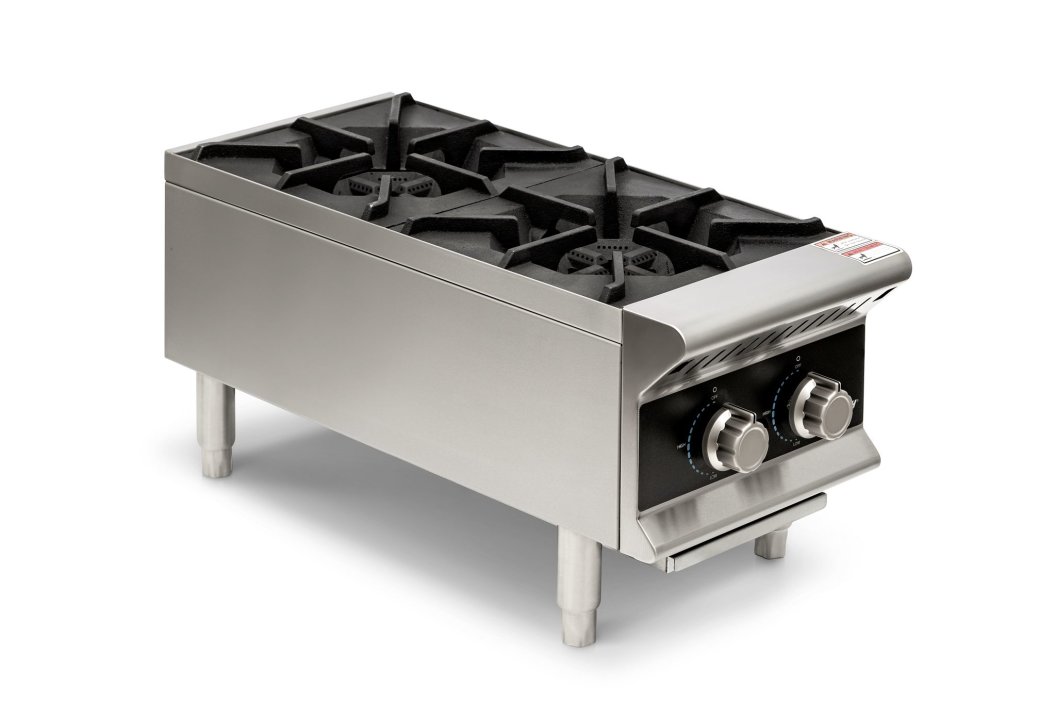

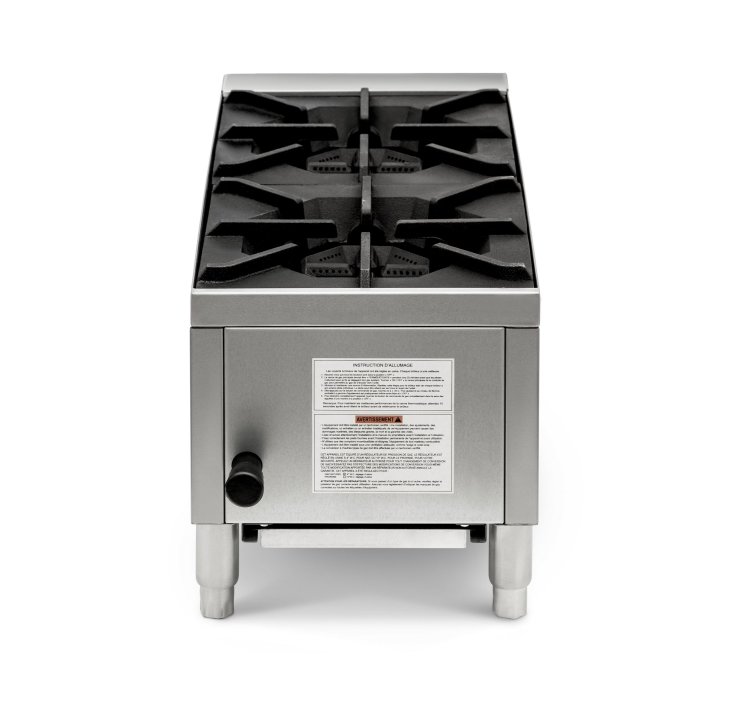

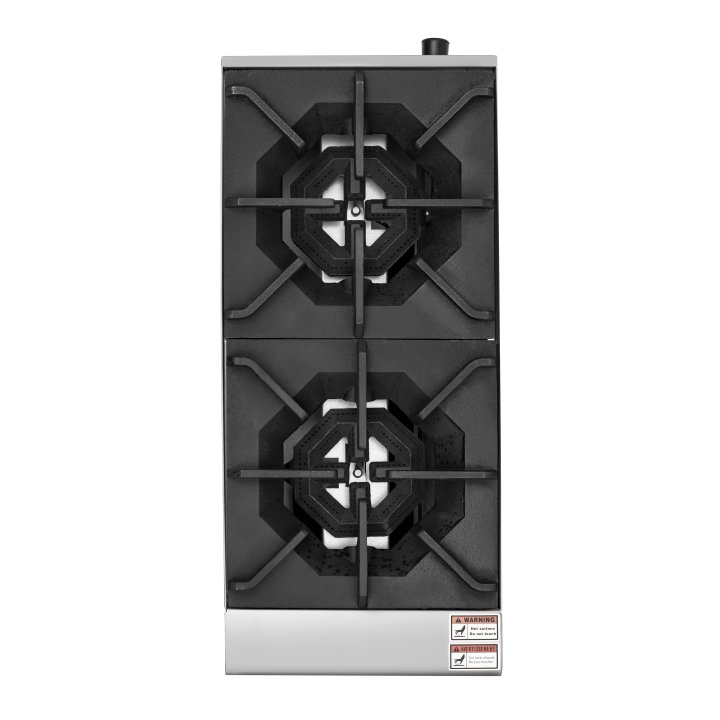

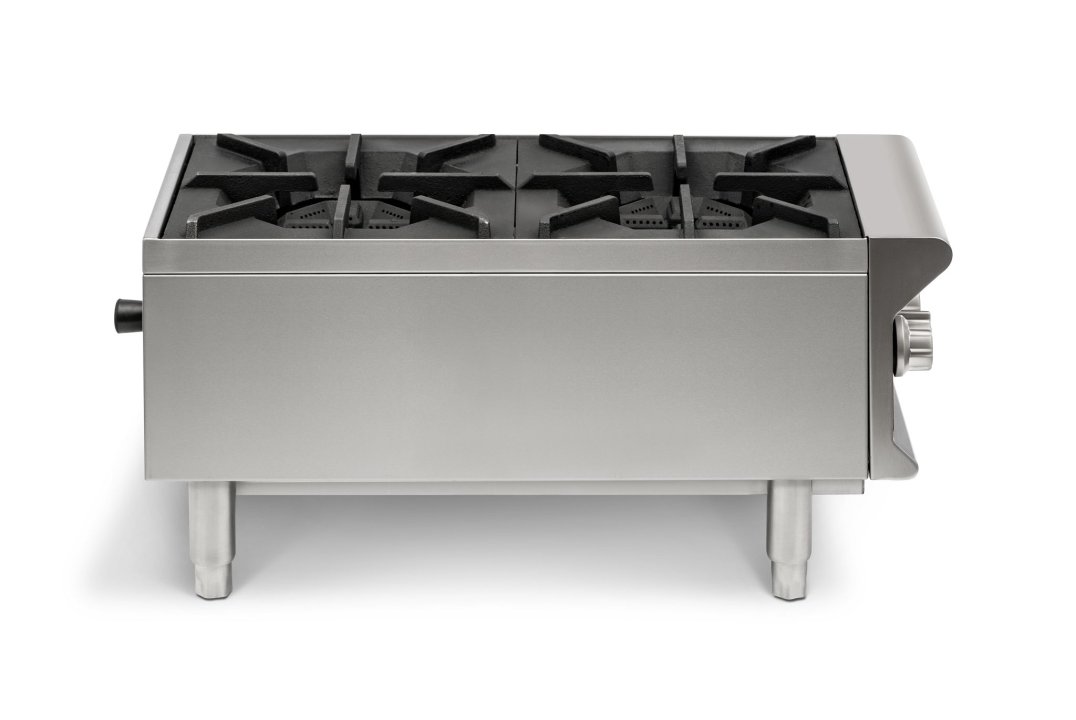

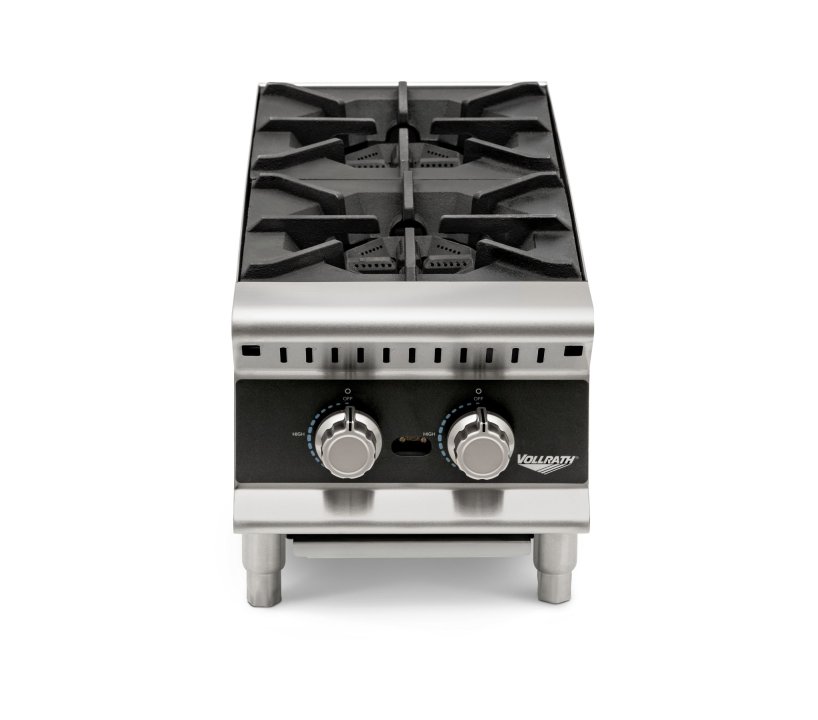

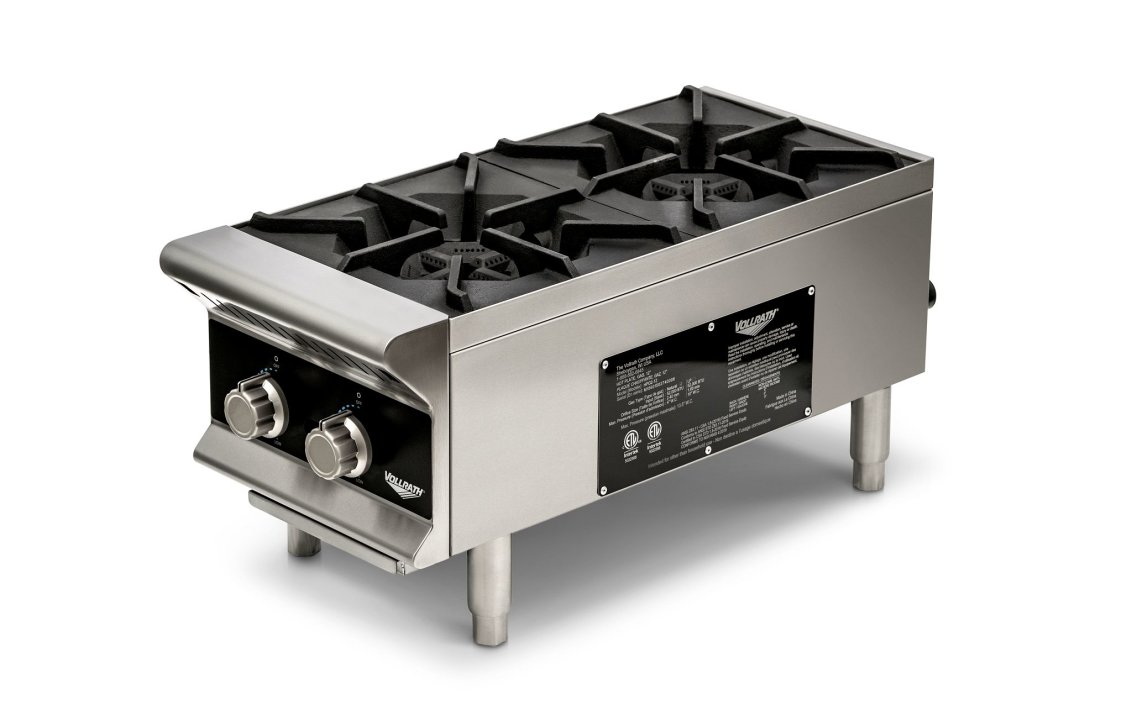

12-inch 2-burner countertop gas hot plate
Vollrath® gas hot plates transform any kitchen space into high-efficiency food prep. Designed for durability and low maintenance, the welded steel construction and individual stainless steel burner grates heat quickly and evenly, while saving valuable countertop space. With 52,000 BTUs of heating power, this gas hot plate is a great choice for any kitchen.
12-inch-wide hot plate with 2 burners fits virtually anywhere
Smooth, welded stainless steel design is built to last
Adjustable flame settings create consistent, even heating
Metal knobs are easy to use and guaranteed for life
Ships natural-gas-ready; includes propane conversion kit
Product Specifications
Model Information
| Name | Value |
|---|---|
| Model | HPA1002 |
| UPC | 029419432950 |
Gas Specifications
| Name | Value |
|---|---|
| Output (BTU) | 52000 |
| Number of Burners | 2 |
| Pilot Type | Standing |

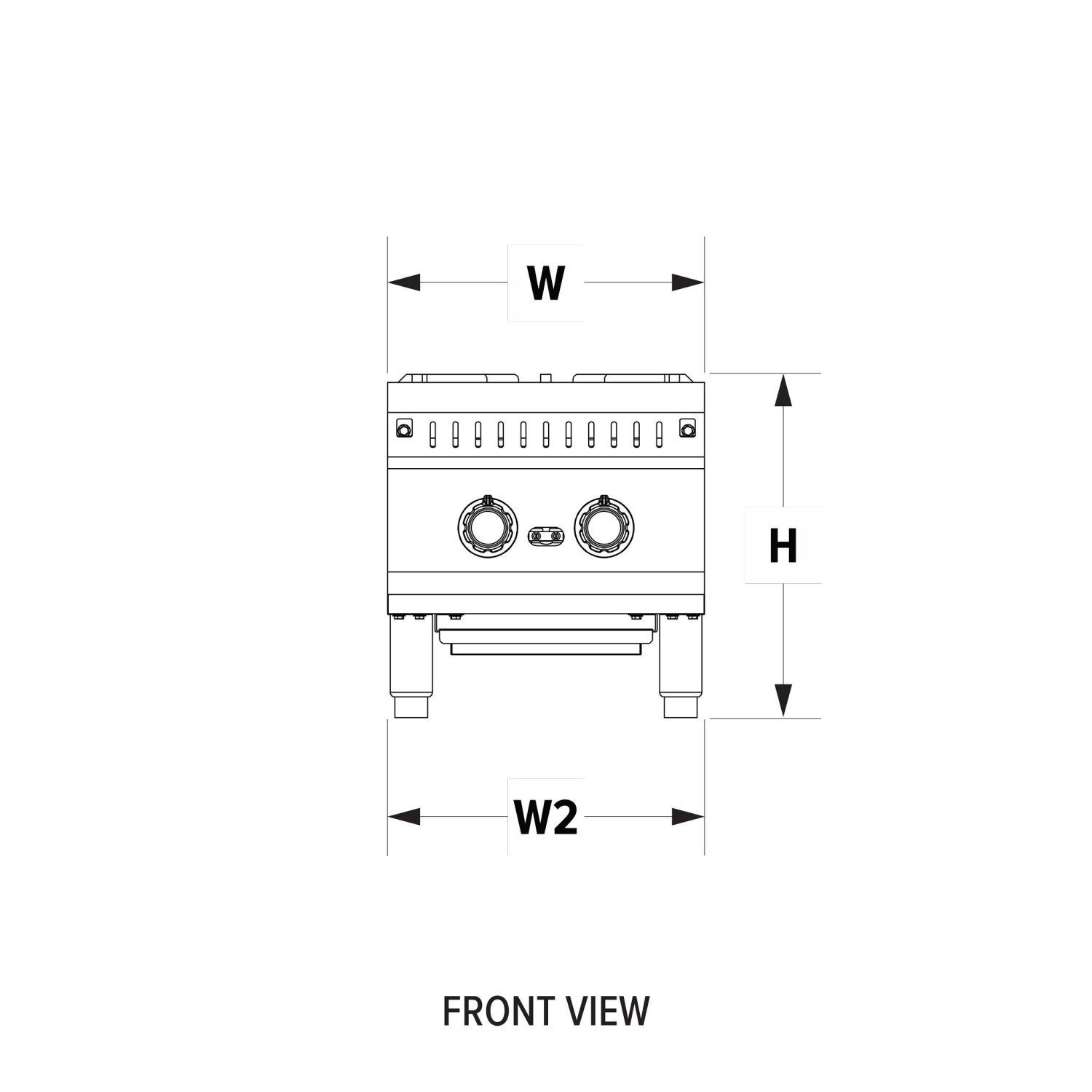

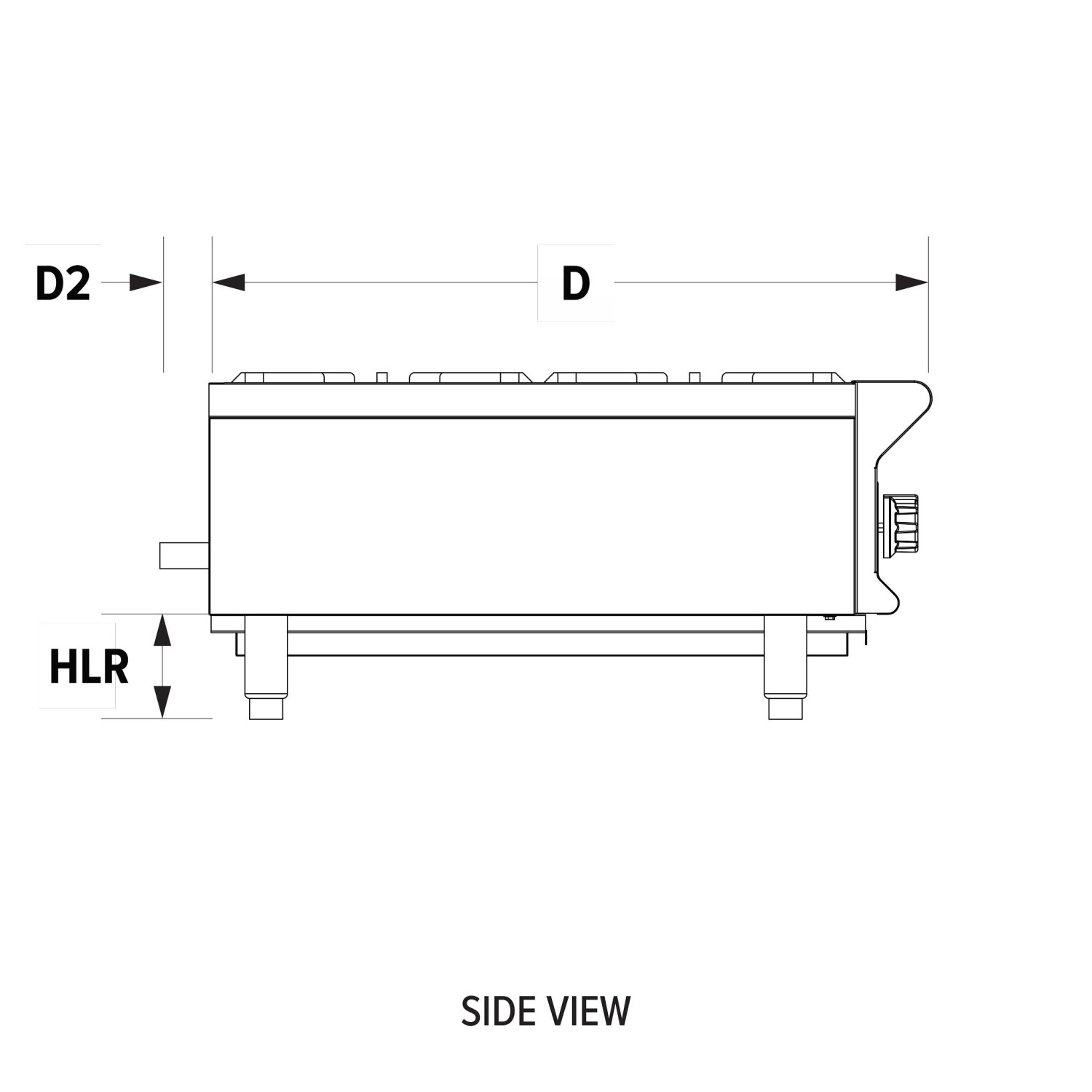

Unit Dimensions
| Name | Value |
|---|---|
| (W) Width (IN) | 12.2 |
| (D) Depth (IN) | 29.25 |
| (H) Height (IN) | 13.25 |
| (HLR) Adjustable Legs (IN) | 4 - 5.5 |
| (WCS) Cooking Surface Width (IN) | 12 |
| (DCS) Cooking Surface Depth (IN) | 23.74 |
| (HB) Height of Body (IN) | 9.25 |
| (W) Width (CM) | 30.4 |
| (D) Depth (CM) | 74.3 |
| (H) Height (CM) | 33.66 |
| (HLR) Adjustable Legs (CM) | 10.2 - 14 |
| (WCS) Cooking Surface Width (CM) | 30.48 |
| (DCS) Cooking Surface Depth (CM) | 60.3 |
| (HB) Height of Body (CM) | 23.5 |
| Size | 12 |
Construction
| Name | Value |
|---|---|
| Countertop or Drop-In | Countertop |
| Control Type | Manual |
| Number of Controls | 2 |
Additional Specifications
| Name | Value |
|---|---|
| Number of Drip Trays | 1 |
Case Lot Measurement
| Name | Value |
|---|---|
| Case Lot | 1 |
Product Parts
| Name | Part # | Price |
|---|---|---|
| DRIP TRAY SUPPORTS - HP | 353366-1 | $53.90 |
| REGULATOR 4IN WC | 353374-1 | $227.70 |
| HOT PLT PILOT/BRN ASSY - REAR | 353371-1 | $313.40 |
| DRIP TRAY - 12IN HP-MDCB | 353365-1 | $86.50 |
| 12" HOT PLATE MANIFOLD | 353372-1 | $188.00 |
| HOT PLATE TOP GRATE | 353362-1 | $165.50 |
| HOT PLT PILOT/BRN ASSY - FRONT | 353370-1 | $253.10 |
| FASCIA - OVERLAY 12IN HOT PLAT | 353361-1 | $37.60 |
| CONTROL KNOB LG INSERT | 353373-1 | $11.30 |
| MANUAL CONTROL VALVE | 353367-1 | $75.90 |
| LEG, GAS APPLIANCE | 353376-1 | $43.10 |
| HPG2-12 FRONT PANEL ASSY | 354215-1 | $200.90 |
| HOT PLATE ORIFICE - NAT GAS | 353368-1 | $6.20 |
| HP/T-STAT GD ORIFICE - LP | 353369-1 | $6.30 |
| BURNER SUPPORT - HOT PLATE | 353363-1 | $56.40 |
